2015 Volvo EC210D

1/9
Used Volvo EC210D Excavator 2015 Model / 1

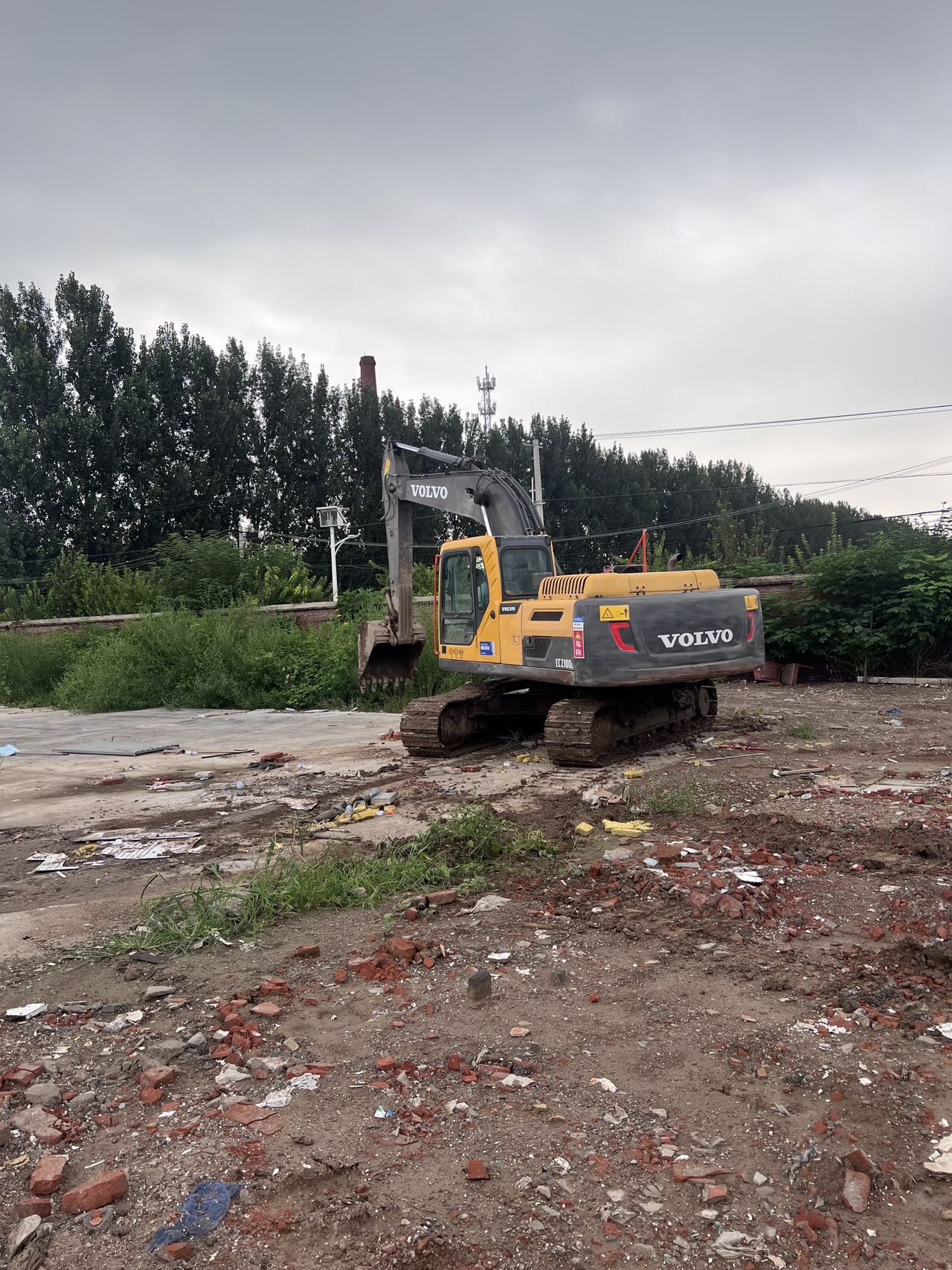

Used Volvo EC210D Excavator 2015 Model / 2

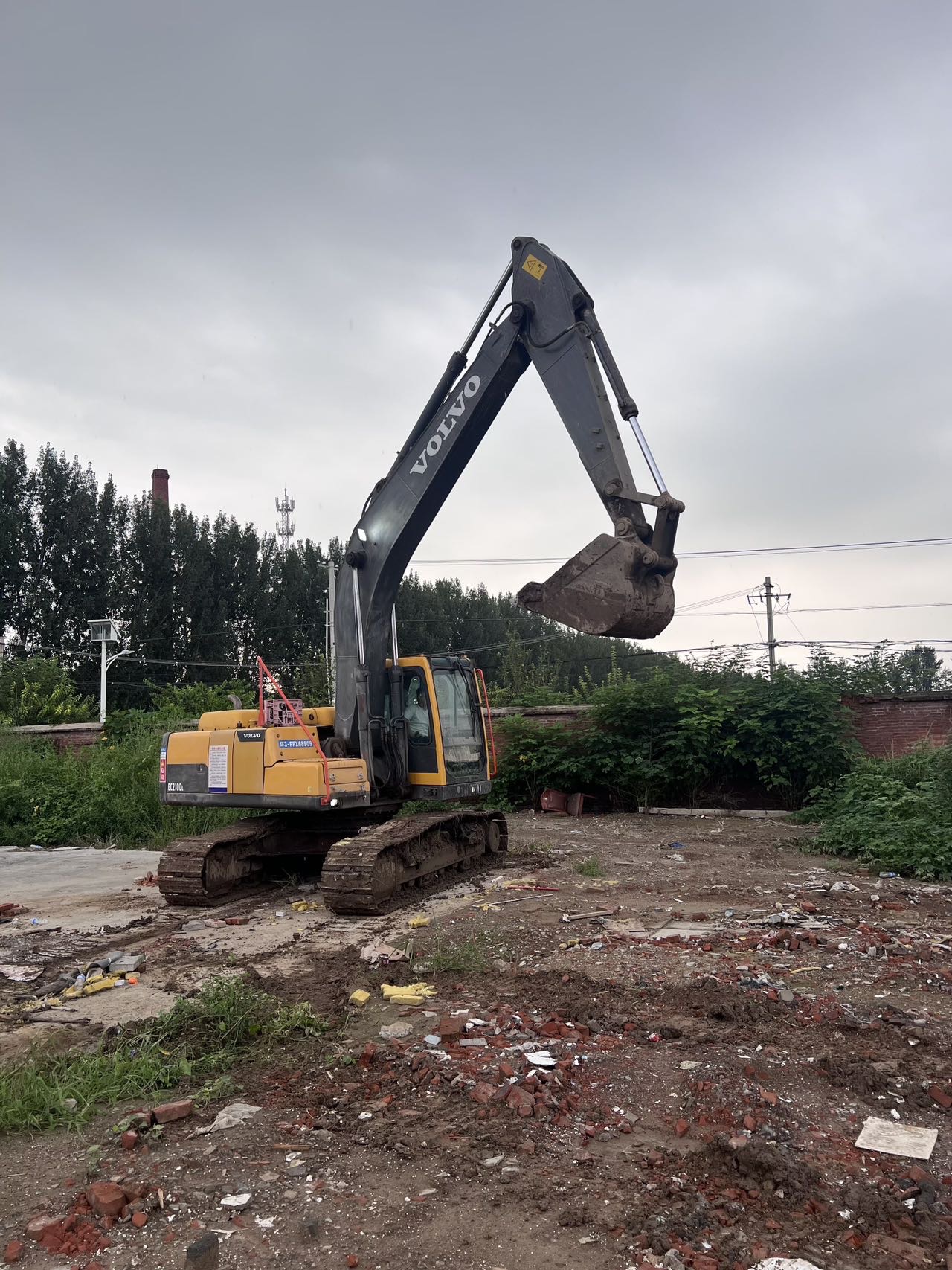

Used Volvo EC210D Excavator 2015 Model / 3

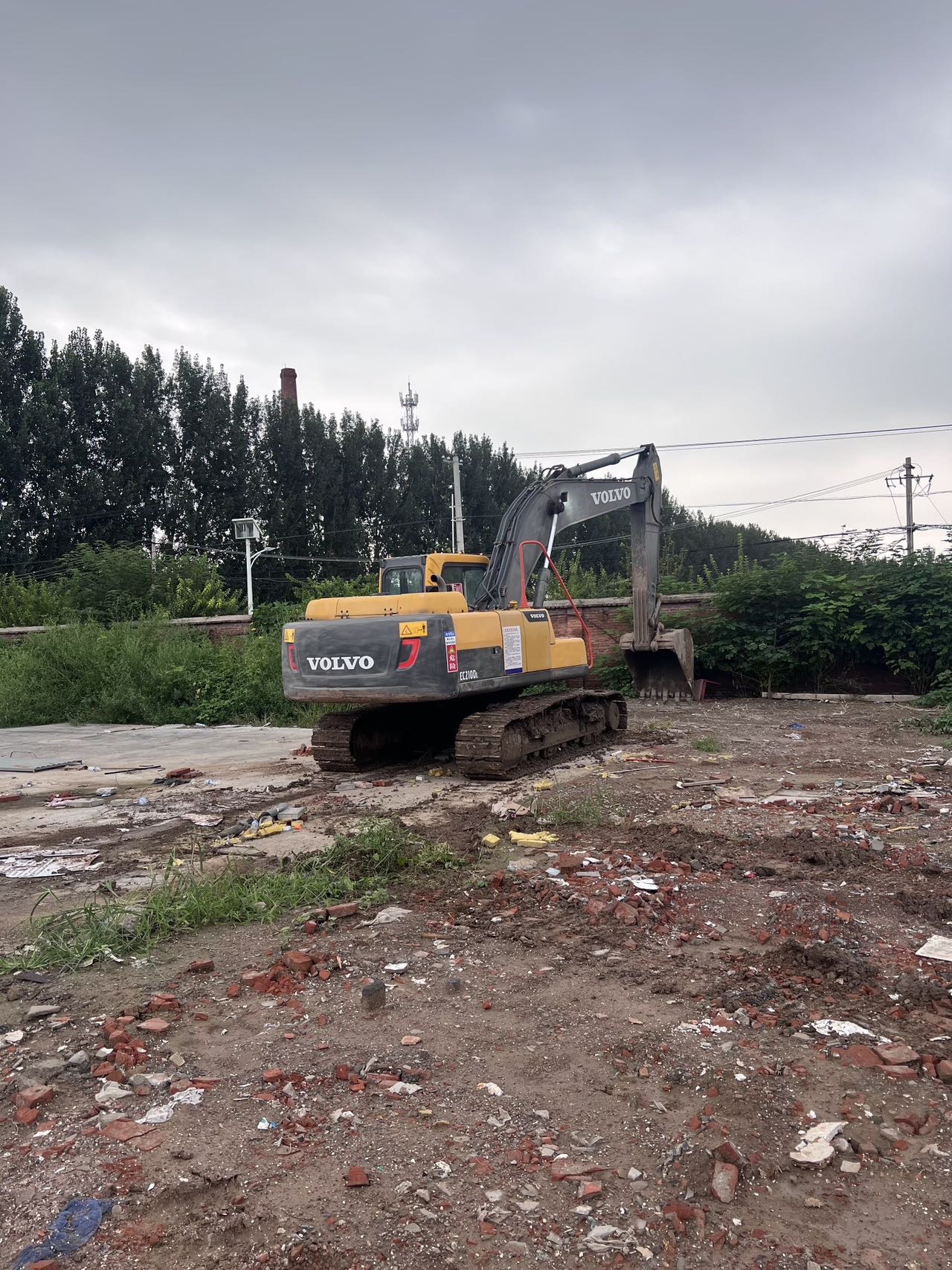

Used Volvo EC210D Excavator 2015 Model / 4

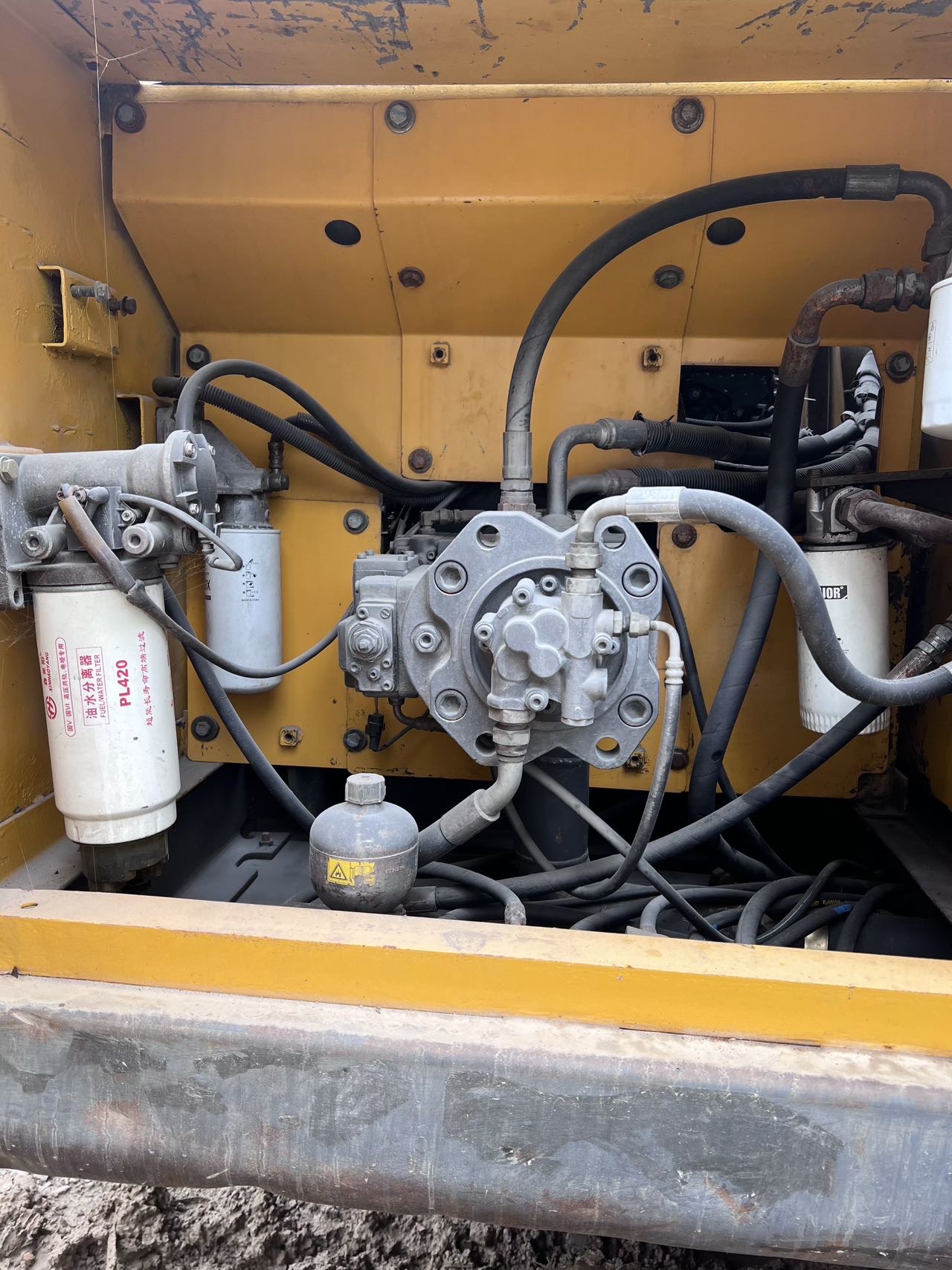

Used Volvo EC210D Excavator 2015 Model / 5

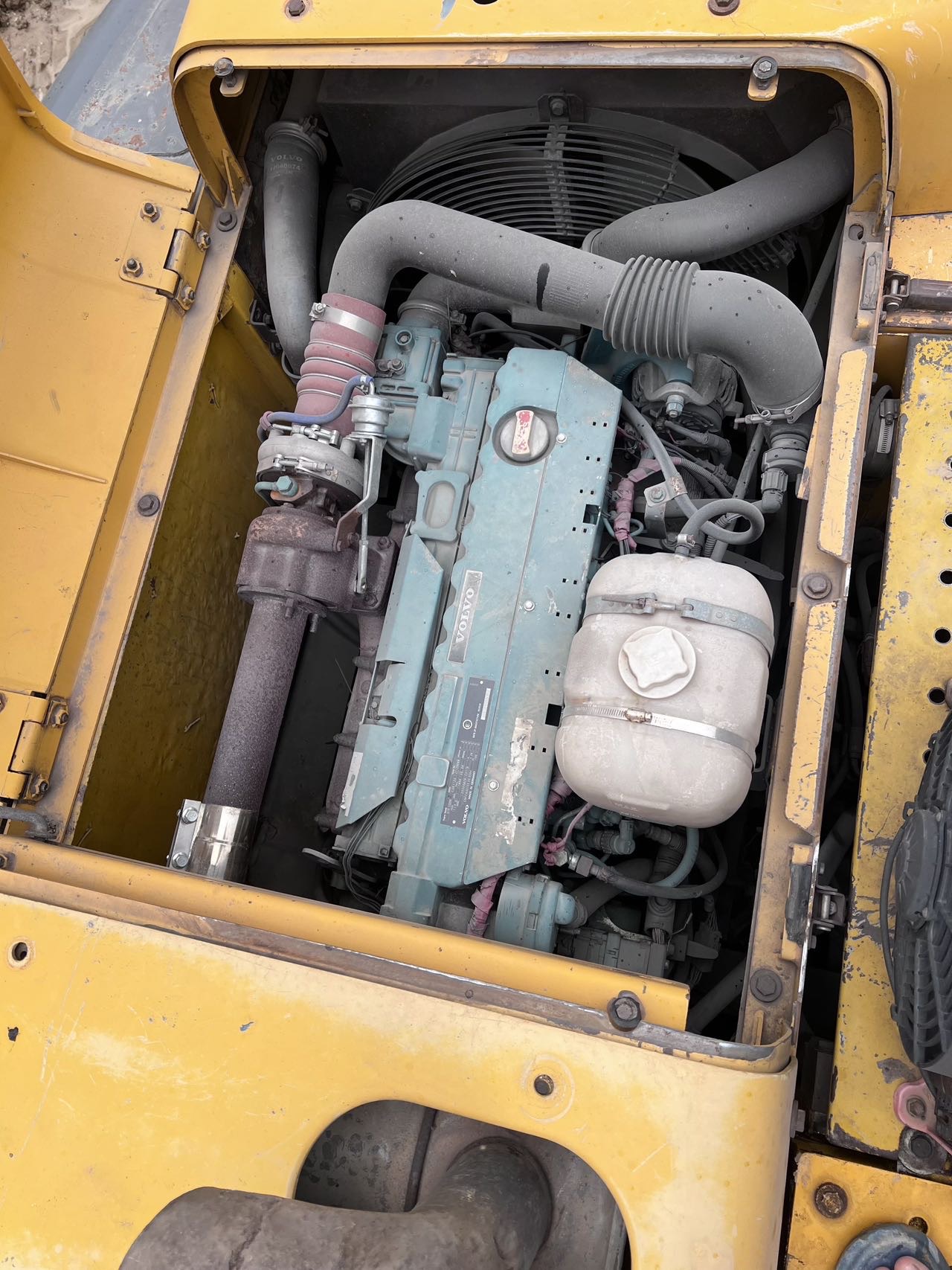

Used Volvo EC210D Excavator 2015 Model / 6

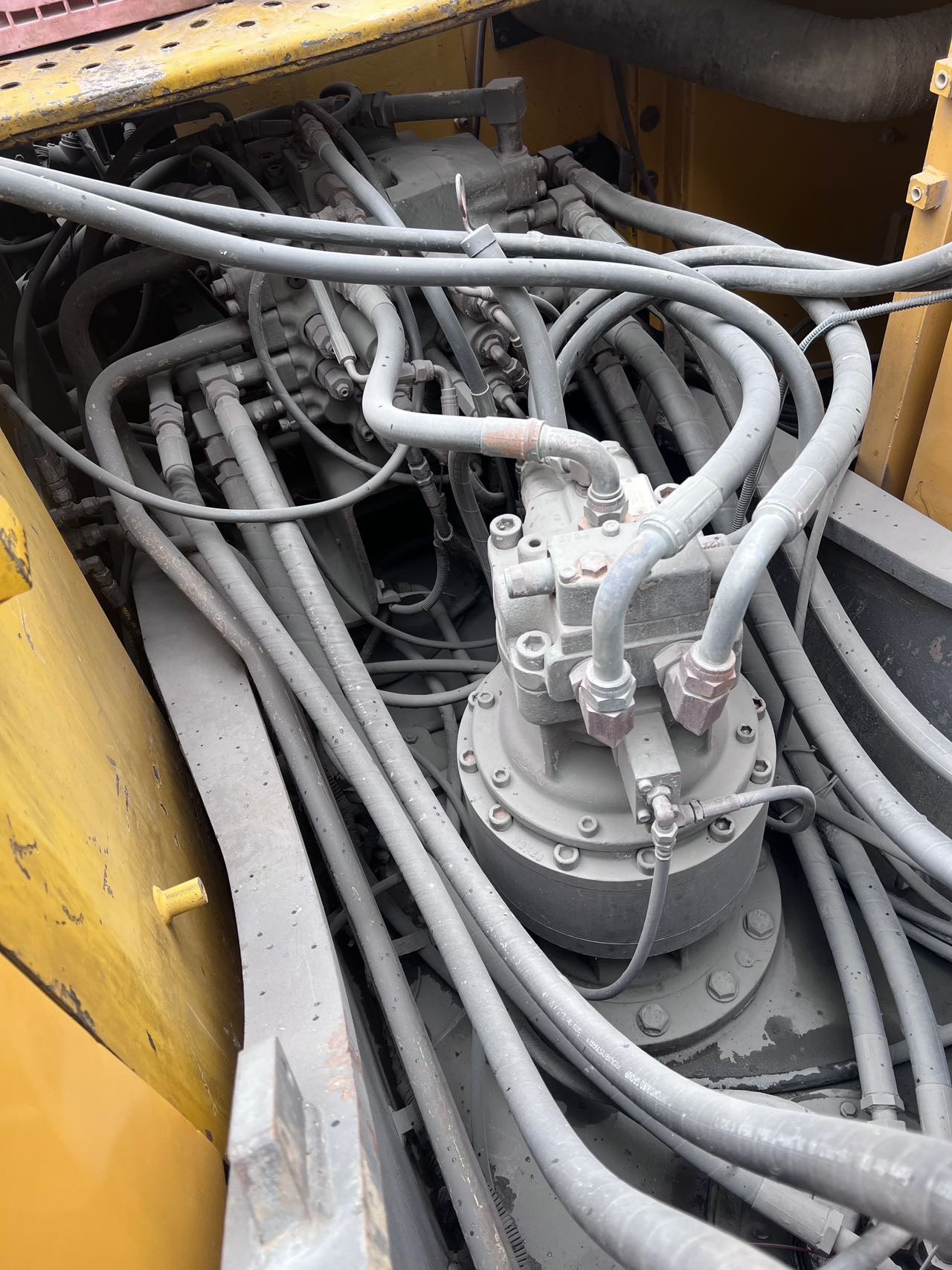

Used Volvo EC210D Excavator 2015 Model / 7

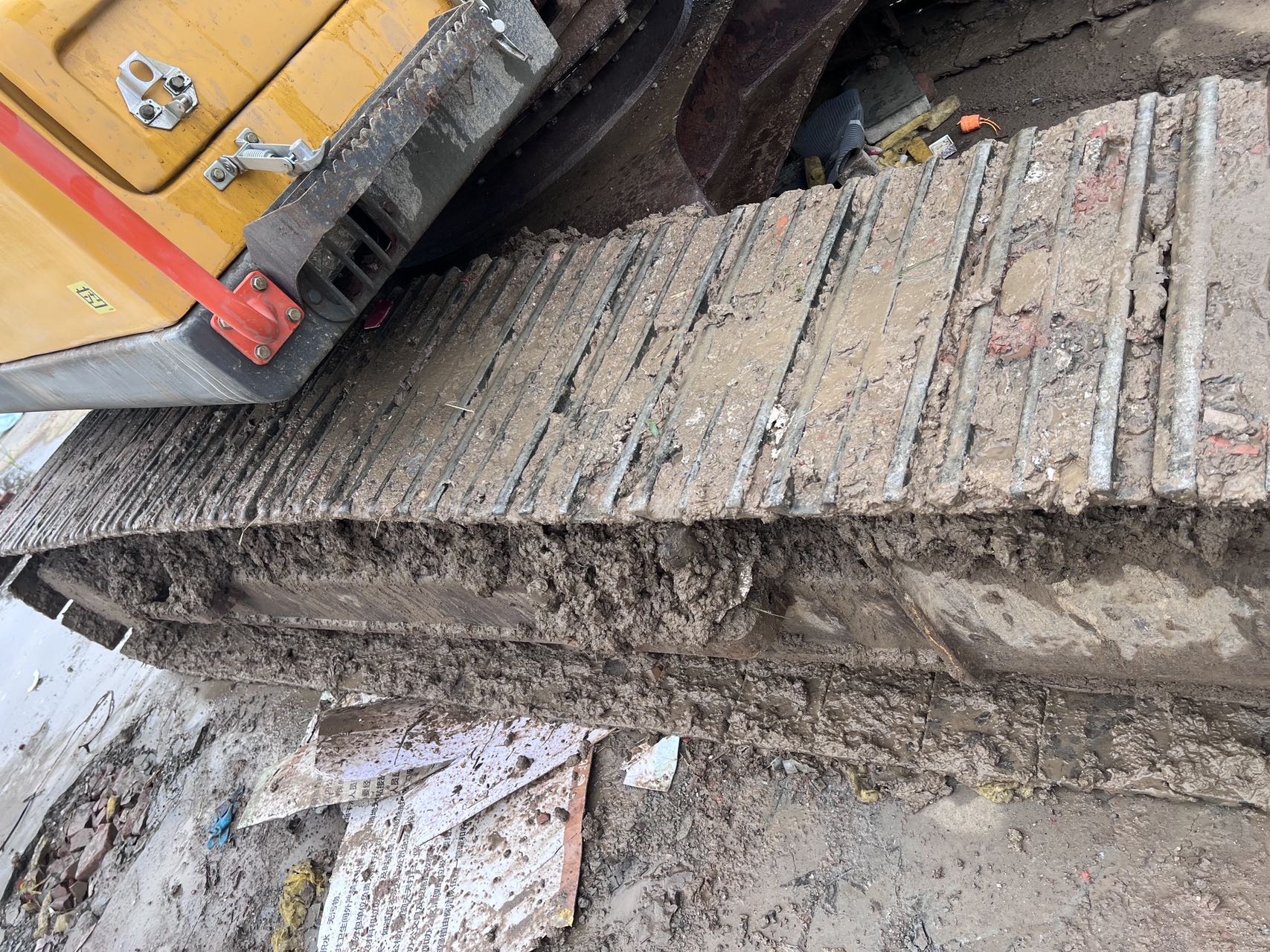

Used Volvo EC210D Excavator 2015 Model / 8

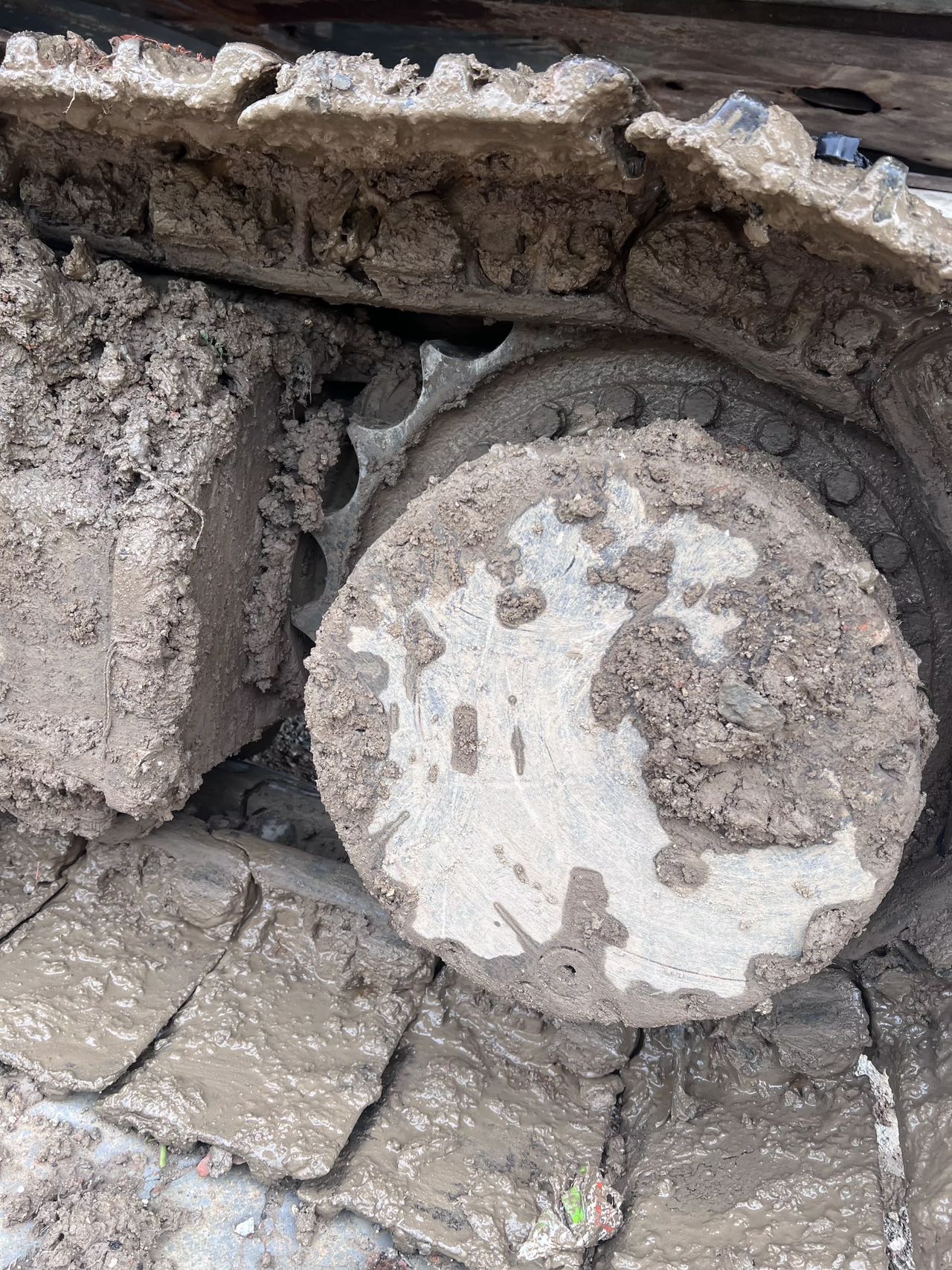

Used Volvo EC210D Excavator 2015 Model / 9

Product Description

Detailed Introduction of Second-hand Volvo EC210 Excavator Dear customer, hello! We currently have a second-hand Volvo EC210 excavator with outstanding performance and excellent condition waiting for your purchase. Since this equipment was put into use, its cumulative working time has only been 4,500 hours, which is far lower than the average service life of similar machinery. This means that it still has a long service life to wait for excavation. This machine is equipped with the original imported Volvo D6E-TA engine, which is renowned for its powerful output and excellent fuel economy, ensuring efficient and stable operation under various complex working conditions. Meanwhile, its advanced hydraulic system is meticulously maintained, responding promptly and providing precise control. It can handle both fine operations and heavy tasks with ease. It is particularly worth mentioning that this EC210 has long served in the field of pure earthwork engineering. Its chassis is solid and durable, with no signs of structural damage or severe wear. The overall structure is very "upright", and the appearance is as clean as new. Moreover, with its obvious price advantage and extremely high cost performance, it is definitely your ideal choice!

SpecificationsValue
No.966525
Tonnage (tons)21
Working weight (kg)18100 - 22800
Bucket capacity (m³)0.52 - 1.22
Boom length (mm)5700
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D5E
Rated power (kw/rpm)123/2000
Cylinder diameter × stroke (mm)108*130
Maximum torque (N.m)670 / 1 600
Number of cylinders (PCS)4
Displacement (L)4.7
Rotation speed (rpm)12.3
Bucket digging force (kN)123
Rod digging force (kN)96
Maximum tractive force (kN)183
Travel speed (km/h)3.5 / 5.8
Turning torque (Nm)76.7
Main overflow set pressure (Mpa)32.4 / 36.3
Maximum flow of main pump (l/min)2 x 212
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)27.9
Main pump typeTwo variable displacement axial piston pumps
Working Hydraulic Circuit (Mpa)32.4 / 34.3
Pilot Oil Circuit (MPa)3.9
Pilot pump flow (L/min)1 x 18
Bucket cylinders - Number × diameter × stroke (mm)1*120 x 1 065
Bucket rod cylinders - Number × diameter × stroke (mm)1*135 x 1 540
Boom cylinders - Number × diameter × stroke (mm)2*125 x 1 235
Pilot pump typeGear pump
Fuel Tank (L)375
Hydraulic Tank (L)160
Engine Oil changes (L)17
Coolant (L)15
Hydraulic System (L)300
Total transport length (mm)9745
Total transport width (mm)2800
Total transport height (mm)3 080
Full cab height (mm)2930
Counterweight ground clearance (mm)1025
Minimum ground clearance (mm)460
Onboard width (mm)2700
Total track length (mm)4160
Track gauge (mm)2200
Track plate width (mm)600
Track ground length (mm)3370
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)9930
Maximum digging depth (mm)6730
Maximum excavation height (mm)9220
Maximum unloading height (mm)6430
Maximum vertical digging depth (mm)5620
Maximum excavation radius of stop surface (mm)9380
see more

Overview

No.966525

Brand Name:

Volvo

Model Number:

EC210D

Year:

2015

Location:

Peking China
