Product Description

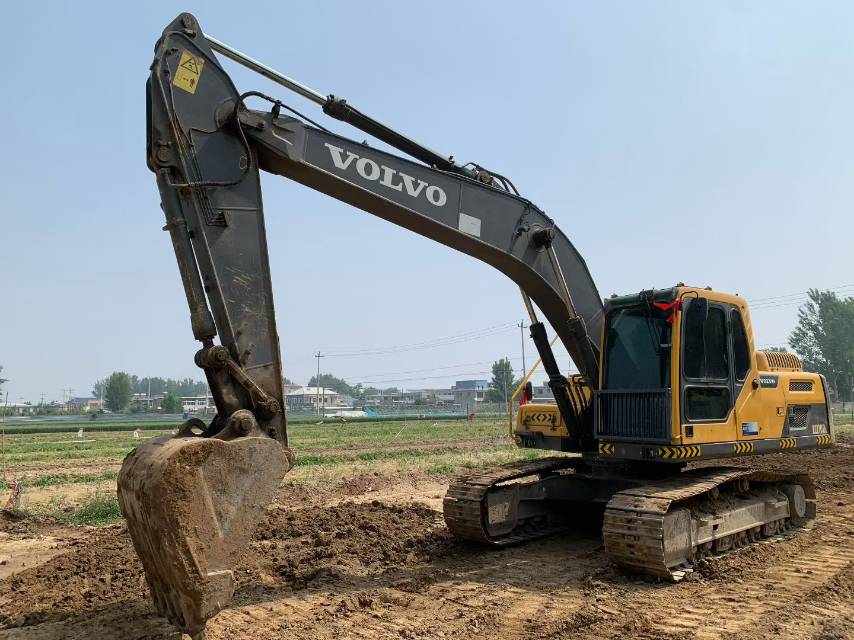

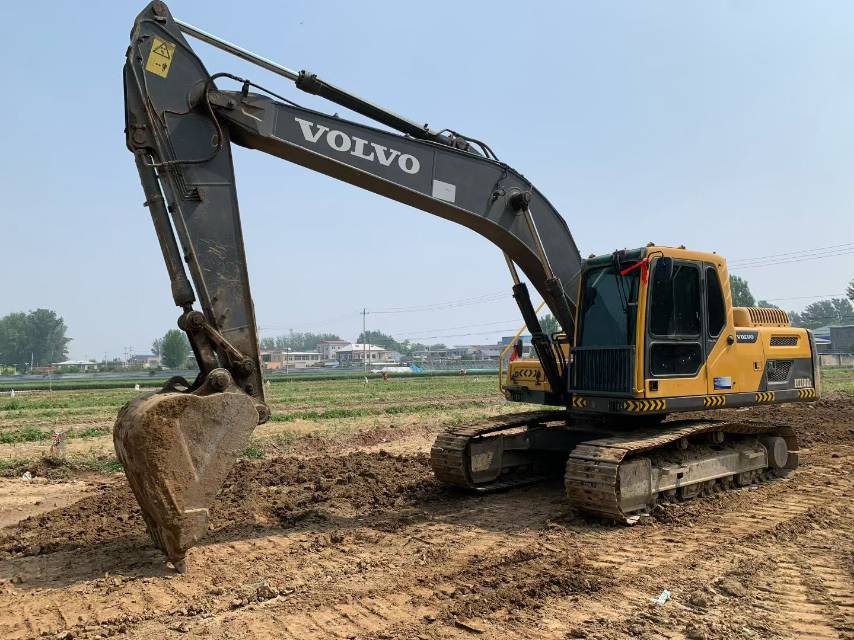

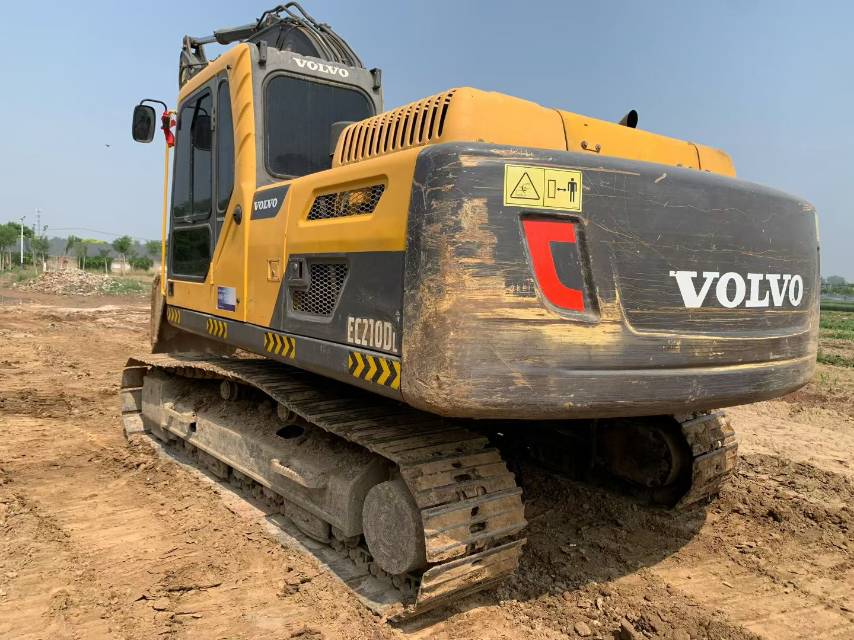

Pure earthwork Volvo 210, with no problems in condition and performance. It's a personal work vehicle and the price is reasonable
| Specifications | Value |
|---|---|
| No. | 935352 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 18100 - 22800 |
| Bucket capacity (m³) | 0.52 - 1.22 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D5E |
| Rated power (kw/rpm) | 123/2000 |
| Cylinder diameter × stroke (mm) | 108*130 |
| Maximum torque (N.m) | 670 / 1 600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.7 |
| Rotation speed (rpm) | 12.3 |
| Bucket digging force (kN) | 123 |
| Rod digging force (kN) | 96 |
| Maximum tractive force (kN) | 183 |
| Travel speed (km/h) | 3.5 / 5.8 |
| Turning torque (Nm) | 76.7 |
| Main overflow set pressure (Mpa) | 32.4 / 36.3 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Two variable displacement axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 32.4 / 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 1 x 18 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*120 x 1 065 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*135 x 1 540 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*125 x 1 235 |
| Pilot pump type | Gear pump |
| Fuel Tank (L) | 375 |
| Hydraulic Tank (L) | 160 |
| Engine Oil changes (L) | 17 |
| Coolant (L) | 15 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 9745 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3 080 |
| Full cab height (mm) | 2930 |
| Counterweight ground clearance (mm) | 1025 |
| Minimum ground clearance (mm) | 460 |
| Onboard width (mm) | 2700 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3370 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 9930 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 9220 |
| Maximum unloading height (mm) | 6430 |
| Maximum vertical digging depth (mm) | 5620 |
| Maximum excavation radius of stop surface (mm) | 9380 |
