Product Description

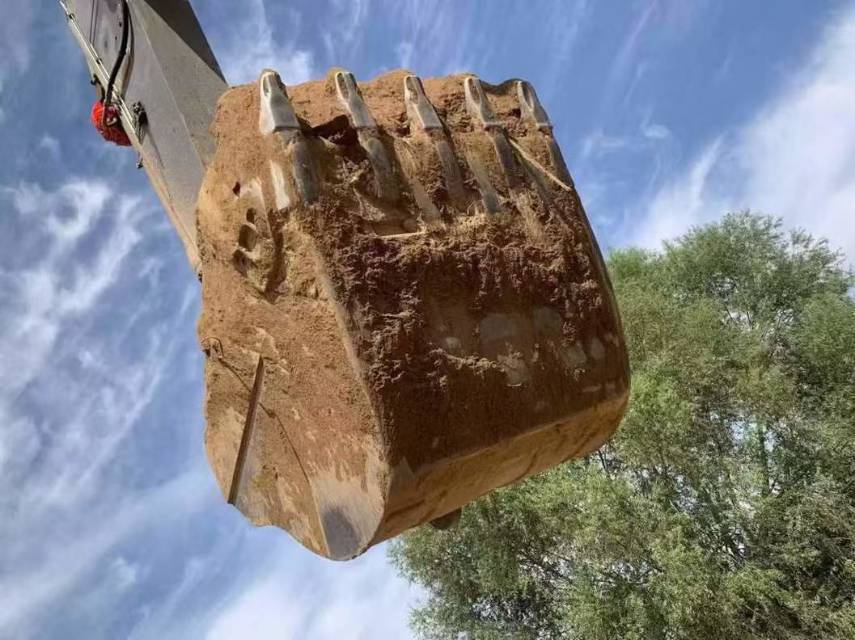

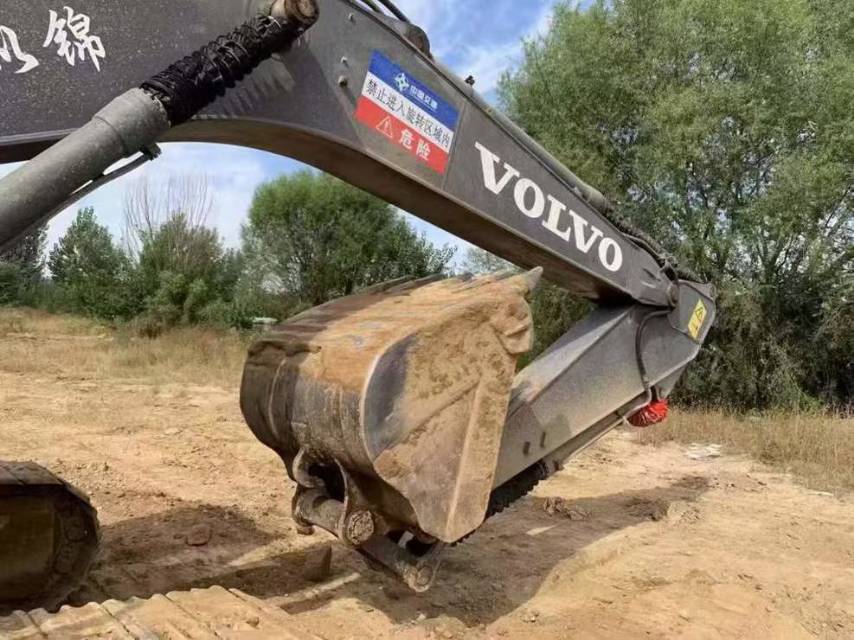

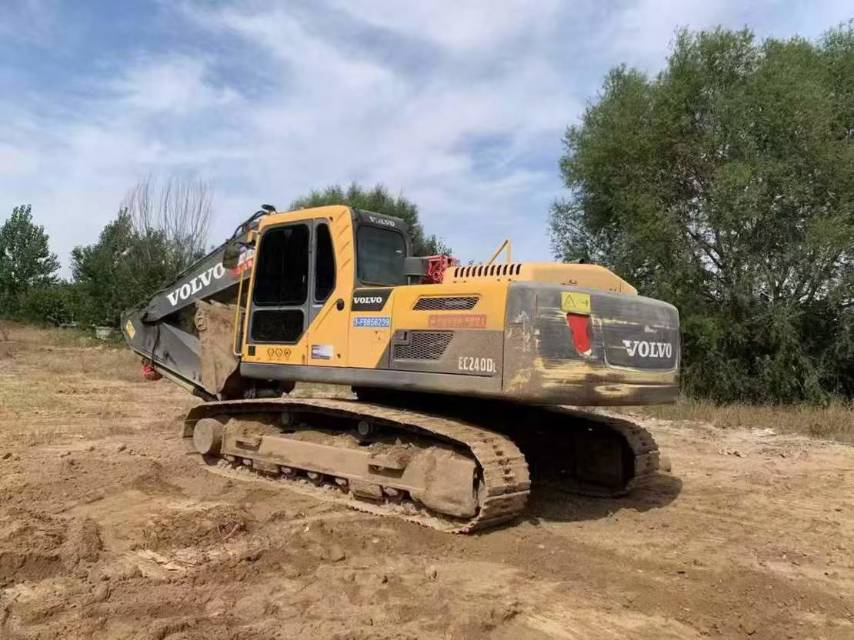

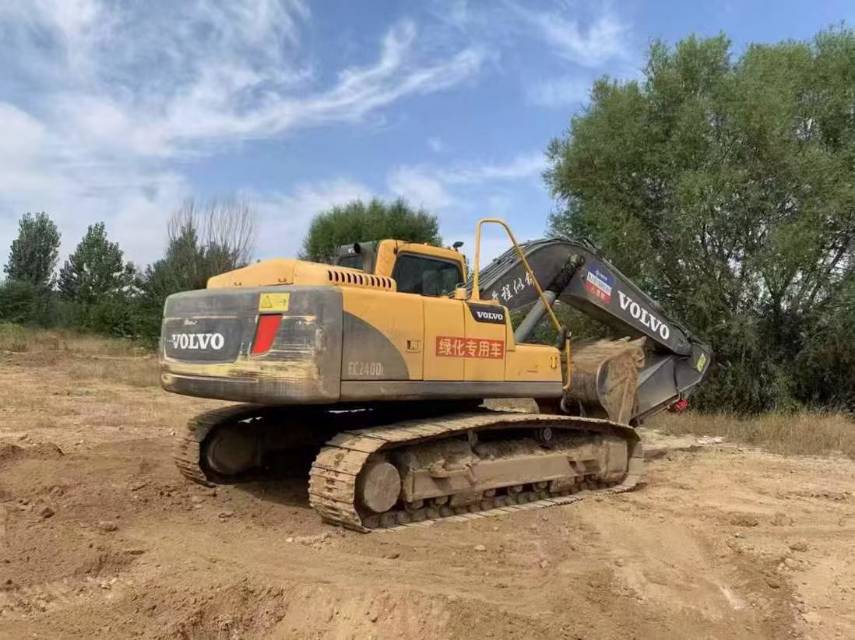

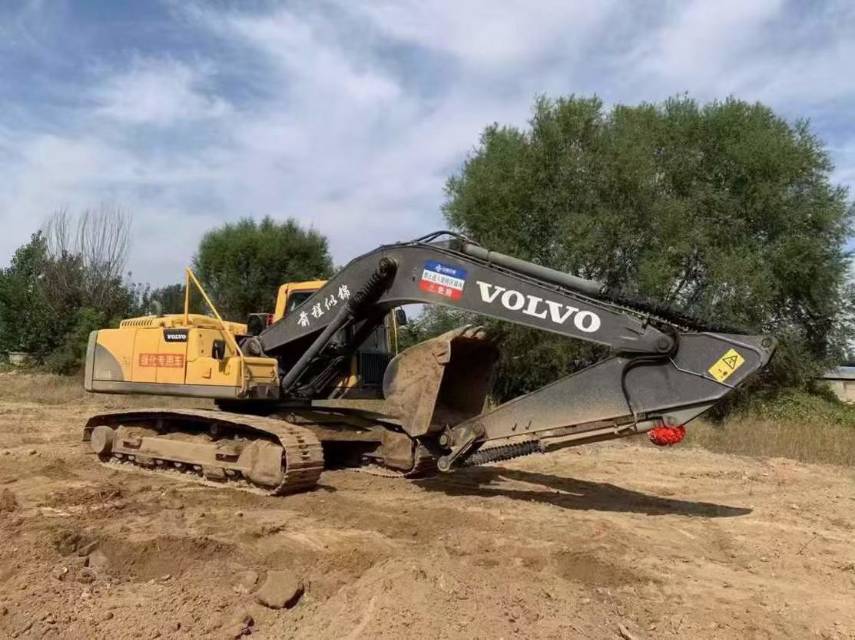

(Group Picture 1) High-end premium Volvo EC240D, full original vehicle earthwork bucket, quick and gentle movement, normal maintenance, mainly check the three major components, none of the screws have been moved, no oil leakage, and the electrical system is normal!
| Specifications | Value |
|---|---|
| No. | 940479 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24300 |
| Bucket capacity (m³) | 1.05-1.98 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2970 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D7D |
| Rated power (kw/rpm) | 134/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 108 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Working form | Maximum torque: 750N.m/1400rpm, turbocharged |
| Ground specific pressure (Kpa) | 50 |
| Rotation speed (rpm) | 11.4 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 160.8 (Standard mode) /175.5 (Extra mode) |
| Rod digging force (kN) | 111.1 (Standard mode) /121.6 (Extra mode) |
| Travel speed (km/h) | 3. 2/5.5 |
| Rotary hydraulic motor type | Axial piston hydraulic motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 230 * 2 + 20 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1150 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1665 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1345 |
| Fuel Tank (L) | 380 |
| Hydraulic Tank (L) | 190 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 44 |
| Hydraulic System (L) | 320 |
| Total transport length (mm) | 10020 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3040 |
| Full cab height (mm) | 2990 |
| Counterweight ground clearance (mm) | 1080 |
| Minimum ground clearance (mm) | 470 |
| Minimum turning radius of front working device (mm) | 3890 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4460 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3660 |
| Maximum digging radius (mm) | 10260 |
| Maximum digging depth (mm) | 6980 |
| Maximum excavation height (mm) | 9690 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5970 |
| Maximum excavation radius of stop surface (mm) | 10080 |
| Maximum effective digging depth (mm) | 6740 |
