2019 Volvo EC240B

1/9
Used Volvo EC240B Excavator 2019 Model / 1

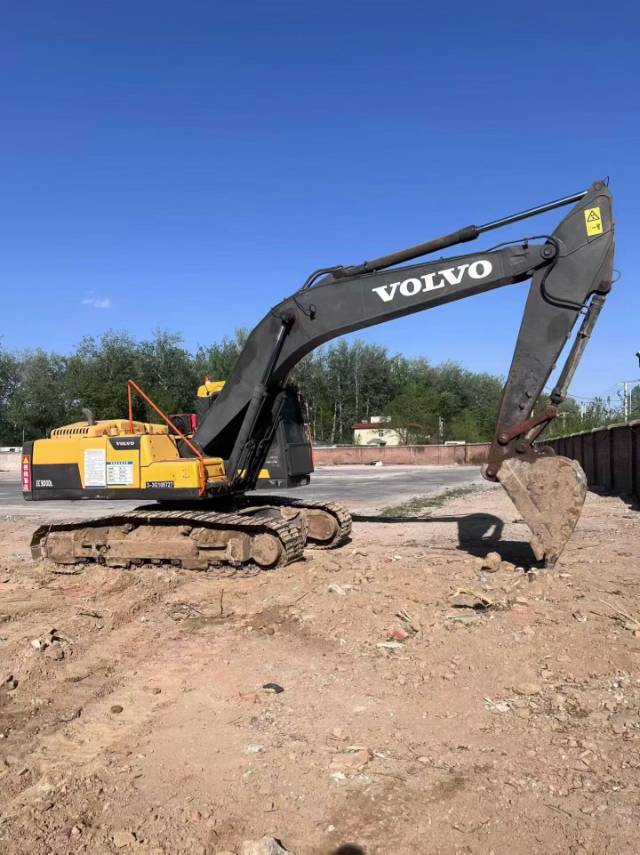

Used Volvo EC240B Excavator 2019 Model / 2

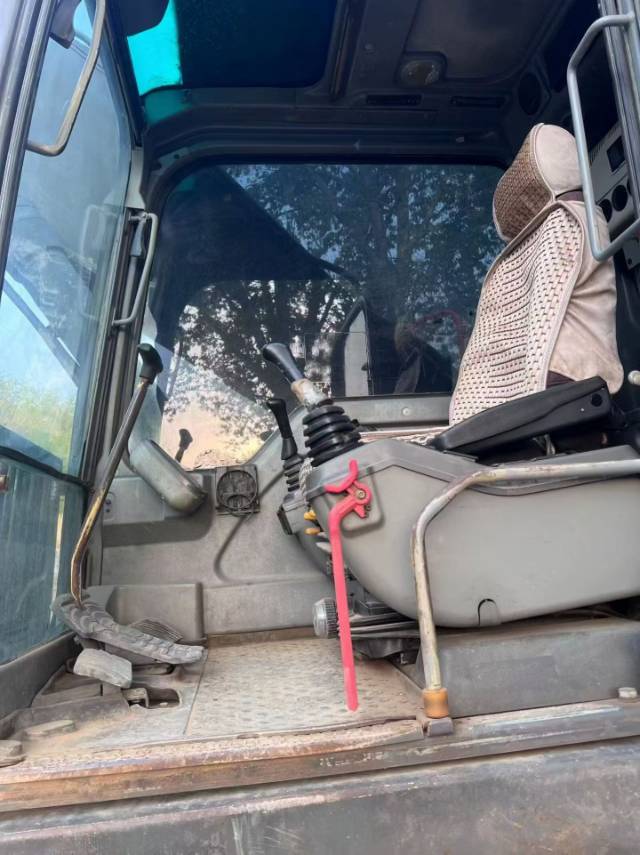

Used Volvo EC240B Excavator 2019 Model / 3

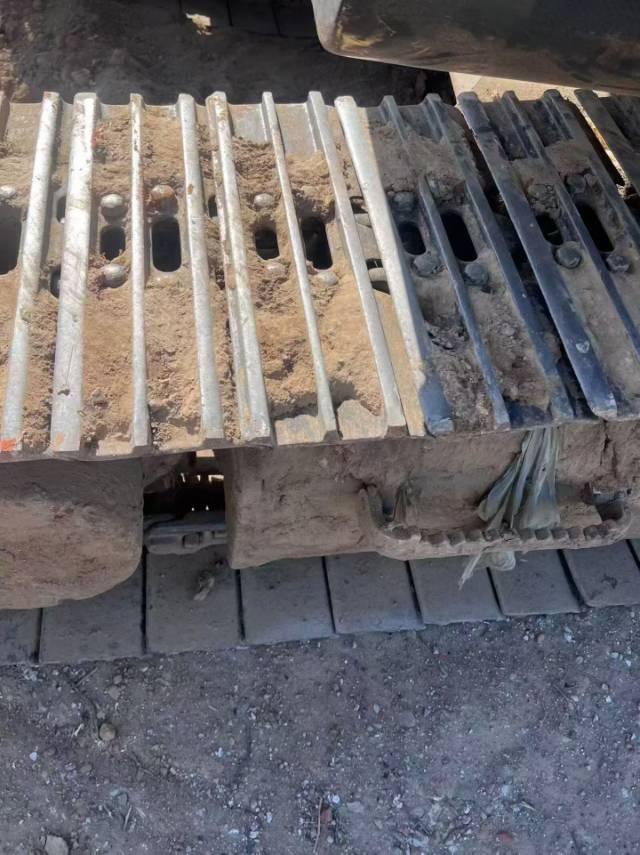

Used Volvo EC240B Excavator 2019 Model / 4

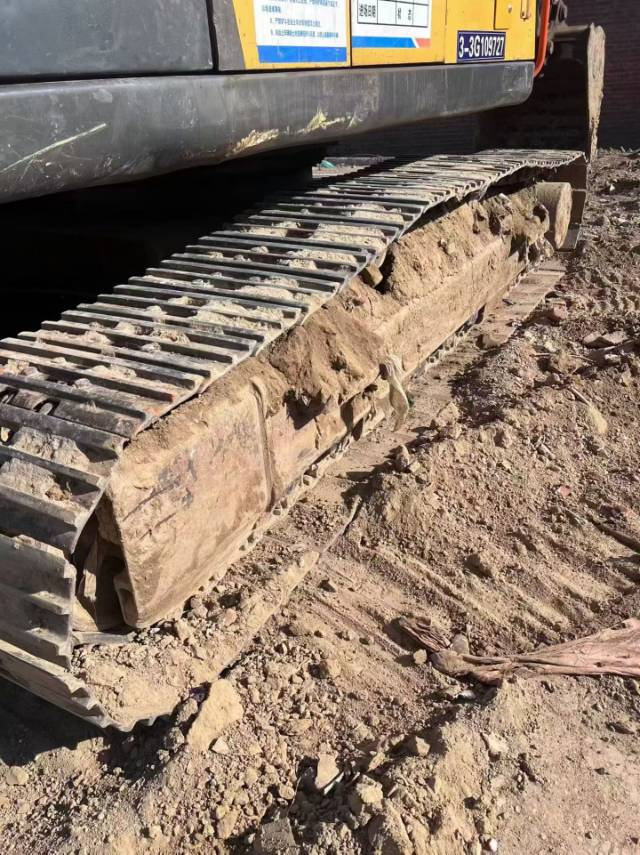

Used Volvo EC240B Excavator 2019 Model / 5

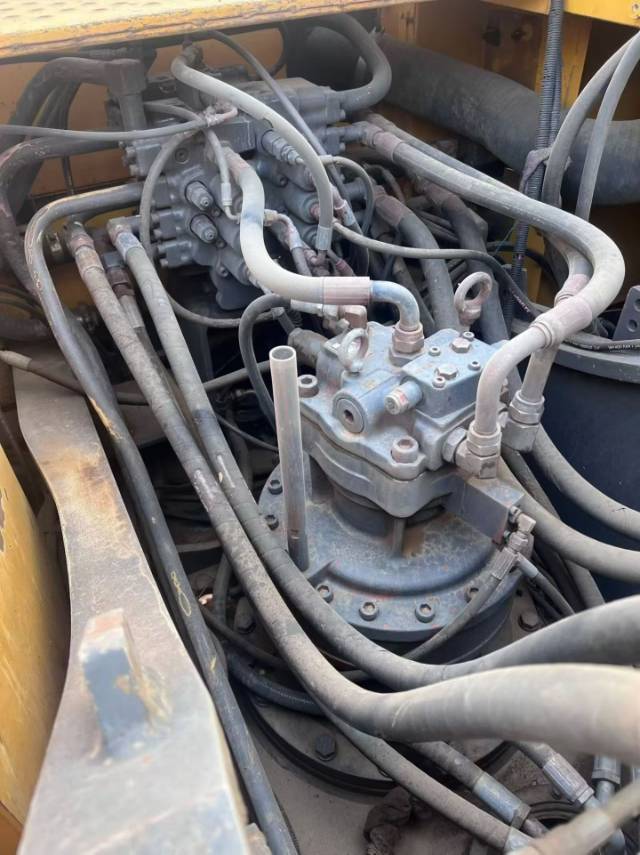

Used Volvo EC240B Excavator 2019 Model / 6

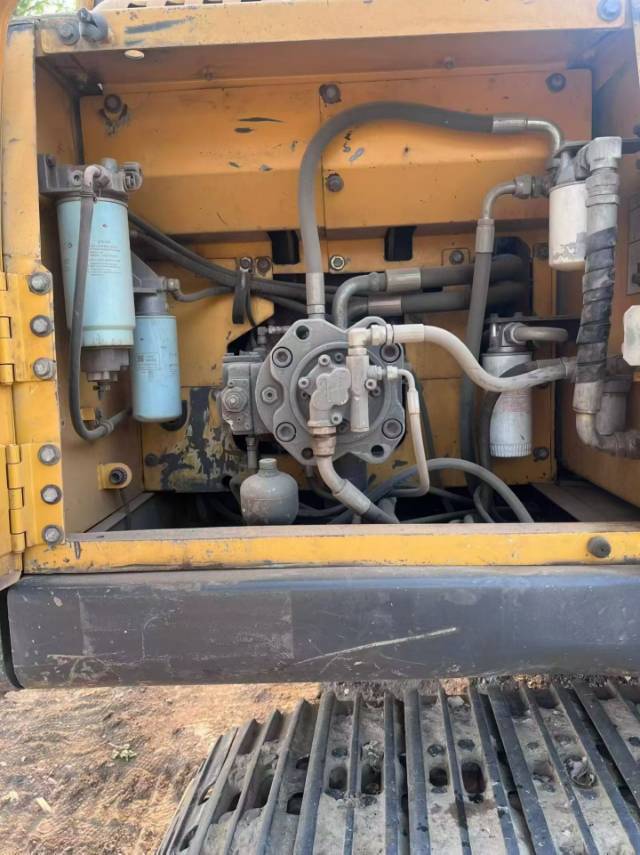

Used Volvo EC240B Excavator 2019 Model / 7

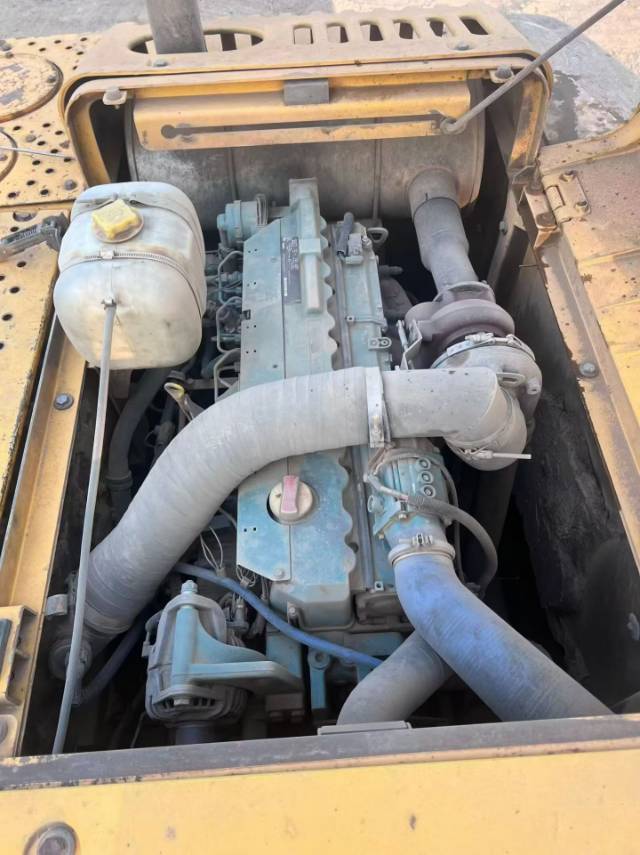

Used Volvo EC240B Excavator 2019 Model / 8
Used Volvo EC240B Excavator 2019 Model / 9

Product Description

【 Premium Recommendation 】 Volvo 240 excavator, with a working time of only 3,500 hours, is in excellent condition and has stable and reliable performance. This excavator not only has a well-maintained appearance but also retains a very high degree of integrity in its internal structure. Its power system is equipped with an original imported Volvo engine, which is powerful and runs smoothly. Whether it is facing hard rocks or soft soil, it can handle them with ease. The hydraulic system has been professionally maintained to ensure smooth and precise operation, making every excavation action appear so natural and coordinated. In addition, this equipment also features excellent fuel economy and can effectively reduce operating costs. It is particularly worth mentioning that this Volvo 240 performs exceptionally well during use: it has a strong digging force and can complete tasks quickly even when encountering relatively hard ground. Meanwhile, there is no leakage in all major components such as the engine compartment and the pump station, ensuring the stability and safety during long-term operation. For friends who pursue efficient construction and have a limited budget, this second-hand excavator with extremely high cost performance i

SpecificationsValue
No.965318
Tonnage (tons)24
Working weight (kg)24300
Bucket capacity (m³)1.05-1.98
Boom length (mm)6000
Rod length (mm)2970
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVolvo D7D
Rated power (kw/rpm)134/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)108 x 130
Number of cylinders (PCS)6
Displacement (L)7.1
Working formMaximum torque: 750N.m/1400rpm, turbocharged
Ground specific pressure (Kpa)50
Rotation speed (rpm)11.4
Climbing ability (%)70
Bucket digging force (kN)160.8 (Standard mode) /175.5 (Extra mode)
Rod digging force (kN)111.1 (Standard mode) /121.6 (Extra mode)
Travel speed (km/h)3. 2/5.5
Rotary hydraulic motor typeAxial piston hydraulic motor
Type of walking hydraulic motorVariable axial piston motor
Maximum flow of main pump (l/min)230 * 2 + 20
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)26.5
Control Hydraulic Circuit (Mpa)3.9
Main pump typeVariable axial piston pump ×2+ gear pump
Working Hydraulic Circuit (Mpa)31.4/34.3
Bucket cylinders - Number × diameter × stroke (mm)1-130 x 1150
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1665
Boom cylinders - Number × diameter × stroke (mm)2-135 x 1345
Fuel Tank (L)380
Hydraulic Tank (L)190
Engine Oil changes (L)32
Coolant (L)44
Hydraulic System (L)320
Total transport length (mm)10020
Total transport width (mm)2990
Total transport height (mm)3040
Full cab height (mm)2990
Counterweight ground clearance (mm)1080
Minimum ground clearance (mm)470
Minimum turning radius of front working device (mm)3890
Back end turning radius (mm)2940
Total track length (mm)4460
Track gauge (mm)2390
Track plate width (mm)600
Total track width (mm)2990
Track ground length (mm)3660
Maximum digging radius (mm)10260
Maximum digging depth (mm)6980
Maximum excavation height (mm)9690
Maximum unloading height (mm)6800
Maximum vertical digging depth (mm)5970
Maximum excavation radius of stop surface (mm)10080
Maximum effective digging depth (mm)6740
see more

Overview

No.965318

Brand Name:

Volvo

Model Number:

EC240B

Year:

2019

Location:

Hebei China
