Product Description

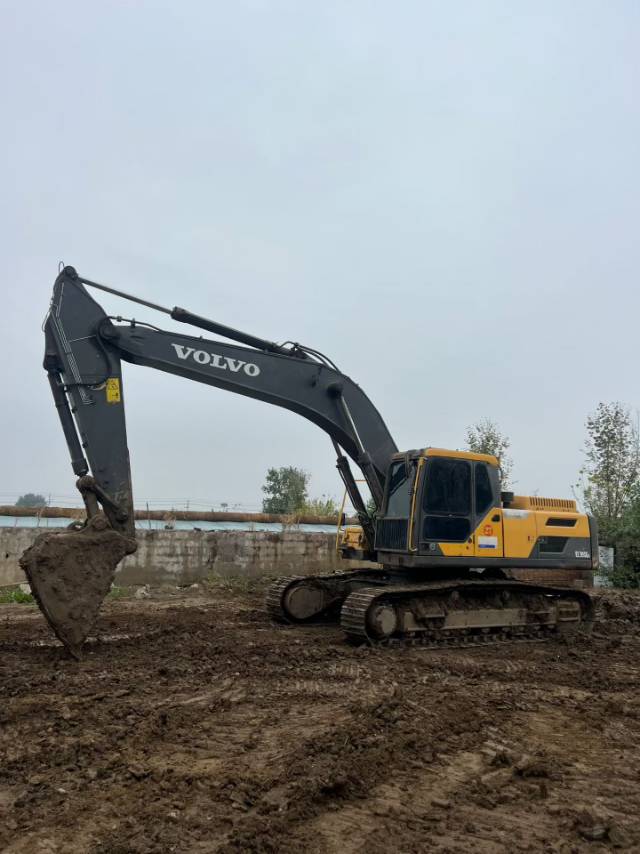

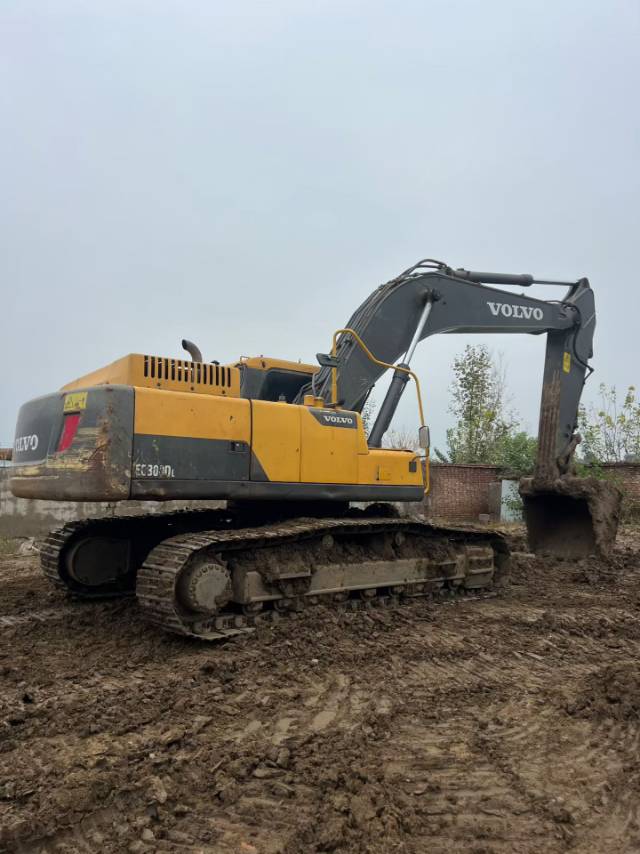

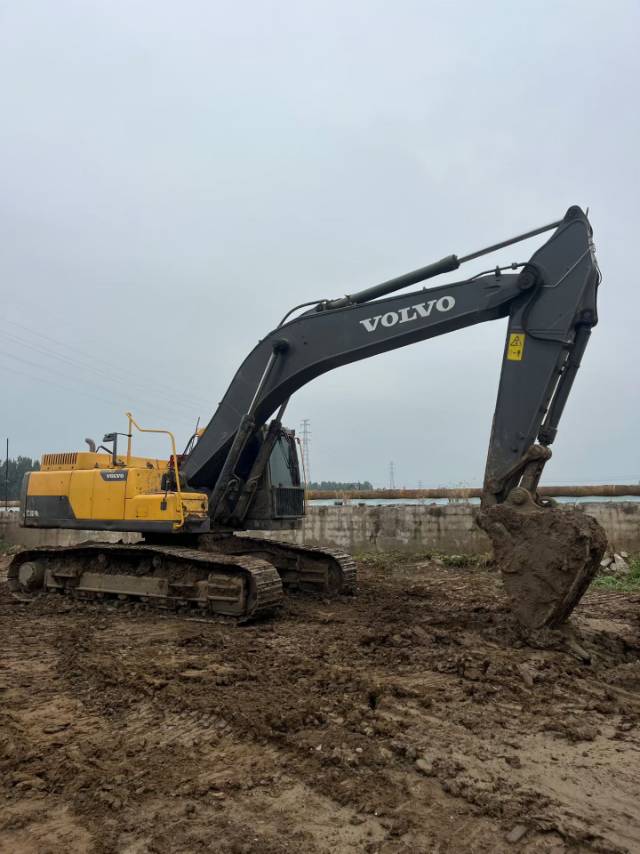

Volvo 300DL genuine car from 2018, meeting the National III emission standards, has been in operation for over 7,000 hours. The original vehicle panel bears the Volvo logo. It's a personal first-hand car with complete procedures. If you like it, you can chat privately for a low price. There are a large number of detailed pictures and videos
| Specifications | Value |
|---|---|
| No. | 939914 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30040 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 6200 |
| Rod length (mm) | 2550 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D7E |
| Rated power (kw/rpm) | 170/1800 |
| Cylinder diameter × stroke (mm) | 108X130 |
| Maximum torque (N.m) | 1080/1350 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.1 |
| Rotation speed (rpm) | 10.7 |
| Bucket digging force (kN) | 186 |
| Rod digging force (kN) | 161 |
| Maximum tractive force (kN) | 247 |
| Travel speed (km/h) | 3.4/5.4 |
| Turning torque (Nm) | 110.9 |
| Maximum flow of main pump (l/min) | 2 x 263 |
| Traveling Hydraulic Circuit (Mpa) | 36.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Pilot pump flow (L/min) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1×140 x 1140 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1×150 x 1745 |
| Boom cylinders - Number × diameter × stroke (mm) | 2×140 x 1480 |
| Fuel Tank (L) | 470 |
| Hydraulic Tank (L) | 195 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 10640 |
| Total transport width (mm) | 3190 |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1135 |
| Minimum ground clearance (mm) | 480 |
| Onboard width (mm) | 2890 |
| Total track length (mm) | 4870 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4015 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 50 |
| Maximum digging radius (mm) | 10190 |
| Maximum digging depth (mm) | 6850 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6670 |
| Maximum vertical digging depth (mm) | 5730 |
| Maximum excavation radius of stop surface (mm) | 9980 |
