Product Description

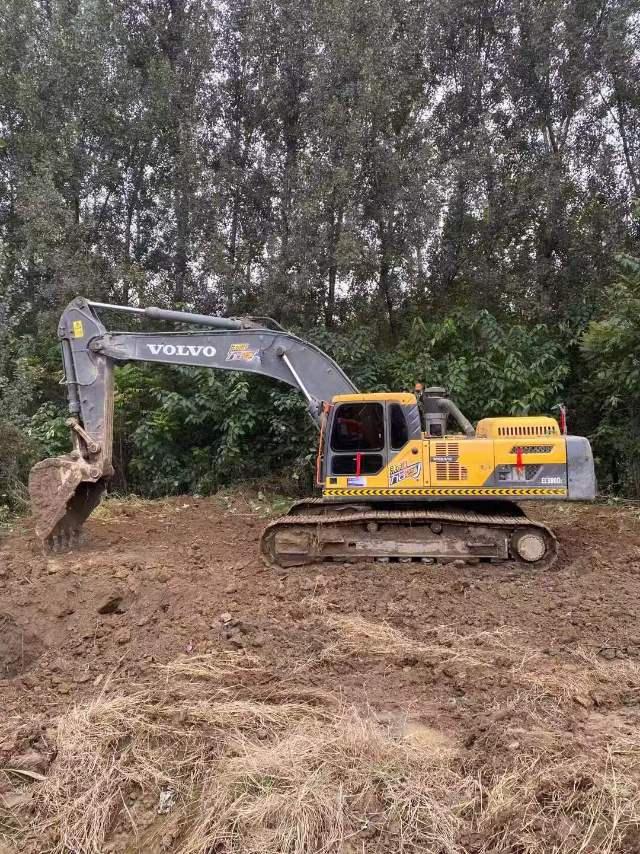

This is a premium Volvo 360LC in perfect condition. It is particularly skilled at slotting and loading at the construction site, with extremely high efficiency. It is worth purchasing. After the construction site is completed, the boss is selling this 360 excavator. The shipping price is ☎️☎️
| Specifications | Value |
|---|---|
| No. | 942971 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36900 |
| Bucket capacity (m³) | 1.35-3.0 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Volvo D12D |
| Rated power (kw/rpm) | 198/1700 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131 x 150 |
| Maximum torque (N.m) | 1475/1275 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.1 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 65.9 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 215.0 (Standard mode) /236.0 (Extra mode) |
| Rod digging force (kN) | 161.0 (Standard mode) /176.0 (Plus mode) |
| Travel speed (km/h) | 3.3/4.5 |
| Rotary hydraulic motor type | Axial piston hydraulic motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 280 * 2 + 25.5 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 25.5 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2+ variable pump |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1700 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 220 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 500 |
| Total transport length (mm) | 11070 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3350 |
| Full cab height (mm) | 3190 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4340 |
| Back end turning radius (mm) | 3390 |
| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4240 |
| Maximum digging radius (mm) | 11180 |
| Maximum digging depth (mm) | 7490 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7240 |
| Maximum vertical digging depth (mm) | 5510 |
| Maximum excavation radius of stop surface (mm) | 10970 |
| Maximum effective digging depth (mm) | 7320 |
