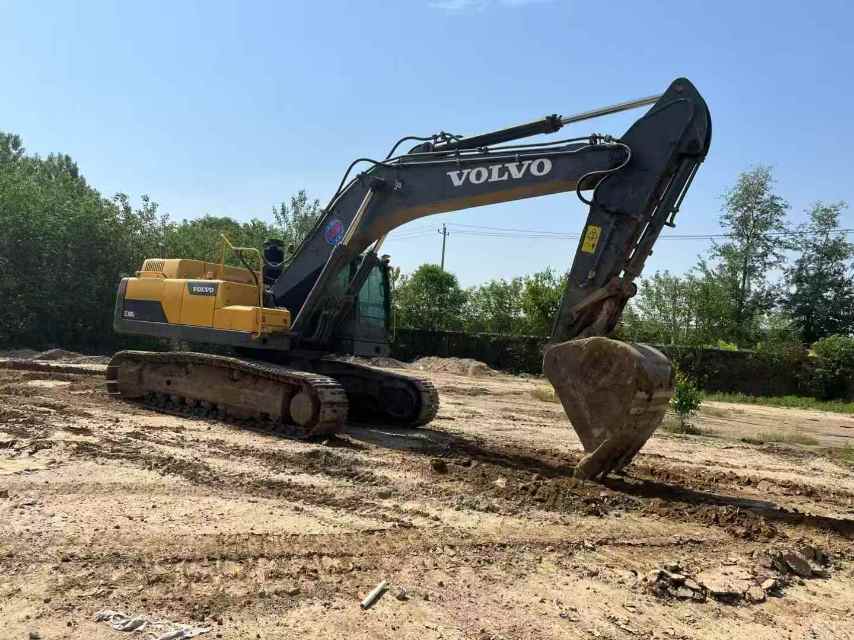

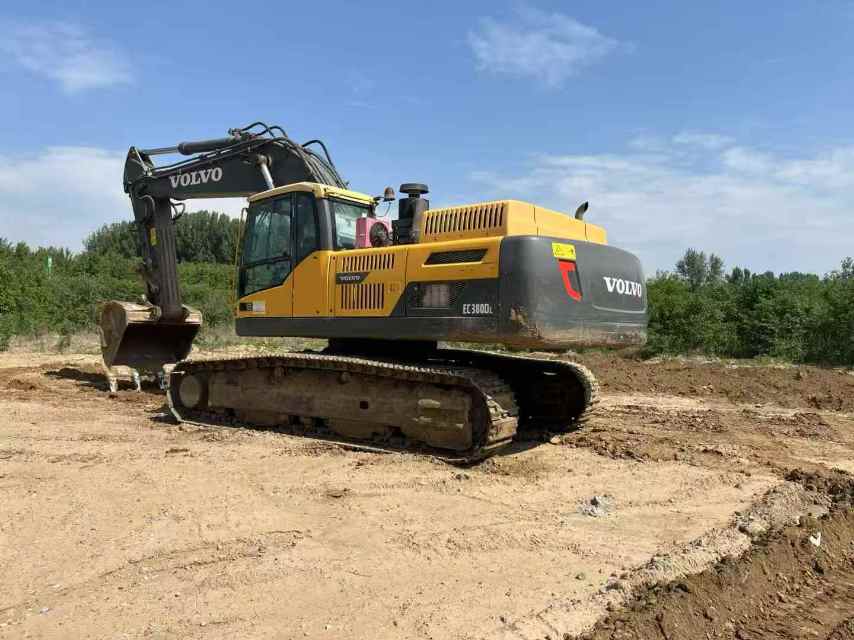

Product Description
The top-quality Volvo 380DL is in its peak performance state, with a solid chassis and a 90% new condition. It is fully maintained by the company throughout the journey, and the price is reasonable
| Specifications | Value |
|---|---|
| No. | 937727 |
| Tonnage (tons) | 38 |
| Working weight (kg) | 37800-41100 |
| Bucket capacity (m³) | 1.35-3 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2600 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

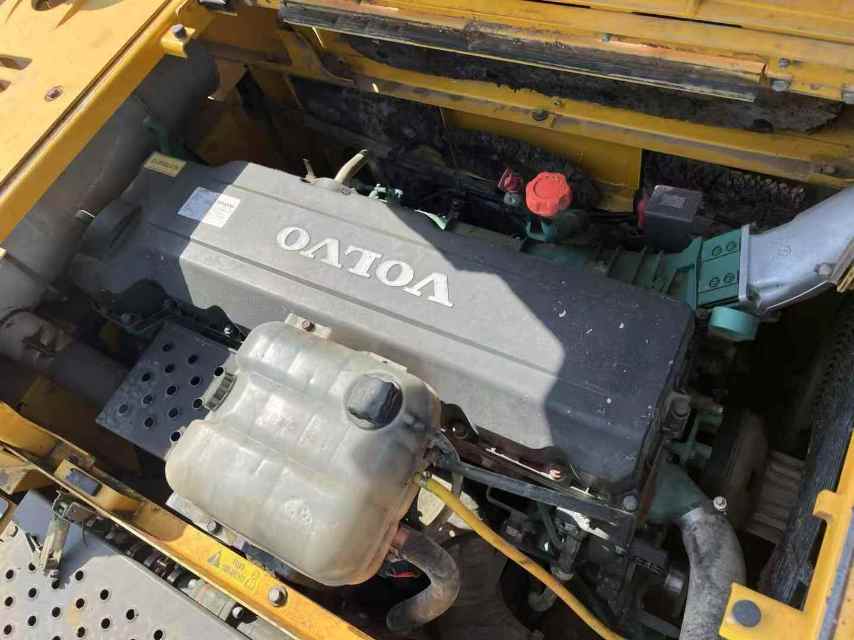

| Engine type | Volvo Volvo D13H-D |
| Rated power (kw/rpm) | 215/1700 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 131 x 158 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.8 |
| Working form | Air to air cooling, meet the US Tier4i and EU IIIB emission standards |
| Ground specific pressure (Kpa) | 68.1 (with 600mm track plate) |
| Rotation speed (rpm) | 10.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 221.7 (Standard) /242.7 (Extra) |
| Rod digging force (kN) | 144.4 (Standard) /157.4 (Extra force) |
| Travel speed (km/h) | 3.4/5.3 |

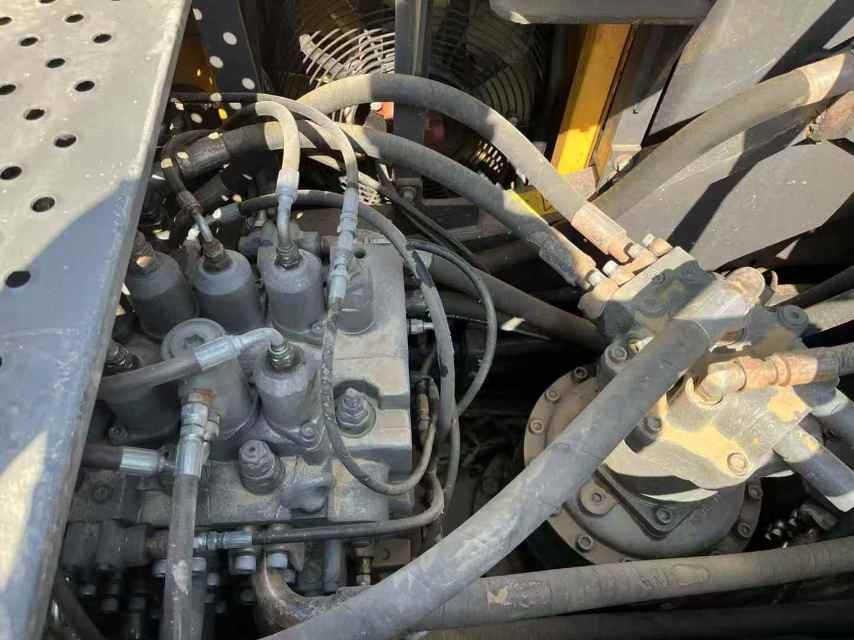

| Rotary hydraulic motor type | Fixed displacement axial piston motor (with mechanical brake) |
| Type of walking hydraulic motor | Variable axial piston motor (with mechanical brake) |
| Maximum flow of main pump (l/min) | 300 * 2 + 25.5 |
| Traveling Hydraulic Circuit (Mpa) | 35.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |

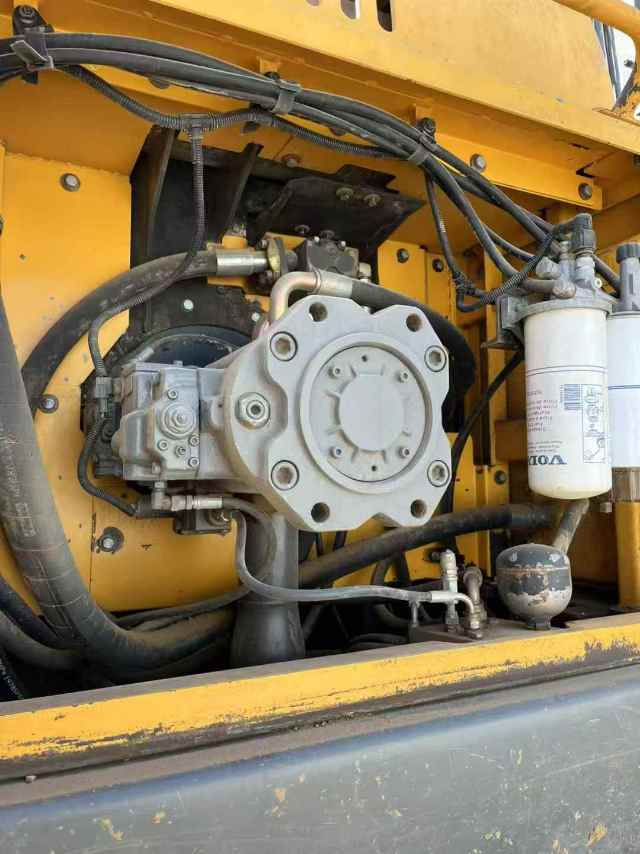

| Main pump type | Variable axial piston pump ×2+ pilot gear pump |
| Working Hydraulic Circuit (Mpa) | 32.4/35.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-145 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-175 x 1750 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160 x 1530 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 227 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 60 |
| Hydraulic System (L) | 485 |
| Total transport length (mm) | 11330 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3590 (total height of big arm) |

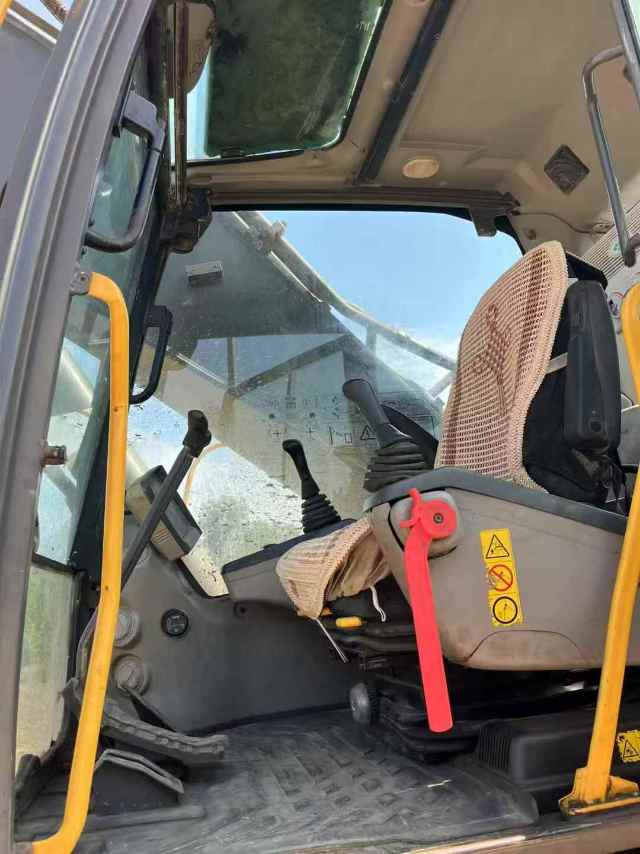

| Full cab height (mm) | 3197 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4300 |
| Back end turning radius (mm) | 3560 |

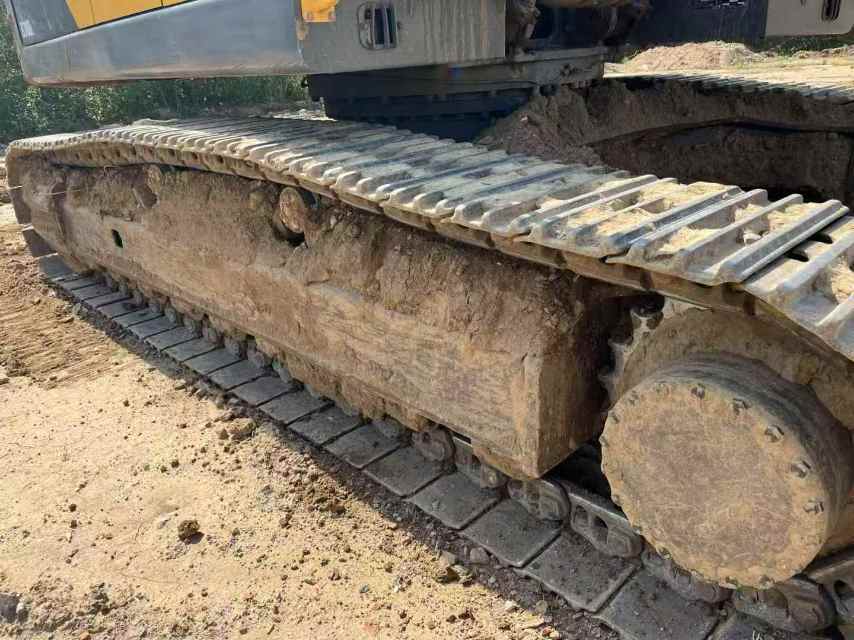

| Total track length (mm) | 5180 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | Three teeth 600/700/800/900; Double tooth 600 |
| Total track width (mm) | 3340 |
| Maximum digging radius (mm) | 10550 |
| Maximum digging depth (mm) | 6850 |
| Maximum excavation height (mm) | 10170 |
| Maximum unloading height (mm) | 7 090 |
| Maximum vertical digging depth (mm) | 5350 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11520 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 8000 |
