2016 Volvo EC480

1/6
Used Volvo EC480 Excavator 2016 Model / 1

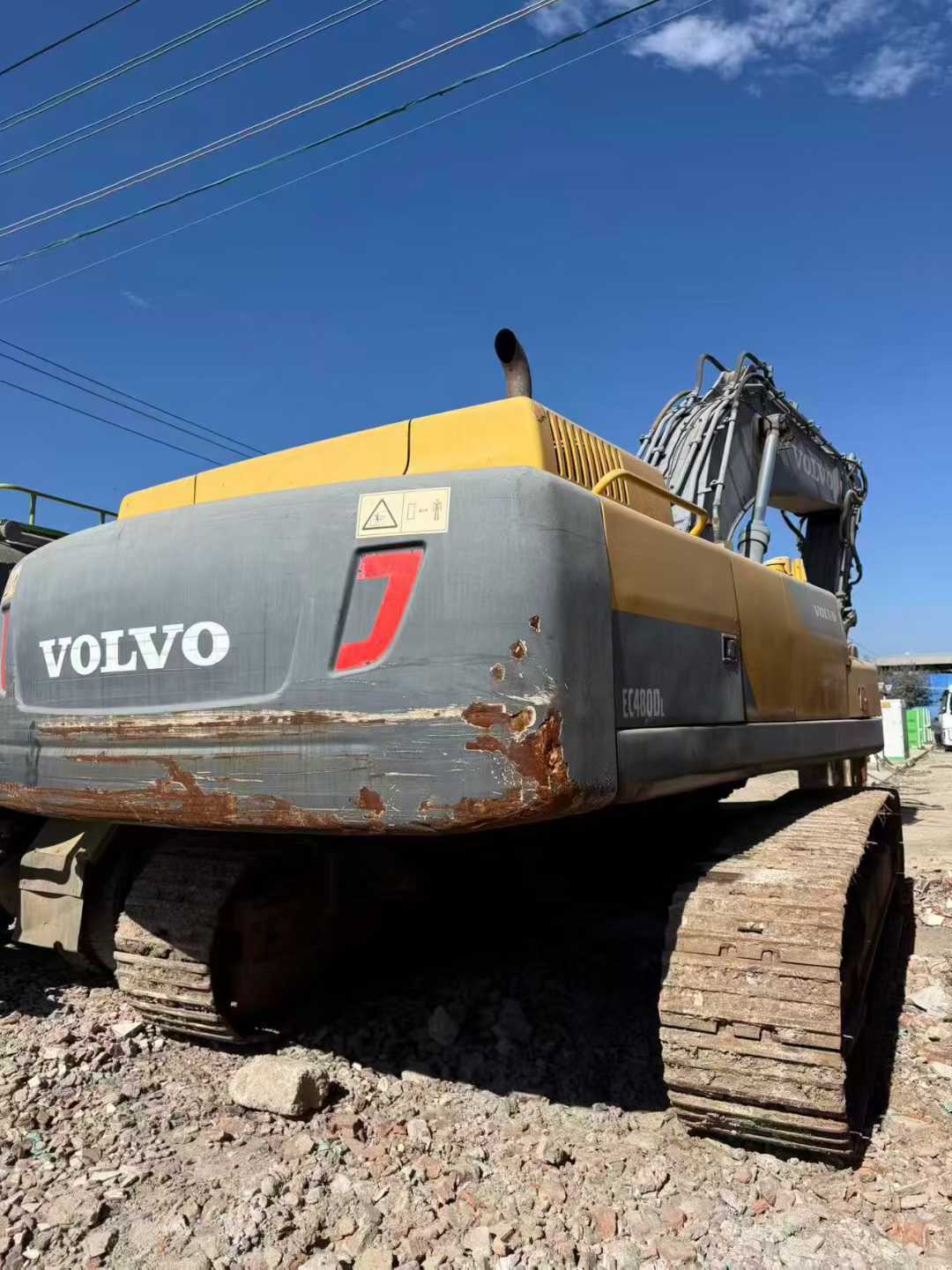

Used Volvo EC480 Excavator 2016 Model / 2

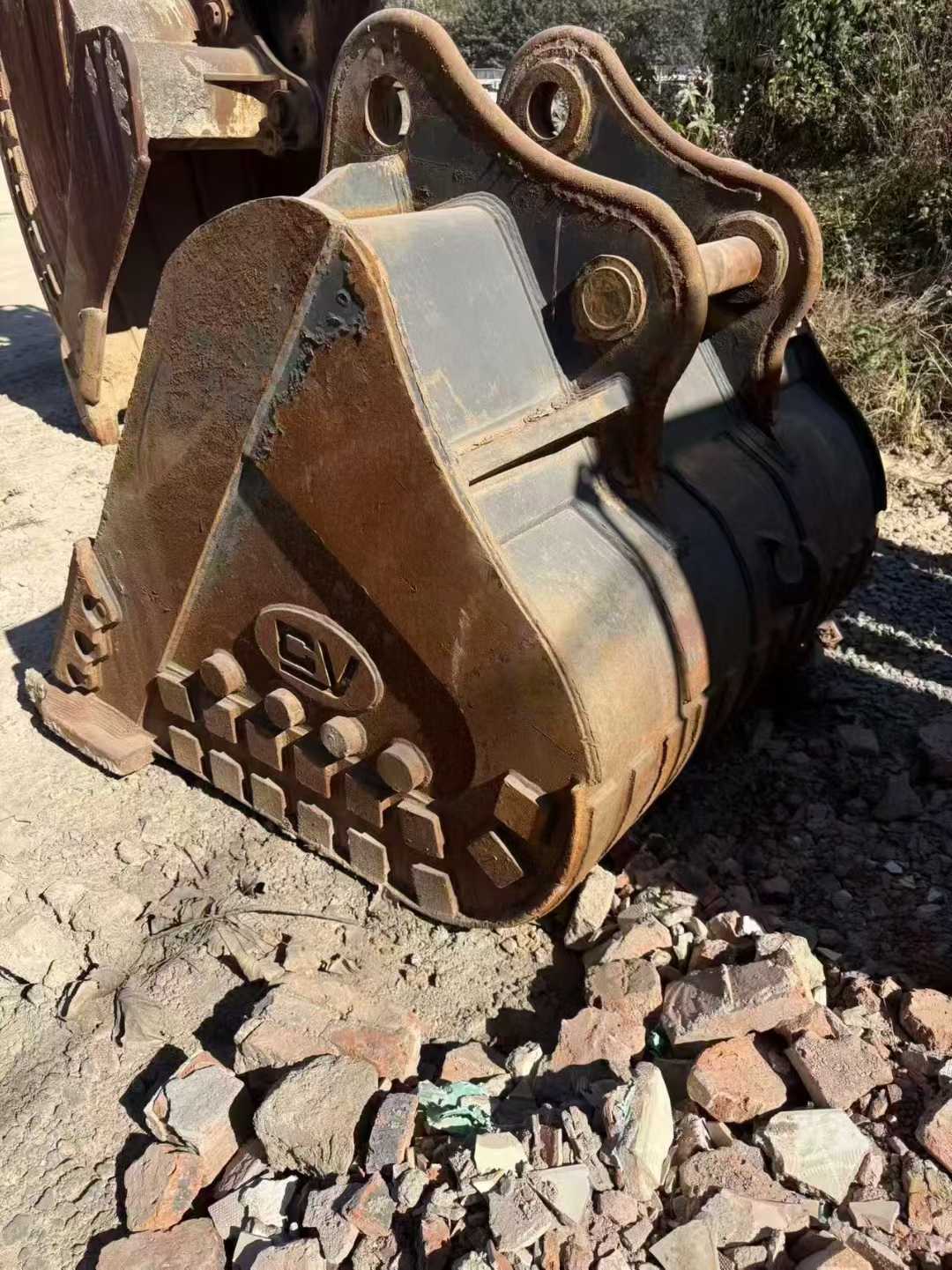

Used Volvo EC480 Excavator 2016 Model / 3

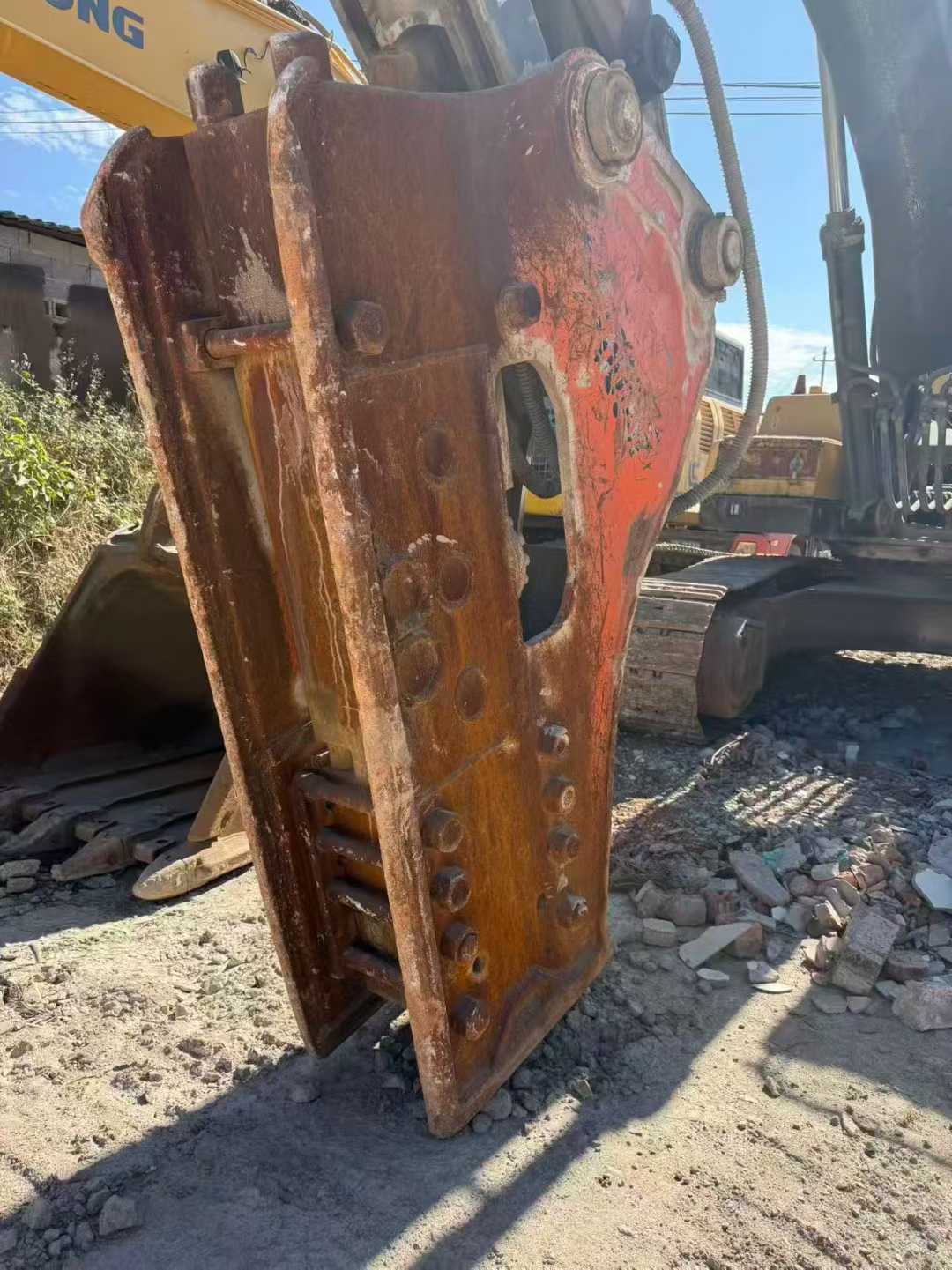

Used Volvo EC480 Excavator 2016 Model / 4

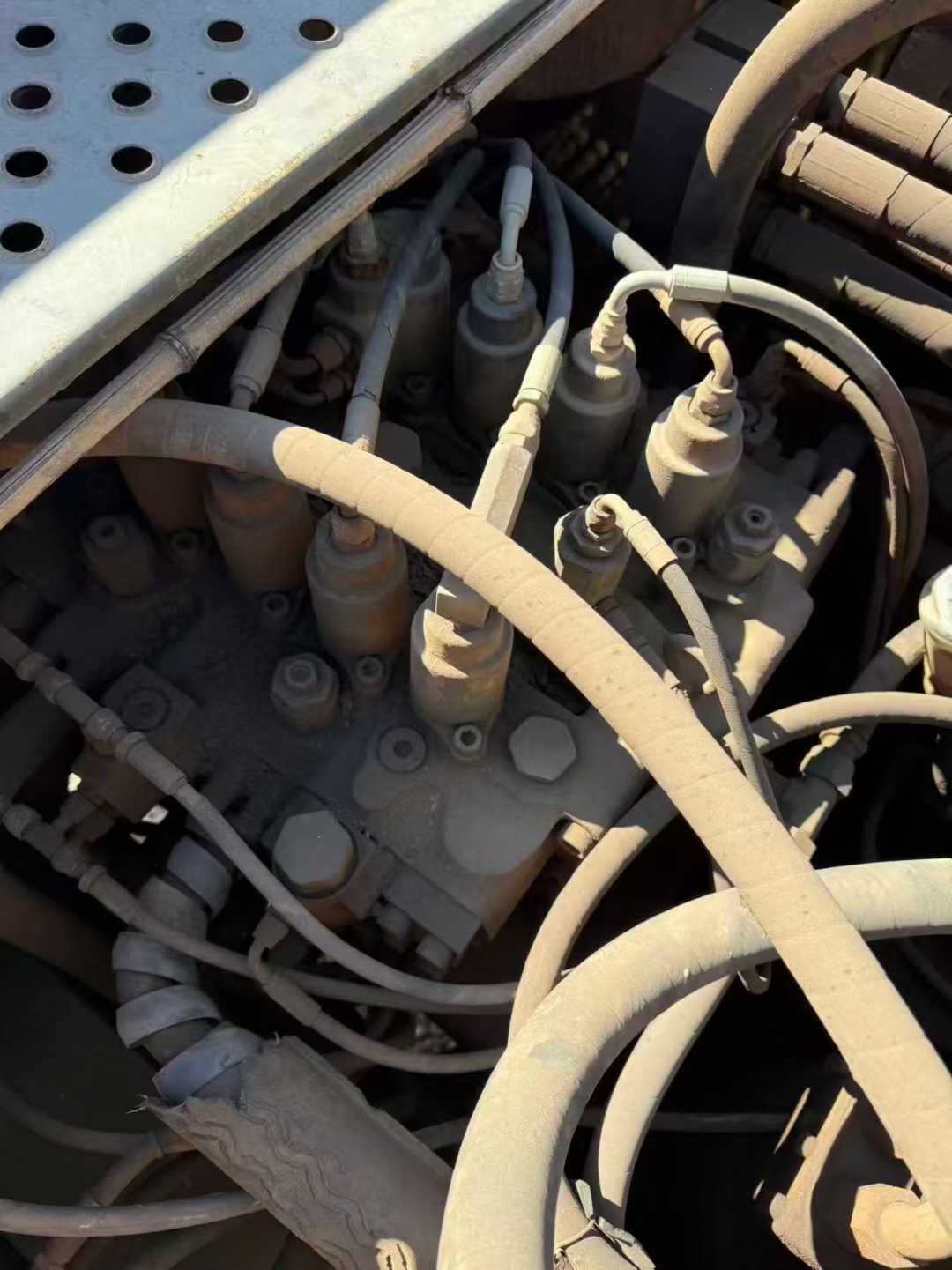

Used Volvo EC480 Excavator 2016 Model / 5

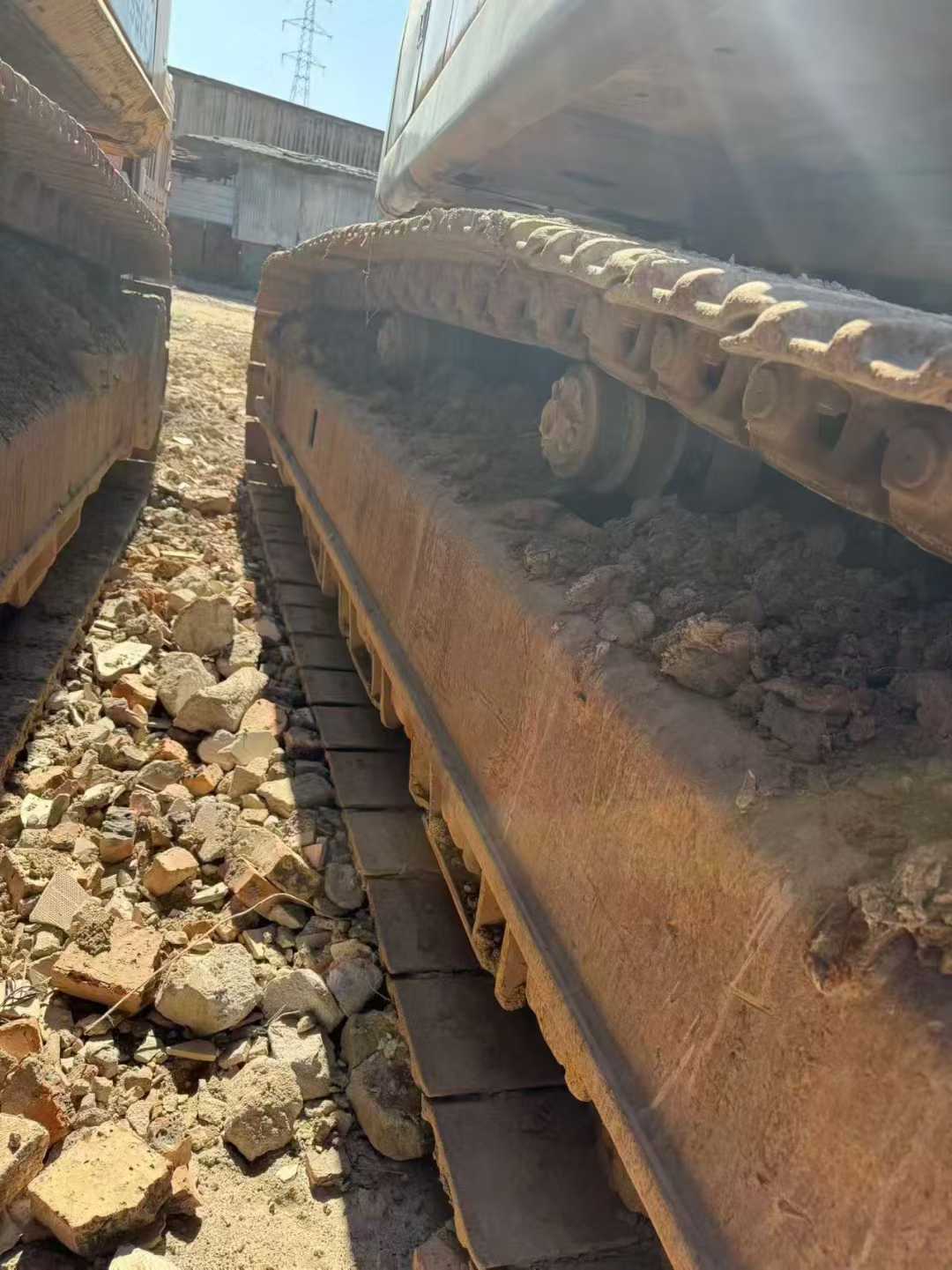

Used Volvo EC480 Excavator 2016 Model / 6

Product Description

【 Premium second-hand Volvo 480 excavator, equipped with hammer and bucket, outstanding performance 】 This second-hand Volvo 480 excavator has only been in operation for 3,500 hours since its manufacture. It is in excellent condition, well-maintained overall, with no obvious damage to its appearance and a very healthy internal structure. It is equipped with a powerful 6-cylinder turbocharged engine, delivering a maximum power of 290 horsepower. With abundant power, it can handle both digging hard soil and breaking rocks with ease. Meanwhile, this machine adopts an advanced electronic fuel injection system, which not only improves fuel efficiency but also reduces emissions, making it more environmentally friendly and energy-saving. In terms of the hydraulic system, the Volvo 480 adopts an efficient load-sensing hydraulic technology, ensuring stable and powerful force output under all working conditions. In addition, its unique automatic idle function can effectively reduce fuel consumption and extend the service life of the equipment. More importantly, this excavator is equipped with factory-provided breakers and buckets, which can meet your diverse work needs, from infrastructure construction to mining, it can do anything. In conclu

SpecificationsValue
No.965916
Tonnage (tons)48
Working weight (kg)48162
Bucket capacity (m³)2.6
Boom length (mm)7000
Rod length (mm)3000
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeVOLOV D13F
Rated power (kw/rpm)270/1800
Maximum torque (N.m)1836/1400
Rotation speed (rpm)8.9
Bucket digging force (kN)284
Rod digging force (kN)235
Maximum tractive force (kN)333.4
Travel speed (km/h)5.1/3.1
Turning torque (Nm)166.3
Maximum flow of main pump (l/min)2*355
Traveling Hydraulic Circuit (Mpa)32.4
Rotary Hydraulic Circuit (Mpa)25.8
Working Hydraulic Circuit (Mpa)32.4
Fuel Tank (L)680
Engine Oil changes (L)55
Coolant (L)60
Total transport width (mm)3440
Full cab height (mm)3280
Counterweight ground clearance (mm)1210
Minimum ground clearance (mm)515
Back end turning radius (mm)3880
Onboard width (mm)2990
Total track length (mm)5470
Track gauge (mm)2740
Track plate width (mm)600
Track ground length (mm)4470
Maximum digging radius (mm)11817
Maximum digging depth (mm)7478
see more

Overview

No.965916

Brand Name:

Volvo

Model Number:

EC480

Year:

2016

Location:

Hunan China
