Product Description

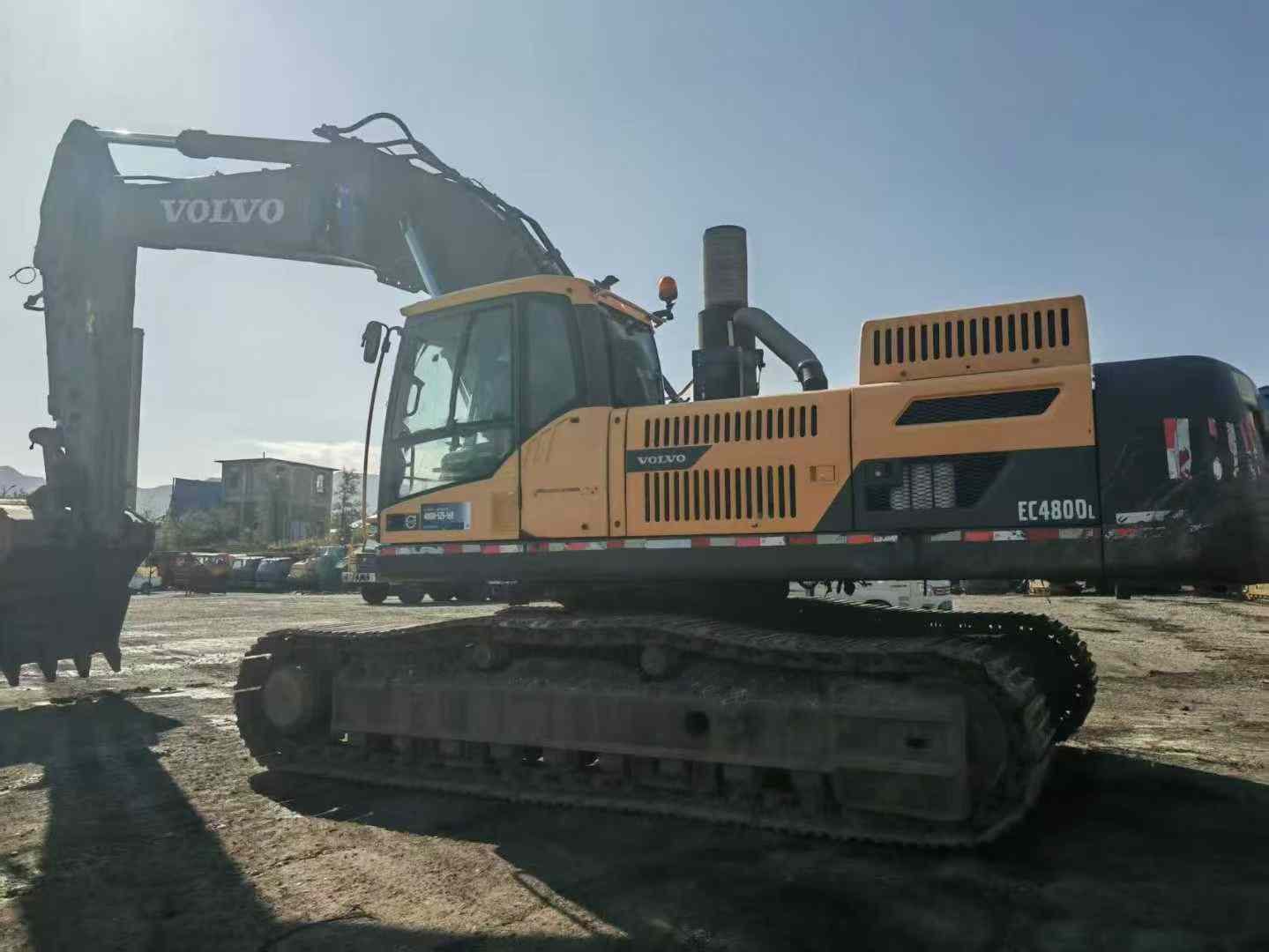

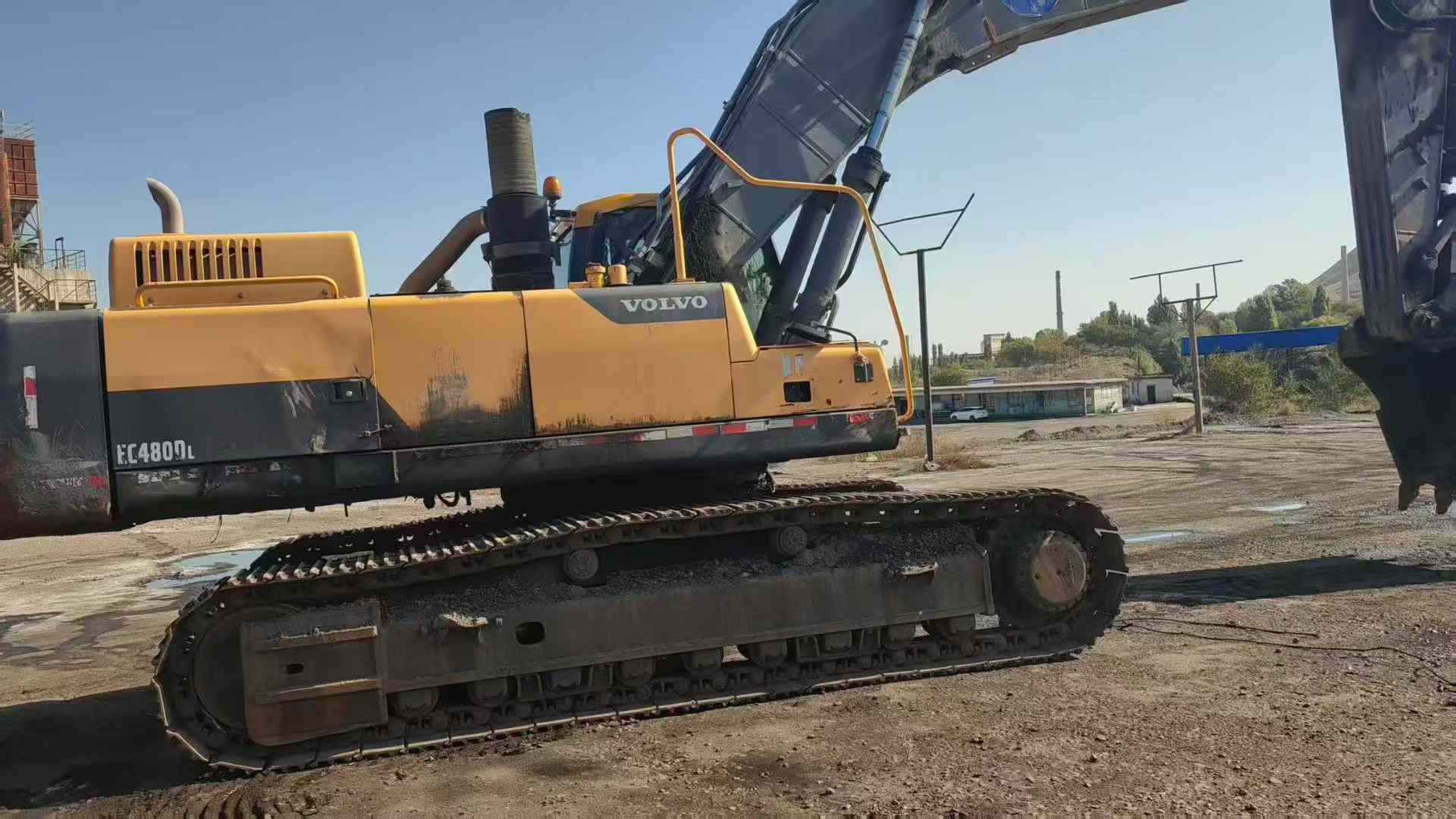

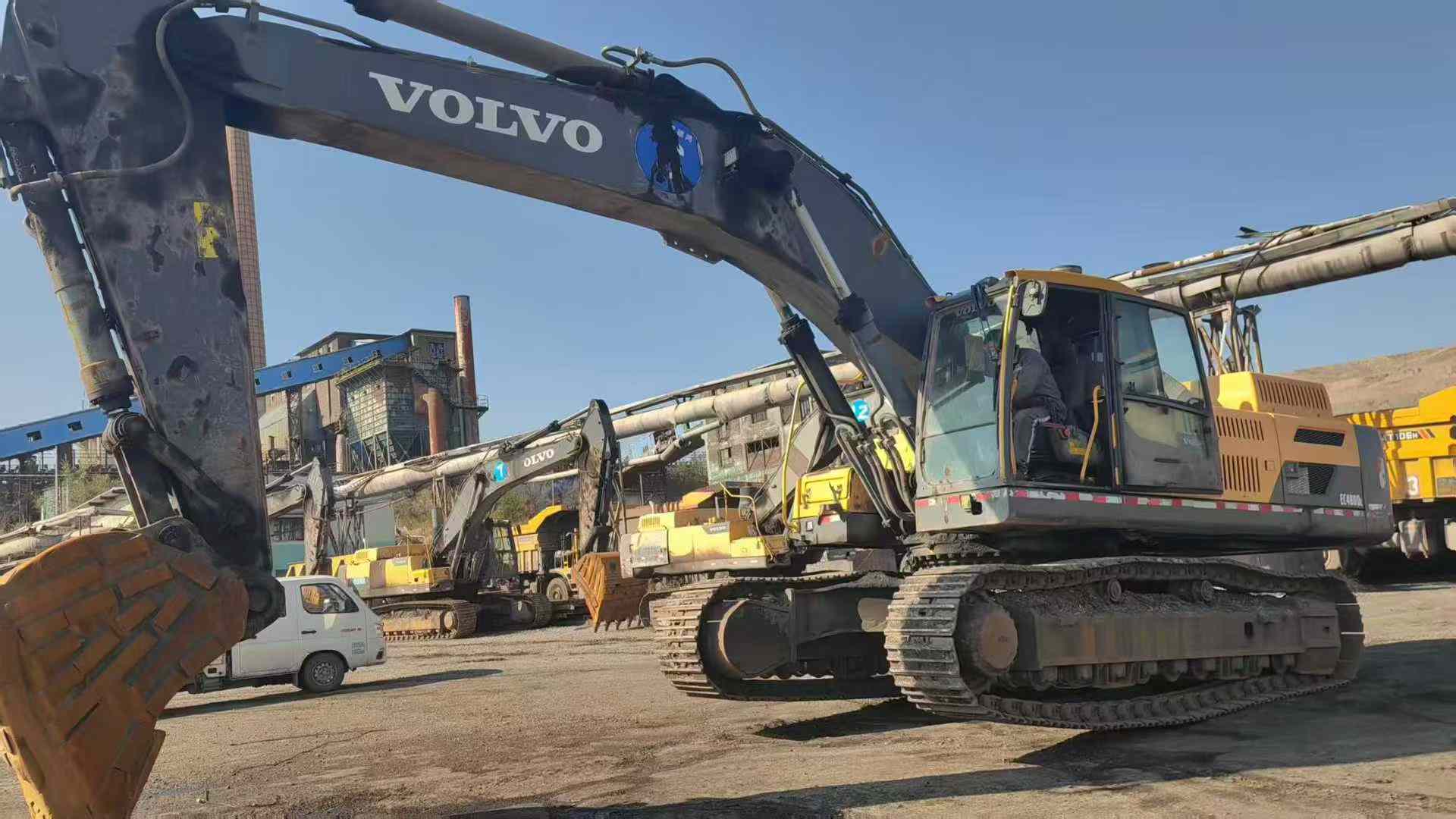

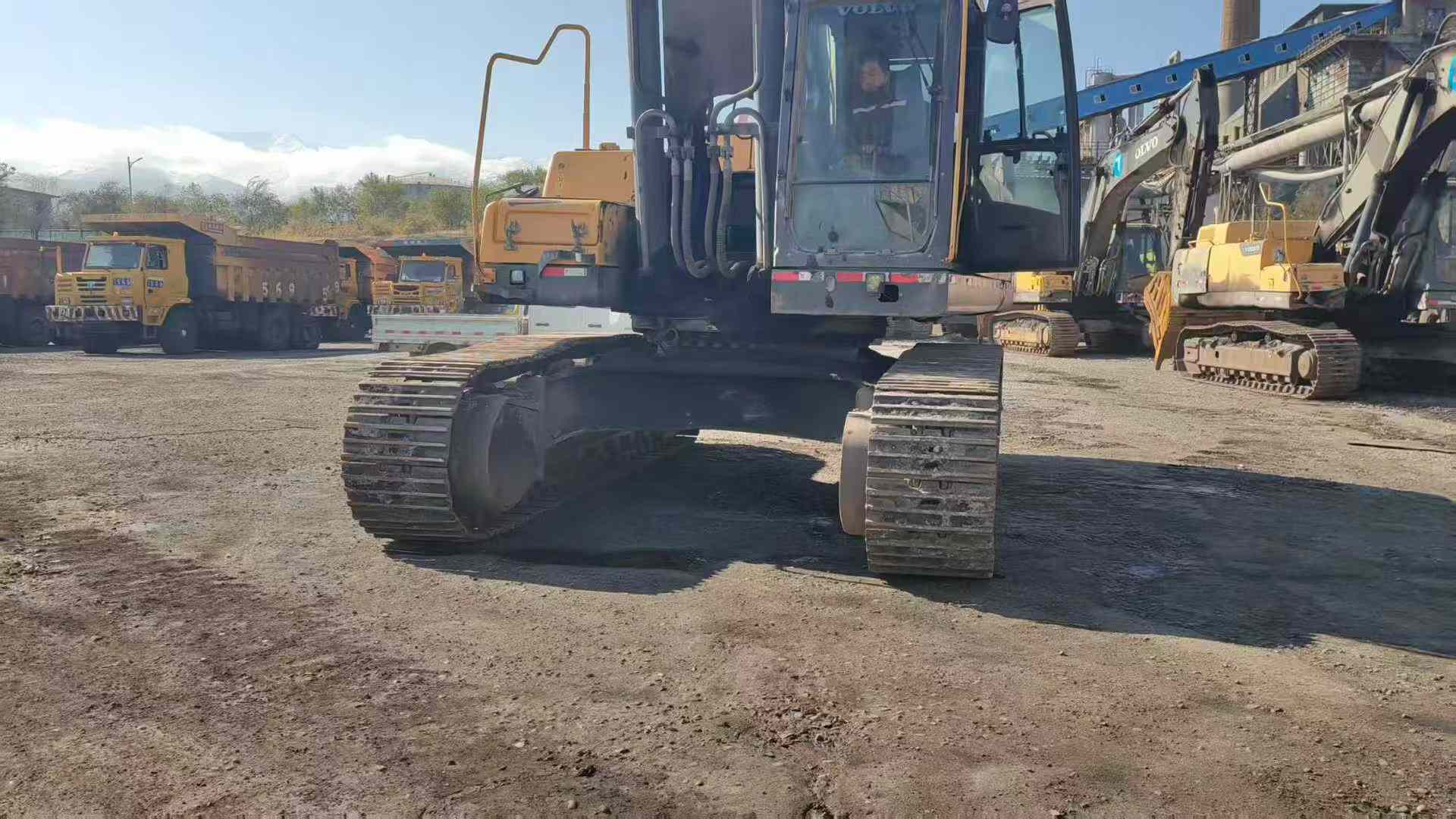

Five 2018 Volvo 480s are available for sale as scrap vehicles
| Specifications | Value |
|---|---|
| No. | 934430 |
| Tonnage (tons) | 48 |
| Working weight (kg) | 48162 |
| Bucket capacity (m³) | 2.6 |
| Boom length (mm) | 7000 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

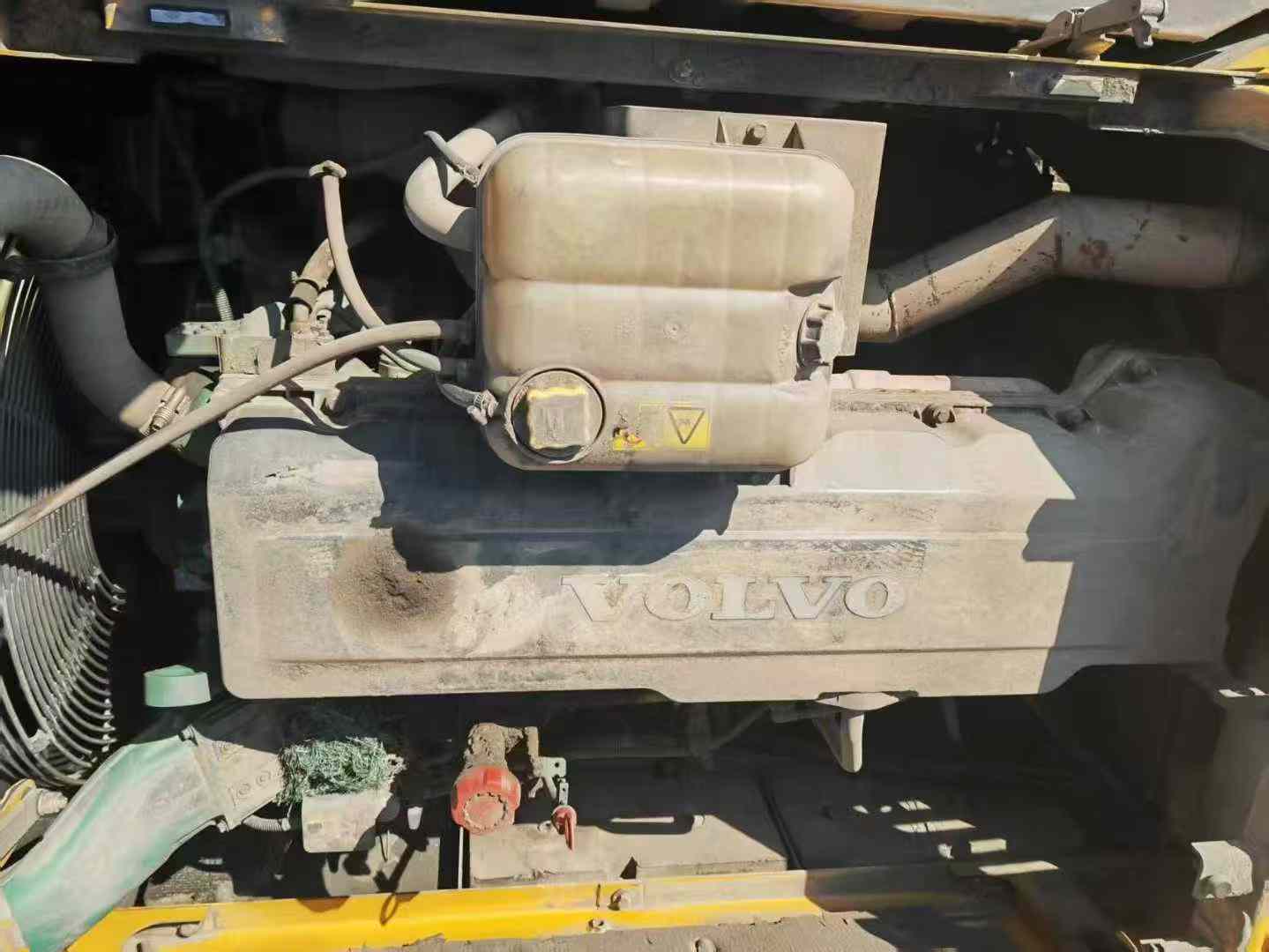

| Engine type | VOLOV D13F |
| Rated power (kw/rpm) | 270/1800 |
| Maximum torque (N.m) | 1836/1400 |
| Rotation speed (rpm) | 8.9 |
| Bucket digging force (kN) | 284 |
| Rod digging force (kN) | 235 |
| Maximum tractive force (kN) | 333.4 |
| Travel speed (km/h) | 5.1/3.1 |
| Turning torque (Nm) | 166.3 |
| Maximum flow of main pump (l/min) | 2*355 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 25.8 |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Fuel Tank (L) | 680 |
| Engine Oil changes (L) | 55 |
| Coolant (L) | 60 |
| Total transport width (mm) | 3440 |
| Full cab height (mm) | 3280 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 515 |
| Back end turning radius (mm) | 3880 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4470 |
| Maximum digging radius (mm) | 11817 |
| Maximum digging depth (mm) | 7478 |
