Product Description

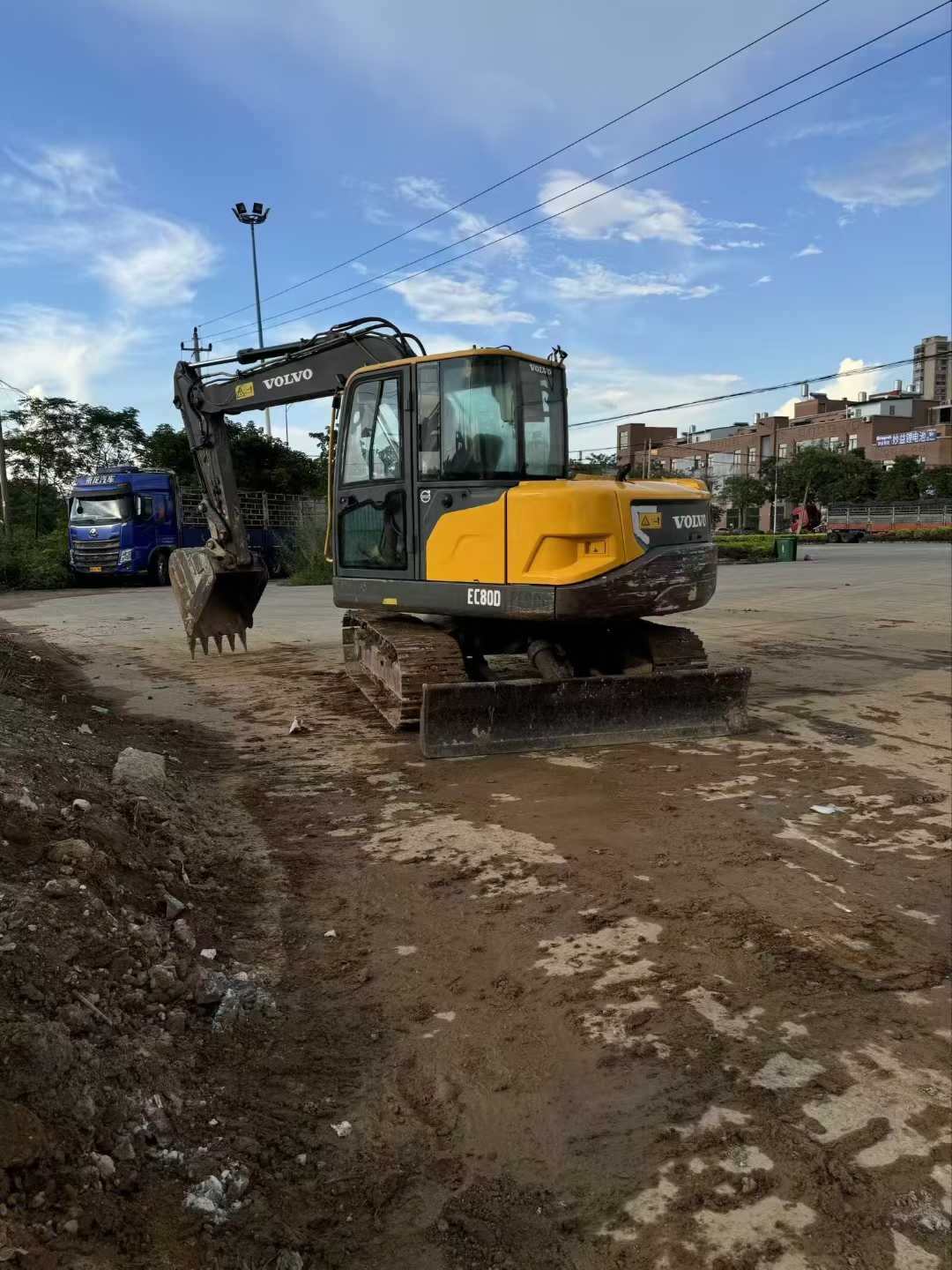

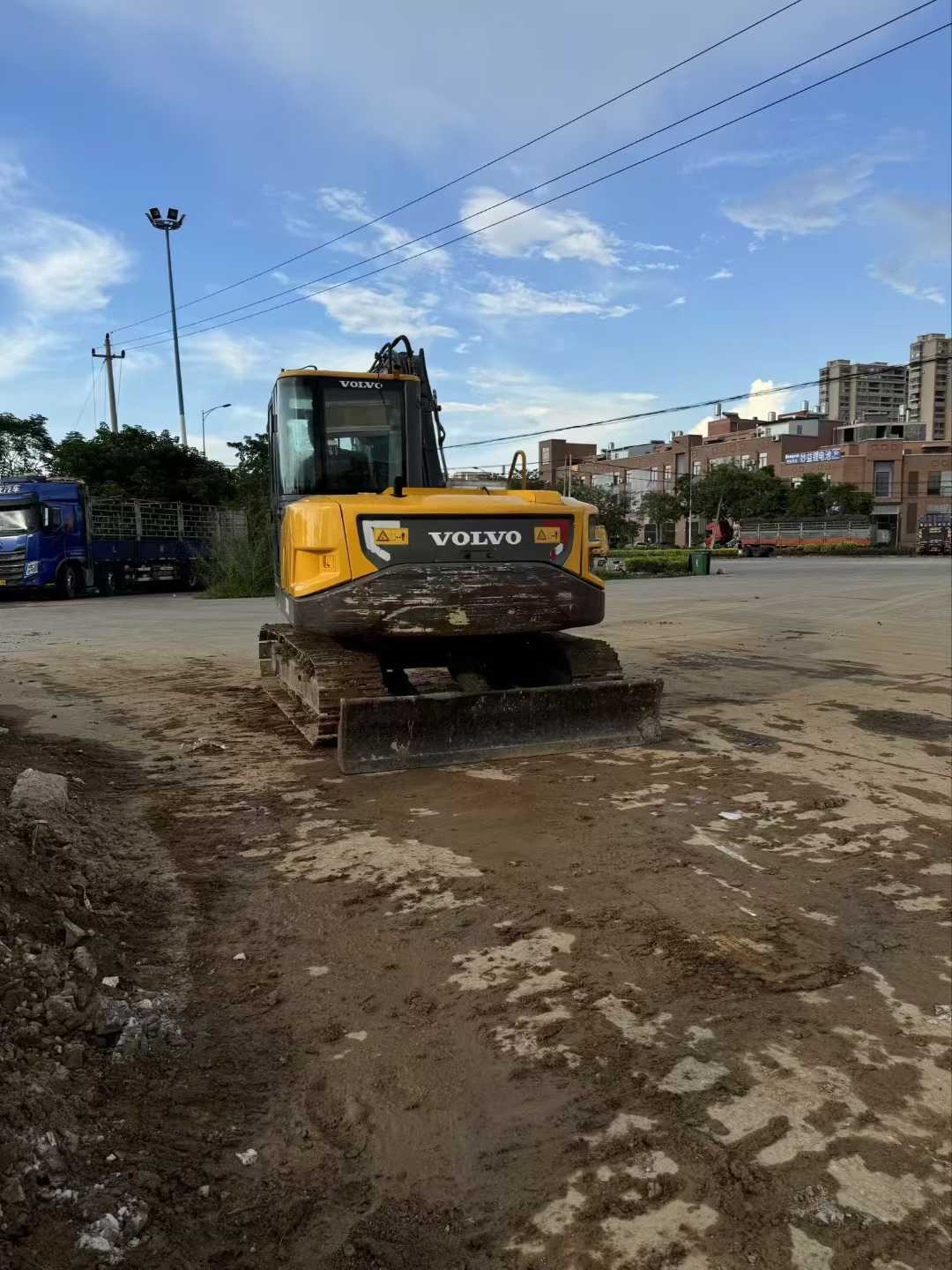

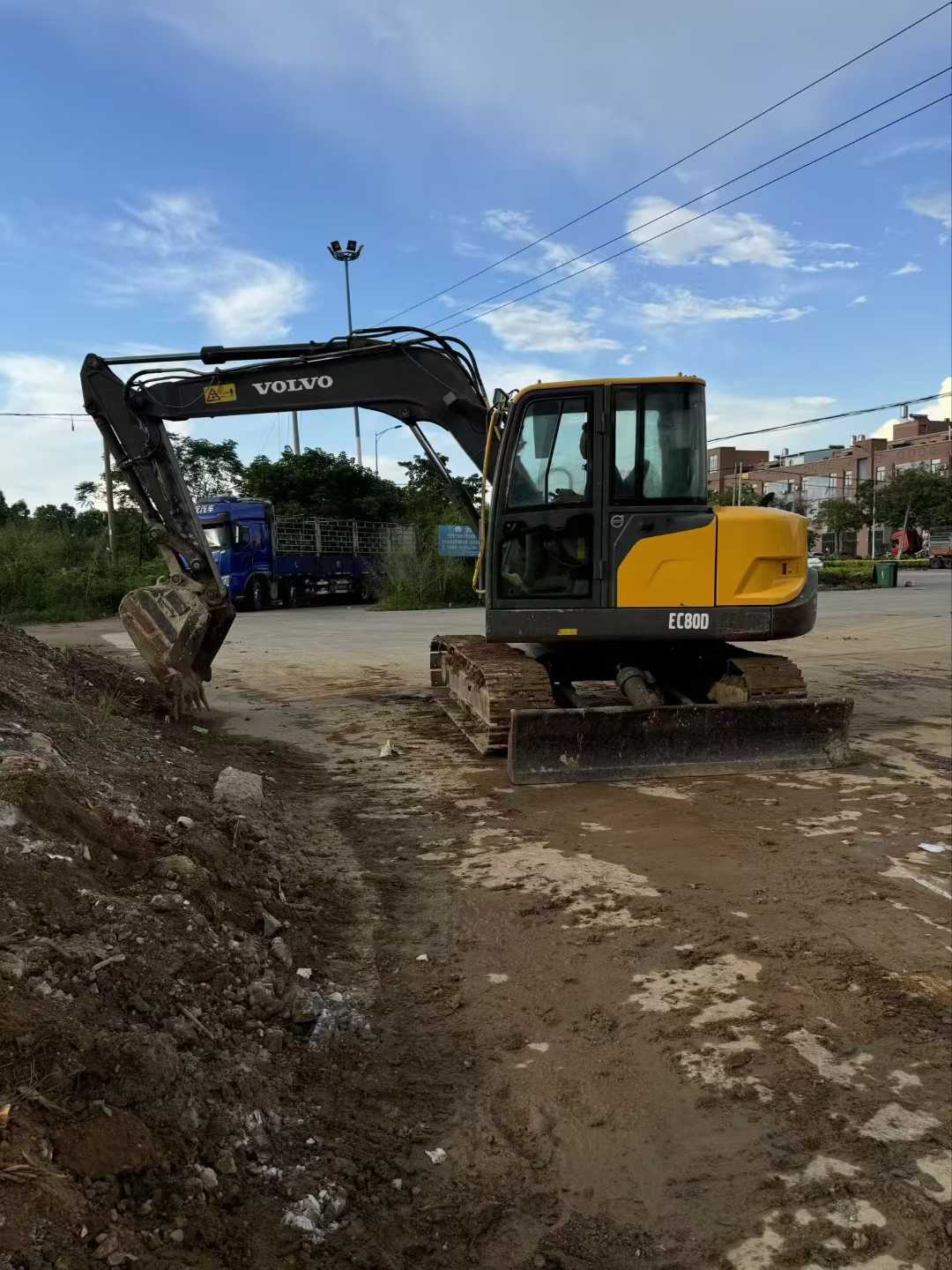

Volvo 80, priced at 88,000 yuan, comes with videos and pictures
| Specifications | Value |
|---|---|
| No. | 926967 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7,400 |
| Bucket capacity (m³) | 0.34 |
| Bucket width (mm) | 800 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D2.6D |
| Rated power (kw/rpm) | 43 |
| Cylinder diameter × stroke (mm) | 87 x 110 |
| Maximum torque (N.m) | 225.8 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.62 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 55 |
| Rod digging force (kN) | 40 |
| Maximum tractive force (kN) | 65 |
| Travel speed (km/h) | 2.6/5.1 |
| Turning torque (Nm) | 21.5 |
| Main overflow set pressure (Mpa) | 29.4 |
| Maximum flow of main pump (l/min) | 1 x 176 |
| Traveling Hydraulic Circuit (Mpa) | 29.4 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Working Hydraulic Circuit (Mpa) | 29.4 |
| Pilot pump flow (L/min) | 16 |
| Fuel Tank (L) | 145 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 10 |
| Coolant (L) | 11.4 |
| Hydraulic System (L) | 140 |
| Total transport length (mm) | 6165 |
| Total transport width (mm) | 2300 |
| Full cab height (mm) | 2655 |
| Counterweight ground clearance (mm) | 755 |
| Minimum ground clearance (mm) | 400 |
| Minimum turning radius of front working device (mm) | 1690 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2280 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1850 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2200 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Maximum digging radius (mm) | 6420 |
| Maximum digging depth (mm) | 4100 |
| Maximum excavation height (mm) | 7130 |
| Maximum unloading height (mm) | 5150 |
| Maximum vertical digging depth (mm) | 3530 |
| Dodging plate width × height (mm) | 2300*470 |
| Maximum excavation radius of stop surface (mm) | 6270 |
