HOME>>Brands>>XCMG XE135B

2014 XCMG XE135B

1/7
Used XCMG XE135B Excavator 2014 Model / 1

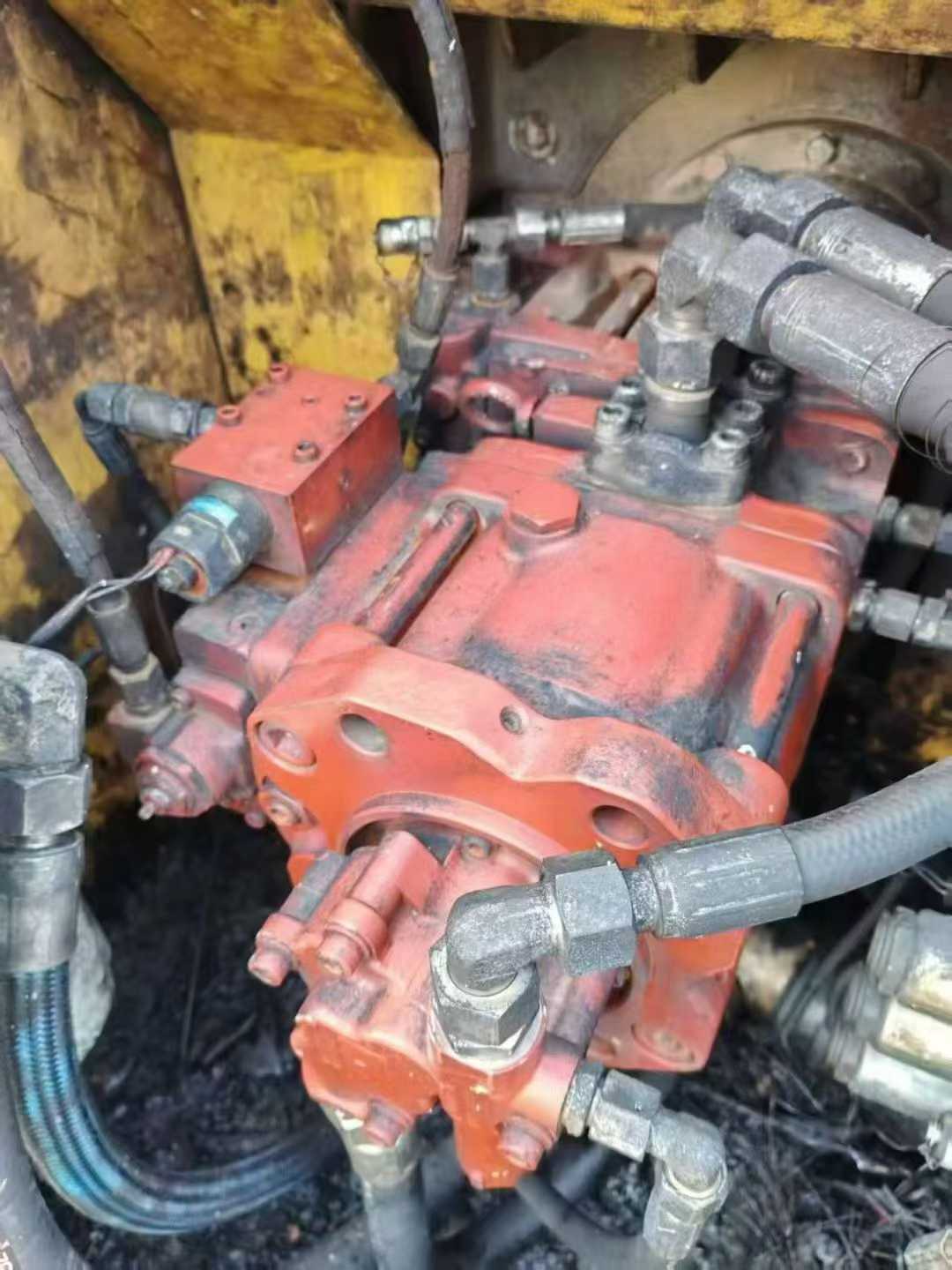

Used XCMG XE135B Excavator 2014 Model / 2

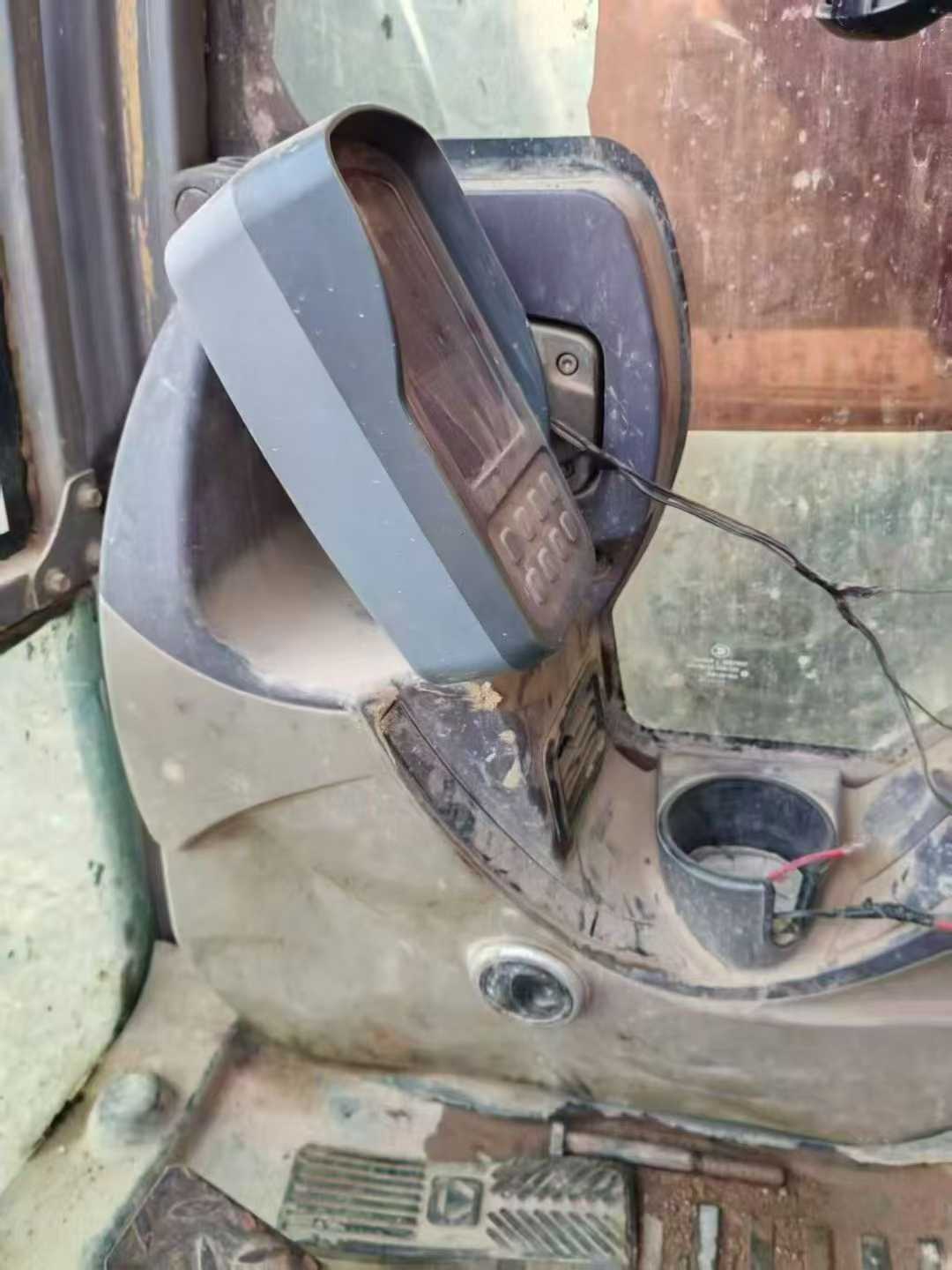

Used XCMG XE135B Excavator 2014 Model / 3

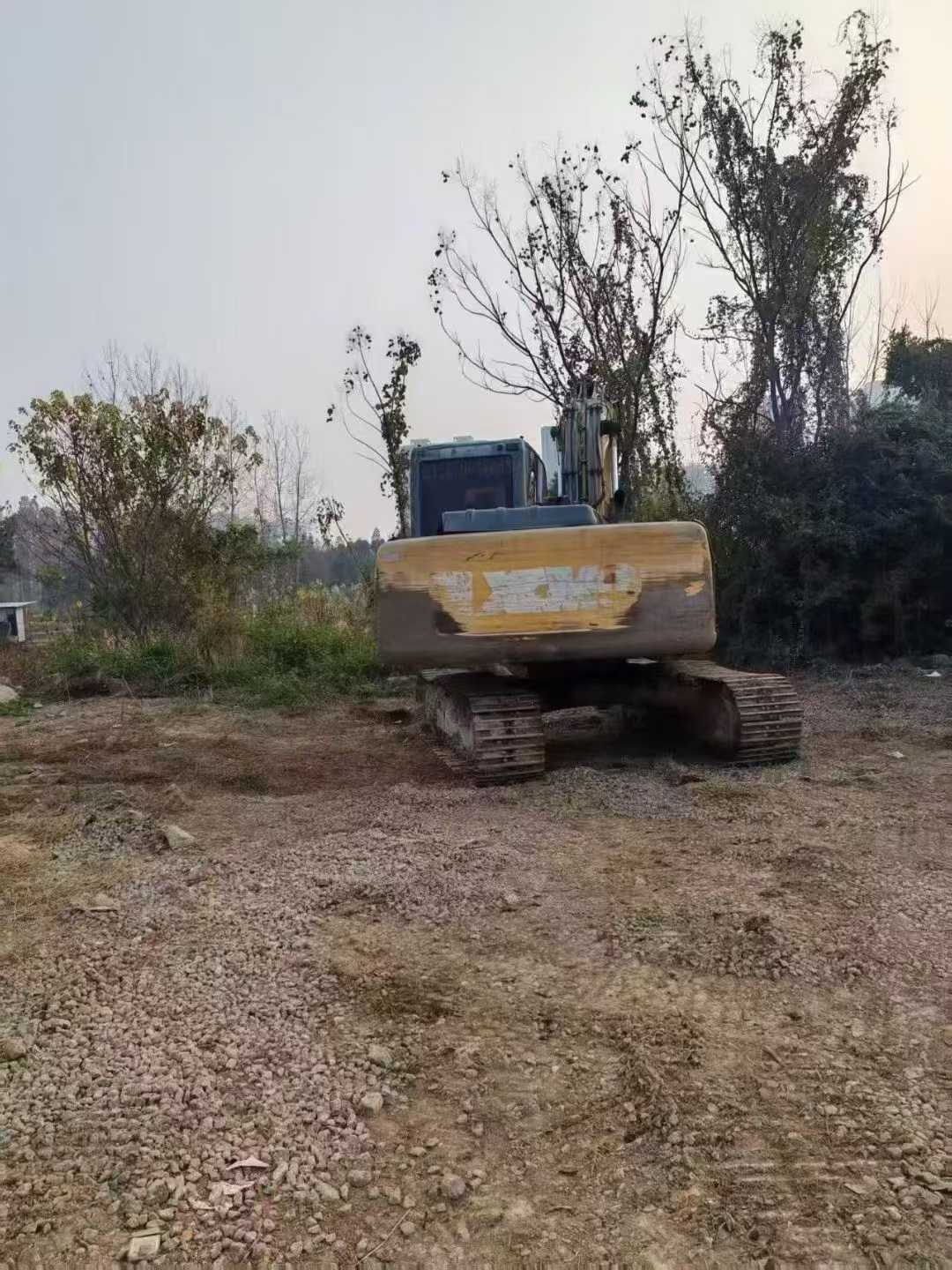

Used XCMG XE135B Excavator 2014 Model / 4

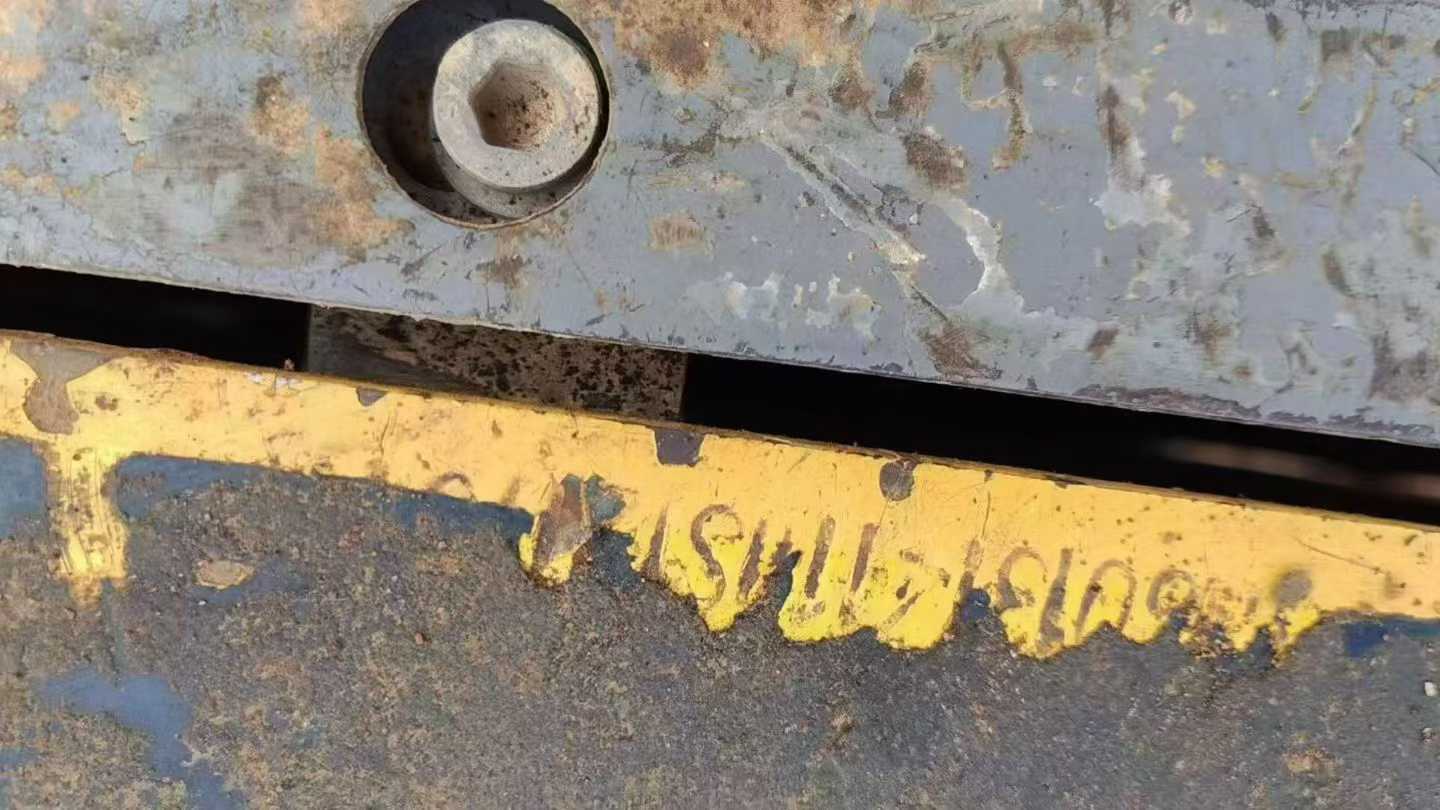

Used XCMG XE135B Excavator 2014 Model / 5

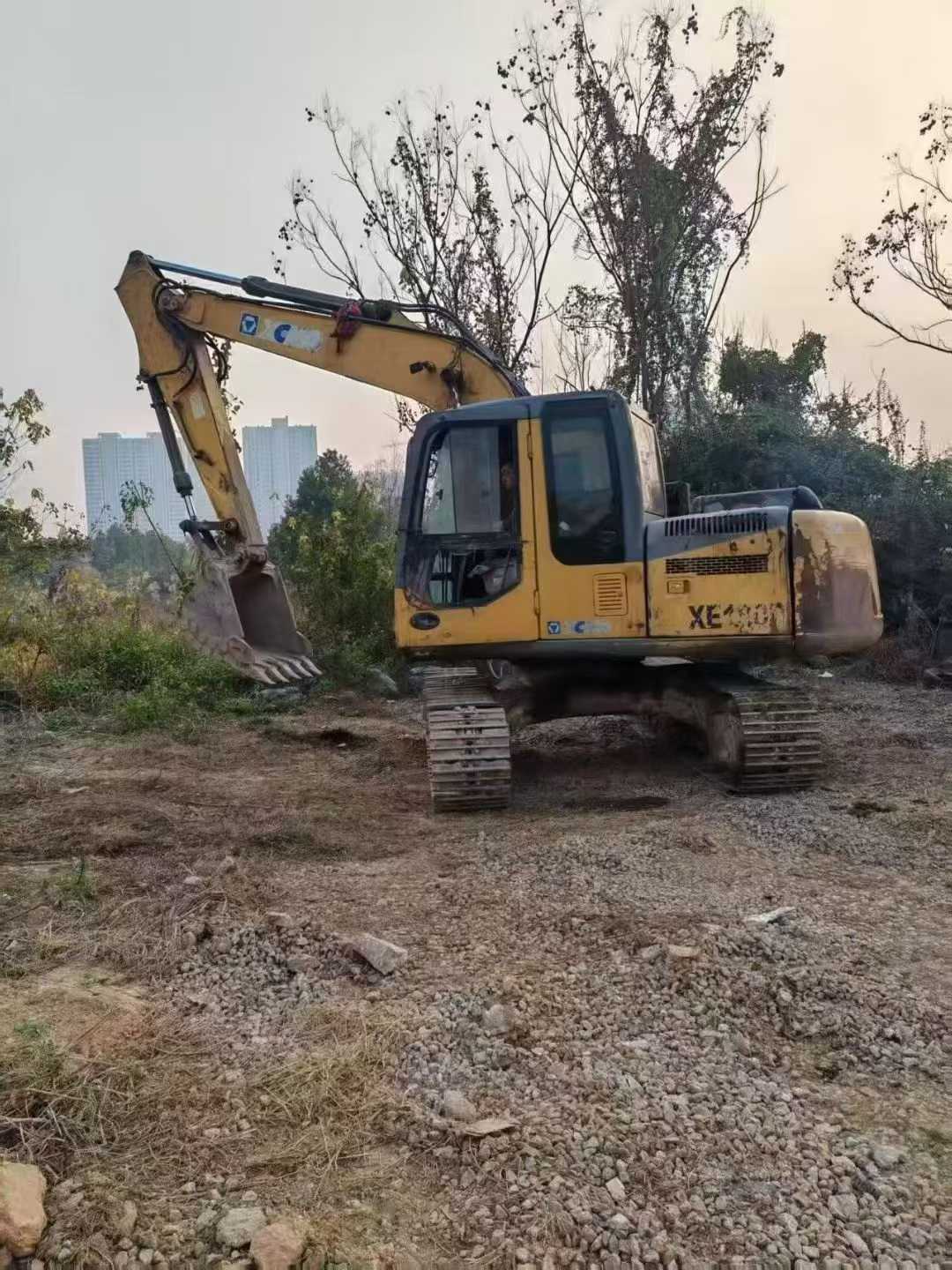

Used XCMG XE135B Excavator 2014 Model / 6

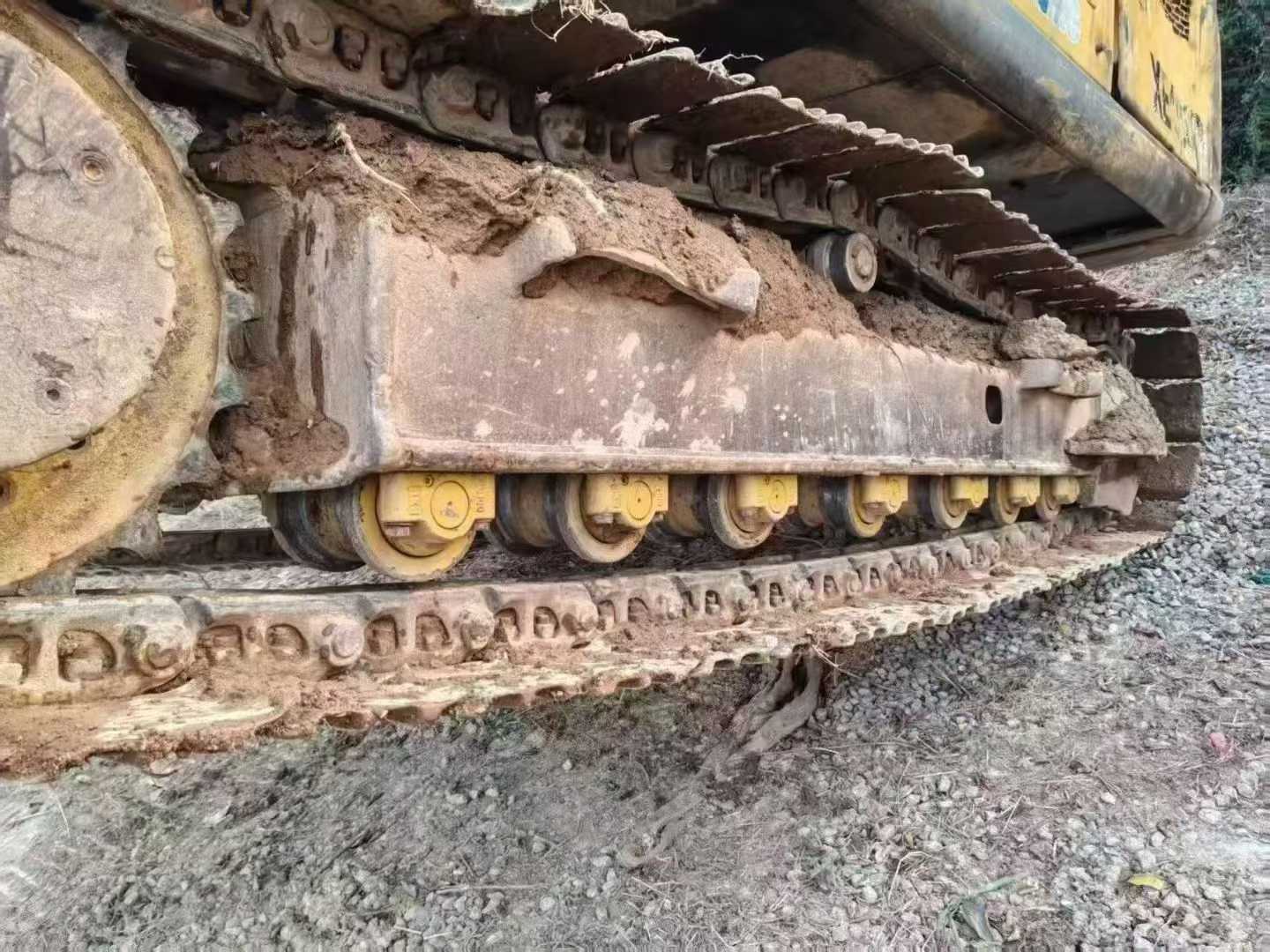

Used XCMG XE135B Excavator 2014 Model / 7

Product Description

This 2014 XCMG XE135 excavator is a medium-sized excavator that has received high praise in the market. It features a brand-new chassis design, ensuring stability and durability in various complex terrains. Since leaving the factory, the cumulative working time of this equipment has only been 8,000 hours, which is in the golden usage period of the mechanical life cycle, and its performance is still very excellent. In terms of power, the XCMG XE135 is equipped with an efficient and energy-saving engine, which not only provides strong power output but also has good fuel economy, reducing operating costs. In addition, its advanced hydraulic system adopts core components of internationally renowned brands, making the entire machine operation more flexible and precise, with a faster response speed. Whether it is excavation, loading or crushing operations, it can handle them with ease. More importantly, this hydraulic system also has a self-protection function. It can automatically adjust when encountering abnormal situations, effectively extending the service life of the equipment. The new chassis is a major highlight of this second-hand excavator. Compared with the old model, it not only improves the vehicle's passability but also enhanc

SpecificationsValue
No.965909
Tonnage (tons)13
Working weight (kg)13800
Bucket capacity (m³)0.4-0.52
Boom length (mm)4600
Rod length (mm)2510
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeISUZU BB-4BG1TRP
Rated power (kw/rpm)69.6/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)4.329
Working formturbocharging
Ground specific pressure (Kpa)42
Rotation speed (rpm)12.3
Climbing ability (%)35 °
Bucket digging force (kN)85
Rod digging force (kN)65
Travel speed (km/h)5.16/3.03
Main overflow set pressure (Mpa)31.4/34.3
Maximum flow of main pump (l/min)2*123
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)25
Hydraulic crushing pipeline is standardno
Main pump typeTwo plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)250
Hydraulic Tank (L)130
Engine Oil changes (L)14
Total transport length (mm)7770
Total transport width (mm)2512
Total transport height (mm)2880
Counterweight ground clearance (mm)964
Minimum ground clearance (mm)478
Minimum turning radius of front working device (mm)2335
Back end turning radius (mm)2294
Track gauge (mm)1990
Track plate width (mm)500
Track ground length (mm)2910
Maximum digging radius (mm)8296
Maximum digging depth (mm)5538
Maximum excavation height (mm)8641
Maximum unloading height (mm)6181
Maximum vertical digging depth (mm)4727
see more

Overview

No.965909

Brand Name:

XCMG

Model Number:

XE135B

Year:

2014

Location:

Hunan China
