Product Description

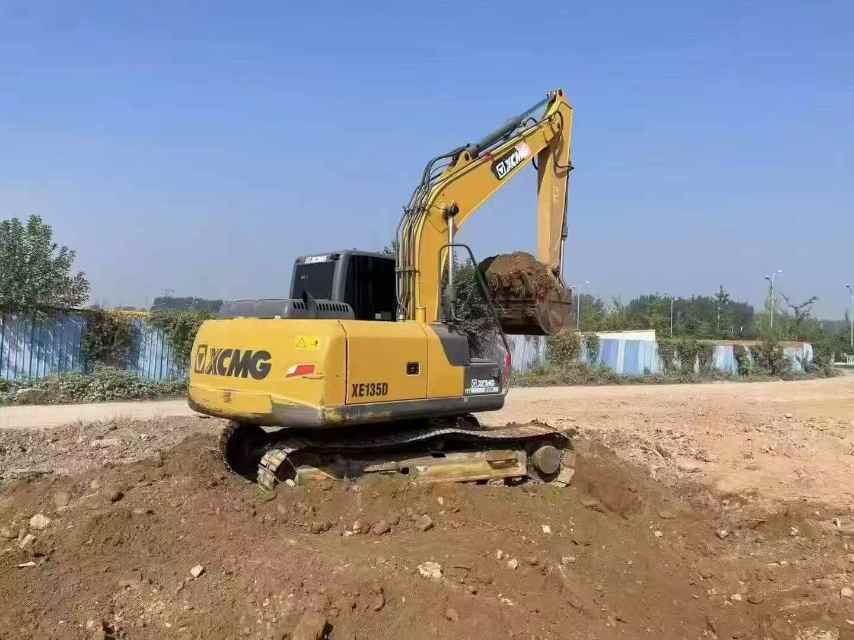

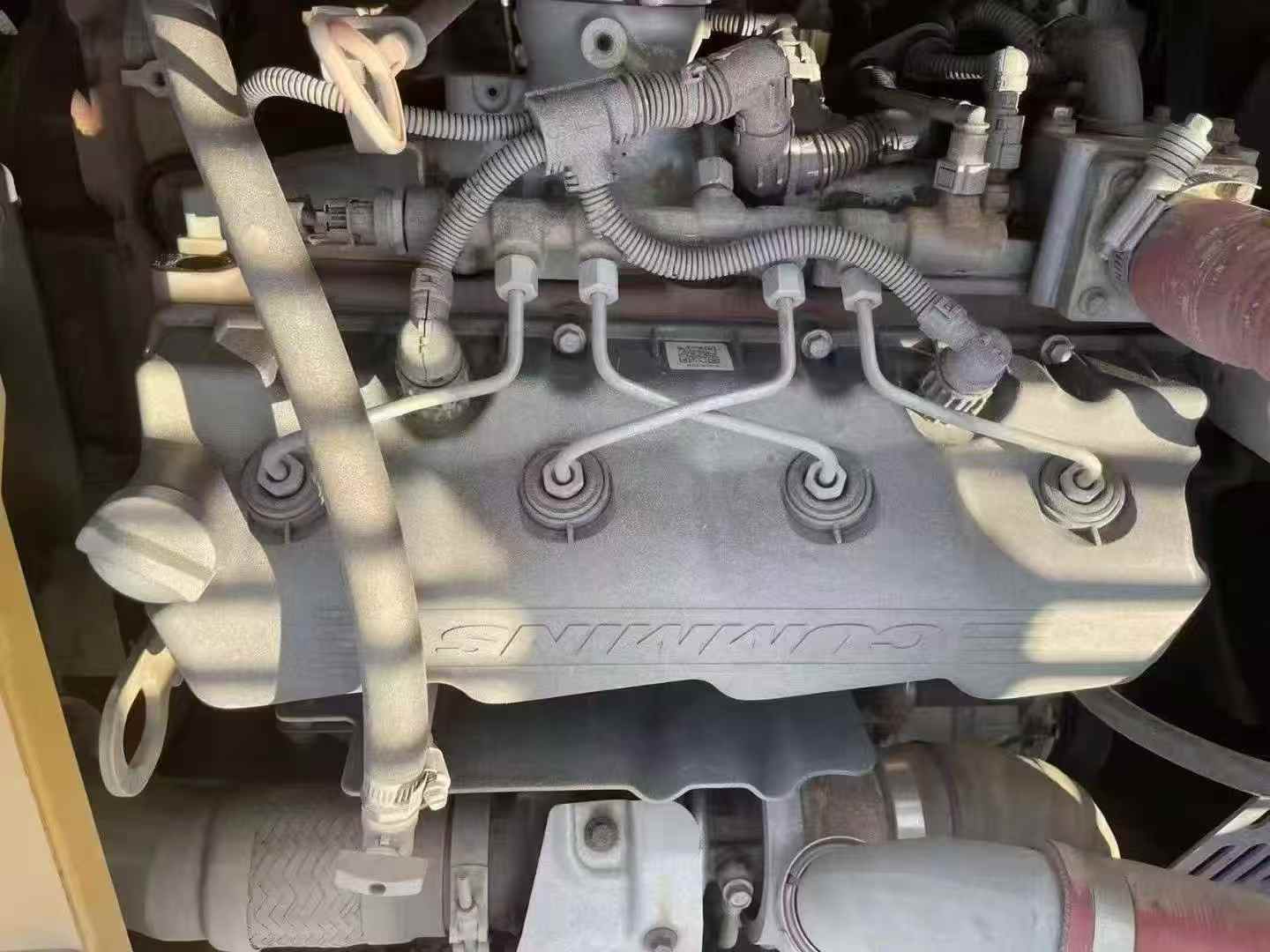

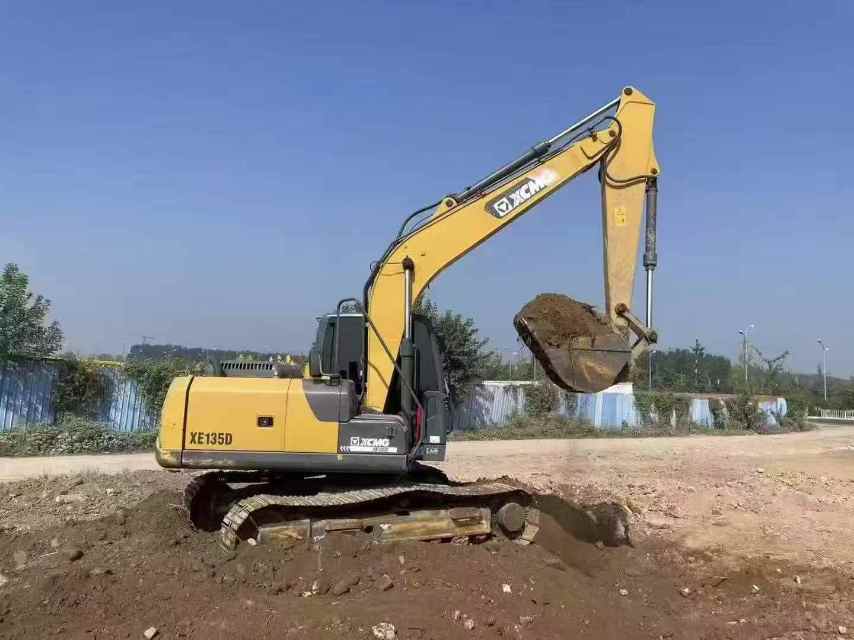

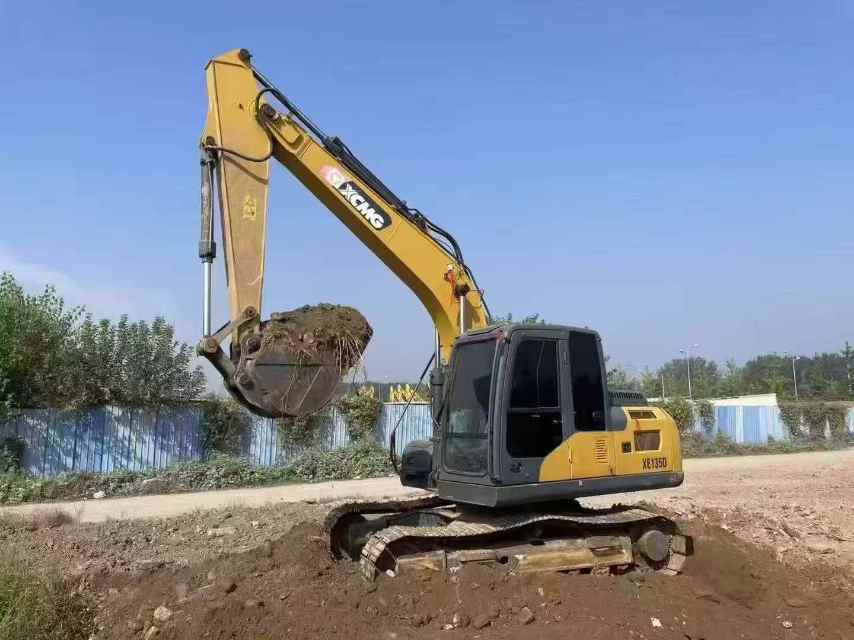

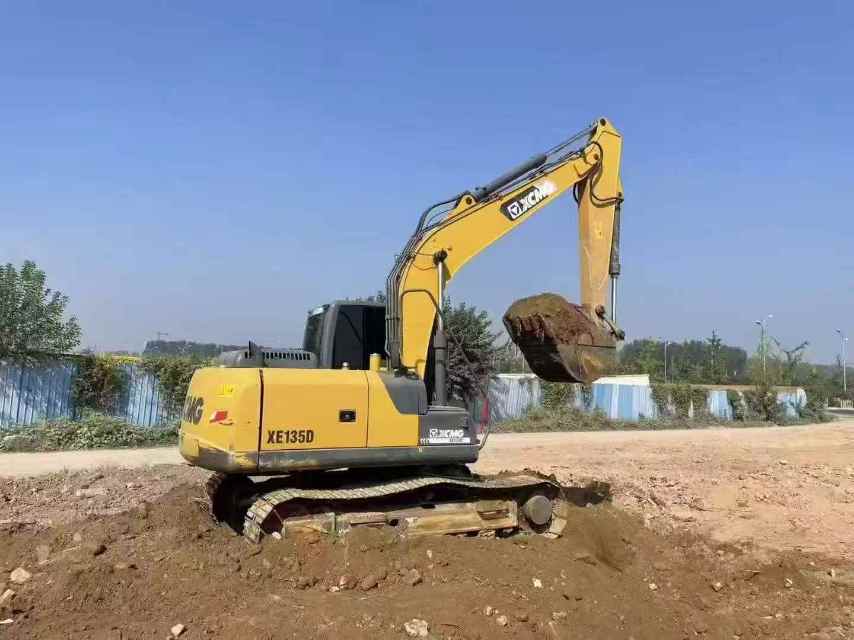

【 Premium Recommendation 】 Top-quality 2021 XCMG XE135D excavator meeting National III emission standards, the entire vehicle is original without any modification, with a working time of only 1,800 hours, almost in brand new condition! This excavator has maintained a good record of maintenance and upkeep since it left the factory. Its performance is stable and reliable, comparable to that of a new machine. It is equipped with a highly efficient and energy-saving Cummins engine, which is powerful, fuel-efficient and meets the latest environmental protection standards. The hydraulic system adopts core components of imported brands, ensuring smooth and precise operation. It performs excellently in both digging force and rotation speed. In addition, this machine is equipped with an advanced electronic control system, which can achieve intelligent management and greatly improve work efficiency and safety. The exterior of the entire vehicle is as clean and tidy as new, the interior is clean and comfortable, and all functions are in perfect condition. More importantly, we offer you detailed picture and video materials for your reference, allowing you to have a more intuitive and comprehensive understanding of this machine. Complete procedure
| Specifications | Value |
|---|---|
| No. | 964509 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
