Product Description

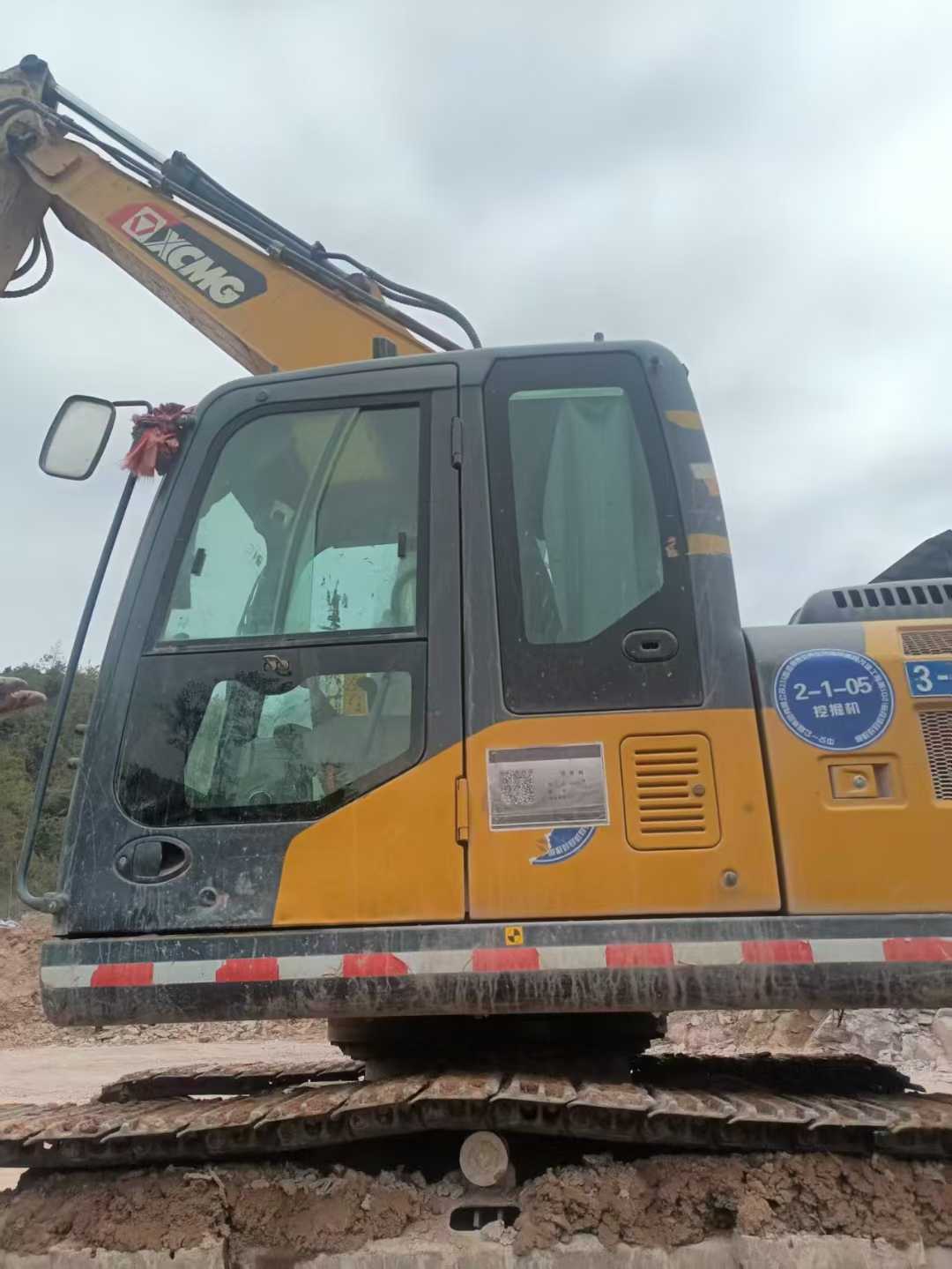

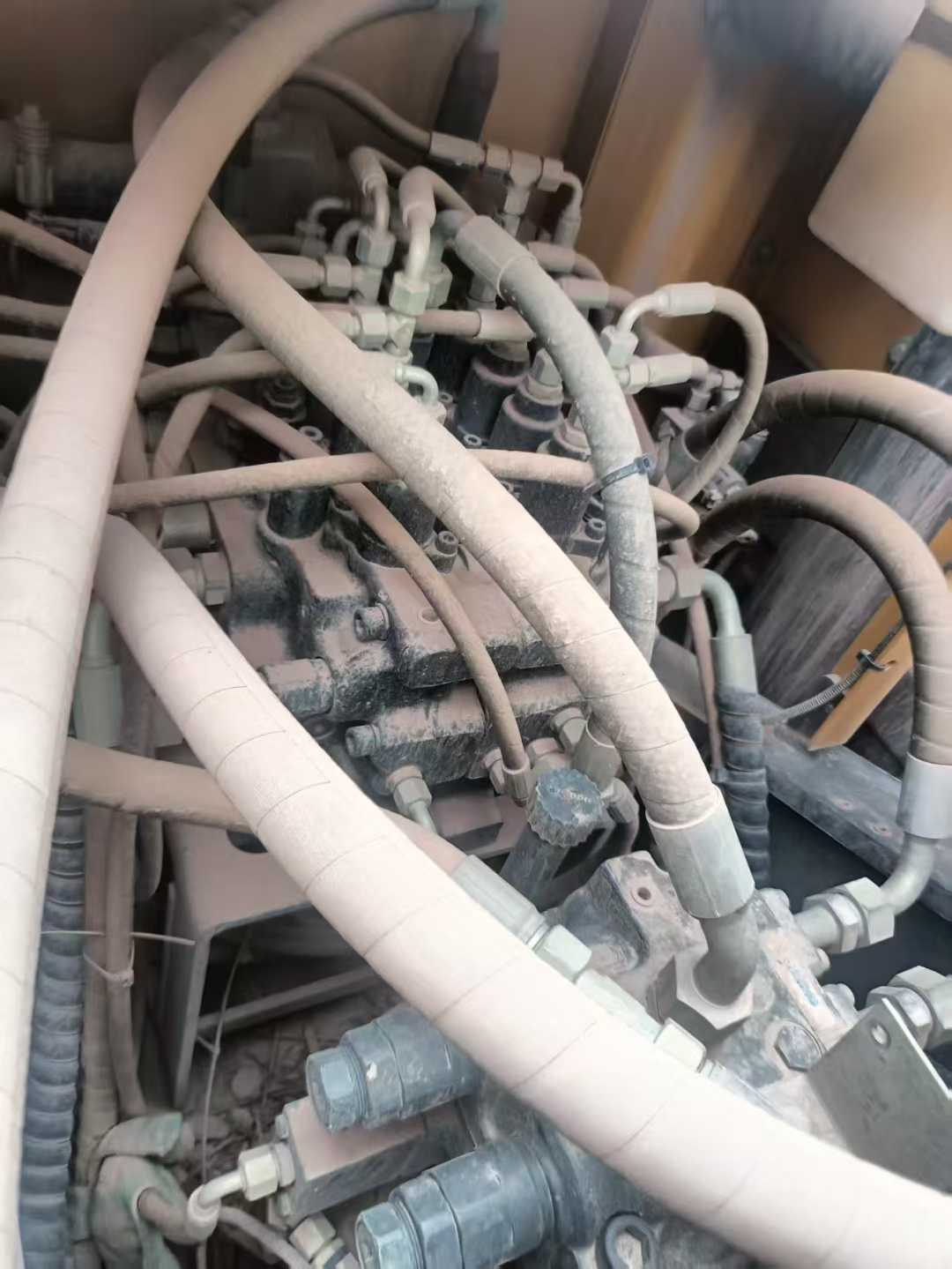

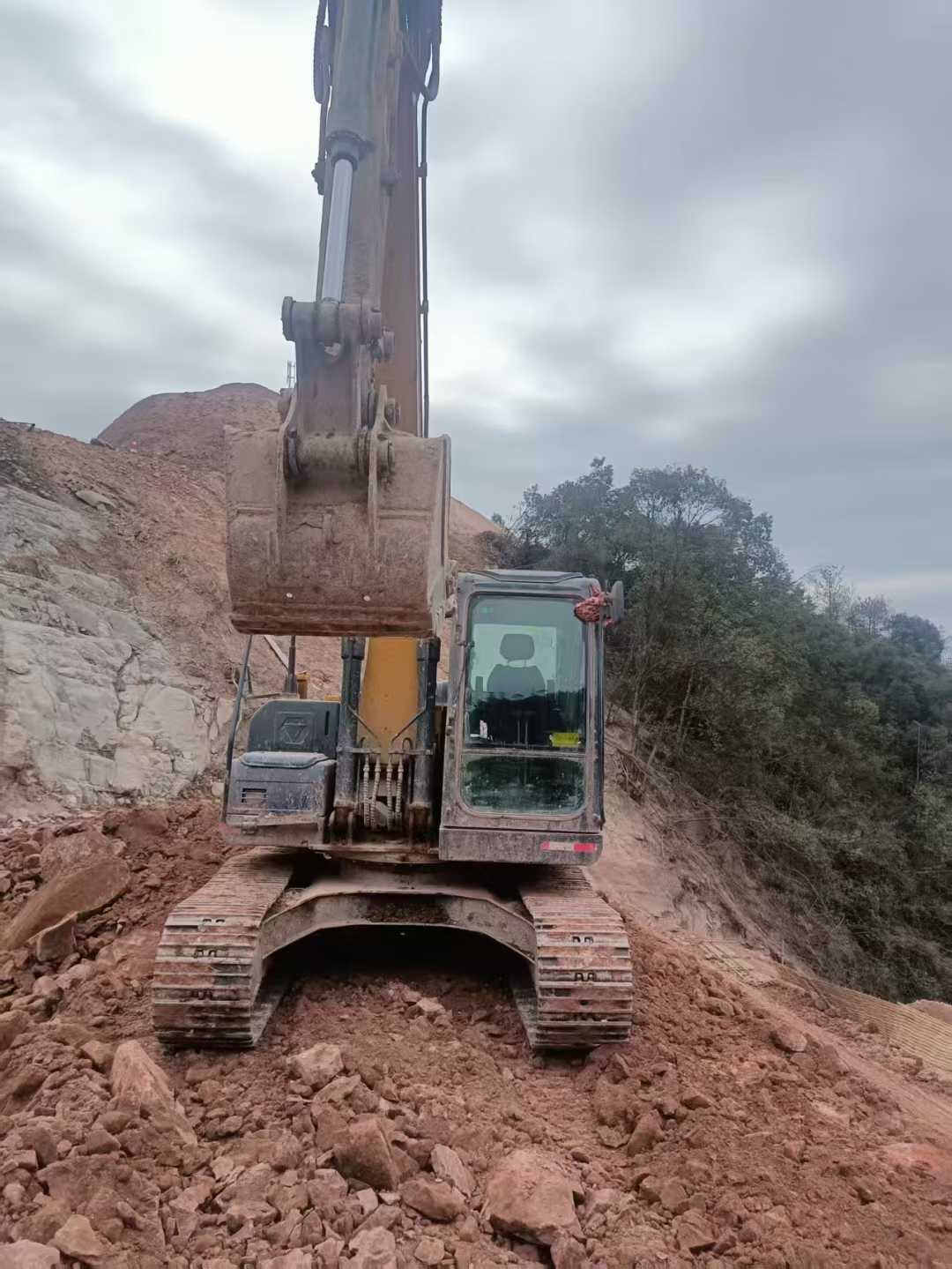

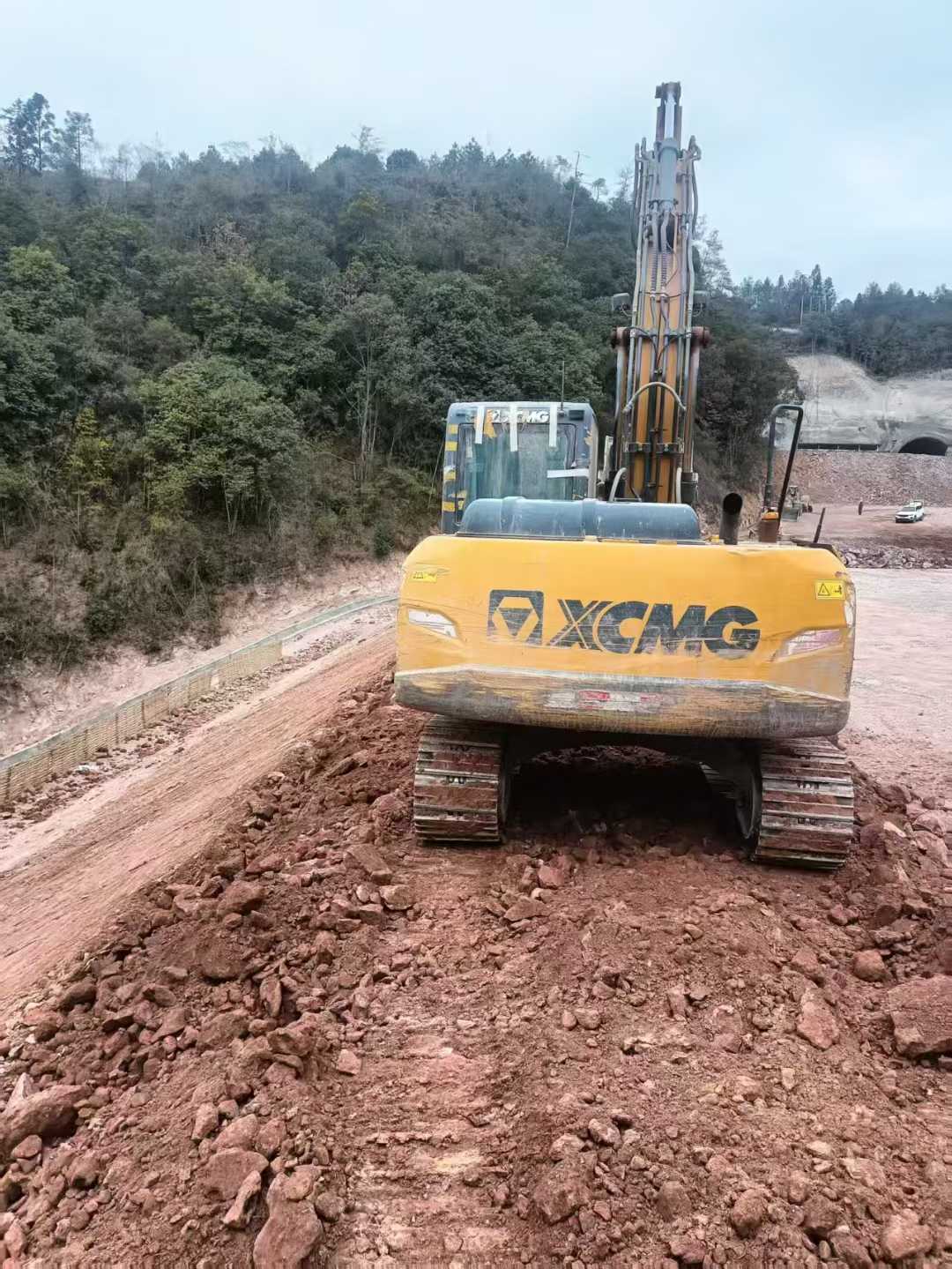

【 Premium Recommendation 】 Second-hand XCMG 135DA excavator, 2021 model, only 165,000 yuan! This XCMG 135DA excavator is a model from 2021. It is in excellent condition and has been in use for only 2,800 hours. It is well maintained and has no major accident records. The overall condition of the equipment is very good, with a clean appearance and an intact internal structure. There is no obvious wear or damage. This excavator is equipped with a high-performance Cummins engine, which is powerful and stable. It can handle excavation, loading and crushing operations with ease. The engine runs smoothly, with low noise, economical fuel consumption and low maintenance costs, making it highly suitable for long-term and high-intensity operations. Meanwhile, this excavator is also equipped with an advanced hydraulic system, which is flexible and precise to operate, responds quickly and can achieve high working efficiency. The hydraulic system has high reliability, reducing the failure rate and ensuring the stability of the equipment under various complex working conditions. In addition, this XCMG 135DA excavator is equipped with a spacious and comfortable cab, offering a wide field of vision and adjustable seats, which significantly enhance
| Specifications | Value |
|---|---|
| No. | 965681 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13200 |
| Bucket capacity (m³) | 0.32-0.61 (0.52) |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSF3.8 |
| Rated power (kw/rpm) | 86/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 470/1300 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.8 |
| Working form | Efi, Direct injection, 4-stroke, turbocharged |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 99.1 |
| Rod digging force (kN) | 68 |
| Maximum tractive force (kN) | 134 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 125.4*2 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Working Hydraulic Circuit (Mpa) | 31.4/34.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 105 |
| Engine Oil changes (L) | 11 |
| Total transport length (mm) | 7795 |
| Total transport width (mm) | 2525 |
| Total transport height (mm) | 2880 |
| Counterweight ground clearance (mm) | 931 |
| Minimum ground clearance (mm) | 466 |
| Minimum turning radius of front working device (mm) | 2445 |
| Back end turning radius (mm) | 2325 |
| Total track length (mm) | 3648 |
| Track gauge (mm) | 1990 |
| Total track width (mm) | 500 |
| Maximum digging radius (mm) | 8304 |
| Maximum digging depth (mm) | 5546 |
| Maximum excavation height (mm) | 8638 |
| Maximum unloading height (mm) | 6174 |
| Maximum vertical digging depth (mm) | 4698 |
| Maximum effective digging depth (mm) | 5335 |
