Product Description

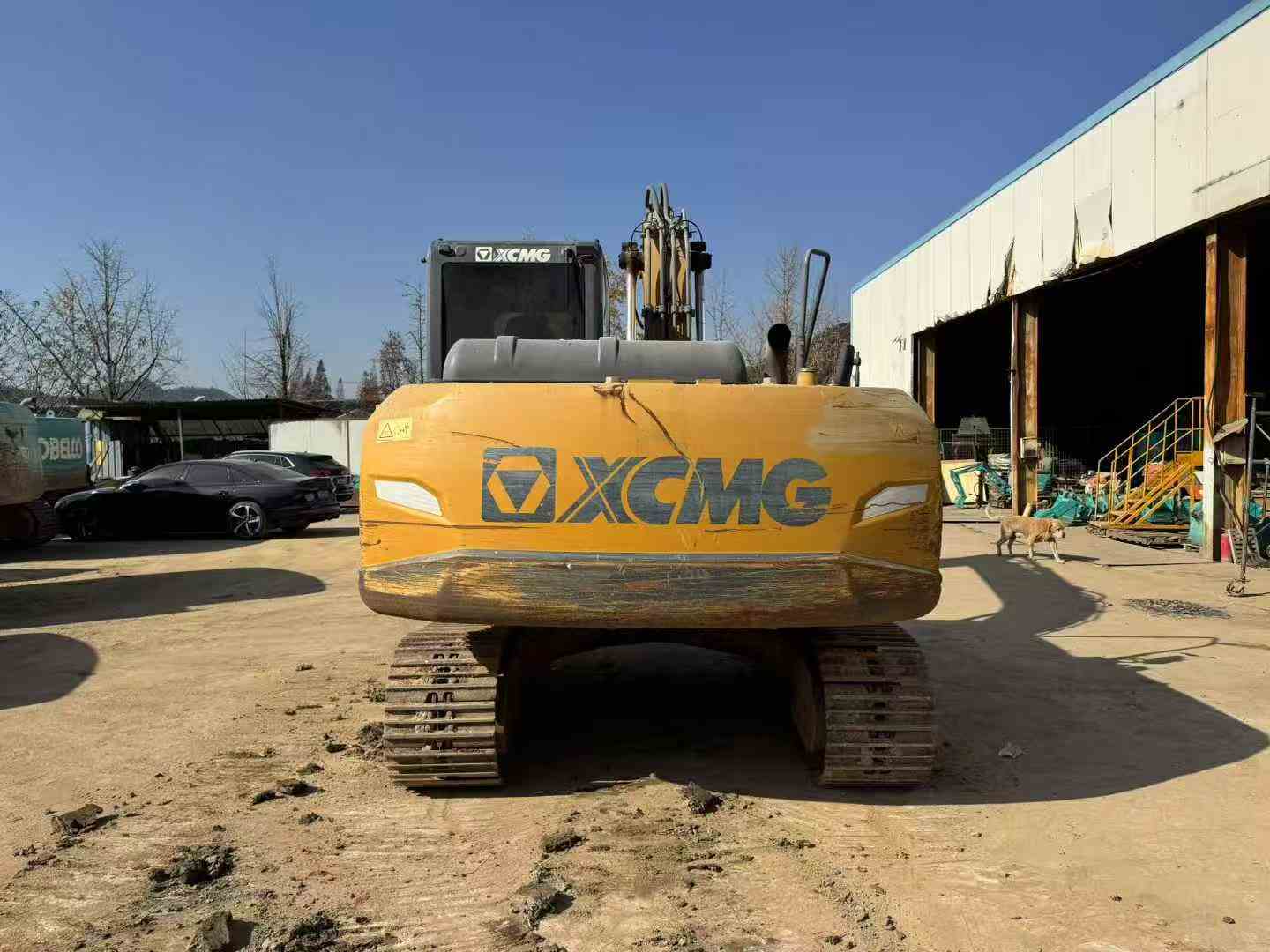

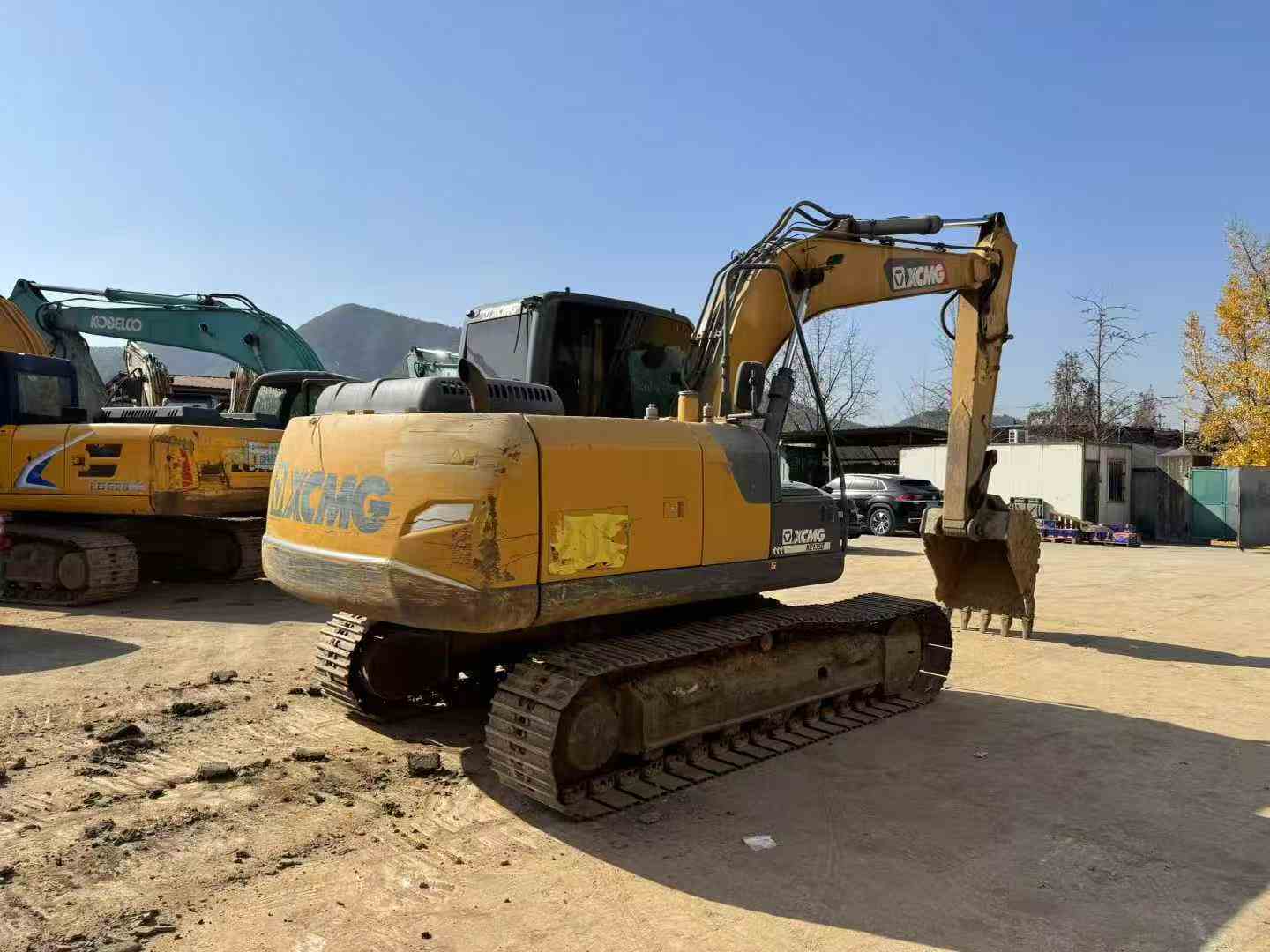

【 Premium Recommendation 】2021 XCMG XE135 second-hand excavator, with outstanding performance and quality guaranteed, is now available for only 159,000 yuan! Since its release in 2021, this XCMG XE135 excavator has been in operation for only 1,800 hours, equivalent to one-third of the service life of a new vehicle, and is in excellent mechanical condition. The whole machine is equipped with a high-performance engine, which is powerful, stable and reliable. Whether working in plains or mountains, it can easily handle various complex working conditions. The advanced electronic fuel injection system ensures fuel economy while significantly reducing emission pollution, meeting the latest environmental protection standards. In terms of the hydraulic system, this machine is equipped with imported high-quality hydraulic pumps and motors, featuring fast response and high operational accuracy, which can achieve an efficient and smooth working process. In addition, it also has excellent digging and lifting capabilities. Whether it is earthwork excavation or stone material transportation, it can complete tasks with ease. More importantly, it is easy and convenient to maintain and has a low long-term operating cost. It is an indispensable good h
| Specifications | Value |
|---|---|
| No. | 964237 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1640 |
| Bucket capacity (m³) | 0.044 |
| Boom length (mm) | 1690 |
| Rod length (mm) | 1100 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 3TNV82A |
| Rated power (kw/rpm) | 16.5/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 3 |
| Displacement (L) | 1.33 |
| Ground specific pressure (Kpa) | 23.8 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 13.9 |
| Rod digging force (kN) | 8.8 |
| Travel speed (km/h) | 4.4/2.4 |
| Main overflow set pressure (Mpa) | 24 |
| Maximum flow of main pump (l/min) | 2*19.8+14.1 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 18 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi |
| Pilot pump flow (L/min) | 3.3 |
| Fuel Tank (L) | 20 |
| Hydraulic Tank (L) | 29 |
| Engine Oil changes (L) | 5.5 |
| Total transport length (mm) | 3760 |
| Total transport width (mm) | 1080 |
| Total transport height (mm) | 2400 |
| Counterweight ground clearance (mm) | 472 |
| Minimum ground clearance (mm) | 180 |
| Minimum turning radius of front working device (mm) | 1675 |
| Back end turning radius (mm) | 1190 |
| Track gauge (mm) | 850 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1217 |
| Maximum digging radius (mm) | 3915 |
| Maximum digging depth (mm) | 2320 |
| Maximum excavation height (mm) | 3615 |
| Maximum unloading height (mm) | 2480 |
| Maximum vertical digging depth (mm) | 1520 |
| Dodging plate width × height (mm) | 1080*225 |
