Product Description

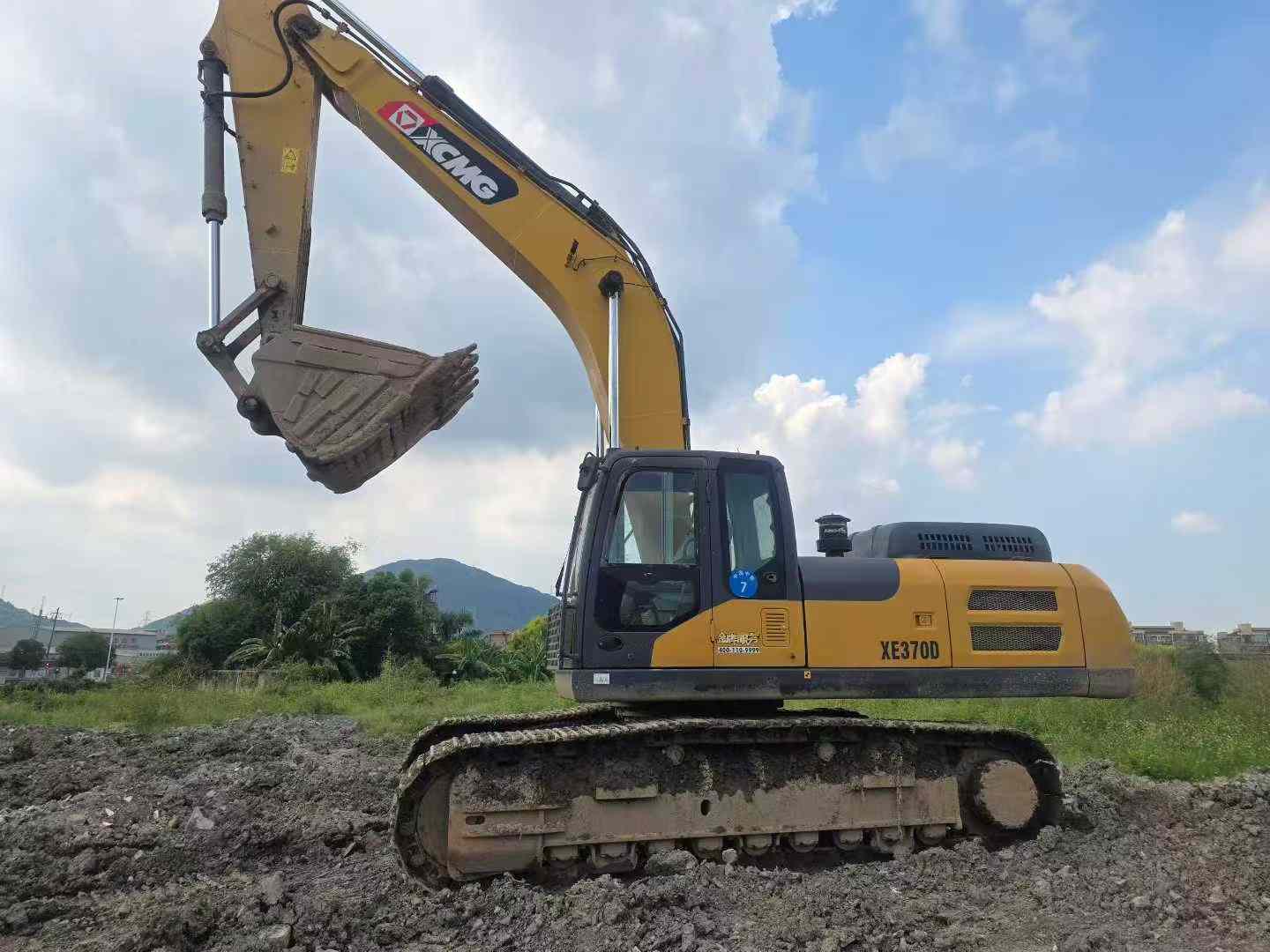

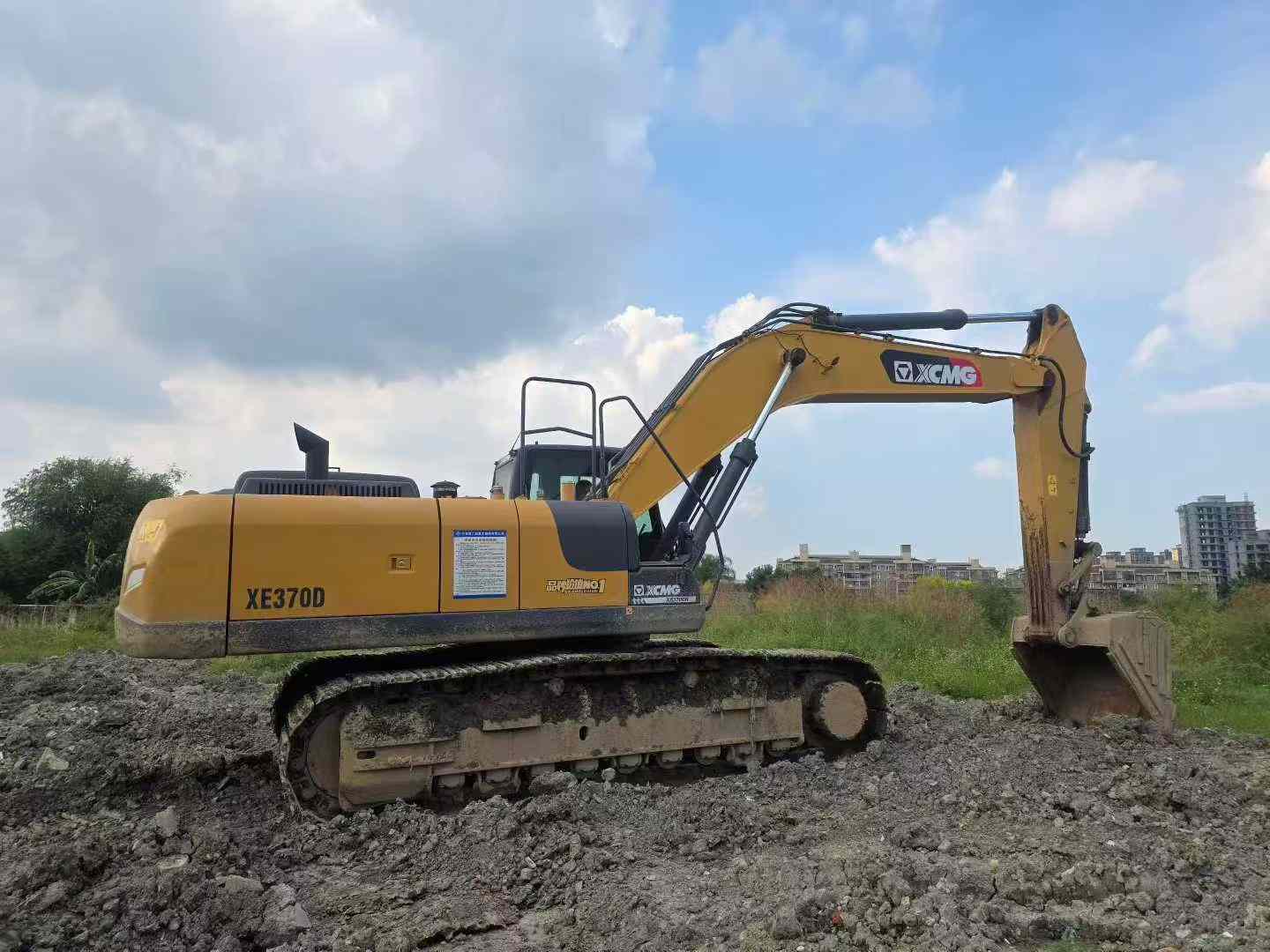

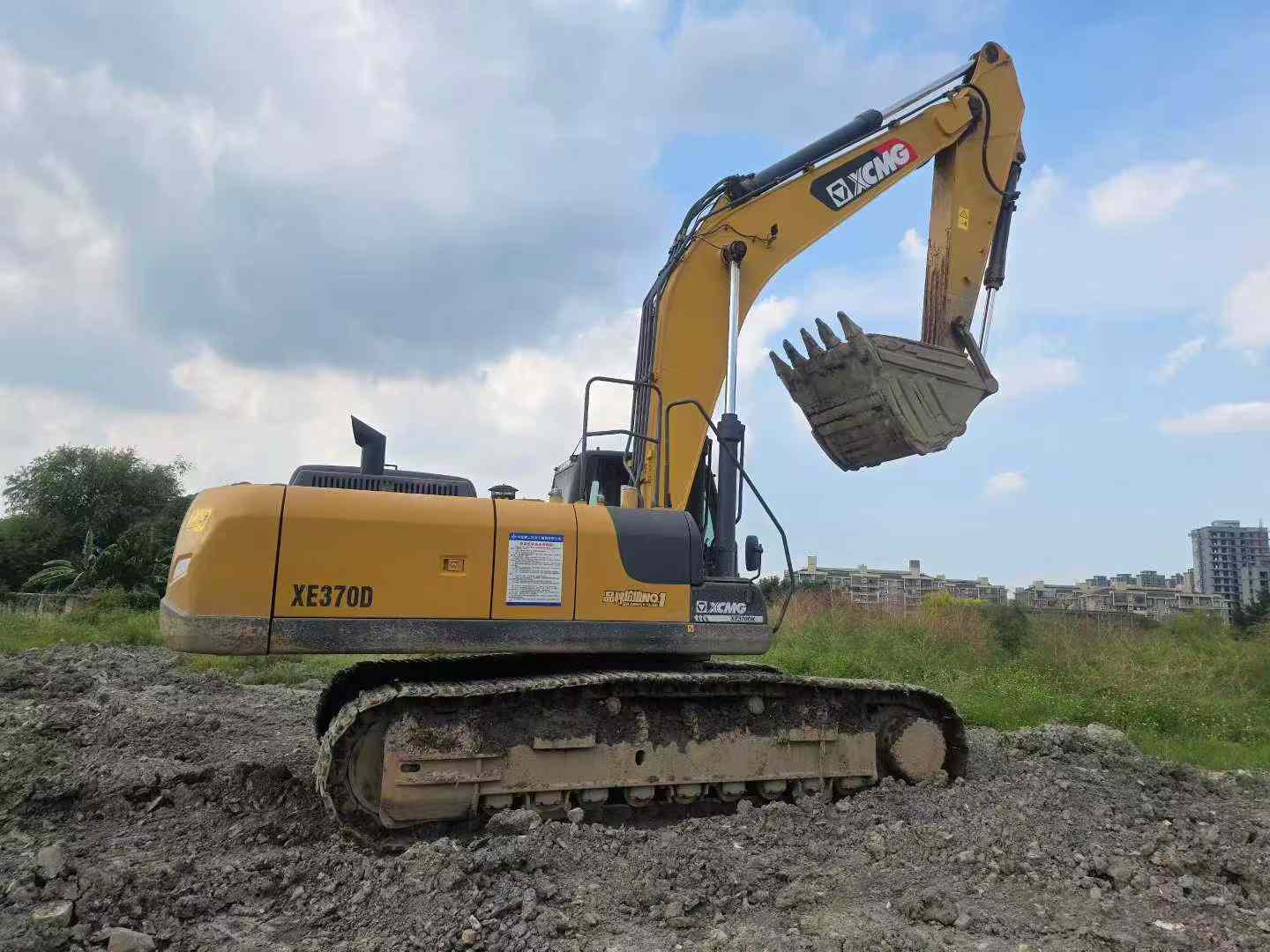

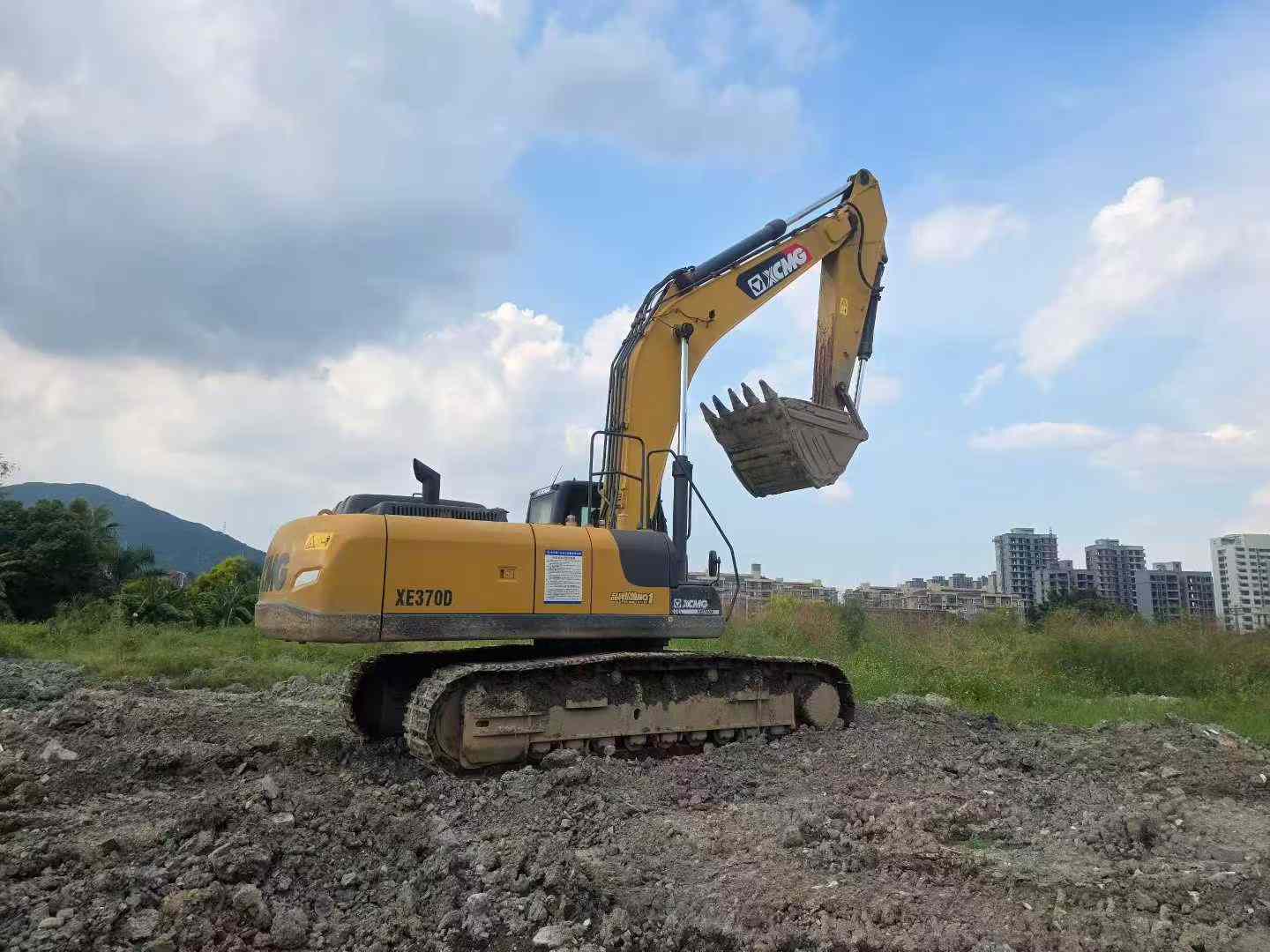

No. 7 2022 XCMG 370D, a first-hand vehicle from a construction waste company. Full company maintenance throughout the process. Original chain. Not a single screw of the large piece was moved.
| Specifications | Value |
|---|---|
| No. | 931495 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 36800 |
| Bucket capacity (m³) | 1.7-1.9 |
| Boom length (mm) | 6400 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

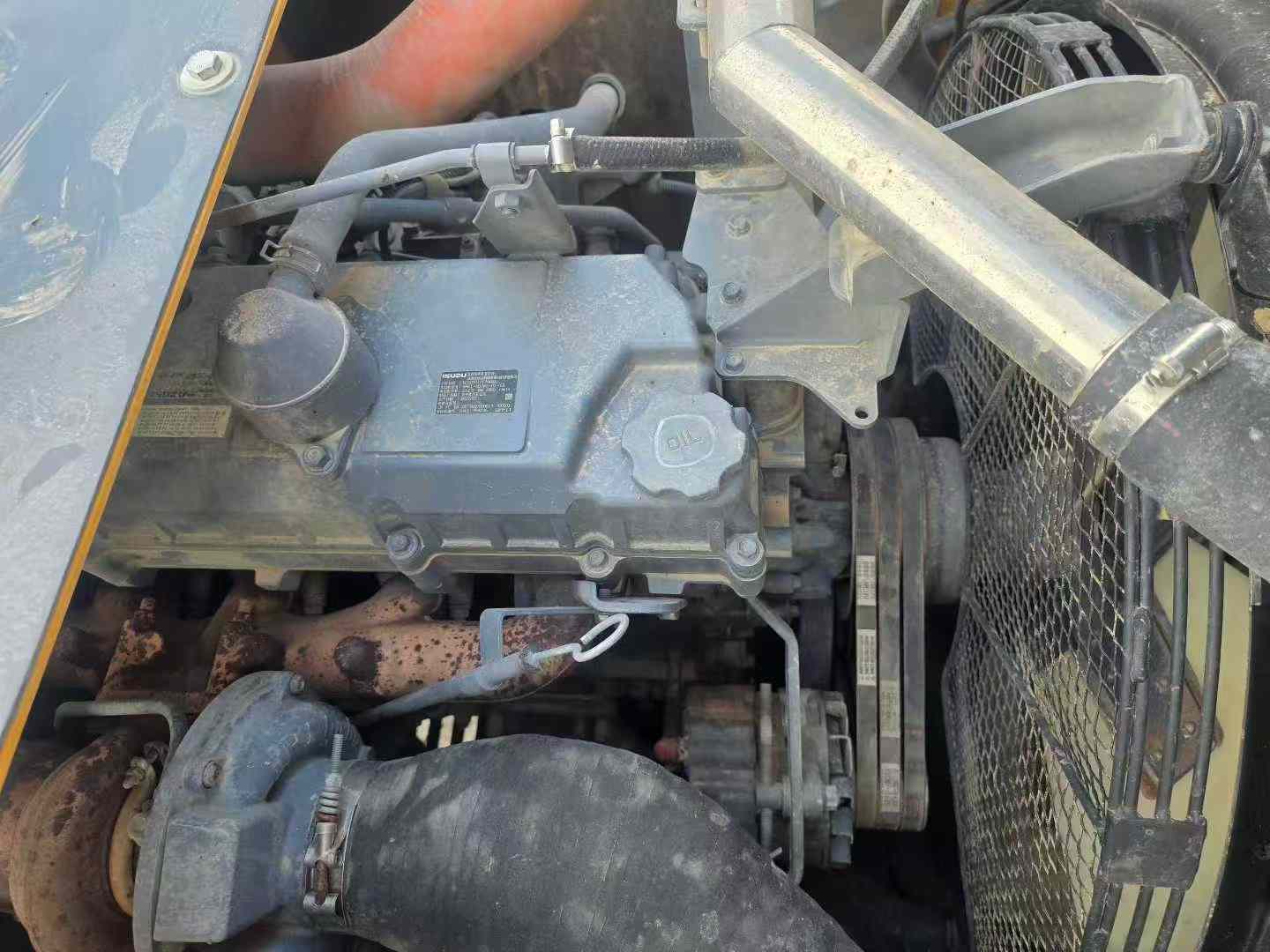

| Engine type | GH-6HK1XKSC-03 |
| Rated power (kw/rpm) | 212/2000 |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Ground specific pressure (Kpa) | 66.7 |
| Rotation speed (rpm) | 9.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 263 |
| Rod digging force (kN) | 188 |
| Maximum tractive force (kN) | 285 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2*296 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11388 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3530 |
| Counterweight ground clearance (mm) | 1197 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4369 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5035 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Maximum digging radius (mm) | 11114 |
| Maximum digging depth (mm) | 7423 |
| Maximum excavation height (mm) | 10445 |
| Maximum unloading height (mm) | 7287 |
| Maximum vertical digging depth (mm) | 6776 |
