2011 XCMG XE40

1/8
Used XCMG XE40 Excavator 2011 Model / 1
Used XCMG XE40 Excavator 2011 Model / 2
Used XCMG XE40 Excavator 2011 Model / 3
Used XCMG XE40 Excavator 2011 Model / 4
Used XCMG XE40 Excavator 2011 Model / 5
Used XCMG XE40 Excavator 2011 Model / 6
Used XCMG XE40 Excavator 2011 Model / 7
Used XCMG XE40 Excavator 2011 Model / 8

Product Description

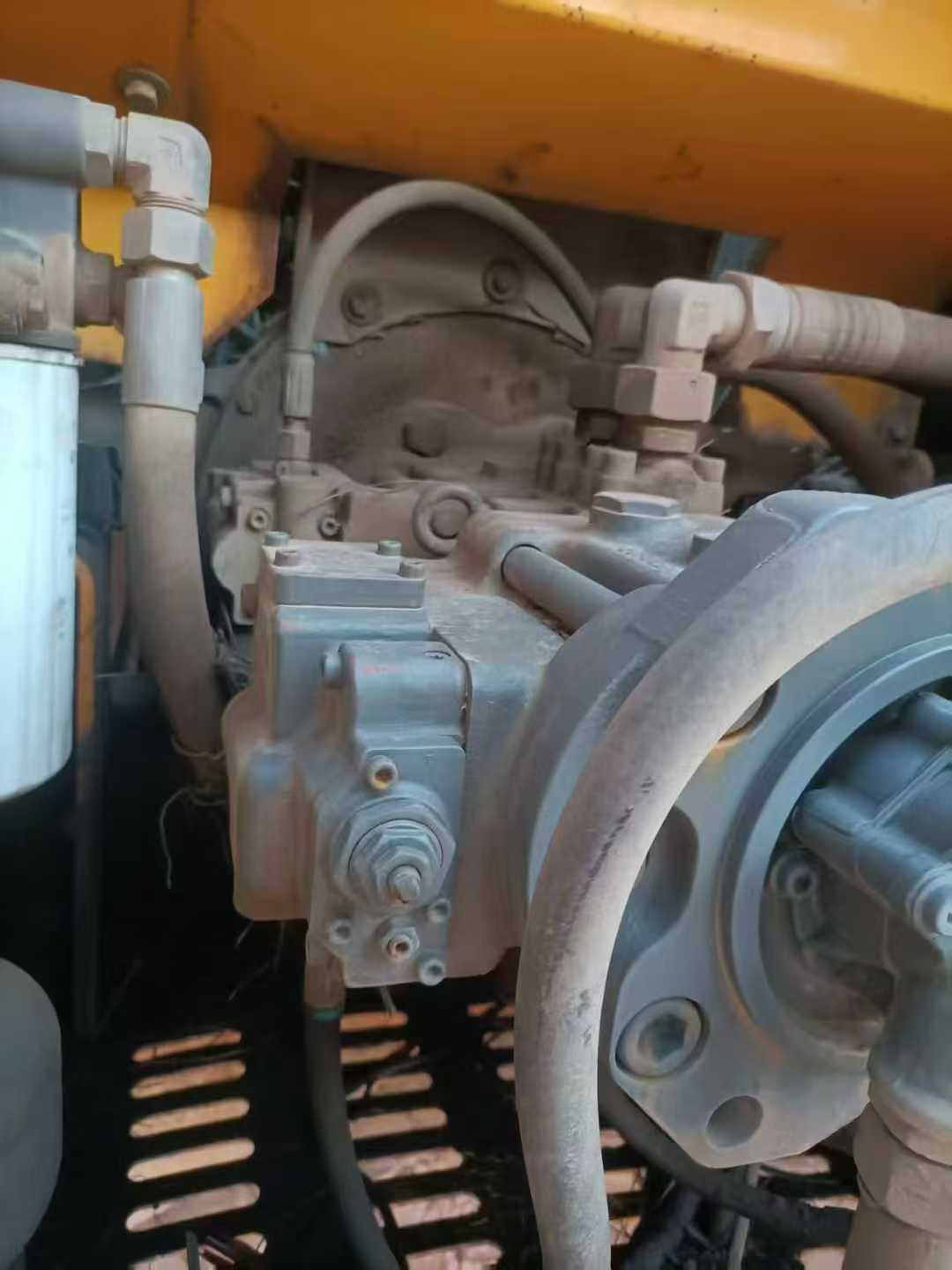

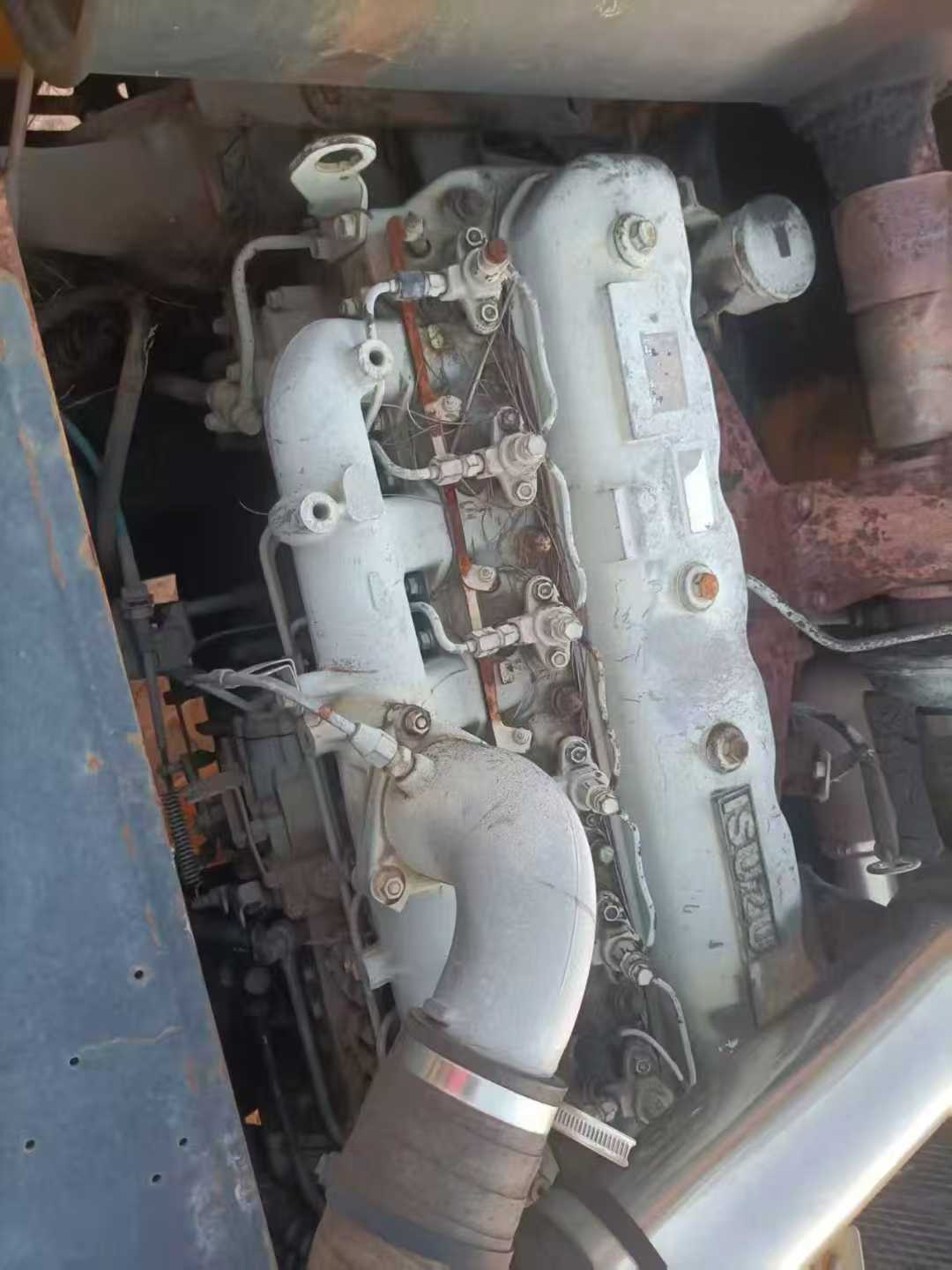

【 Premium Recommendation 】 Second-hand XCMG XE230 excavator from 2011. This equipment is a rare and high-quality choice in the market. This excavator has been in normal construction use since its purchase, with a cumulative working time of approximately 6,000 hours. Its overall condition is excellent and it is particularly suitable for engineering projects that require efficient and stable operation. In terms of the power system, this machine is equipped with an original imported Cummins engine, which performs exceptionally well and has excellent fuel economy. Years of use have proved that this engine not only has strong power but also maintains a good operating state under various complex working conditions, providing reliable power support for your project. The hydraulic system adopts the main pump and valve group of Kawasaki brand from Japan, ensuring smooth operation and rapid response of the entire machine. Whether it is excavation, loading or crushing operations, they can all be handled with ease. In addition, this hydraulic system also features excellent durability and ease of maintenance, significantly reducing the cost of later use. Most notably, the chassis of this excavator is in excellent condition, almost reaching a con

SpecificationsValue
No.969632
Tonnage (tons)4
Working weight (kg)4050
Bucket capacity (m³)0.14
Boom length (mm)2795
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeYanmar Yanmar 4TNV88
Rated power (kw/rpm)27.1/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)2.19
Ground specific pressure (Kpa)23.6
Rotation speed (rpm)13.5
Climbing ability (%)30 °
Bucket digging force (kN)23.2
Rod digging force (kN)19.3
Travel speed (km/h)4.2/2.6
Main overflow set pressure (Mpa)21
Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)1*110+11
Traveling Hydraulic Circuit (Mpa)21
Rotary Hydraulic Circuit (Mpa)21
Hydraulic crushing pipeline is standardno
Main pump typeJapan Fujikoshi variable pump ×1+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)65
Engine Oil changes (L)7.4
Hydraulic System (L)70
Total transport length (mm)5455
Total transport width (mm)1650
Total transport height (mm)2440
Counterweight ground clearance (mm)578
Minimum ground clearance (mm)350
Minimum turning radius of front working device (mm)2385
Back end turning radius (mm)1490
Track gauge (mm)1335
Track plate width (mm)300
Track ground length (mm)1721
Maximum digging radius (mm)5810
Maximum digging depth (mm)3600
Maximum excavation height (mm)5320
Maximum unloading height (mm)3700
Maximum vertical digging depth (mm)2250
Bulldozer lift or depth (mm)267/365
Dodging plate width × height (mm)1650 x 300
see more

Overview

No.969632

Brand Name:

XCMG

Model Number:

XE40

Year:

2011

Location:

Hunan China
