Product Description

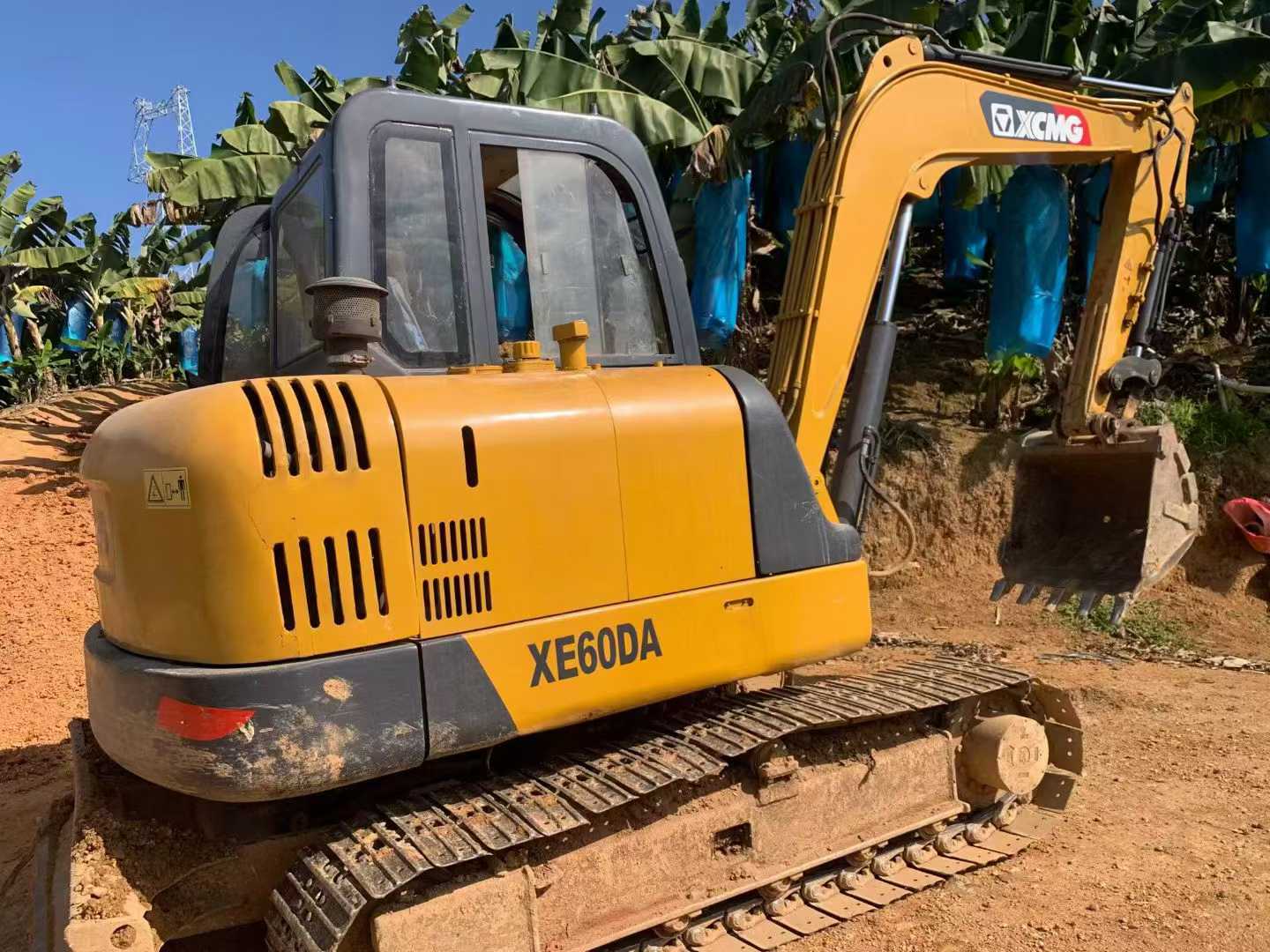

XCMG XE60 second-hand excavator, the best choice for cost performance This second-hand XCMG XE60 excavator is one of the most popular small excavators in the market. It has won the favor of many users with its outstanding performance, reliable quality and economical price. This device is currently priced at just over 20,000 yuan. For those with a limited budget but still hoping to own a high-performance excavator, it is definitely a rare and excellent opportunity! 【 Basic Information - Brand: XCMG Model: XE60 - Working hours: Approximately 1,500 hours (Please refer to the actual vehicle for the exact figure) - Engine type: It adopts a well-known brand diesel engine, which is powerful and has good fuel economy - Hydraulic system: Equipped with an advanced hydraulic control system, it ensures smoothness and accuracy during operation 【 Product Highlights 1. ** High efficiency and Energy saving ** : This model is equipped with a high-performance engine and an optimized hydraulic system, which not only enhances work efficiency but also reduces fuel consumption costs. 2. ** Easy operation ** : The humanized designed operation interface enables even first-time users to quickly get started and easily complete various complex tasks. 3. ** Ea
| Specifications | Value |
|---|---|
| No. | 965741 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

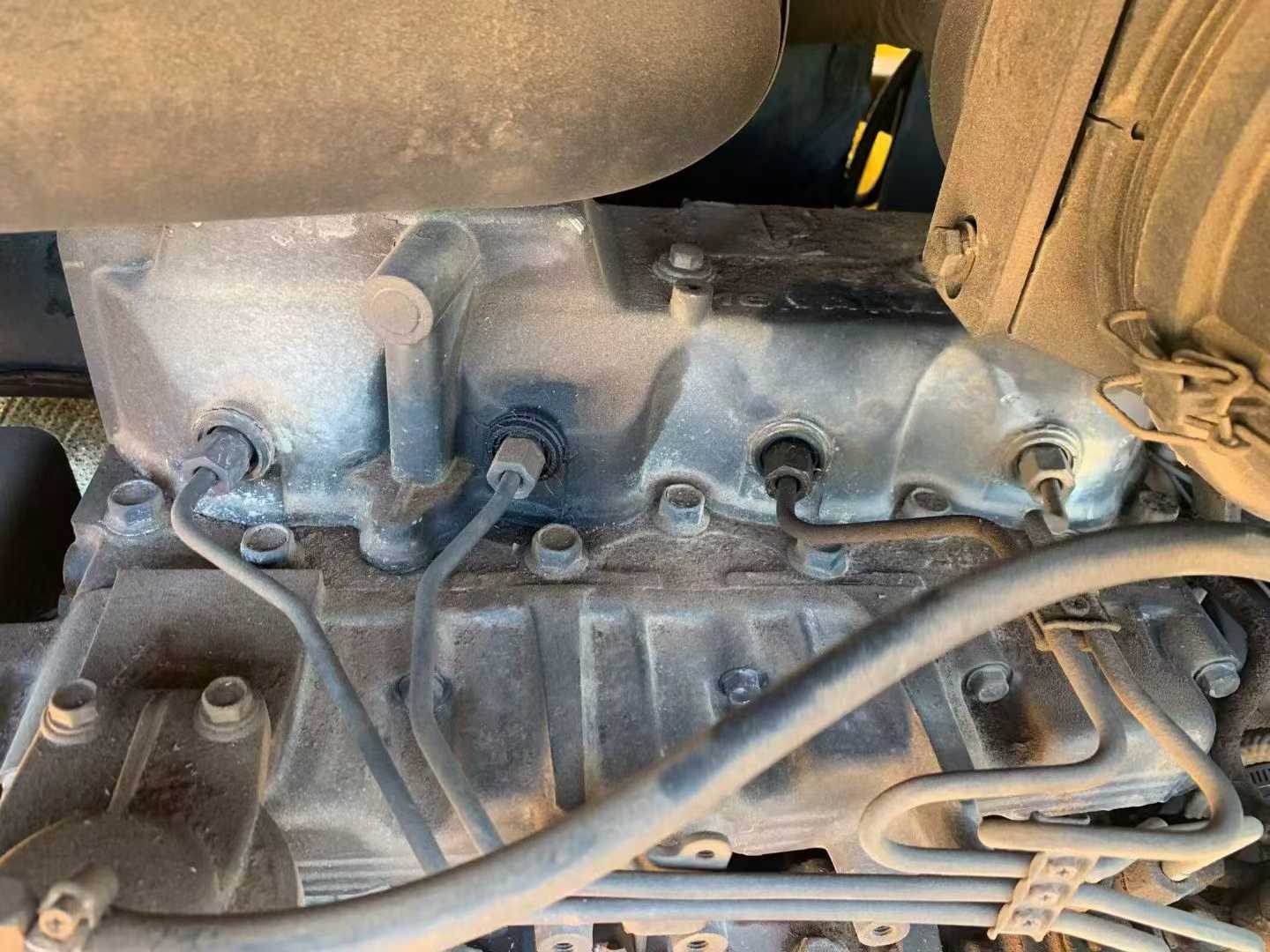

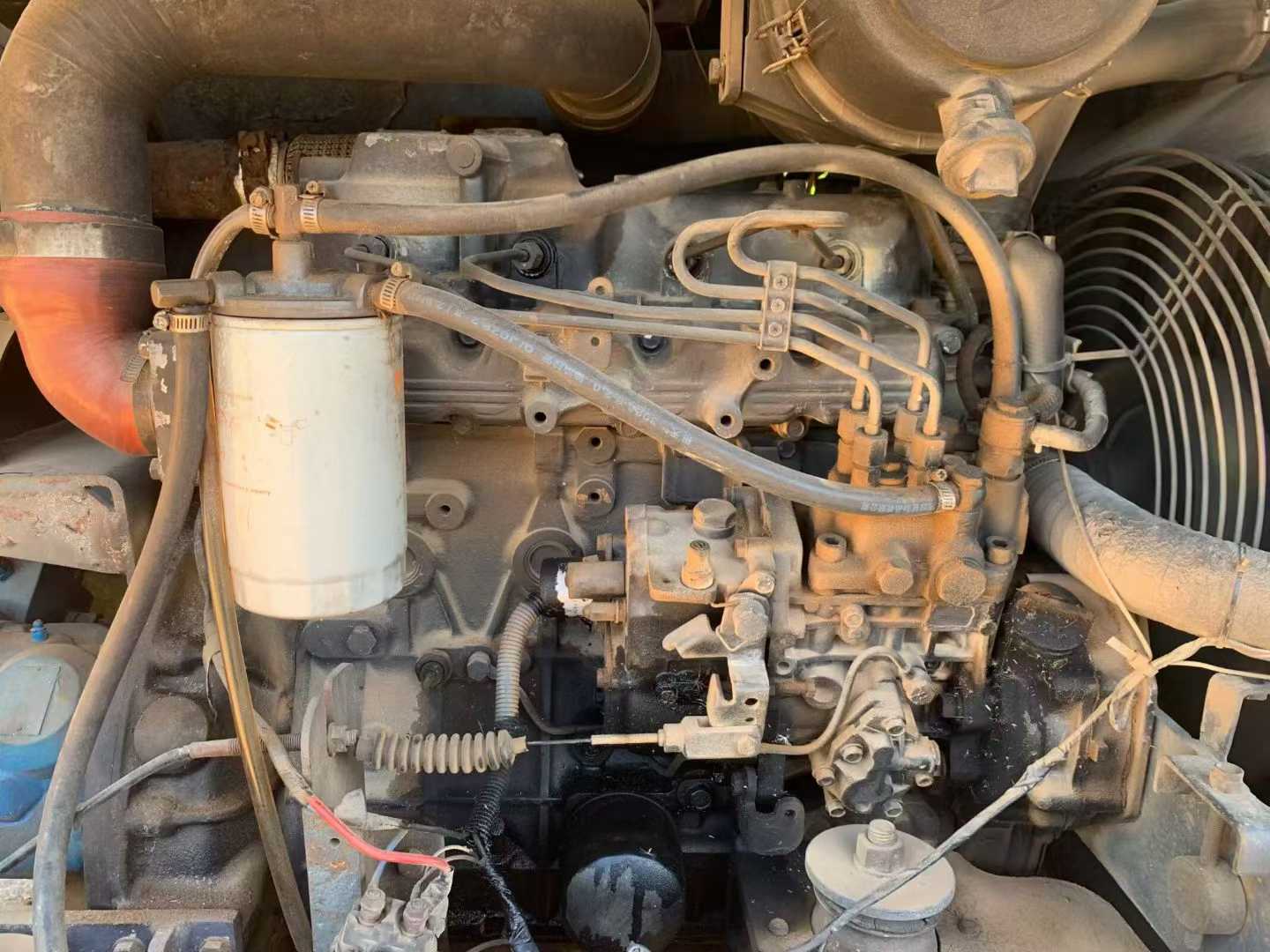

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

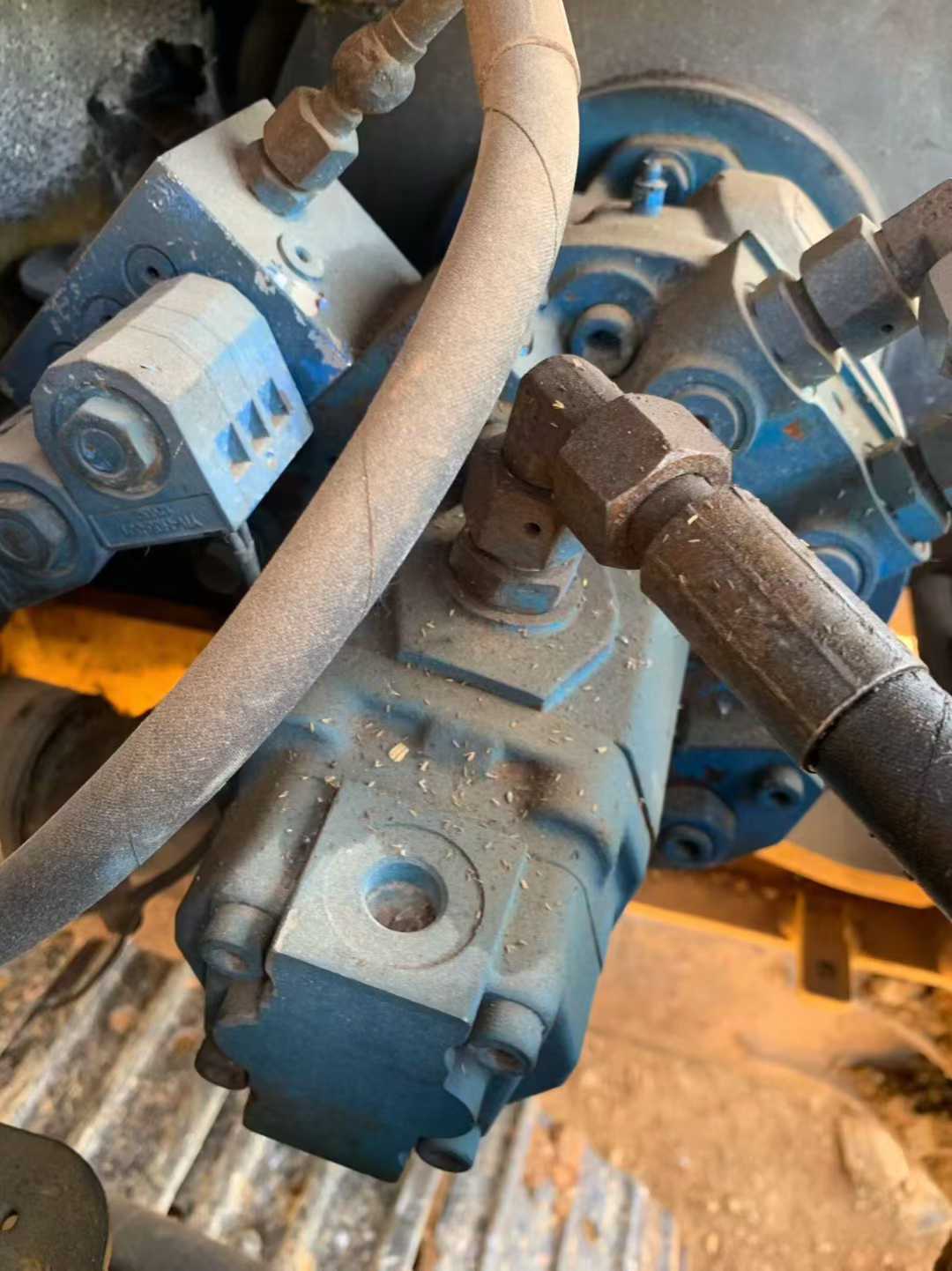

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
