Product Description

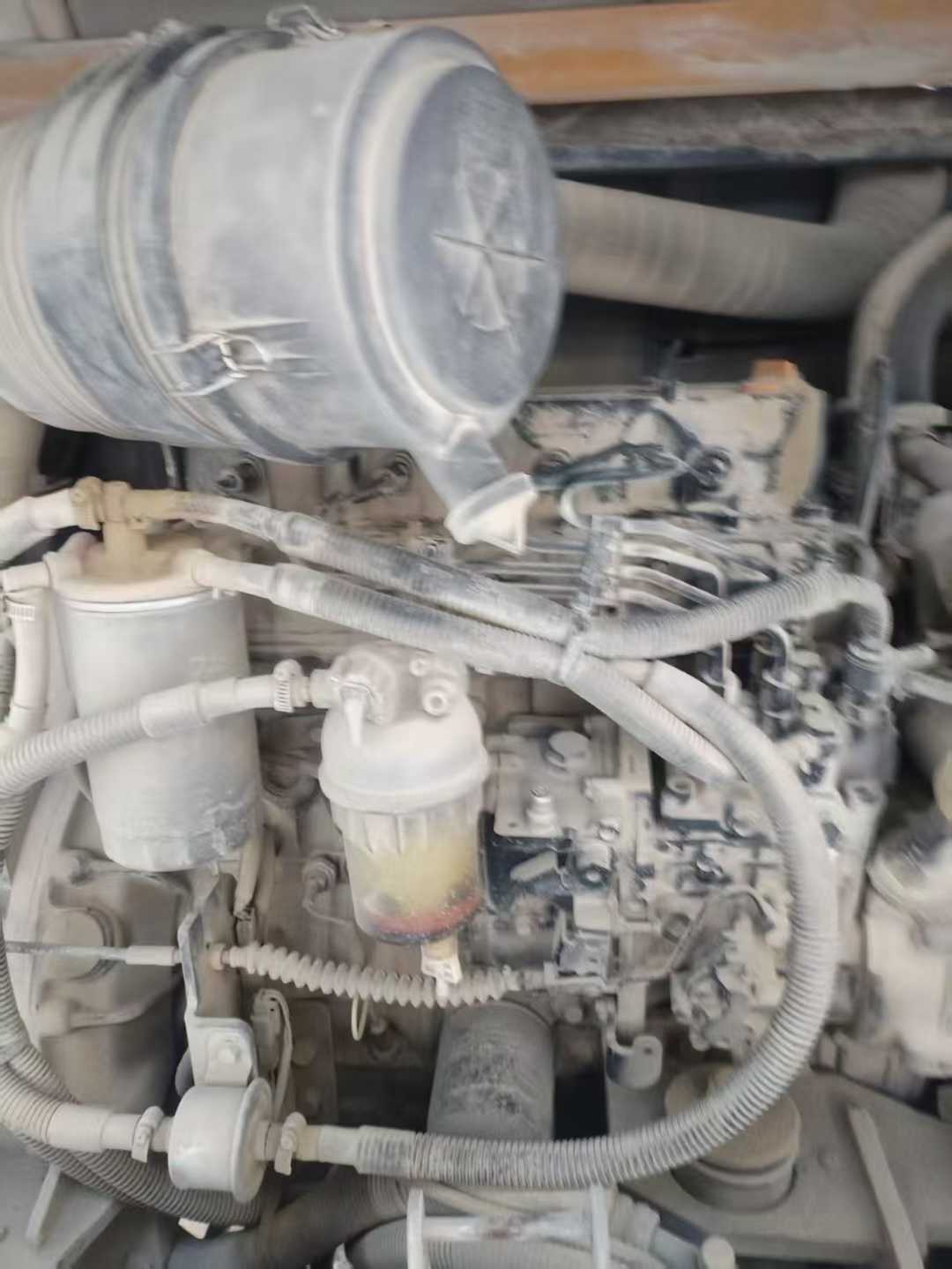

【 Premium Recommendation 】 XCMG XE60 excavator, manufactured in October 2019, available for only 55,000 yuan! Since its commissioning in October 2019, this XCMG XE60 excavator has accumulated a working time of only 1,800 hours, and its overall condition has been maintained very well. The power system of the equipment adopts the Yanmar 4TNV98 engine, which has been tested by the market for a long time. This engine features high efficiency, energy conservation and environmental protection. It is powerful and runs smoothly, and can easily handle various complex working conditions. In terms of the hydraulic system, the main pump and valve group of Kawasaki brand from Japan are adopted, ensuring the stability and reliability of the entire machine during operation. In addition, this model is also equipped with an advanced electronic control system, making operation more convenient and precise. From the perspective of appearance, there are no obvious dents or damages on the vehicle body, and the paint surface is as smooth as new. The interior is also well maintained. The cab is spacious and comfortable with a wide field of vision, providing a good working environment for the operator. We have prepared detailed pictures and video materials f
| Specifications | Value |
|---|---|
| No. | 965020 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
