Product Description

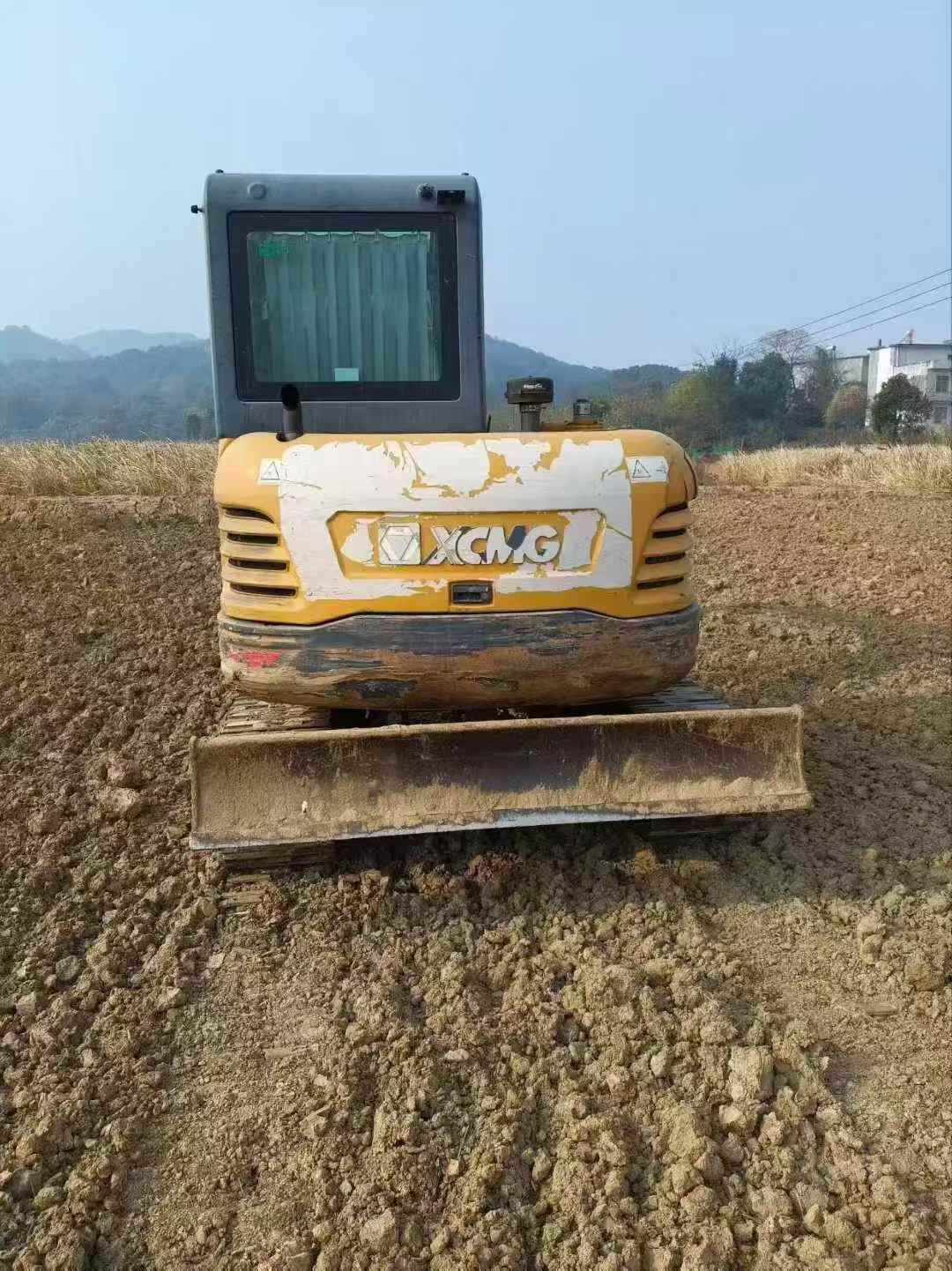

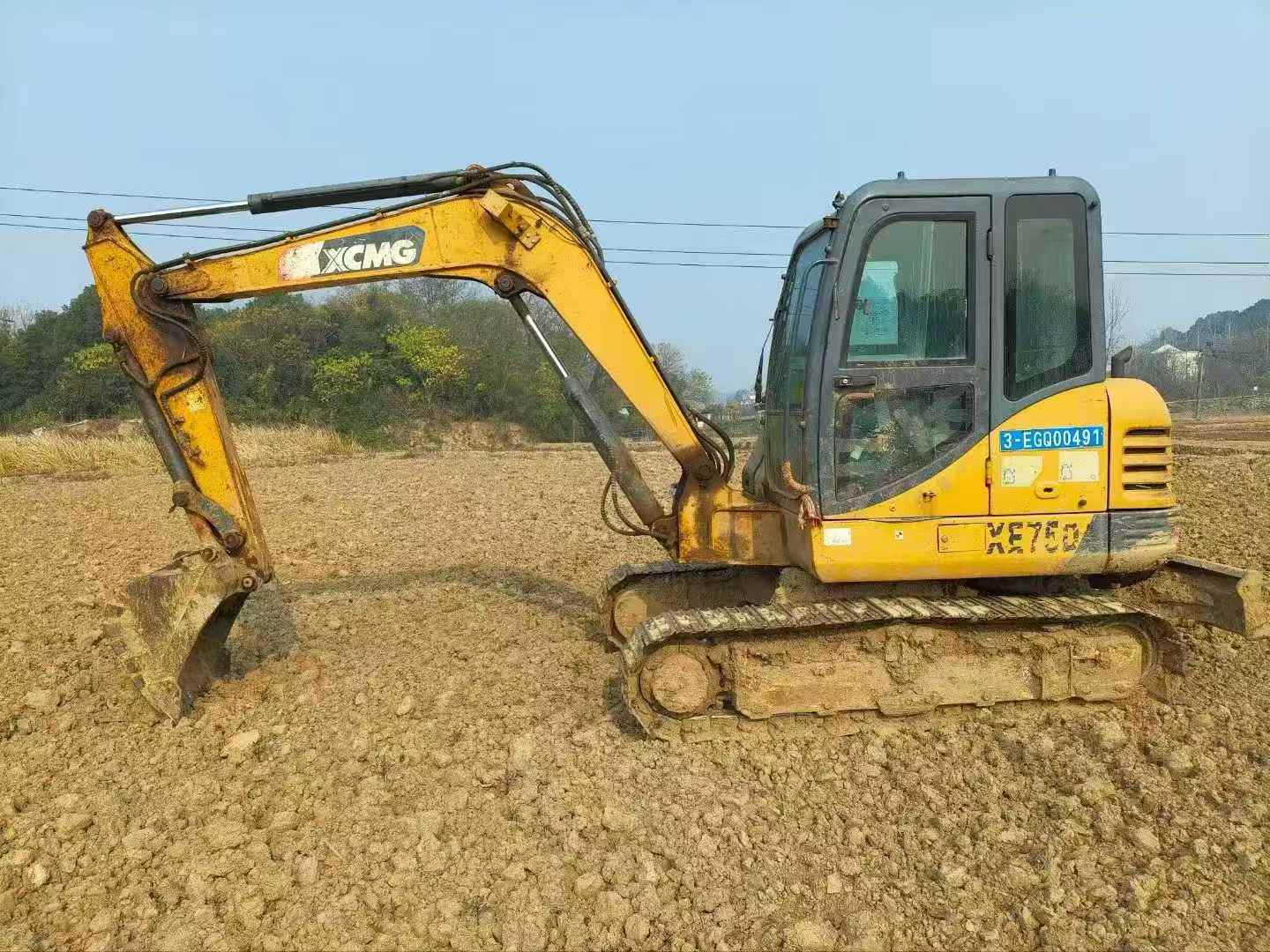

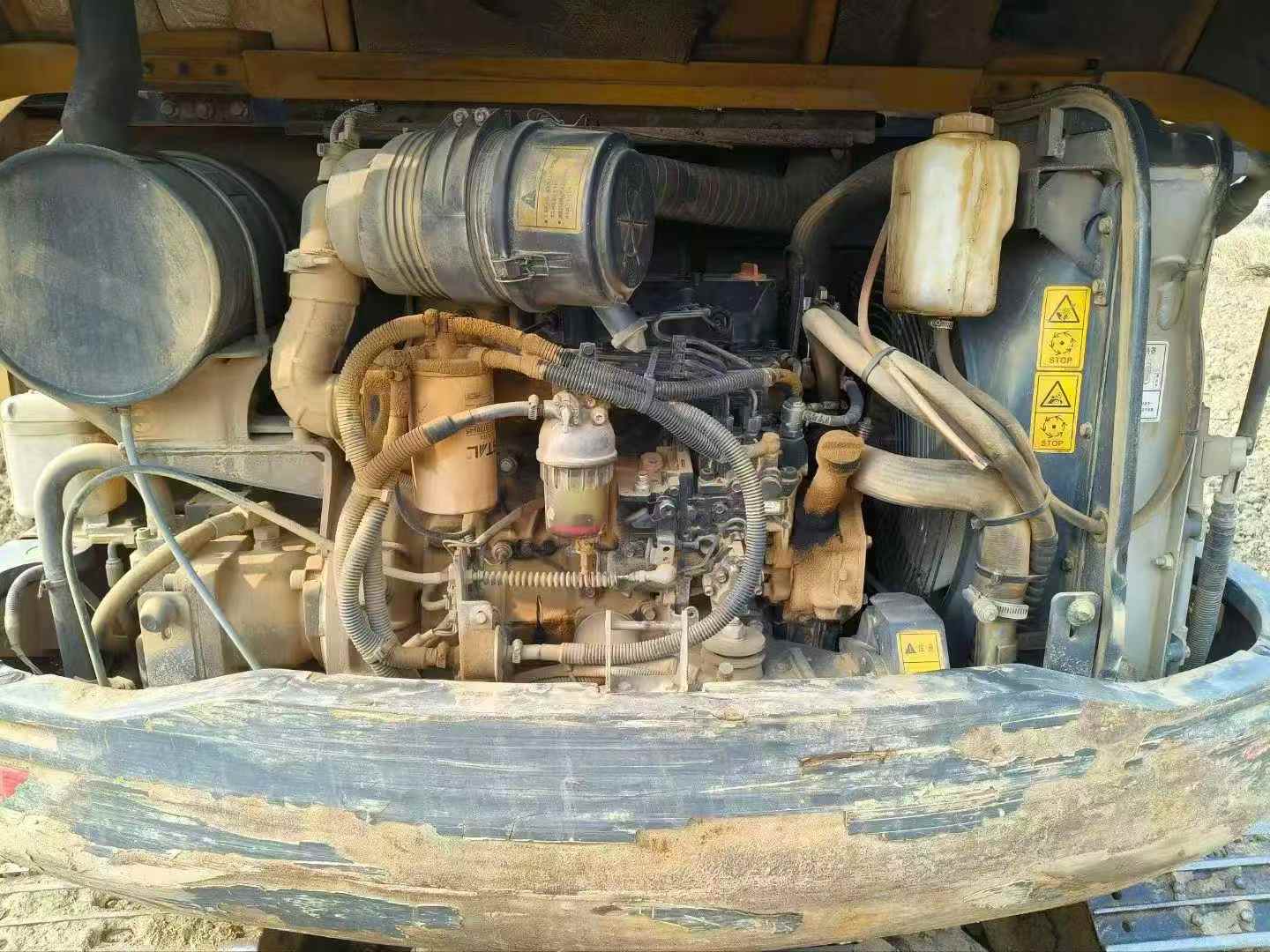

【 Premium Recommendation 】 Second-hand XCMG XE60D excavator from 2020, only 57,000 yuan! This XCMG XE60D mini excavator is a model from 2020. It has been in use for only 1,800 hours so far and is in excellent overall condition. It is equipped with the original imported Yanmar 4TNV98 engine, which is powerful and stable, with high fuel economy. It can maintain excellent performance even in harsh working environments. This engine not only features low noise and minimal vibration, but also meets the National III emission standards, complying with environmental protection requirements and providing you with greater peace of mind during construction. The hydraulic system adopts the main pump and valve body of Kawasaki brand from Japan, ensuring the smooth operation of the equipment and extremely high operational sensitivity. Whether it is the digging force or the rotational speed, it can meet the operation requirements under various complex working conditions. In addition, this machine is equipped with an advanced negative flow control system, which can automatically adjust the hydraulic oil flow according to the actual working load, thereby greatly improving work efficiency and reducing energy consumption. The vehicle body structure is
| Specifications | Value |
|---|---|
| No. | 964968 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
