Product Description

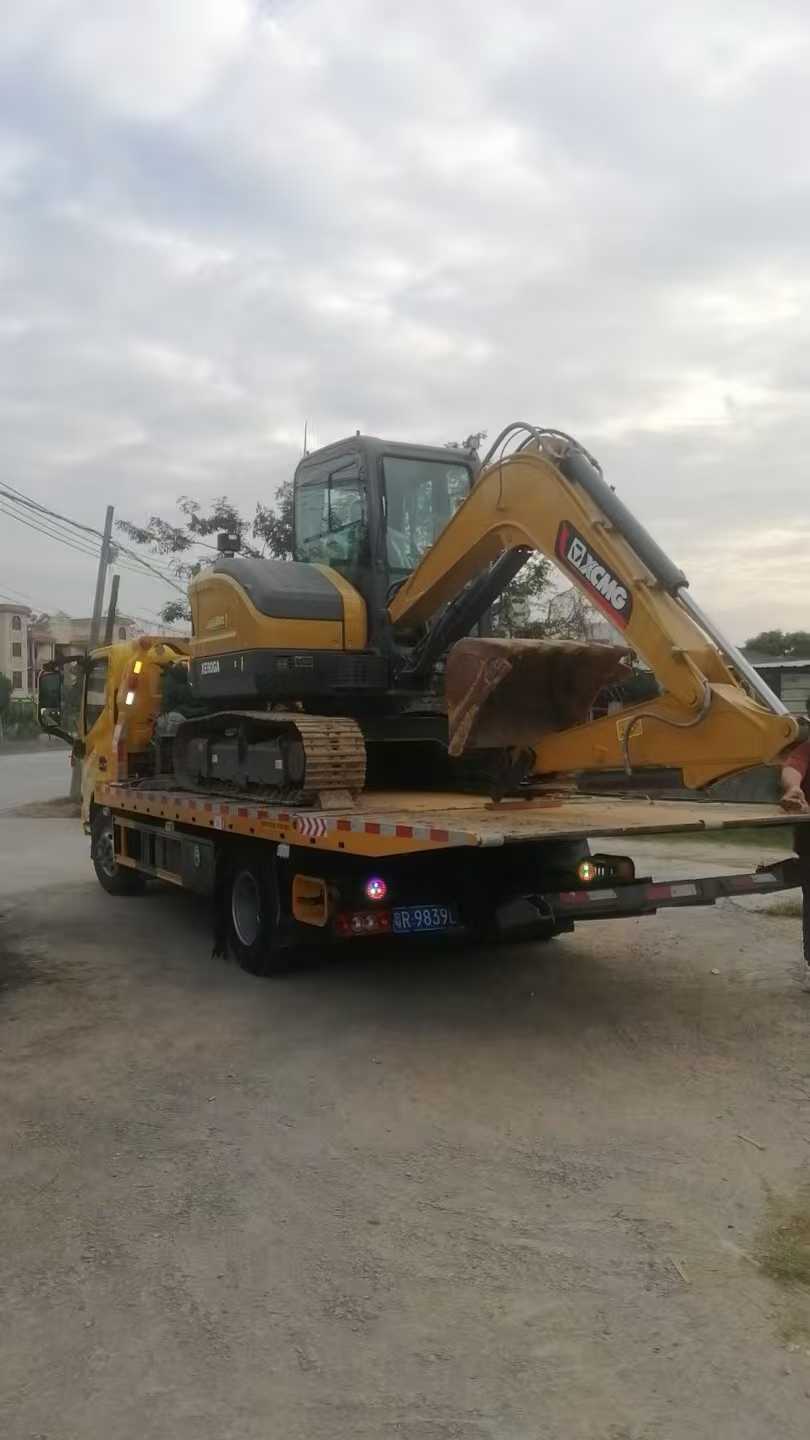

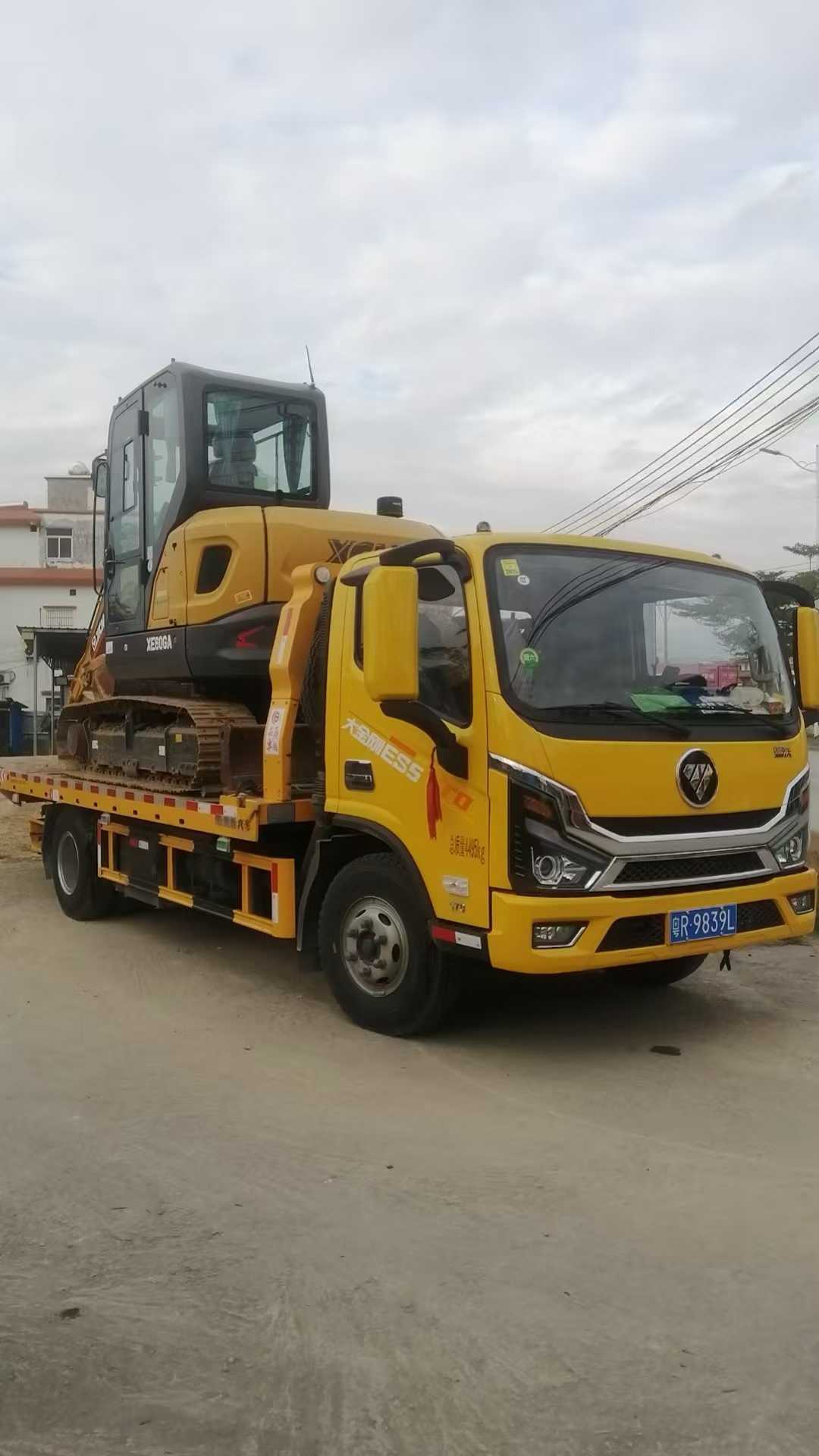

【 Premium Recommendation 】 Second-hand XCMG XE60 excavator with National IV emission standards in 2024 This XCMG XE60 excavator is the latest model of 2024, meeting the latest National IV emission standards. It is not only environmentally friendly and energy-saving but also has outstanding performance. Its working time is only 1,500 hours, and the overall condition of the vehicle is excellent, almost as good as a new car. The power system is equipped with high-quality Yanmar engines, which are renowned for their powerful output and excellent fuel economy, and can easily handle various complex working environments. The hydraulic system adopts an advanced load-sensitive control system, ensuring smooth operation and response speed. Whether it is excavation, loading or crushing operations, they can all be completed efficiently. In addition, this excavator is also equipped with a spacious and comfortable cab, featuring a well-designed field of vision, allowing the operator to maintain a comfortable state even during long working hours. Meanwhile, its robust and durable structural design as well as the feature of easy maintenance make the equipment more reliable and cost-effective during use. For those friends who pursue efficient, low-ene
| Specifications | Value |
|---|---|
| No. | 965016 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
