HOME>>Brands>>XCMG XE75G

2023 XCMG XE75G

1/9
Used XCMG XE75G Excavator 2023 Model / 1

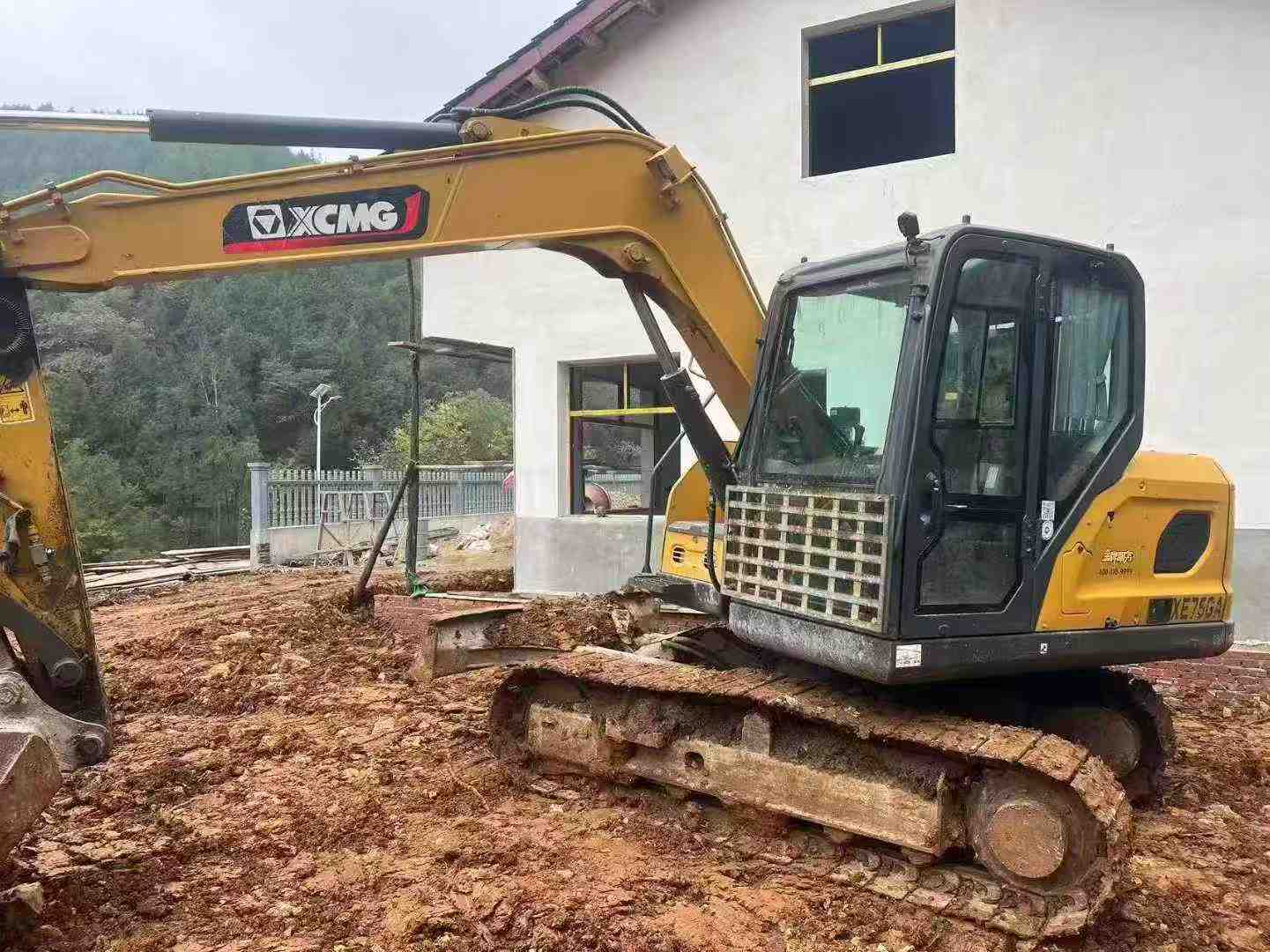

Used XCMG XE75G Excavator 2023 Model / 2

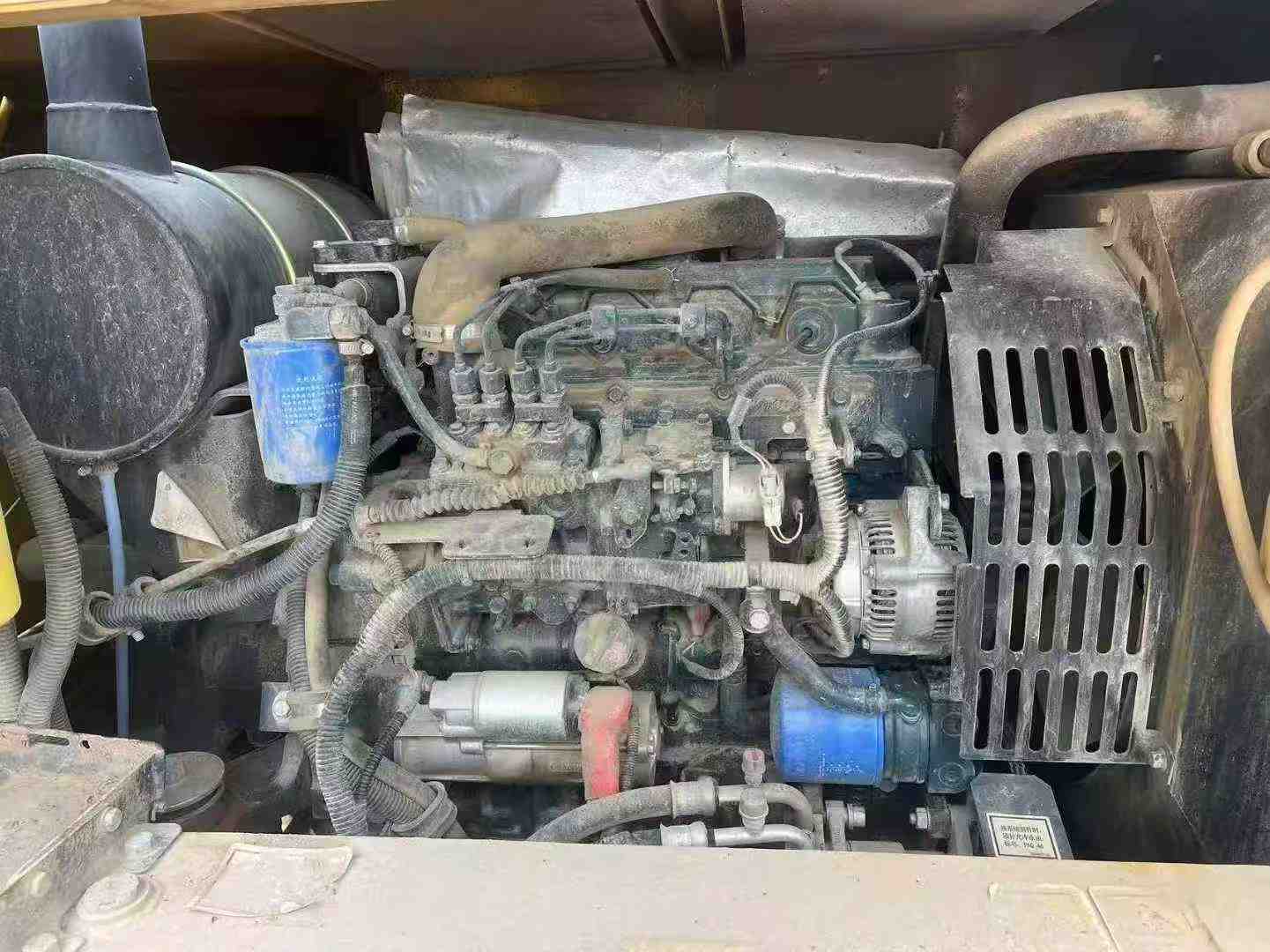

Used XCMG XE75G Excavator 2023 Model / 3

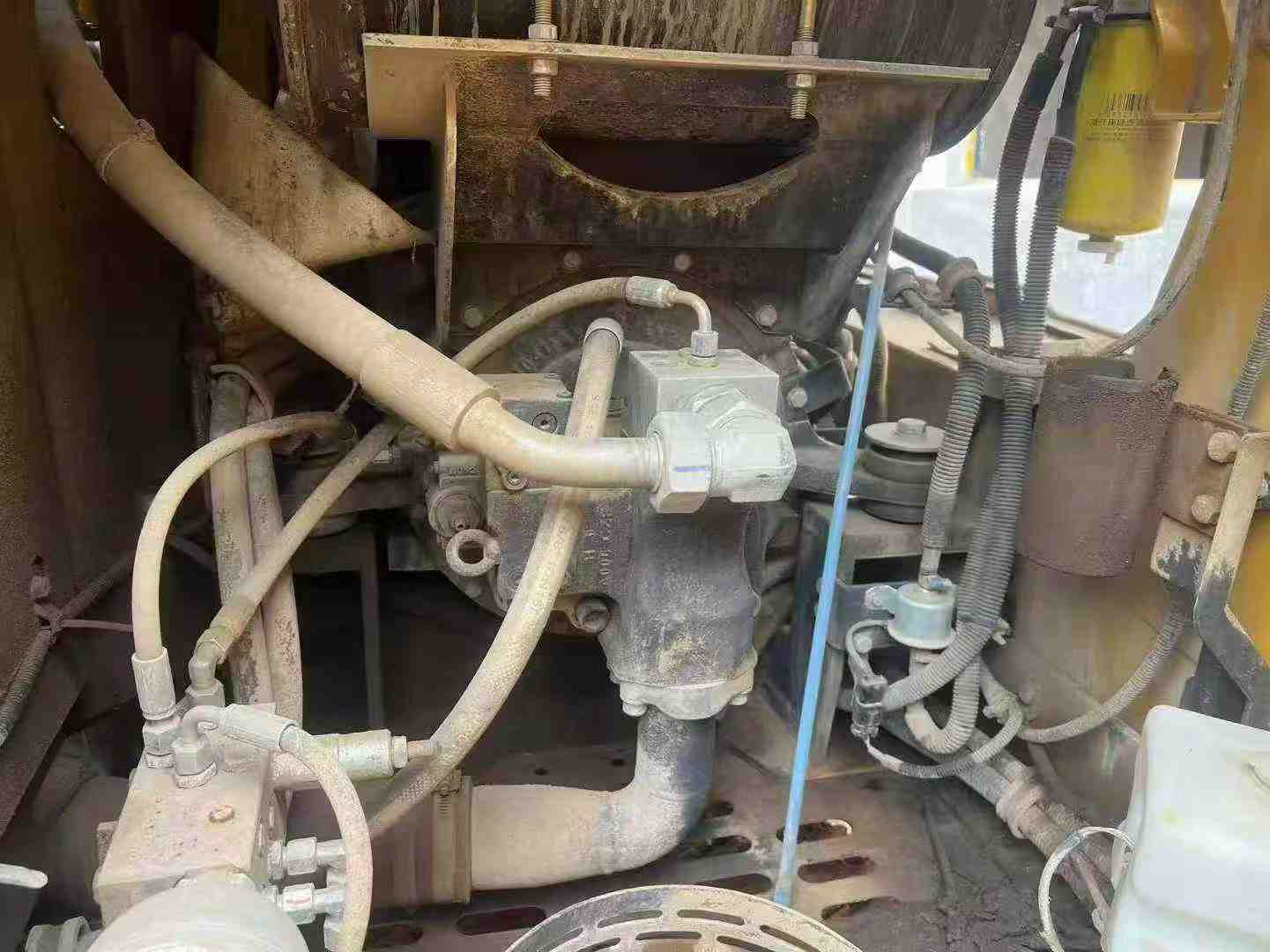

Used XCMG XE75G Excavator 2023 Model / 4

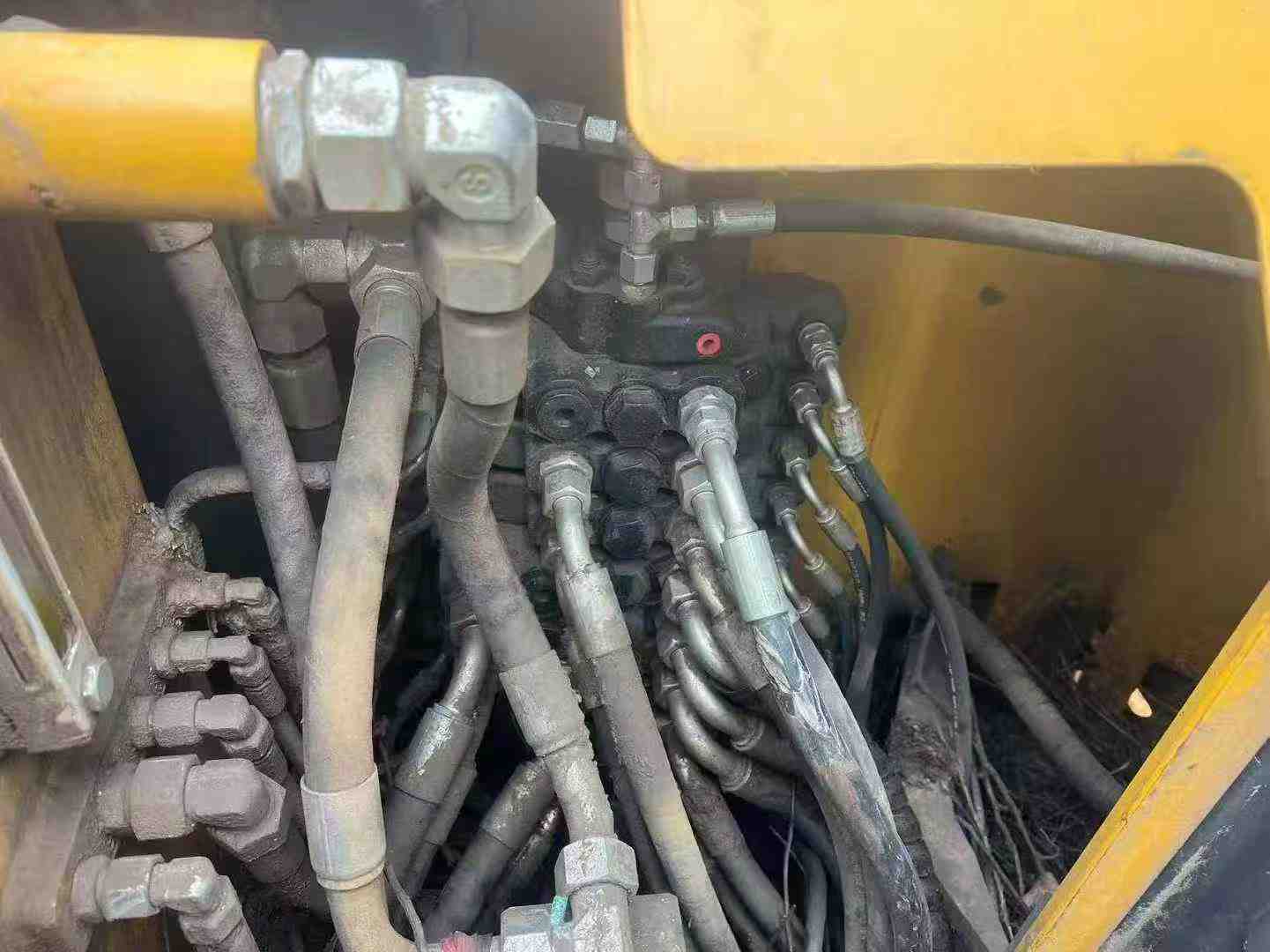

Used XCMG XE75G Excavator 2023 Model / 5

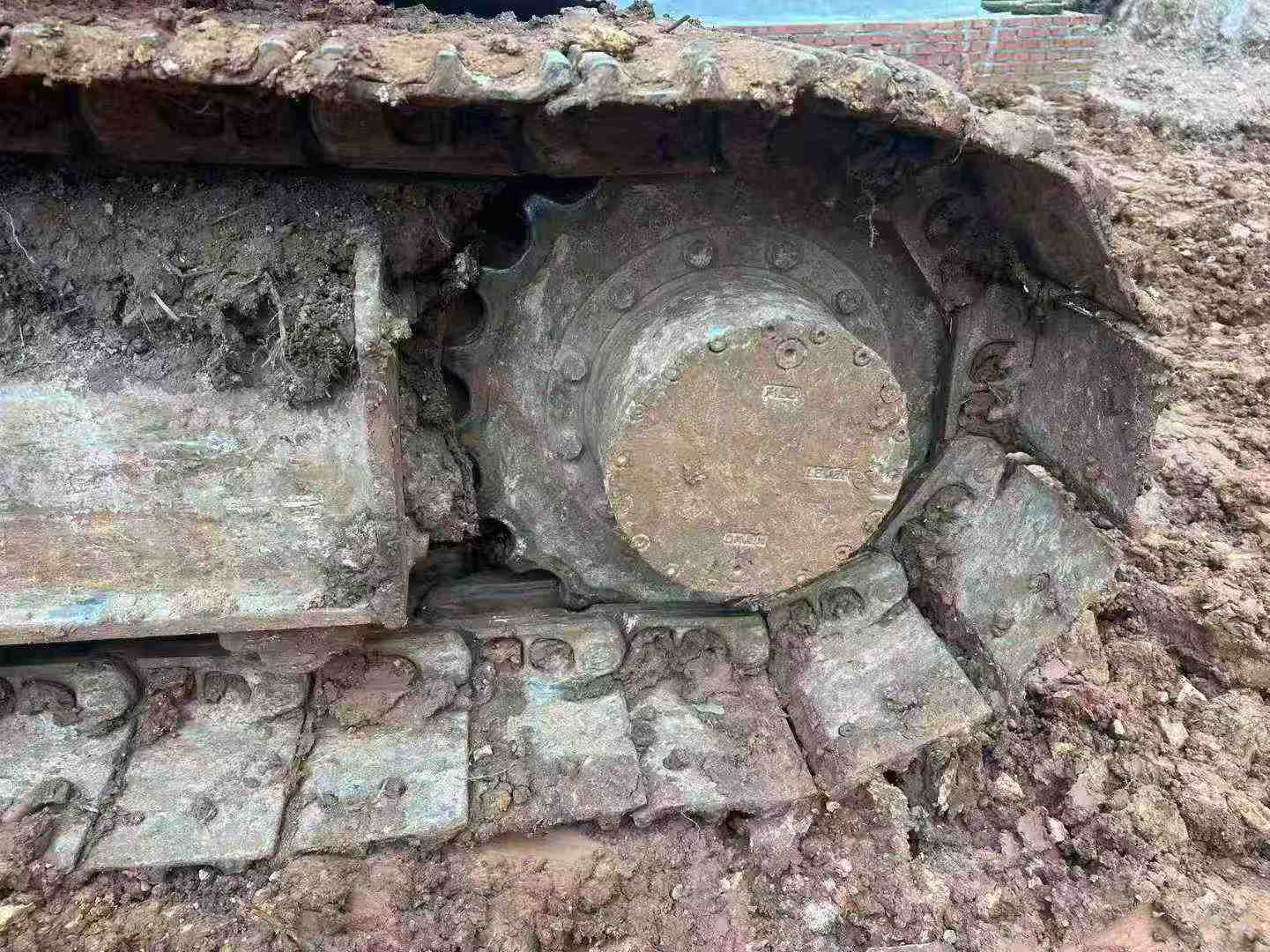

Used XCMG XE75G Excavator 2023 Model / 6

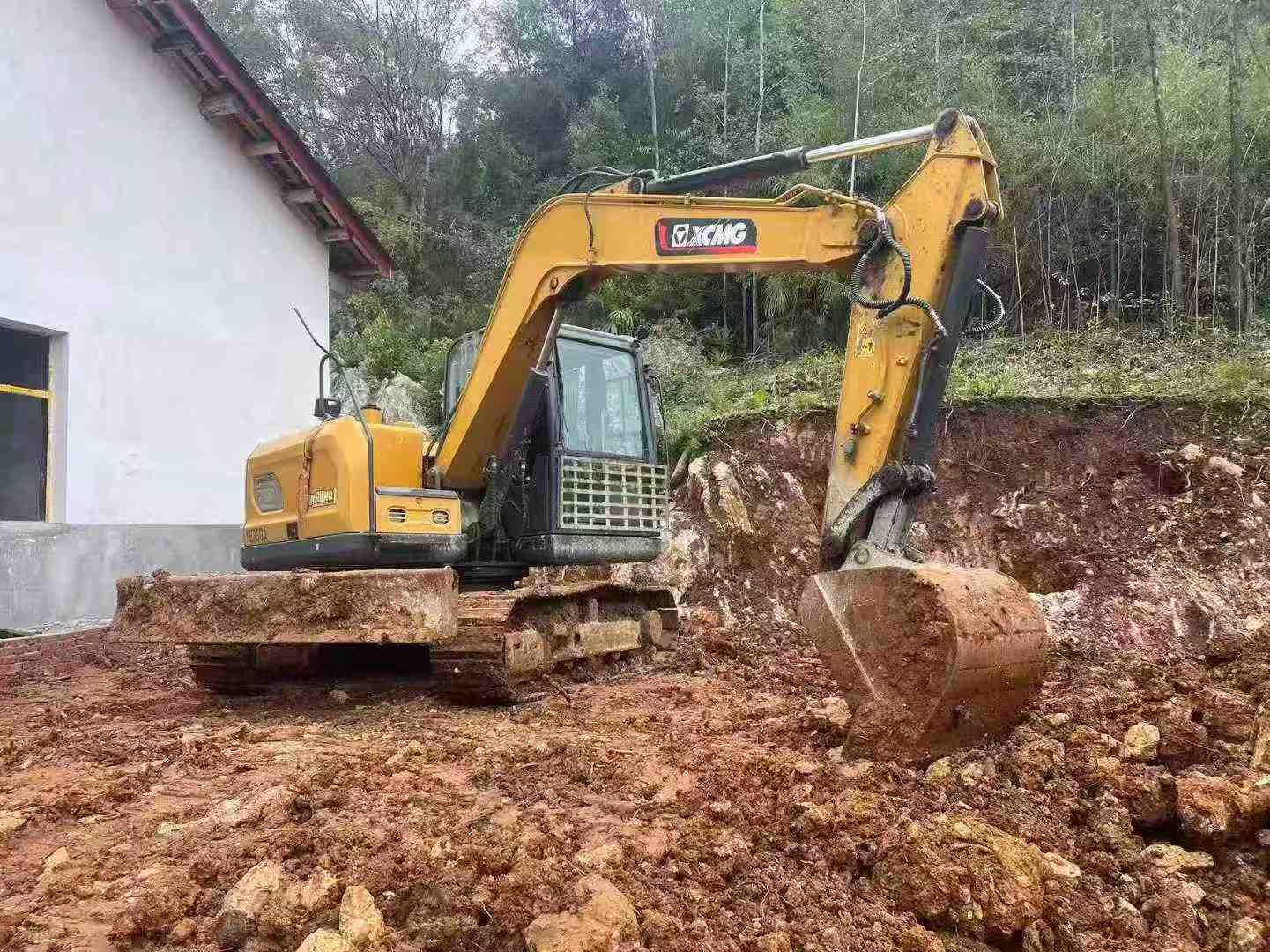

Used XCMG XE75G Excavator 2023 Model / 7

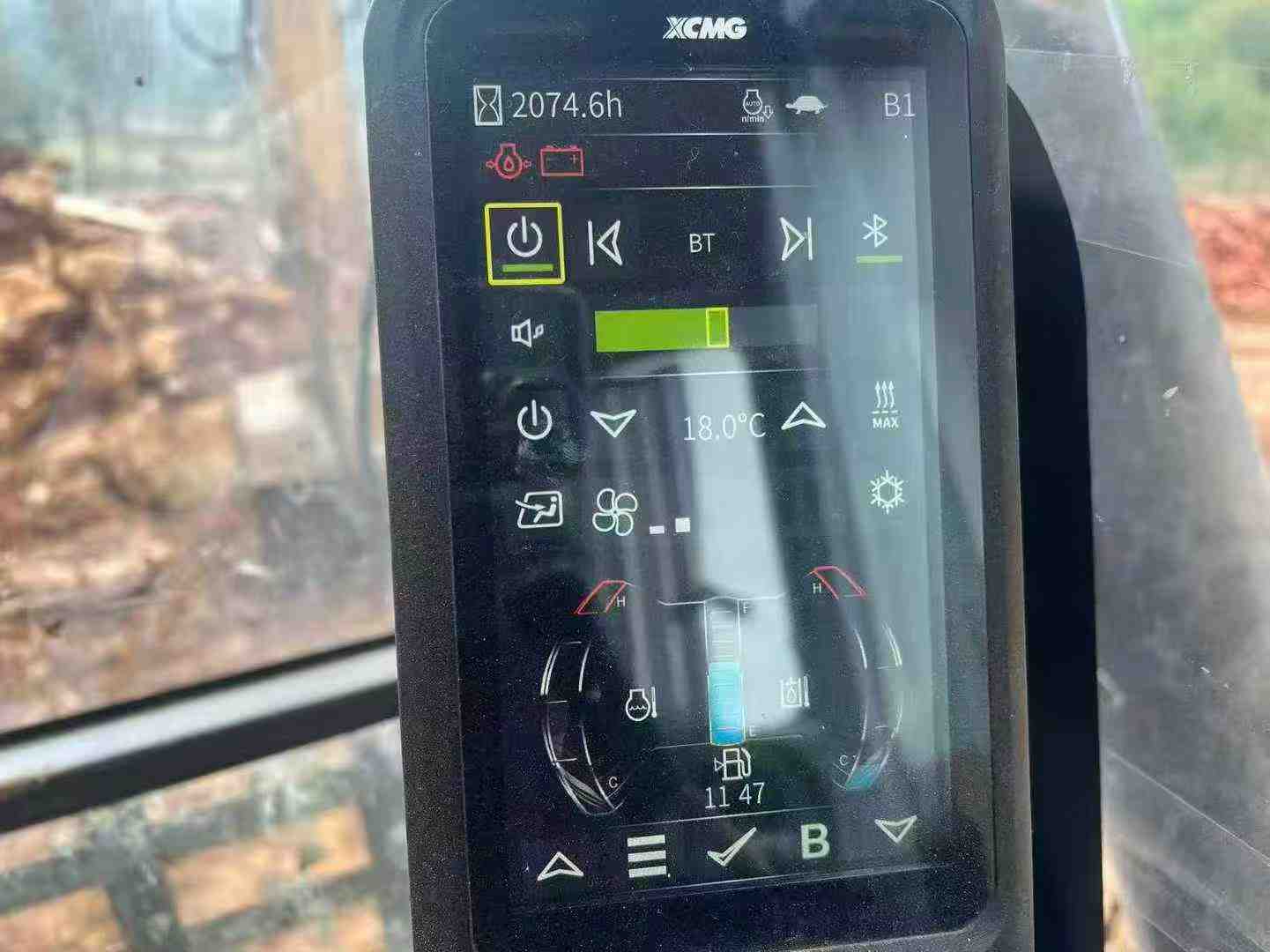

Used XCMG XE75G Excavator 2023 Model / 8

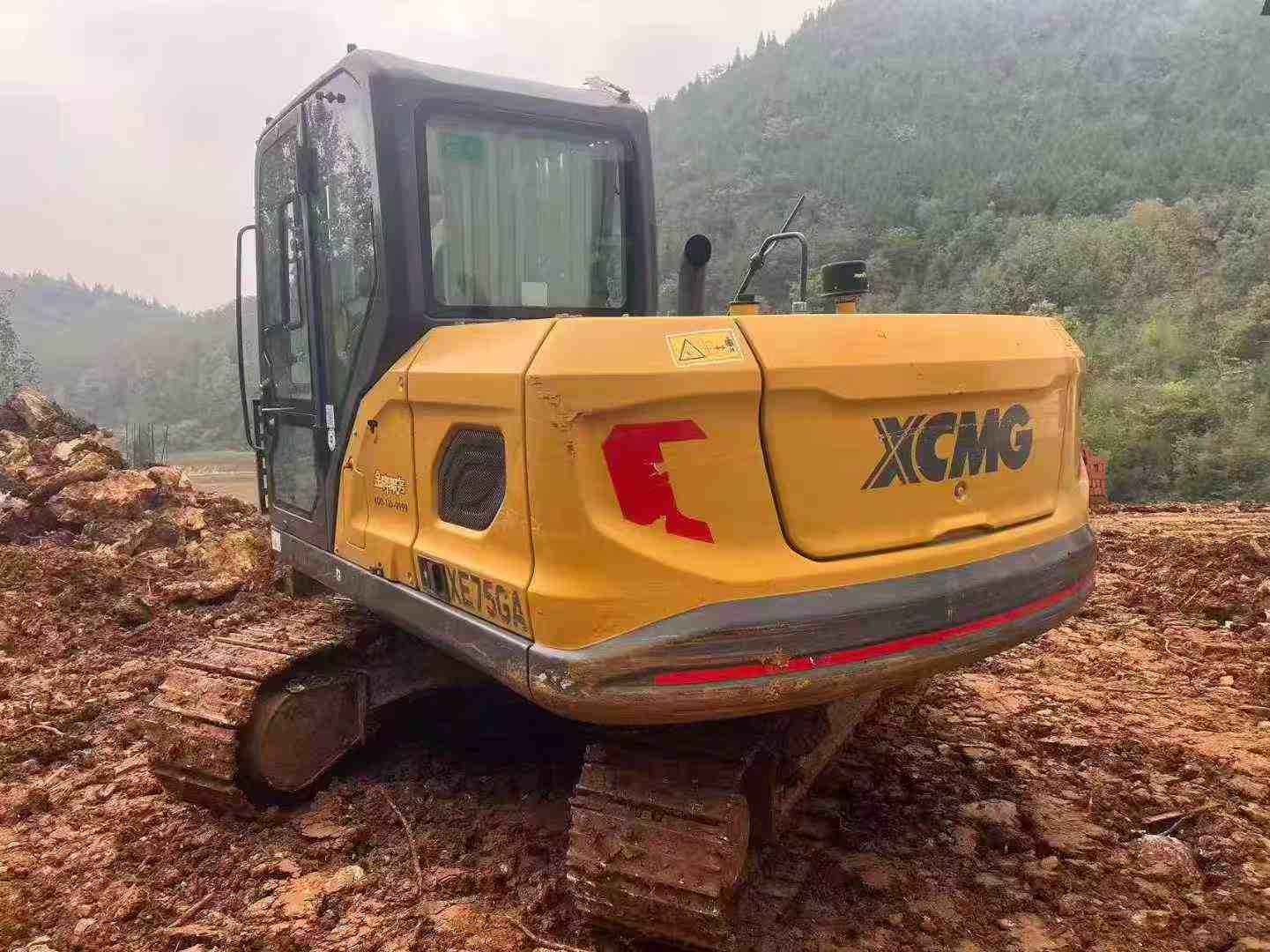

Used XCMG XE75G Excavator 2023 Model / 9

Product Description

【 Premium Recommendation 】 2023 top-quality XCMG 75GA excavator with complete documentation, starting price 148,000! This XCMG 75GA excavator was manufactured in 2023. It is in excellent condition and has a working time of only 1,200 hours, almost brand new. This machine adopts an advanced power system and is equipped with a high-performance Weichai engine, which is powerful and fuel-efficient, capable of providing stable and reliable power output. It can handle both plain and mountainous operations with ease. In terms of the hydraulic system, the XCMG 75GA is equipped with imported high-quality hydraulic components, ensuring the stability and durability of the equipment during long-term and high-intensity operations. In addition, this model also features excellent handling performance and a comfortable working environment. The cab is spacious and bright, with a wide field of vision and easy operation, significantly enhancing work efficiency. It is worth mentioning that this excavator not only maintains an excellent appearance but also has no damage or wear marks on its internal structure, and all functions are operating normally. We provide detailed video and image materials for your reference, and all relevant procedures are comple

SpecificationsValue
No.966718
Tonnage (tons)7
Working weight (kg)7450
Bucket capacity (m³)0.3
Boom length (mm)3720
Rod length (mm)1622
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)43/2000
Maximum torque (N.m)255.8/1400-1800
Number of cylinders (PCS)4
Displacement (L)2.6
Ground specific pressure (Kpa)33.5
Rotation speed (rpm)10
Climbing ability (%)70
Bucket digging force (kN)57
Rod digging force (kN)38
Maximum tractive force (kN)68.3
Travel speed (km/h)5.4/2.9
Main overflow set pressure (Mpa)27.5
Maximum flow of main pump (l/min)160
Traveling Hydraulic Circuit (Mpa)26.5
Rotary Hydraulic Circuit (Mpa)20.6
Pilot Oil Circuit (MPa)3.5
Fuel Tank (L)130
Hydraulic Tank (L)115
Engine Oil changes (L)10
Total transport length (mm)6150
Total transport width (mm)2230
Total transport height (mm)2685
Counterweight ground clearance (mm)795
Minimum ground clearance (mm)380
Minimum turning radius of front working device (mm)1800
Back end turning radius (mm)1818
Onboard width (mm)2050
Track gauge (mm)1750
Track plate width (mm)450
Total track width (mm)2200
Maximum digging radius (mm)6260
Maximum digging depth (mm)4020
Maximum excavation height (mm)7085
Maximum unloading height (mm)5160
Maximum vertical digging depth (mm)2920
Bulldozer lift or depth (mm)363/346
Dodging plate width × height (mm)2200 x 396
see more

Overview

No.966718

Brand Name:

XCMG

Model Number:

XE75G

Year:

2023

Location:

Zhejiang China
