2016 XCMG XE80

1/9
Used XCMG XE80 Excavator 2016 Model / 1
Used XCMG XE80 Excavator 2016 Model / 2
Used XCMG XE80 Excavator 2016 Model / 3
Used XCMG XE80 Excavator 2016 Model / 4
Used XCMG XE80 Excavator 2016 Model / 5
Used XCMG XE80 Excavator 2016 Model / 6
Used XCMG XE80 Excavator 2016 Model / 7
Used XCMG XE80 Excavator 2016 Model / 8
Used XCMG XE80 Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 XCMG 380 second-hand excavator. This equipment is a high-quality earthmoving machine that is rarely seen in the market. Since leaving the factory, it has been dedicated to earthwork excavation and has never installed a breaker hammer tube, so its overall structure and key components have remained in excellent condition. At present, the cumulative working time of this machine is approximately 5,000 hours. For a medium to large-sized excavator, such a usage duration indicates that it is in the best performance condition. In terms of power, this machine is equipped with an original imported Cummins engine. This engine is renowned for its outstanding power output and smooth operation, ensuring stable and reliable performance even under harsh working conditions. In addition, efficient fuel economy also enables effective control of long-term operating costs. The hydraulic system adopts an advanced load-sensitive control system, which can automatically adjust the oil volume and pressure distribution according to the actual operation requirements. This not only improves work efficiency but also significantly extends the service life of each component. Meanwhile, this system also features excellent operability and r

SpecificationsValue
No.964589
Tonnage (tons)8
Working weight (kg)7425
Bucket capacity (m³)0.14-0.34
Boom length (mm)3710
Rod length (mm)1650
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe

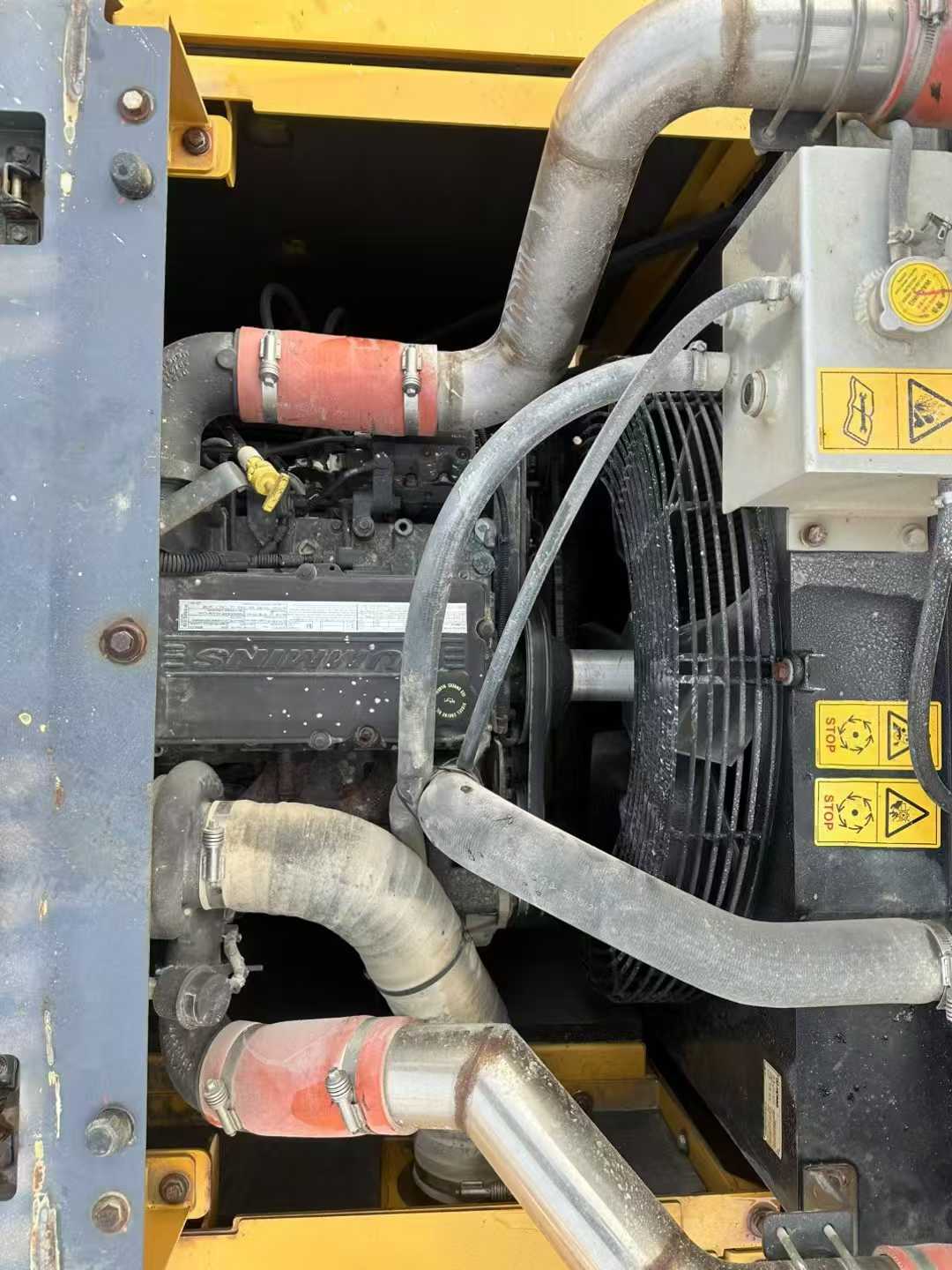

Engine typeCummins B3.3
Rated power (kw/rpm)60/2200
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)3.3
Working formWater cooled/turbocharged
Ground specific pressure (Kpa)34.2
Rotation speed (rpm)12
Climbing ability (%)35 °
Bucket digging force (kN)53.6
Rod digging force (kN)39.2
Travel speed (km/h)4.2/2.7
Main overflow set pressure (Mpa)27.4

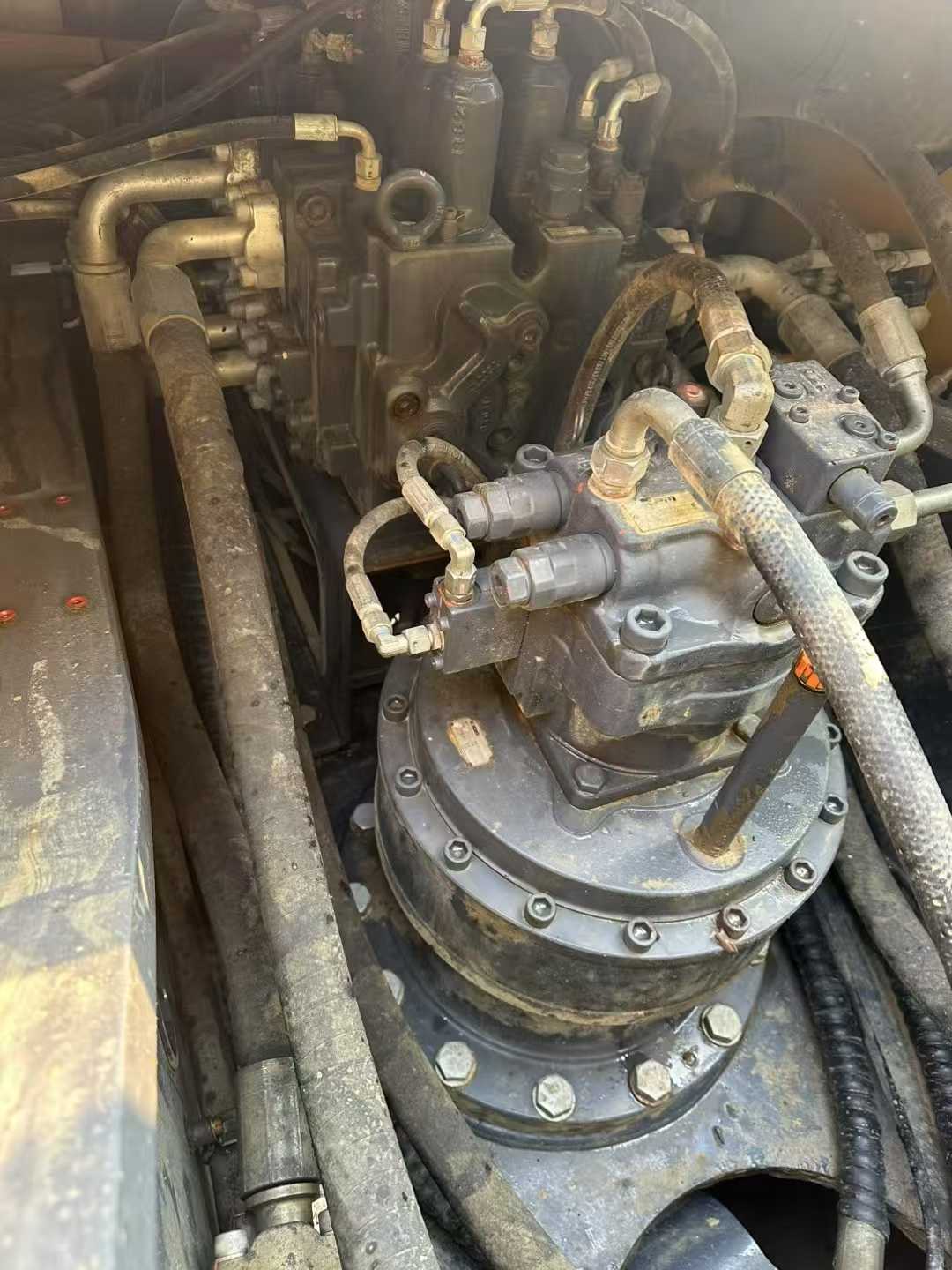

Rotary hydraulic motor typePlunger hydraulic motor
Type of walking hydraulic motorPlunger hydraulic motor
Maximum flow of main pump (l/min)1*198+21
Traveling Hydraulic Circuit (Mpa)27.4
Rotary Hydraulic Circuit (Mpa)20.6
Hydraulic crushing pipeline is standardno

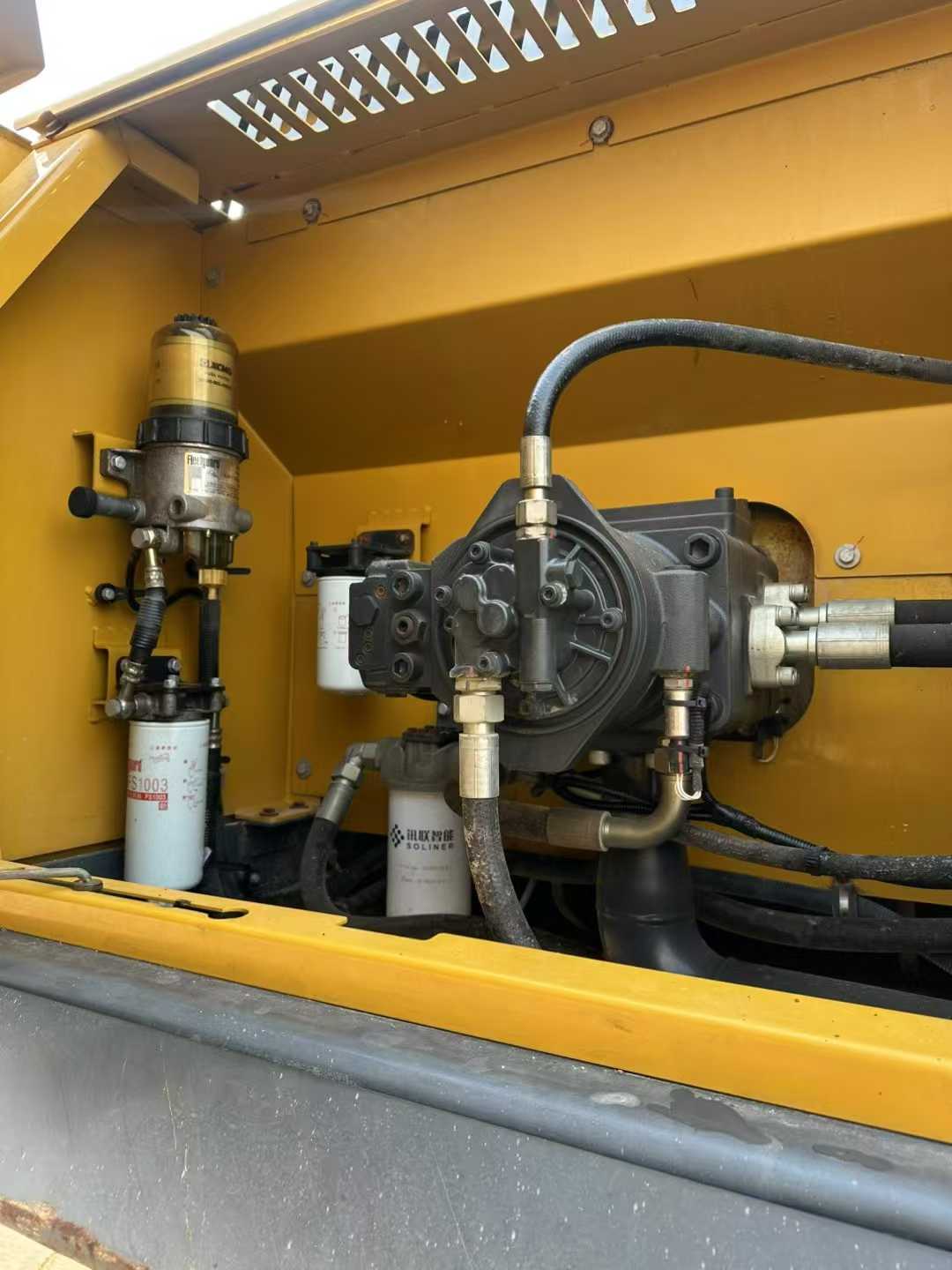

Main pump typeToshiba variable pump ×1+ gear pump ×1
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)127
Hydraulic Tank (L)124
Engine Oil changes (L)7
Total transport length (mm)6155
Total transport width (mm)2220
Total transport height (mm)2610
Counterweight ground clearance (mm)786
Minimum ground clearance (mm)392
Minimum turning radius of front working device (mm)1815
Back end turning radius (mm)1770
Track gauge (mm)1700
Track plate width (mm)450
Track ground length (mm)2119
Maximum digging radius (mm)6375
Maximum digging depth (mm)4140
Maximum excavation height (mm)7167
Maximum unloading height (mm)5100
Maximum vertical digging depth (mm)3218
see more

Overview

No.964589

Brand Name:

XCMG

Model Number:

XE80

Year:

2016

Location:

Jiangxi China
