Product Description

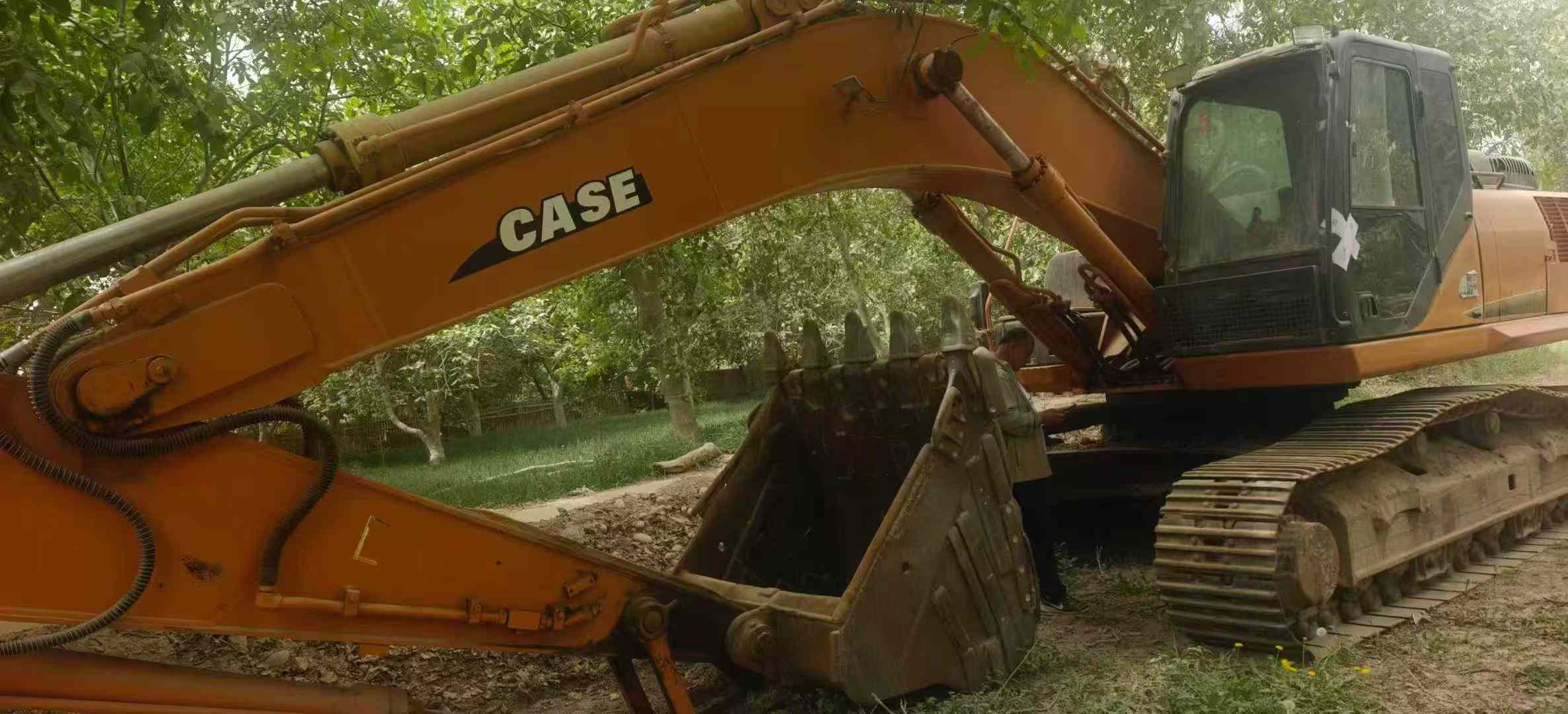

Built for heavy-duty performance, this 2011 Case CX360B excavator delivers 36 tons of proven reliability on your job site. Powered by a robust Isuzu 207.3kW engine with advanced electronic controls, this machine tackles demanding excavation, grading, and demolition projects with confidence.
Key specifications include:
- Maximum digging depth of 6,730mm for deep foundation work
- Bucket capacity range of 1.4-2.1m³ for versatile material handling
- 10,670mm maximum digging radius covers extensive work areas
- Dual variable axial piston pumps provide 600 L/min total flow
- Standard/Extra mode bucket digging force: 232/252kN
Located in Shanghai, this CX360B features water-cooled operation, turbocharged performance, and hydraulic systems engineered for continuous operation. With 580L fuel capacity and proven Case engineering, expect minimal downtime and maximum productivity. Ready for immediate deployment on construction, infrastructure, and earthmoving projects requiring precision and power.
| Specifications | Value |
|---|---|
| No. | 981316 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36100 |
| Bucket capacity (m³) | 1.4-2.1 |
| Boom length (mm) | 6450 |
| Rod length (mm) | 2630 |
| Country of origin | Shanghai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AH-6HK1XYSS(Tie3) |
| Rated power (kw/rpm) | 207.3/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Four-stroke, direct injection, full electronic control, turbocharged, with intercooling |
| Ground specific pressure (Kpa) | 67 |
| Rotation speed (rpm) | 9.8 |
| Bucket digging force (kN) | 232 (Standard mode) /252 (Extra mode) |
| Rod digging force (kN) | 199 (Standard mode) /215 (Plus mode) |
| Travel speed (km/h) | 3.5/5.5 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 300 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 30.4 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150 x 1210 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1748 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-145 x 1495 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 38 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 350 |
| Total transport length (mm) | 11130 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3500 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1210 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 4500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4980 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4040 |
| Maximum digging radius (mm) | 10670 |
| Maximum digging depth (mm) | 6730 |
| Maximum excavation height (mm) | 10320 |
| Maximum unloading height (mm) | 7140 |
| Maximum vertical digging depth (mm) | 5970 |
| Maximum excavation radius of stop surface (mm) | 10470 |
| Maximum effective digging depth (mm) | 6550 |
