Product Description

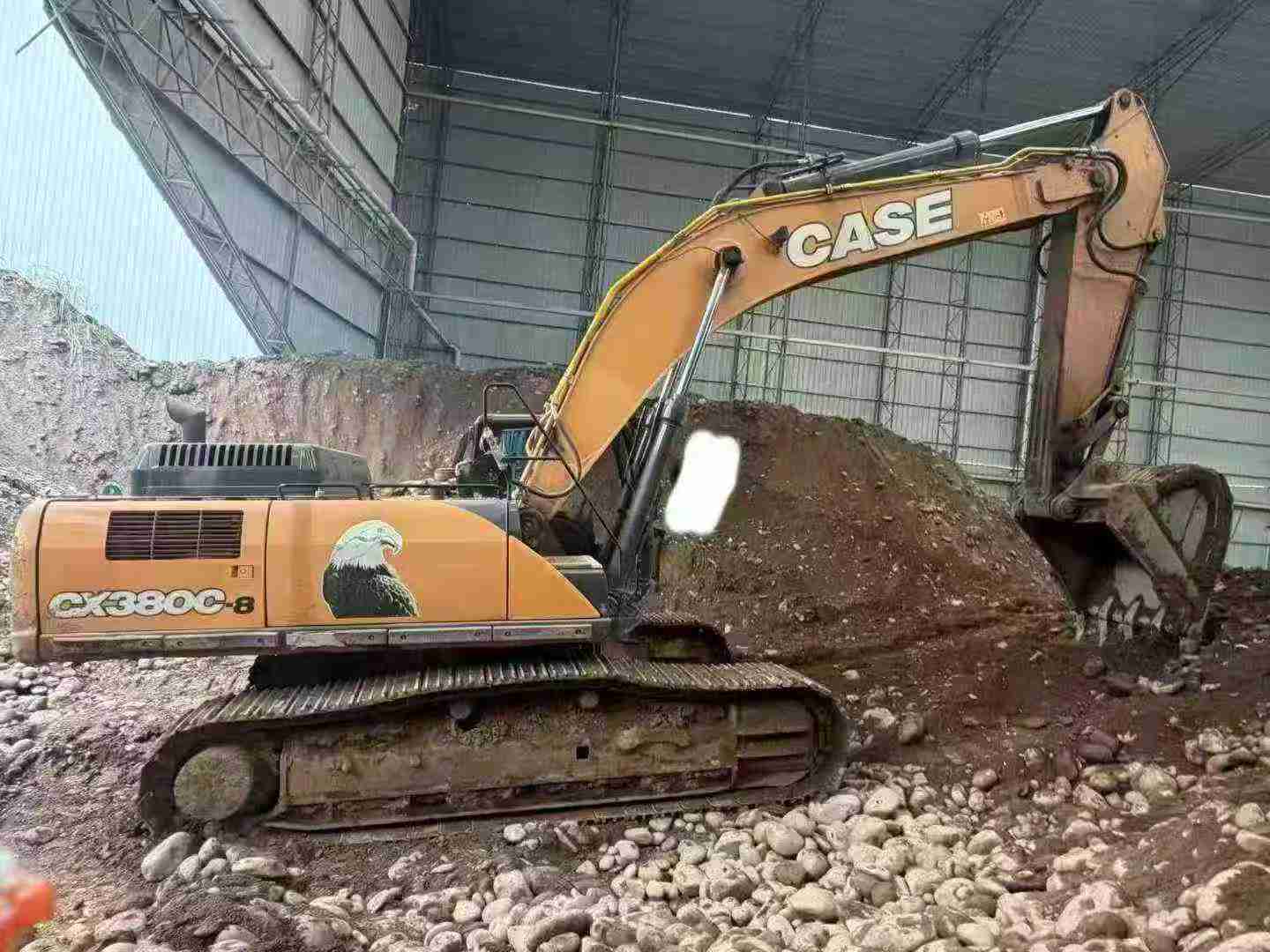

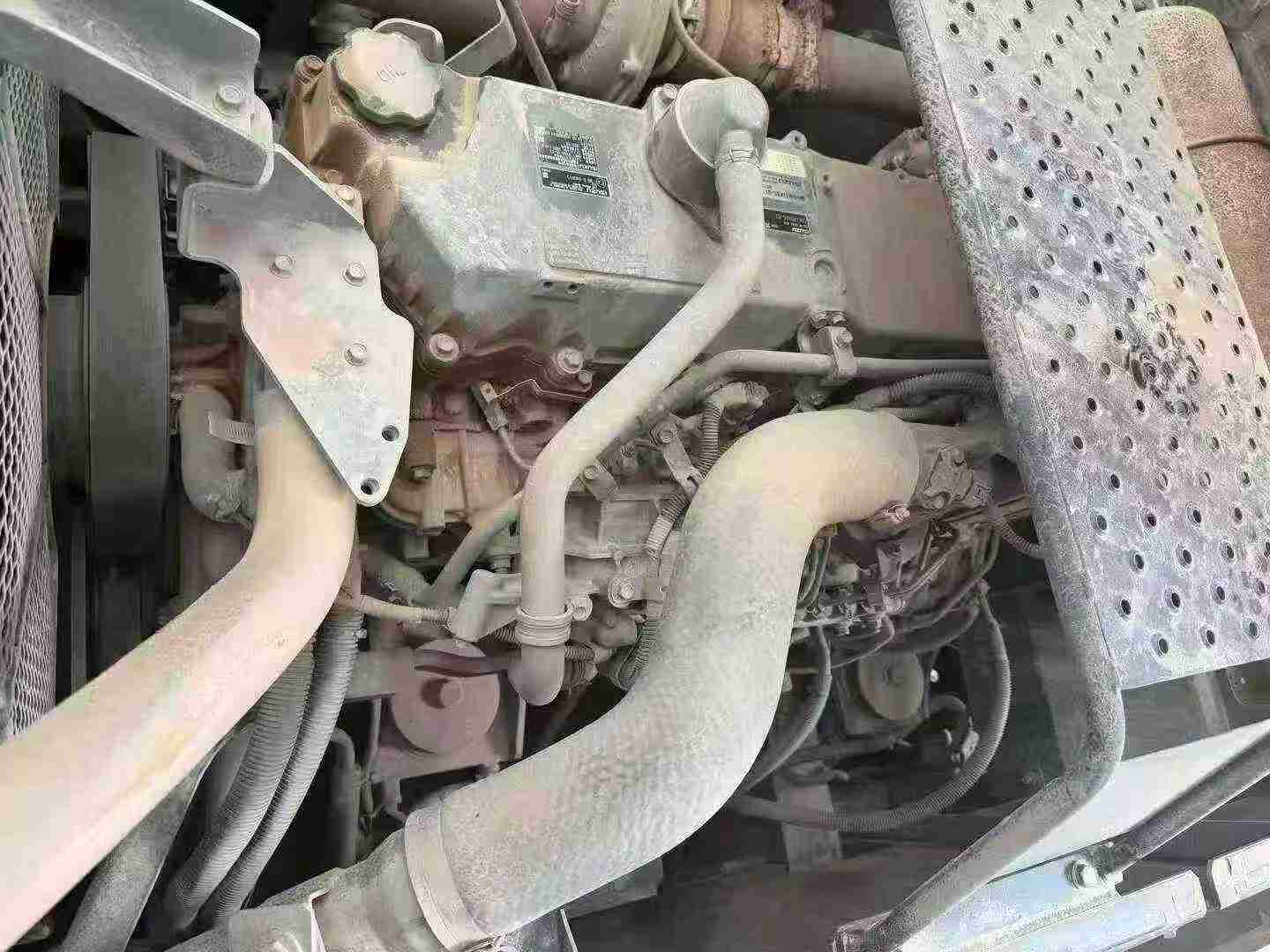

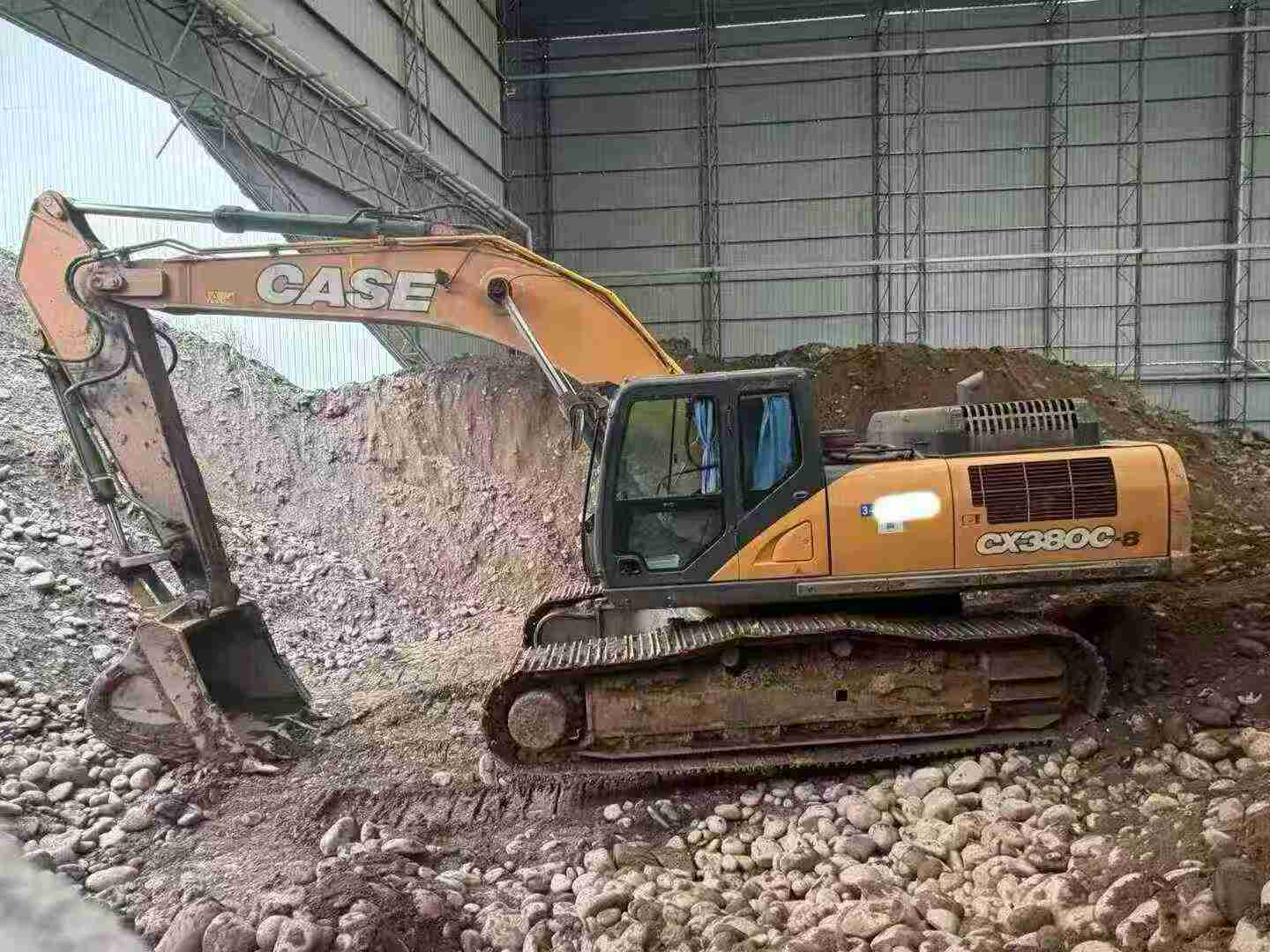

There is currently a 2022 Case 380 excavator with a working time of only 1,500 hours, in excellent condition. This device is equipped with a high-performance ISUZU 6HK1-WK engine, with a maximum power of up to 270 kilowatts, ensuring strong power support under various working conditions. Its efficient hydraulic system is composed of advanced variable piston pumps and high-quality hydraulic motors, which can achieve rapid response and smooth operation, greatly enhancing the operational efficiency. The Case 380 excavator is renowned for its outstanding stability and reliability and enjoys a good reputation among similar products. Its unique design makes this machine not only suitable for conventional projects such as earthwork excavation and foundation construction, but also capable of handling some special tasks with high precision requirements. In addition, the spacious and comfortable cab as well as the intelligent operation interface further enhance the driver's working experience and reduce the fatigue caused by long hours of work. This second-hand Case 380 excavator has undergone a comprehensive inspection and maintenance by a professional team to ensure that all performance indicators are in the best condition. It is a highly co
| Specifications | Value |
|---|---|
| No. | 977848 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 8430 |
| Bucket capacity (m³) | 0.18-0.34 |
| Boom length (mm) | 3500 |
| Rod length (mm) | 1710 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 40/2000 |
| Cylinder diameter × stroke (mm) | 85 x 96 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Ground specific pressure (Kpa) | 38 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 56.9 |
| Rod digging force (kN) | 38.3 |
| Travel speed (km/h) | 3.4/5.1 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 68 * 2 + 21.4 |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Pilot Oil Circuit (MPa) | 4.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-85 x 665 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-95 x 797 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-110 x 911 |
| Fuel Tank (L) | 100 |
| Hydraulic Tank (L) | 50 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 10.2 |
| Hydraulic System (L) | 97.3 |
| Total transport length (mm) | 6660 |
| Total transport width (mm) | 2320 |
| Total transport height (mm) | 2700 |
| Full cab height (mm) | 2700 |
| Counterweight ground clearance (mm) | 750 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 2750 |
| Back end turning radius (mm) | 1660 |
| Total track length (mm) | 2850 |
| Track gauge (mm) | 1870 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2320 |
| Track ground length (mm) | 2210 |
| Maximum digging radius (mm) | 7030 |
| Maximum digging depth (mm) | 4180 |
| Maximum excavation height (mm) | 6390 |
| Maximum unloading height (mm) | 4390 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 420/210 |
| Dodging plate width × height (mm) | 2320 x 450 |
| Maximum excavation radius of stop surface (mm) | 6890 |
| Boom turning Angle (left/right °) | 80/50 |
| Maximum effective digging depth (mm) | 3780 |
