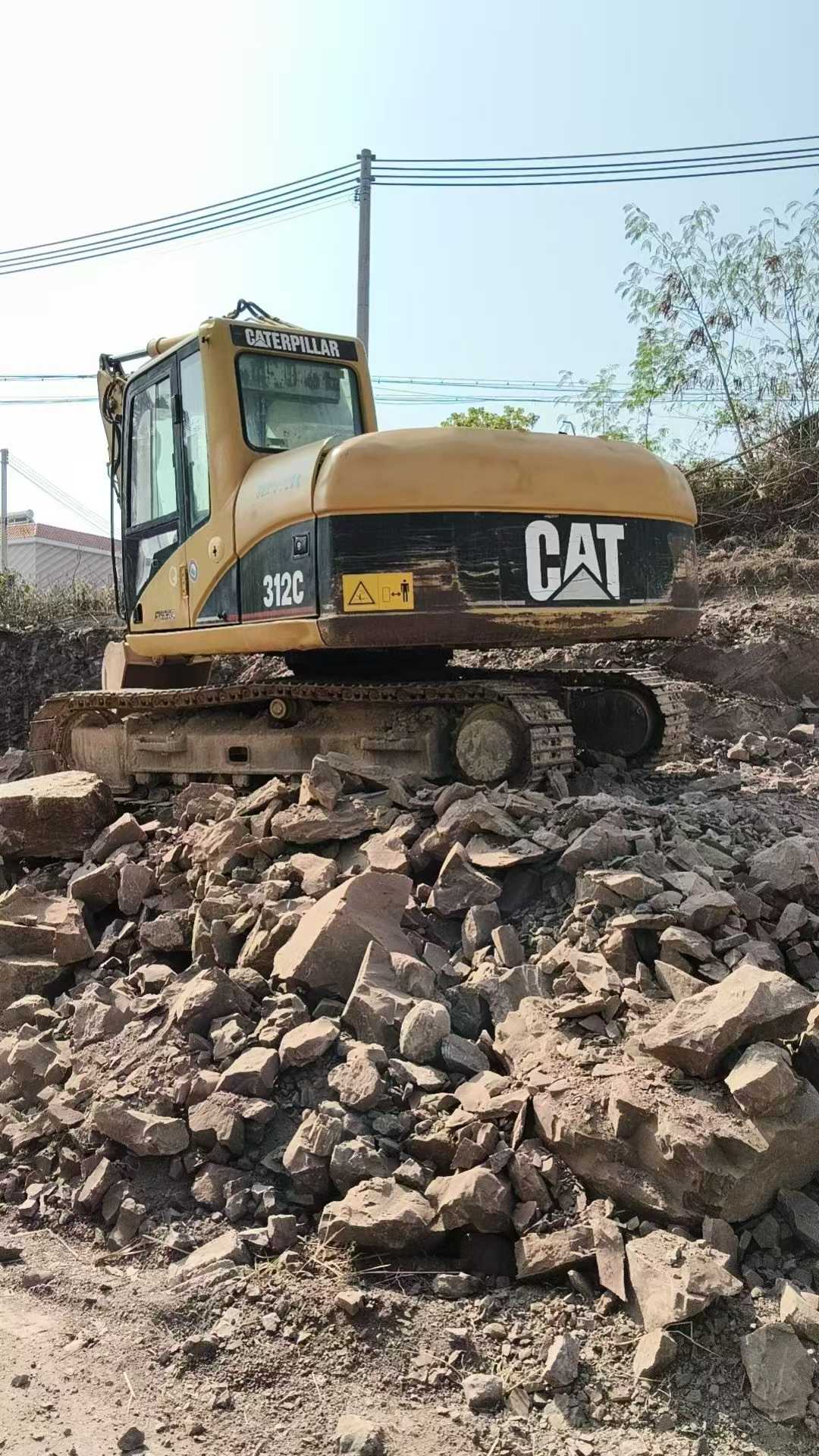

2016 Caterpillar 312C
| Specifications | Value |
|---|---|
| No. | 966679 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12777.7 |
| Bucket capacity (m³) | 0.55 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 3000 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | 3046T |
| Rated power (kw/rpm) | 70.1/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 4.3 |
| Rotation speed (rpm) | 12.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 62 |
| Rod digging force (kN) | 96 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 126.8 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.3 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.05 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162(including fuel tank) |
| Total transport length (mm) | 7570 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2760 |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 2780 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8475 |
| Maximum unloading height (mm) | 6095 |
| Maximum vertical digging depth (mm) | 4970 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8175 |
Description

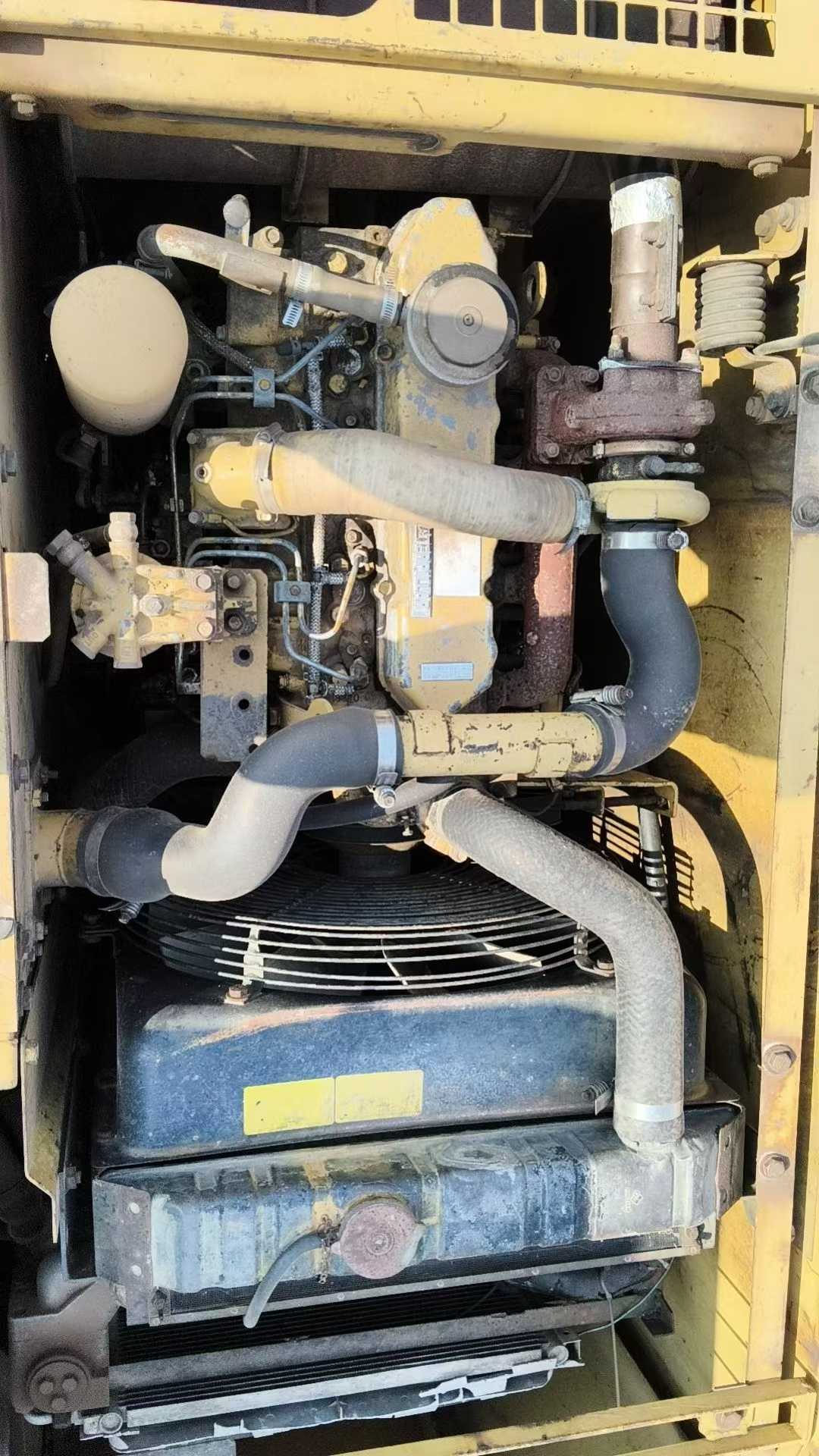

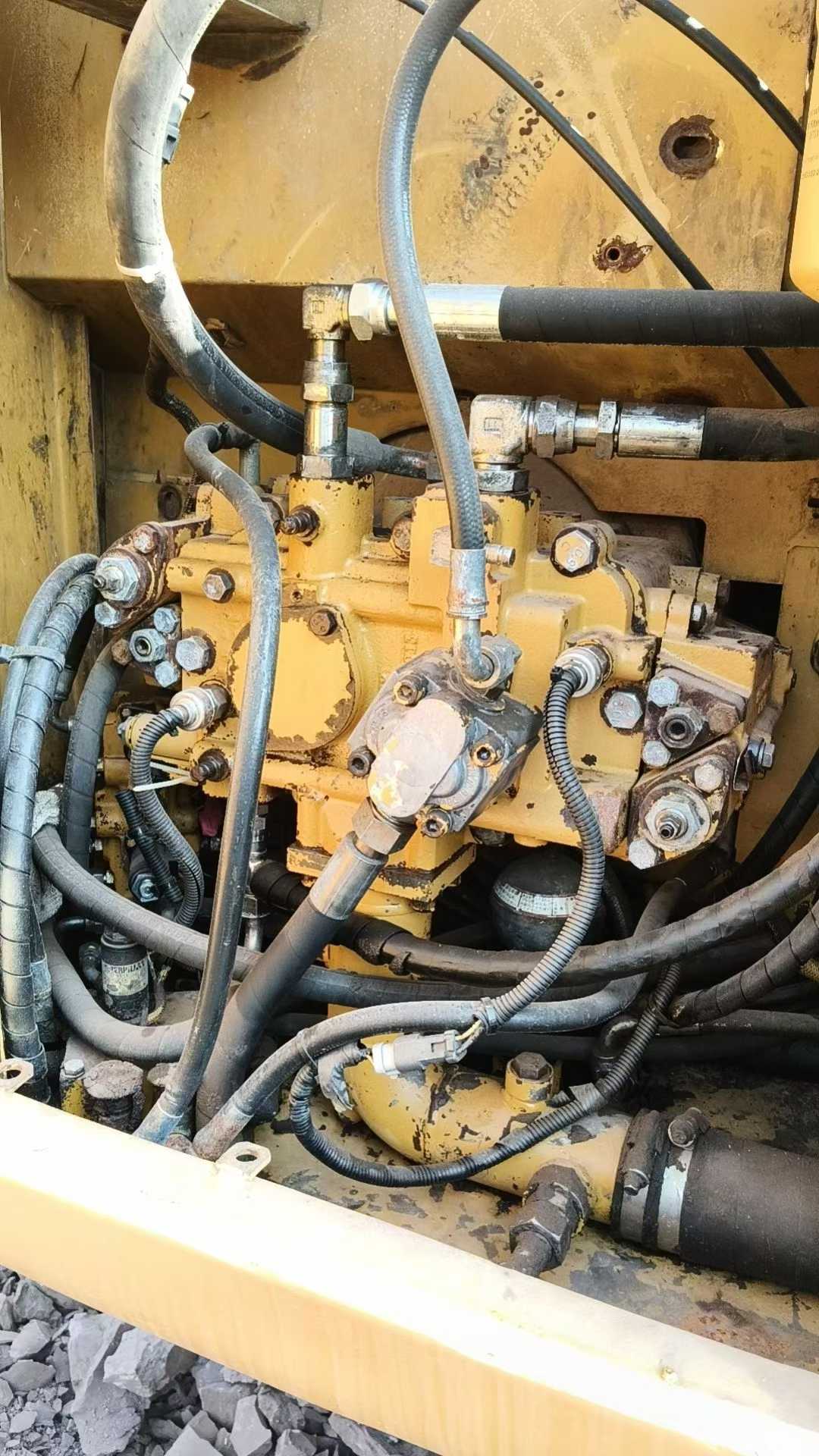

【 Premium Recommendation 】 Local private top-quality Caterpillar 312C excavator. Welcome all business owners to visit our site for inspection! This Caterpillar 312C excavator is a local private first-hand vehicle. Since its purchase, it has been carefully maintained by the original owner. It is used infrequently and well maintained, with a working time of only 2,000 hours, almost approaching the condition of a new car. Both the appearance and performance are well maintained, and it's definitely worth more than its price! In terms of the power system, this machine is equipped with an original imported C4.4 engine from Caterpillar, which features strong power output and smooth operation performance. Even under harsh working conditions, it can easily handle various challenges. It also has excellent fuel economy and can effectively reduce your operating costs. The hydraulic system adopts advanced load sensing technology, ensuring the accuracy and flexibility of operation. Whether it is excavation, loading or crushing operations, they can all be handled with ease. In addition, this machine is also equipped with an efficient cooling system, so there is no need to worry about overheating even during long-term and high-intensity operation.
Overview
No.966679
Brand Name：
CaterpillarModel Number：
312CYear：
2016
Location：
Guangdong China
