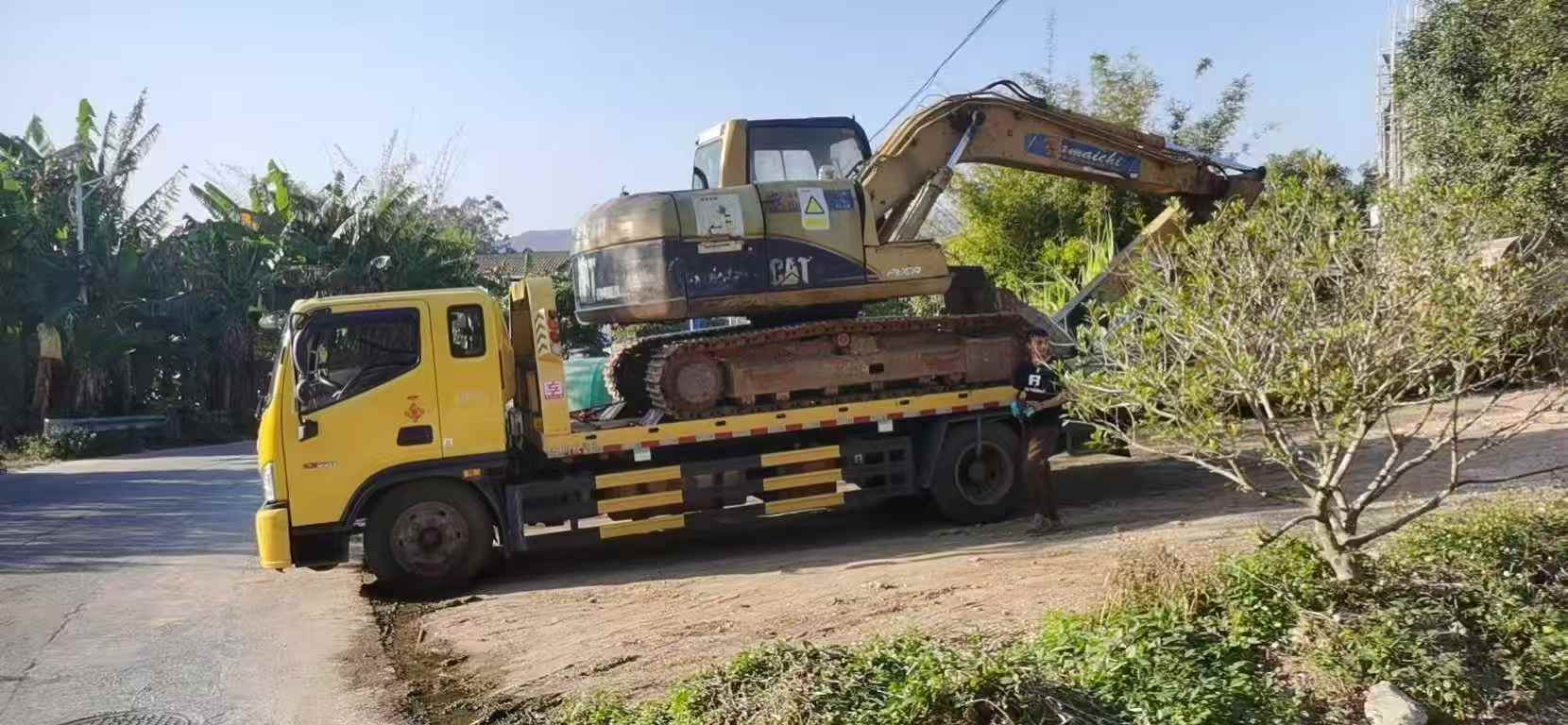

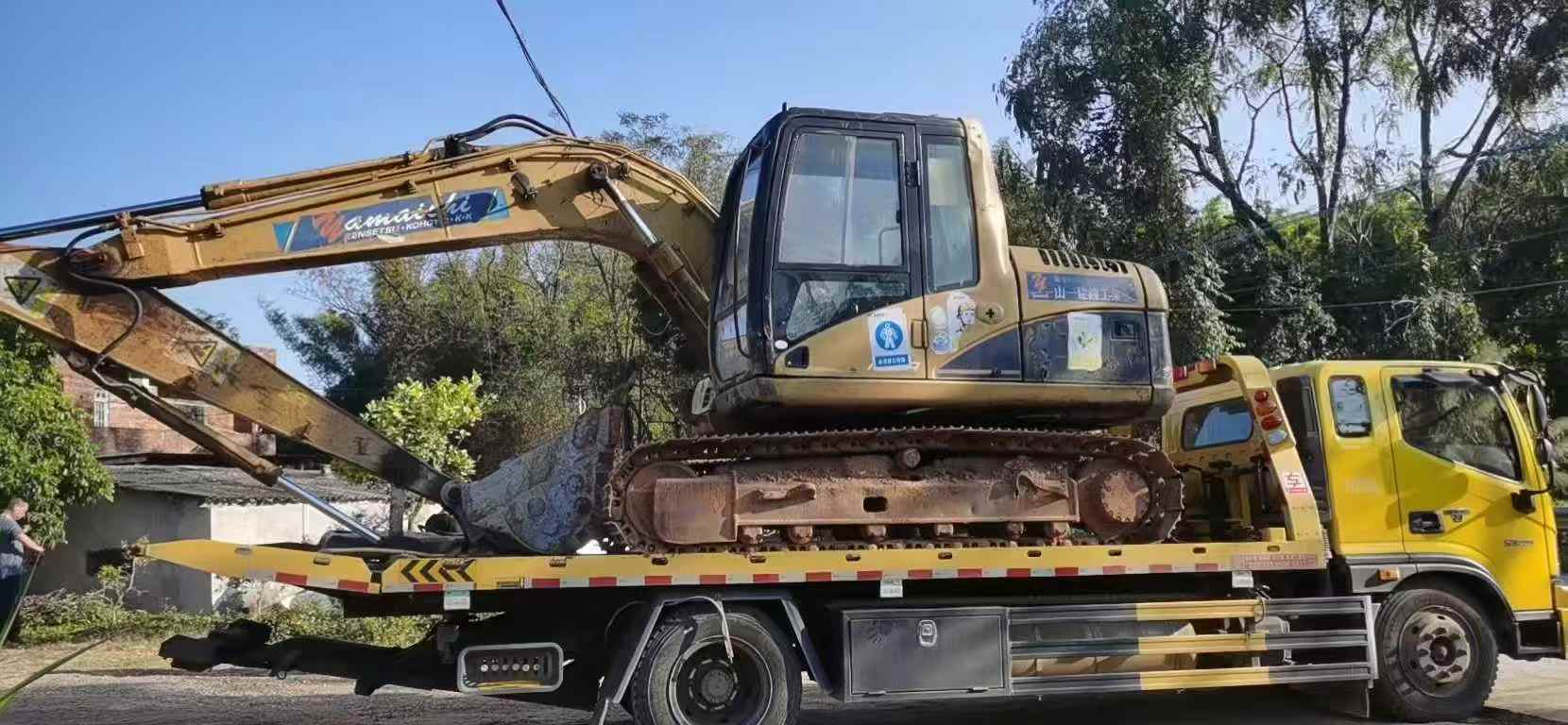

2016 Caterpillar 312C
| Specifications | Value |
|---|---|
| No. | 968875 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12777.7 |
| Bucket capacity (m³) | 0.55 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 3000 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | 3046T |
| Rated power (kw/rpm) | 70.1/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 4.3 |
| Rotation speed (rpm) | 12.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 62 |
| Rod digging force (kN) | 96 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 126.8 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.3 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.05 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162(including fuel tank) |
| Total transport length (mm) | 7570 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2760 |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 2780 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8475 |
| Maximum unloading height (mm) | 6095 |
| Maximum vertical digging depth (mm) | 4970 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8175 |
Description
【 Premium Recommendation 】 The second-hand Caterpillar 312C excavator has now arrived. This equipment has won the favor of many users with its outstanding performance and reliable quality. This excavator has a cumulative working time of 4,500 hours and is in the best usage condition. It not only ensures the durability of the machinery but also means that it has a relatively long remaining service life. In terms of the power system, the Caterpillar 312C is equipped with the highly efficient and energy-saving Cat C4.4 inline four-cylinder turbocharged engine, with a maximum output power of up to 75kW (approximately 100 horsepower). While providing strong driving force, it can also effectively reduce fuel consumption and lower operating costs. In addition, this model is also equipped with an advanced electronic control system, which can automatically adjust the rotational speed according to the operation requirements to ensure that it always operates in the most economical way. The hydraulic system is a major highlight of this excavator. It adopts closed center load sensing hydraulic technology, featuring fast response speed, high operational accuracy and low energy consumption. Whether it is in complex working conditions such as excava
Overview
No.968875
Brand Name：
CaterpillarModel Number：
312CYear：
2016
Location：
Guangdong China
