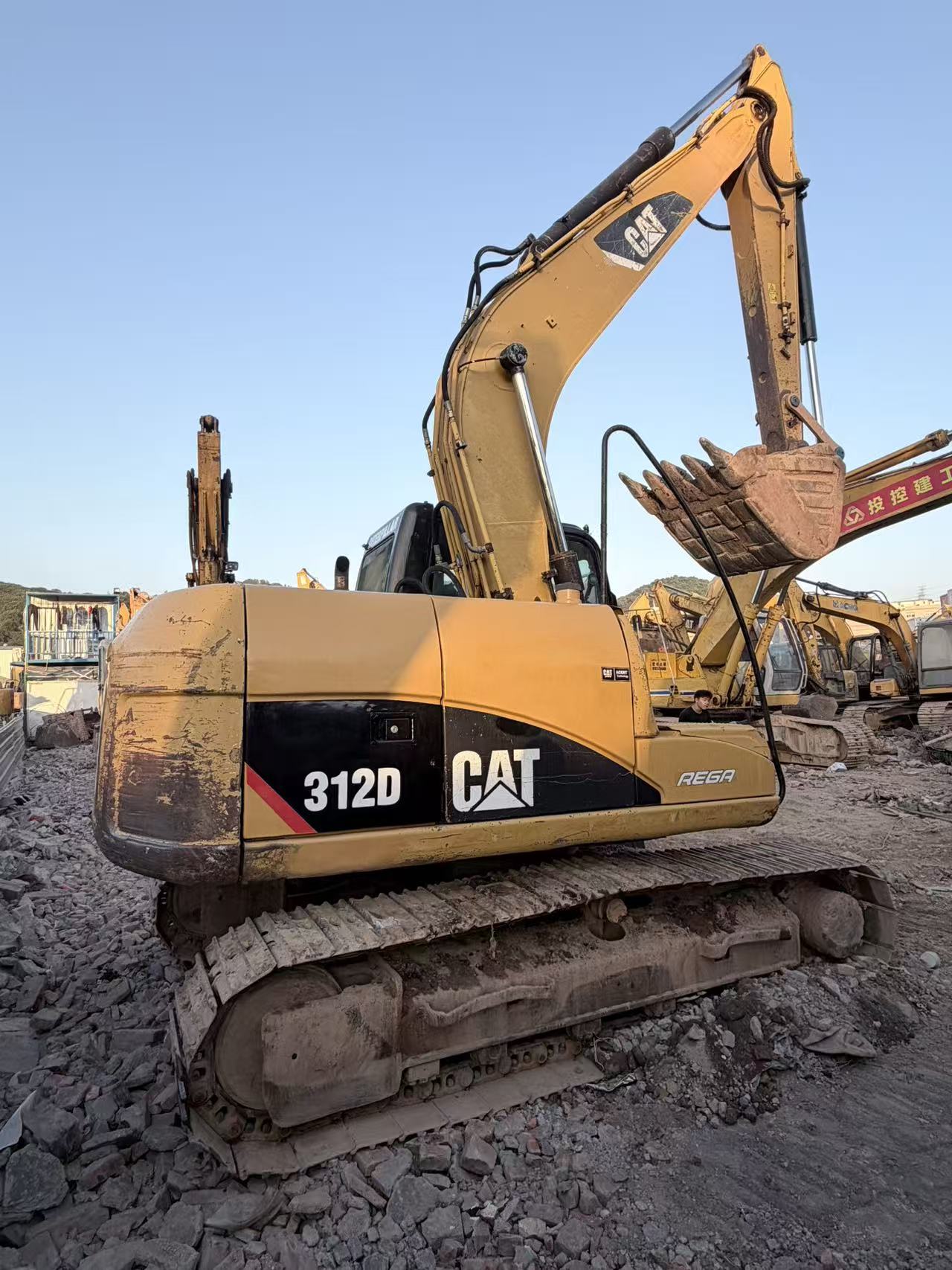

2013 Caterpillar 312D
| Specifications | Value |
|---|---|
| No. | 967877 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12920 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 2800 |
| Rod length (mm) | 3000 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C4.2ACERT |
| Rated power (kw/rpm) | 72/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 4.25 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 96 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.3 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.05 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162(including fuel tank) |
| Total transport length (mm) | 7590 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 2780 |
| Maximum digging depth (mm) | 5840 |
| Maximum excavation height (mm) | 8580 |
| Maximum unloading height (mm) | 6210 |
| Maximum vertical digging depth (mm) | 5160 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8430 |
| Maximum effective digging depth (mm) | 5640 |
Description
【 Premium Recommendation 】 Second-hand Caterpillar 312D excavator. This equipment is your ideal choice for construction sites. The overall condition of the vehicle is extremely beautiful. There is almost no wear and tear on the exterior, the paint surface is as bright as new, and the internal structure is well maintained. It is completely impossible to tell that it is a second-hand device. This machine has a working duration of only 1,500 hours, which is far lower than the average usage time of similar equipment, indicating that it still has a long service life and a high residual value. In terms of power, this 312D is equipped with a highly efficient and energy-saving engine produced by Caterpillar itself, which is powerful and runs smoothly, and can easily handle the heavy-load operation requirements under various complex working conditions. Meanwhile, advanced fuel injection technology and intelligent control systems have significantly reduced fuel consumption, saving you a considerable amount of operating costs. In addition, its emission standards comply with national environmental protection requirements, allowing you to enjoy high productivity while also contributing to environmental protection. In terms of the hydraulic system
Overview
No.967877
Brand Name：
CaterpillarModel Number：
312DYear：
2013
Location：
Guangdong China
