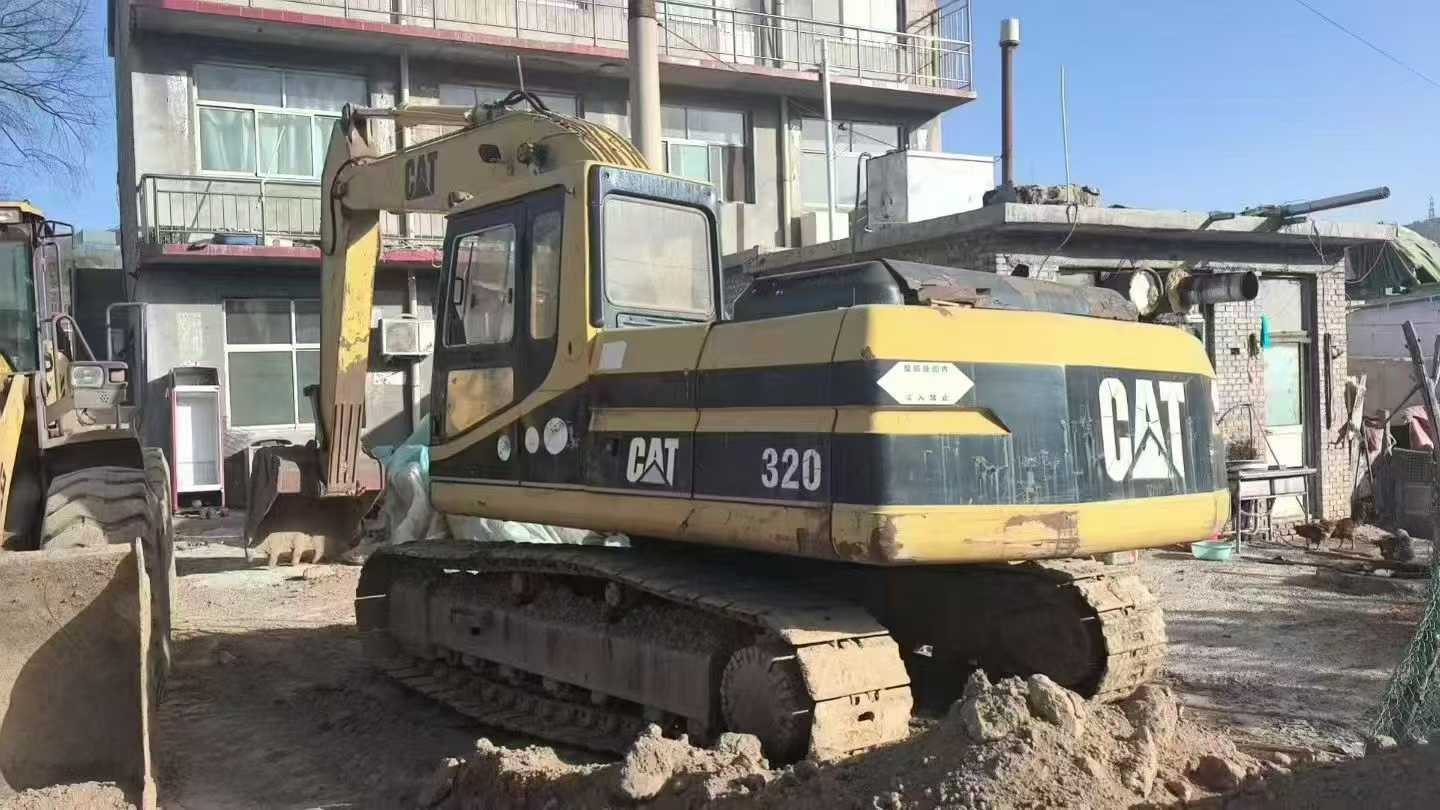

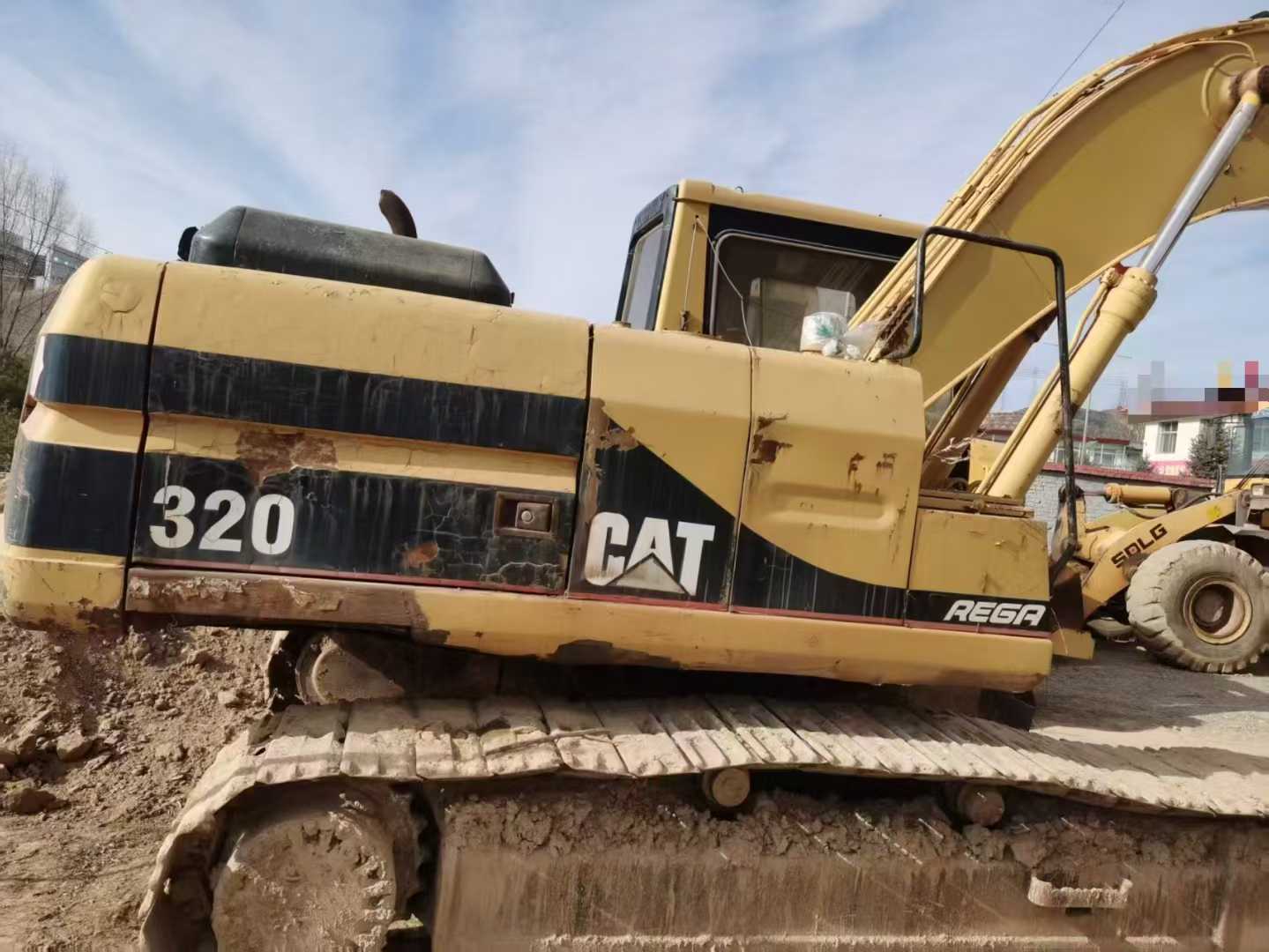

2016 Caterpillar 320B











| Specifications | Value |
|---|---|
| No. | 963987 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19400 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066T |
| Rated power (kw/rpm) | 99.9/1800 |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 10.7 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 185 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 20.5 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9440 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2940 |
| Full cab height (mm) | 2940 |
| Minimum ground clearance (mm) | 475 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3265 |
| Maximum digging depth (mm) | 6640 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6570 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 9780 |
Description

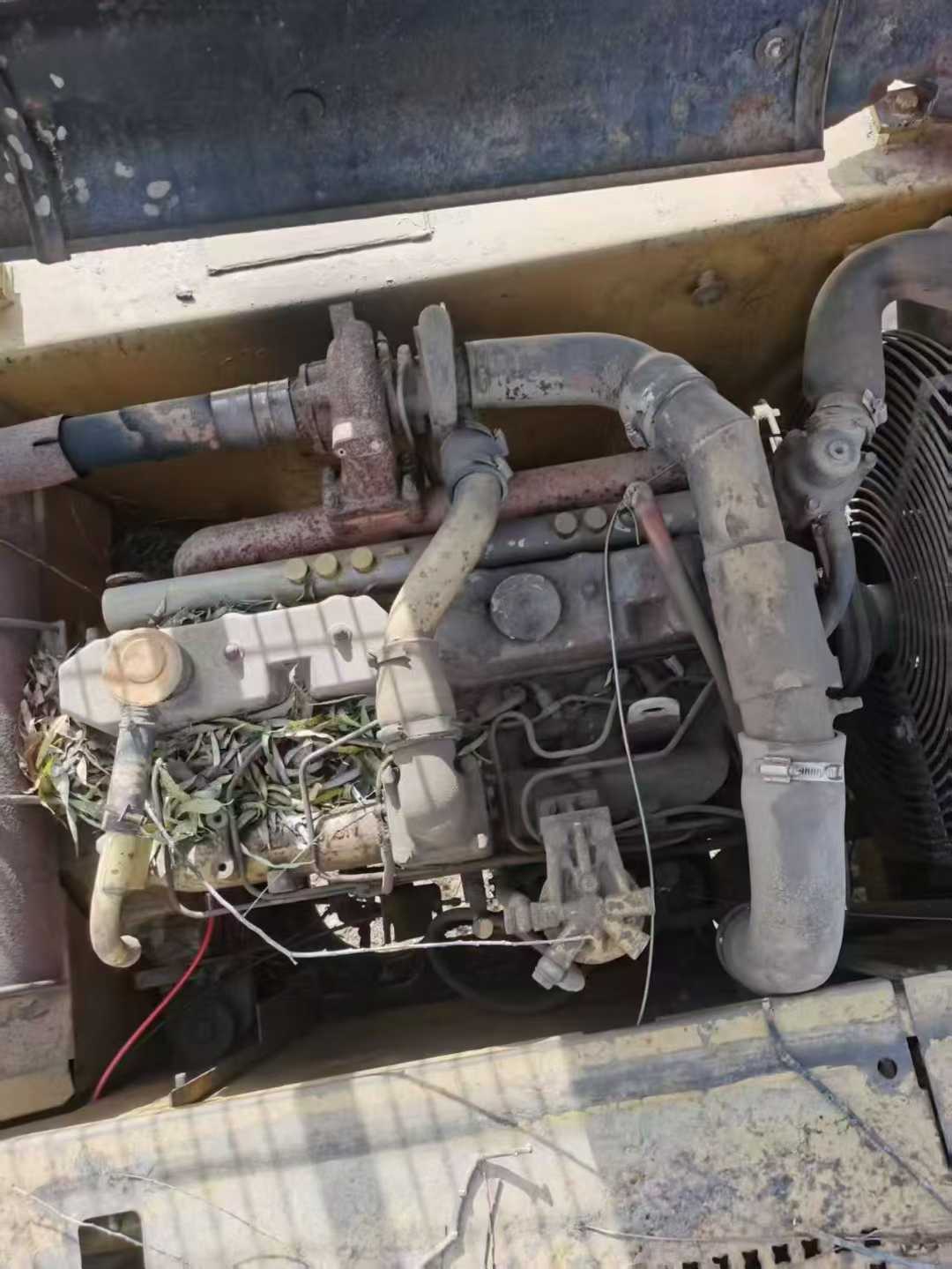

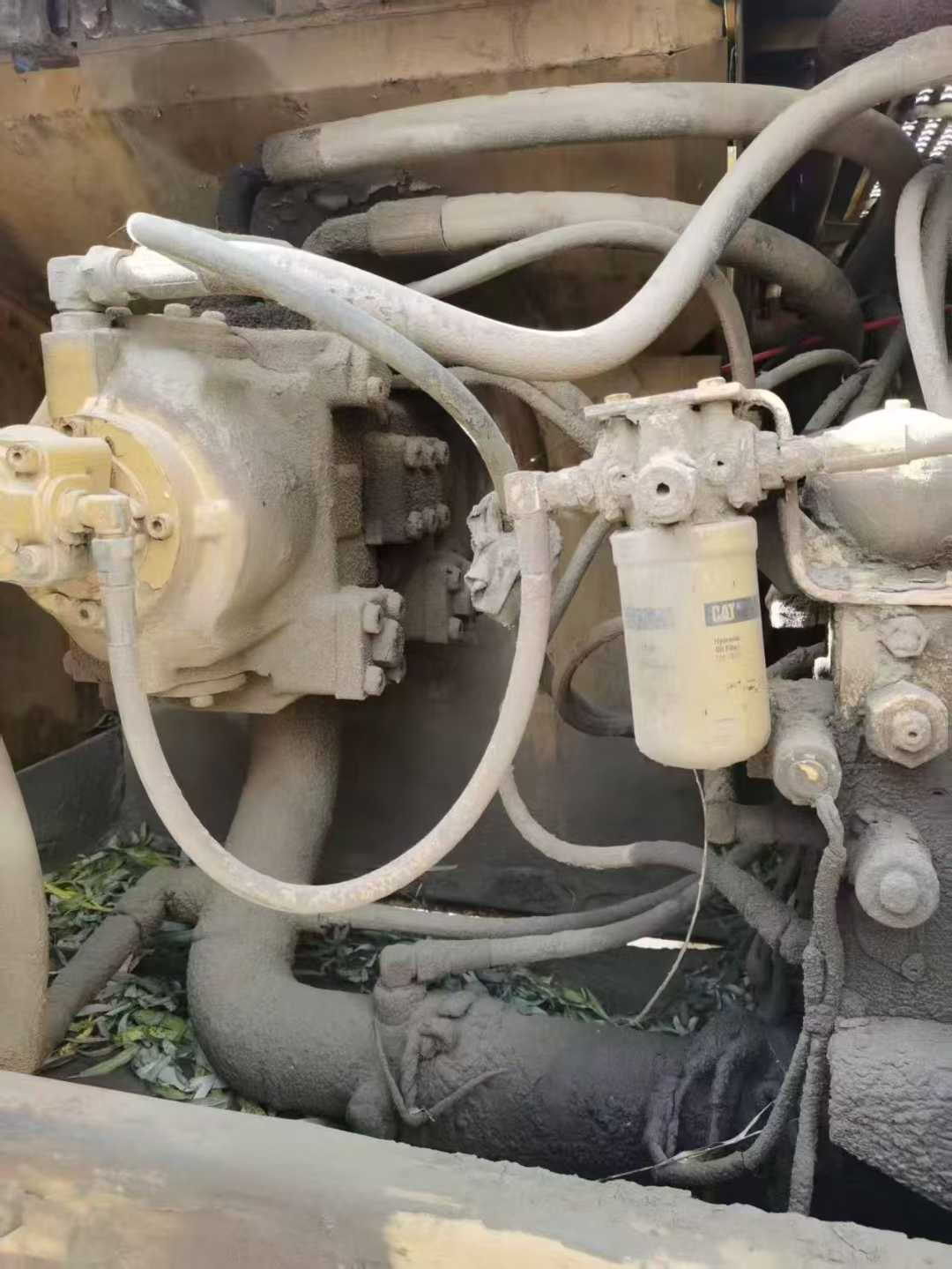

【 Used Caterpillar 320B Excavator This second-hand Caterpillar 320B excavator, with its outstanding performance and durability, is the ideal choice for your engineering operations. Since its commissioning, this machine has accumulated a working time of only 5,800 hours and is in the best working condition, ensuring the efficient operation and long service life of the equipment. Its power system adopts the original Caterpillar C6.4 engine, which is renowned for its powerful output and smooth operation. Even in harsh working environments, it can maintain stable working efficiency. In addition, advanced fuel injection technology and optimized combustion processes not only enhance fuel economy but also reduce emissions, meeting environmental protection requirements. In terms of the hydraulic system, the 320B is equipped with Caterpillar's unique positive flow control technology, which makes the operation more precise and smooth. It can handle complex working conditions such as excavation, loading and crushing with ease. The powerful combination of the main pump and motor ensures sufficient force transmission. Meanwhile, through the intelligent control system, precise control of each action link is achieved, significantly enhancing work e
Overview
No.963987
Brand Name:
CaterpillarModel Number:
320BYear:
2016
Location:
Shandong China
