2016 Caterpillar 320B

1/9
Used Caterpillar 320B Excavator 2016 Model / 1
Used Caterpillar 320B Excavator 2016 Model / 2

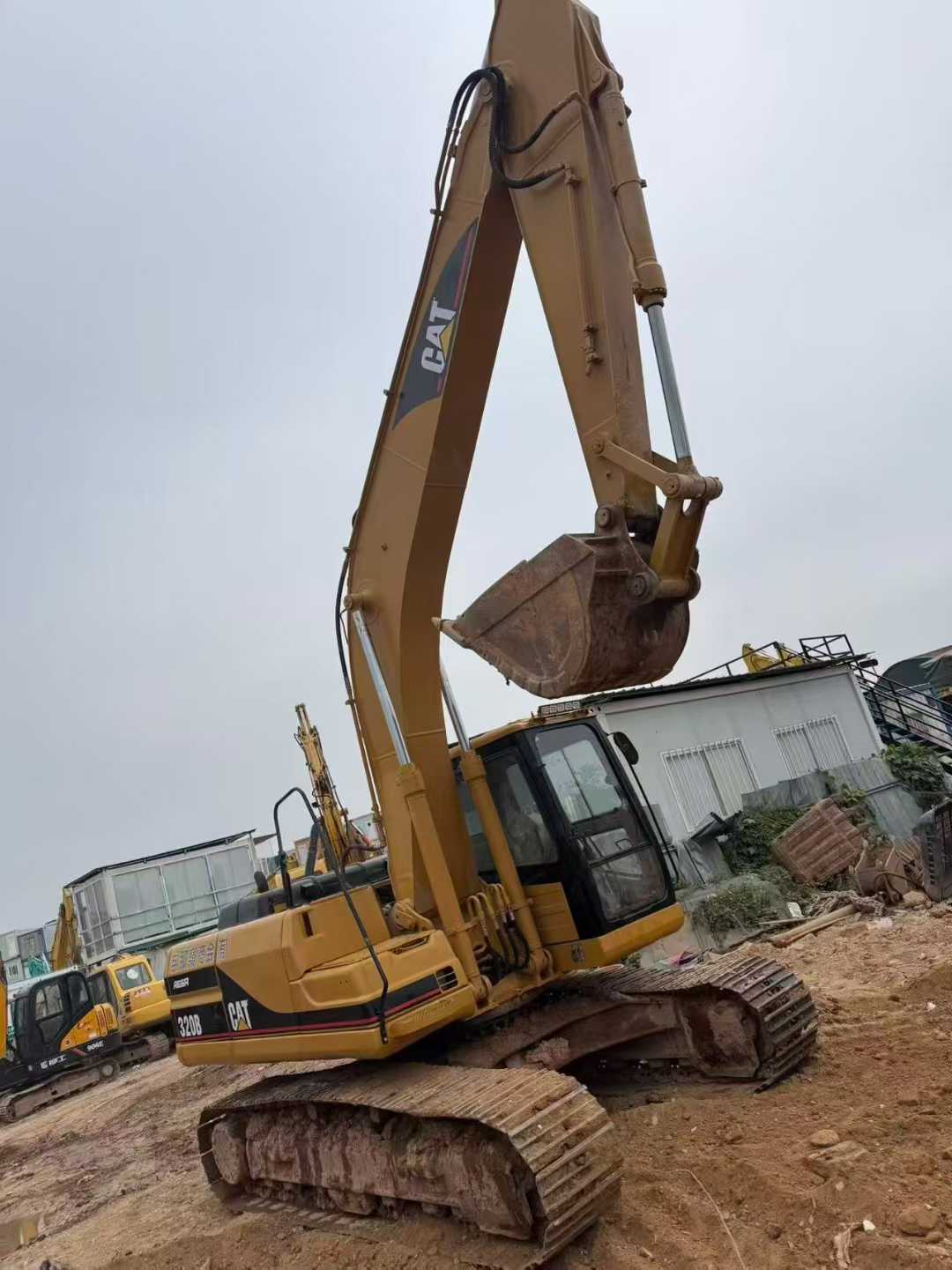

Used Caterpillar 320B Excavator 2016 Model / 3

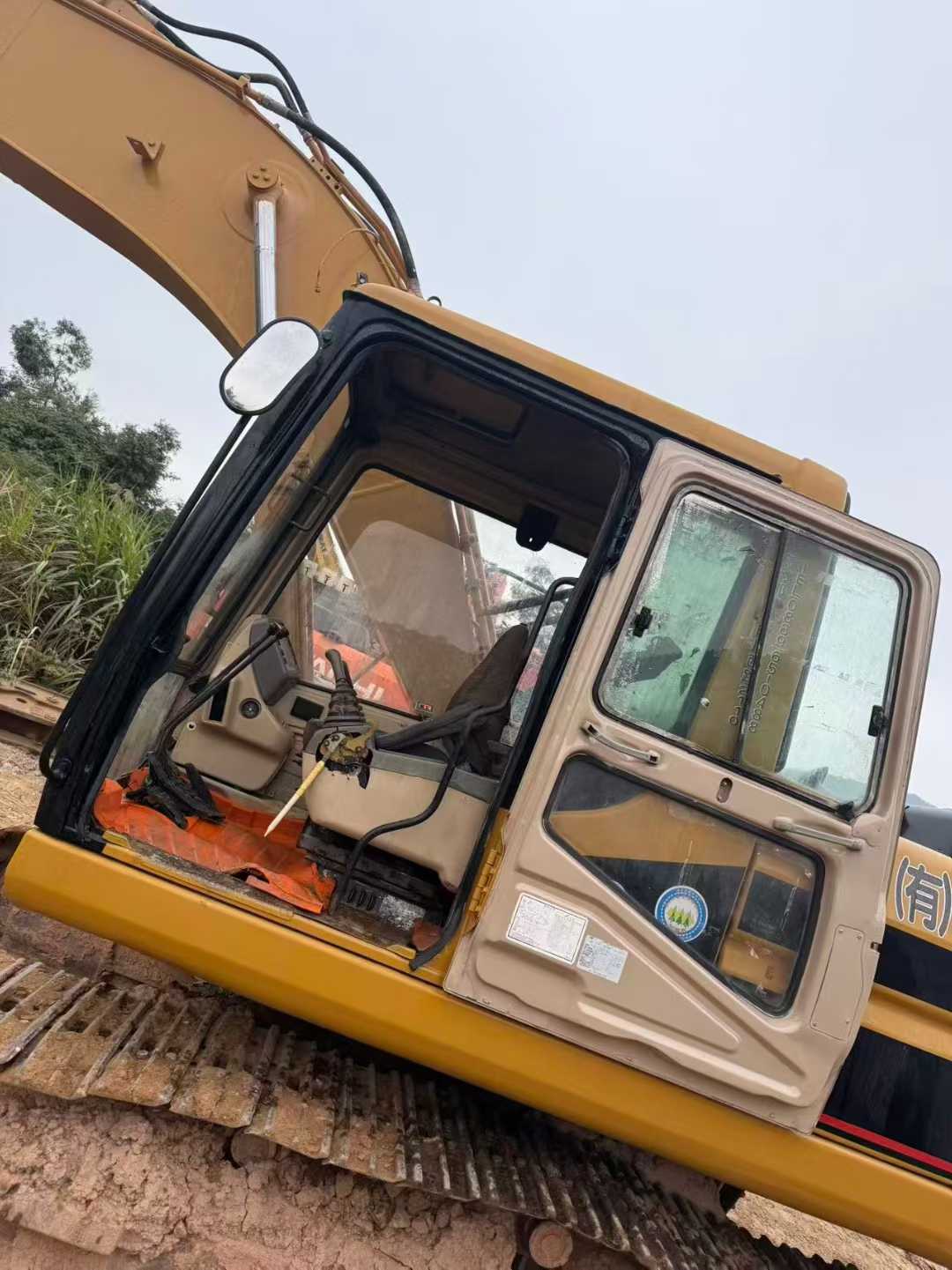

Used Caterpillar 320B Excavator 2016 Model / 4

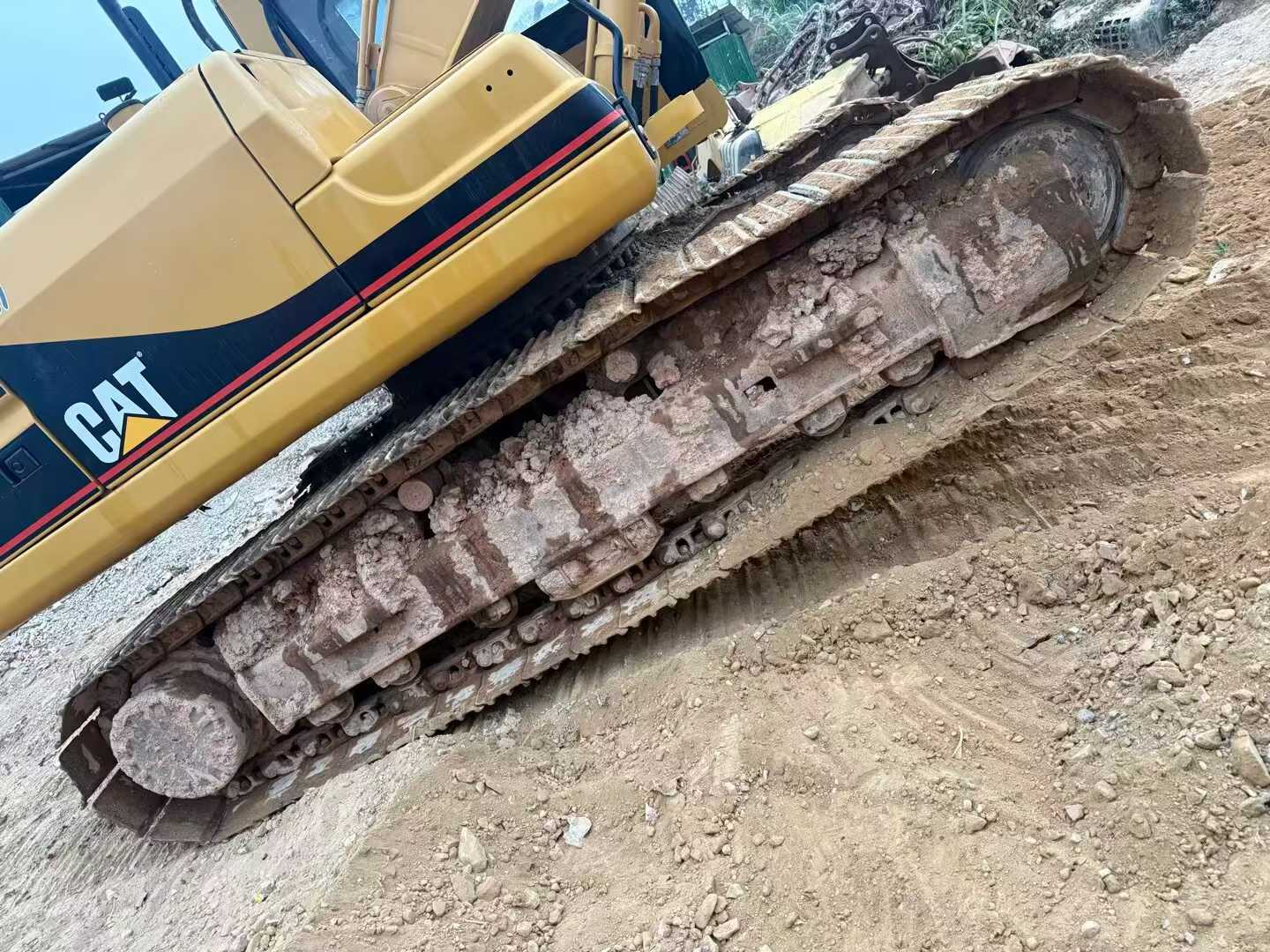

Used Caterpillar 320B Excavator 2016 Model / 5

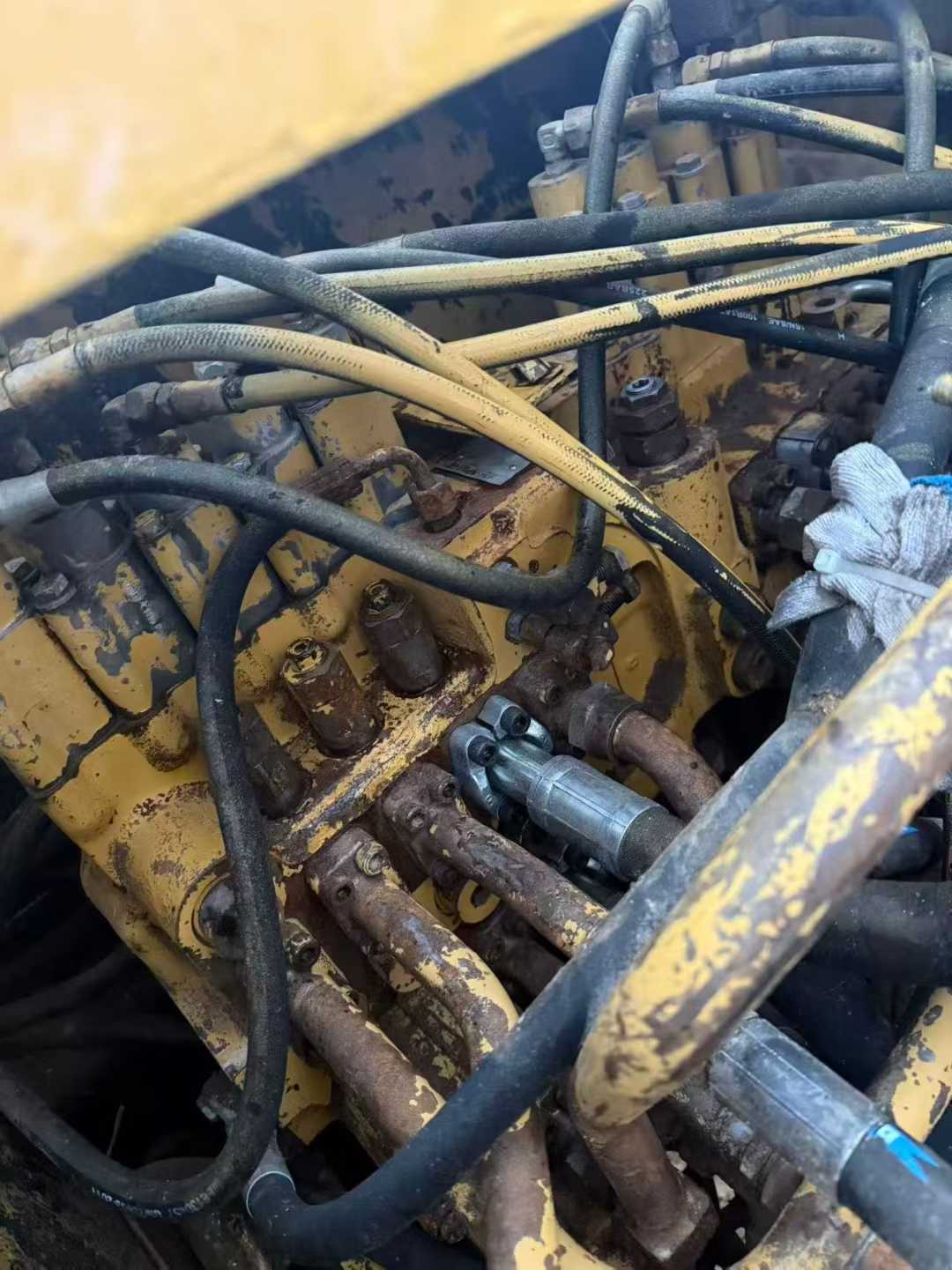

Used Caterpillar 320B Excavator 2016 Model / 6

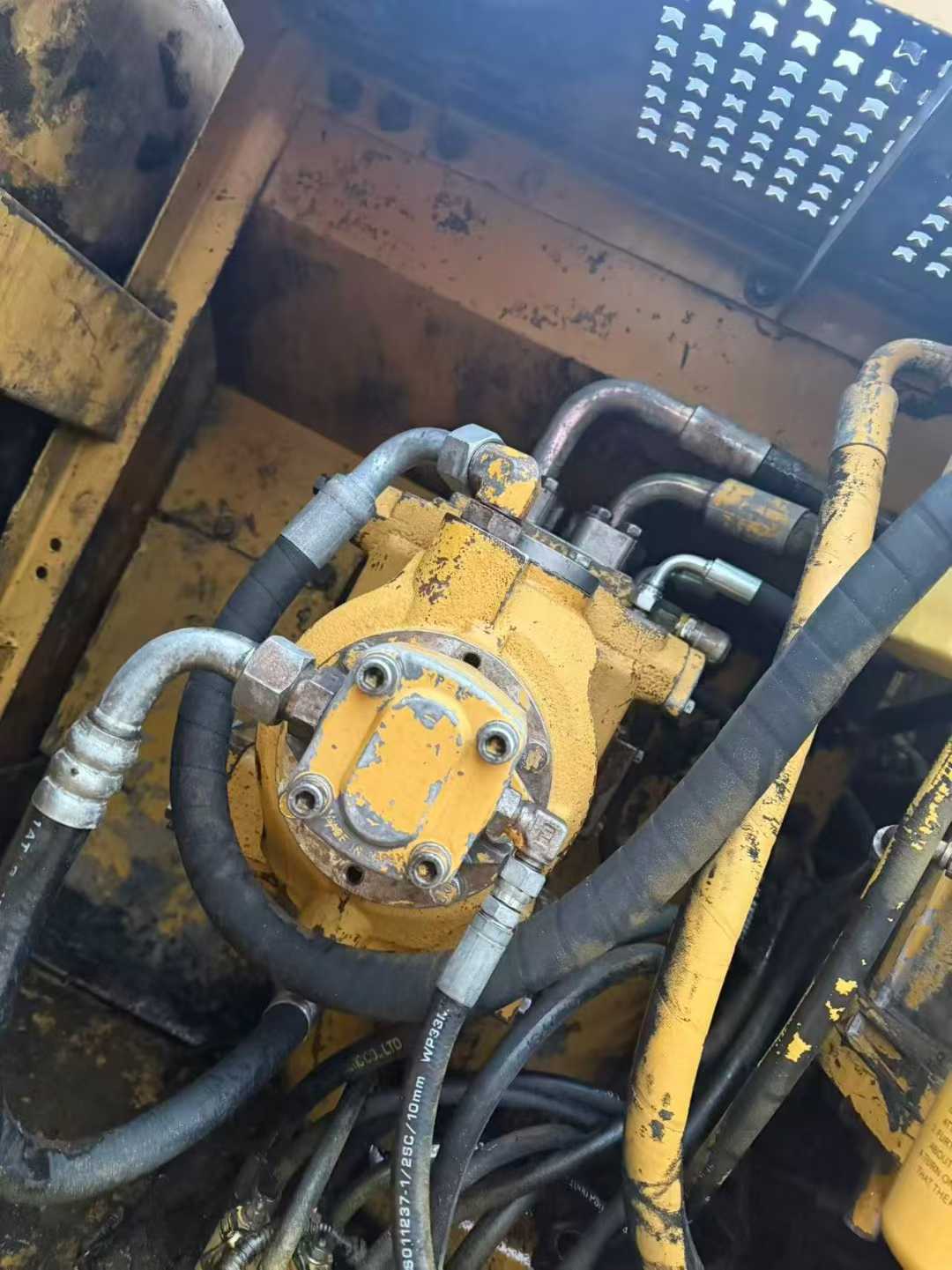

Used Caterpillar 320B Excavator 2016 Model / 7

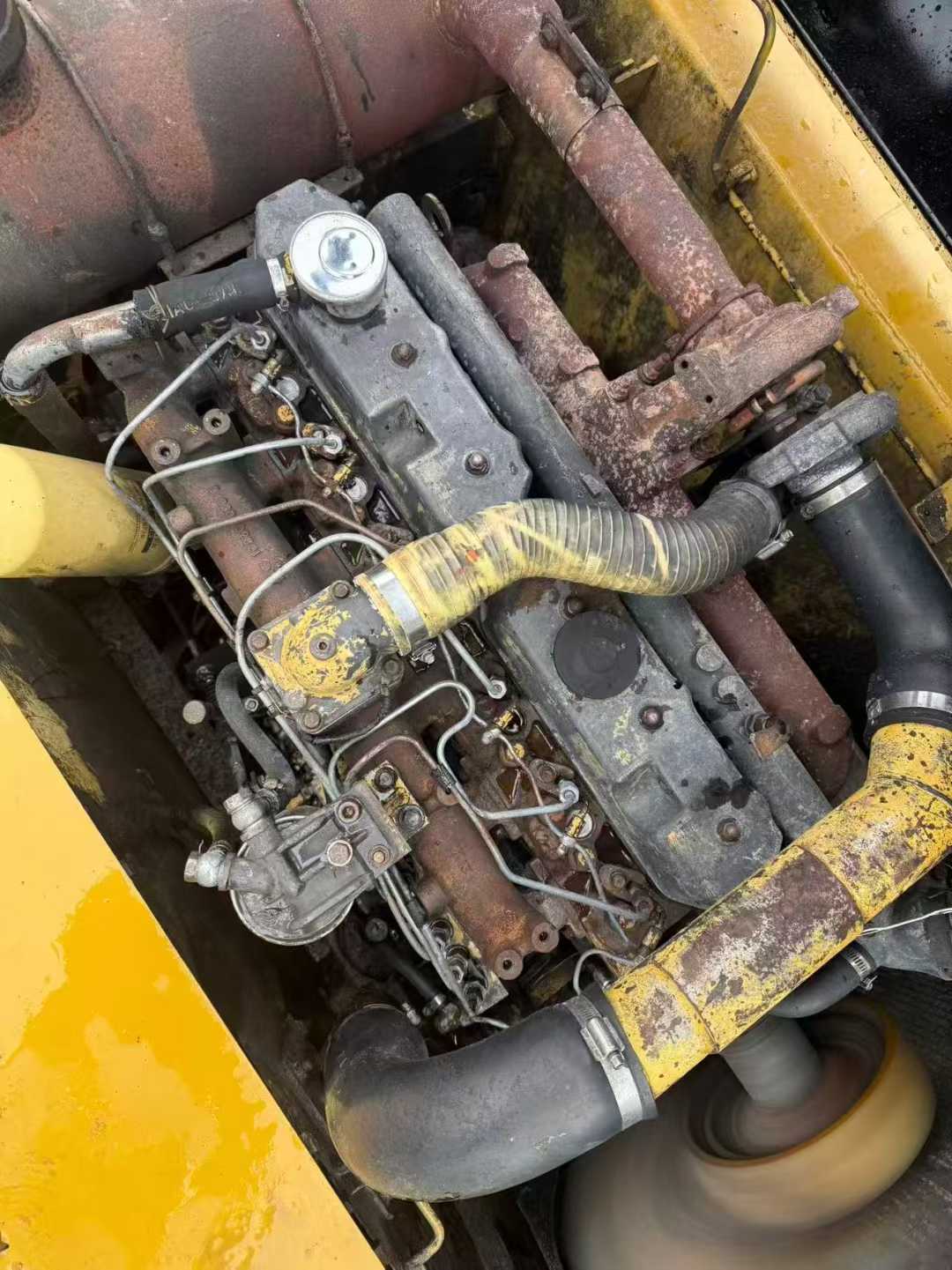

Used Caterpillar 320B Excavator 2016 Model / 8

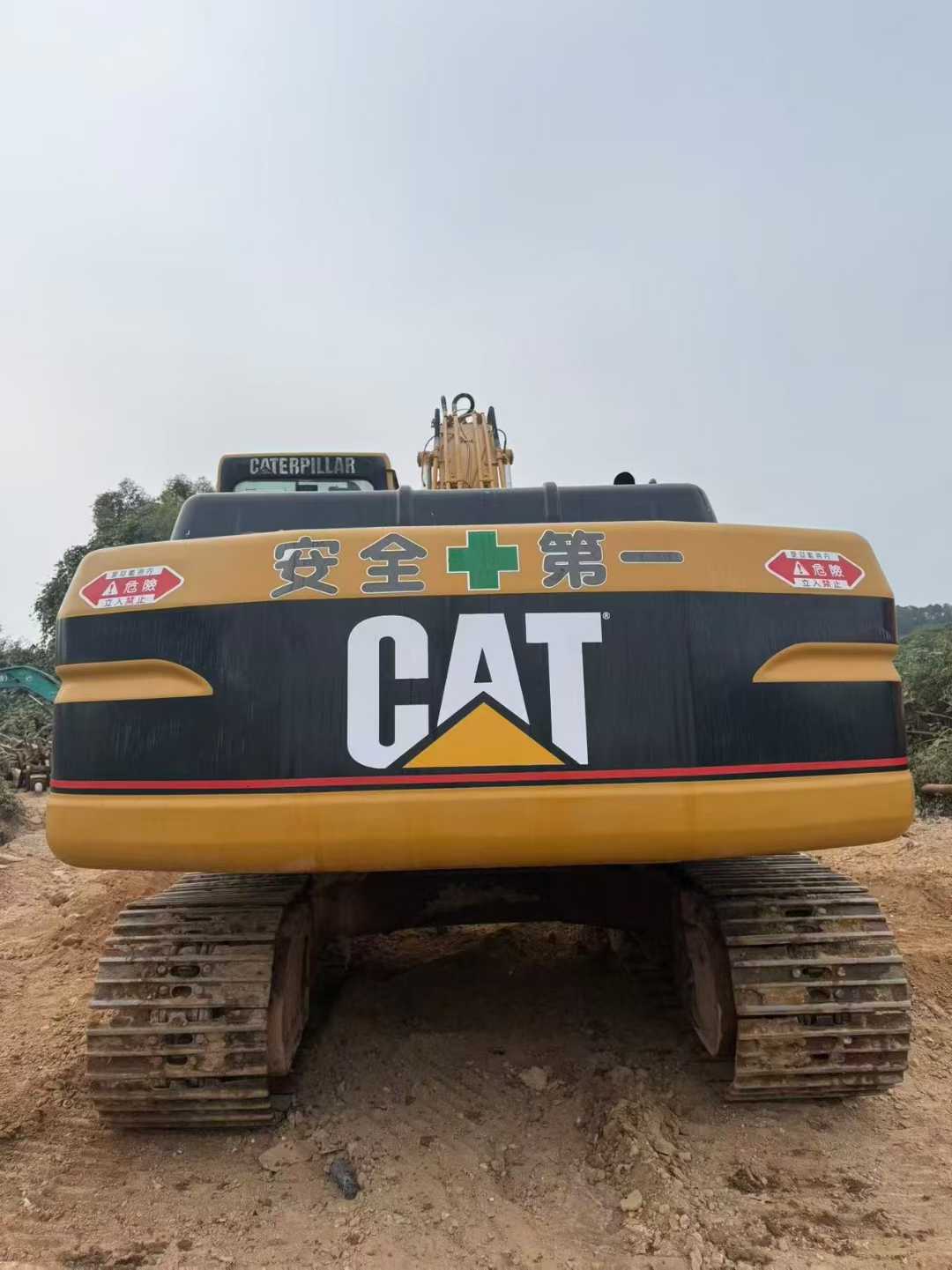

Used Caterpillar 320B Excavator 2016 Model / 9

Product Description

This premium Caterpillar 320B excavator has an excellent base condition, stable and reliable performance, and can be directly put into use on construction sites. This equipment has a working time of approximately 5,000 hours. Its power system is equipped with an original Caterpillar engine, model C7.1 ACERT, with a power output of 140 horsepower, ensuring efficient and powerful power output. In terms of the hydraulic system, it is equipped with high-quality hydraulic pumps and motors, ensuring the stability and reliability of the equipment under various complex working conditions. The main advantages include: - ** Outstanding performance ** : After strict testing, it is exempt from performance inspection and can be put into use immediately without additional maintenance. - ** Strong durability ** : The durability of the Caterpillar brand is renowned worldwide, and this 320B is no exception. - ** Comfortable operation ** : The cab design is humanized, with a wide field of vision and easy operation. You won't feel tired even after long hours of work. - ** Economical ** : Purchasing such a high-performance second-hand excavator for over 80,000 yuan offers an extremely high cost-performance ratio. Whether it's earthwork projects or demol

SpecificationsValue
No.973995
Tonnage (tons)20
Working weight (kg)19400
Bucket capacity (m³)0.92
Boom length (mm)5680
Rod length (mm)2900
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar CAT 3066T
Rated power (kw/rpm)99.9/1800
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Rotation speed (rpm)10.7
Travel speed (km/h)3.4/5.5
Maximum flow of main pump (l/min)185
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)23
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)340
Hydraulic Tank (L)130
Engine Oil changes (L)20.5
Coolant (L)25
Hydraulic System (L)220
Total transport length (mm)9440
Total transport width (mm)2800
Total transport height (mm)2940
Full cab height (mm)2940
Minimum ground clearance (mm)475
Back end turning radius (mm)2750
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3265
Maximum digging depth (mm)6640
Maximum excavation height (mm)9470
Maximum unloading height (mm)6570
Maximum vertical digging depth (mm)6040
Maximum excavation radius of stop surface (mm)9780
see more

Overview

No.973995

Brand Name:

Caterpillar

Model Number:

320B

Year:

2016

Location:

Guangdong China
