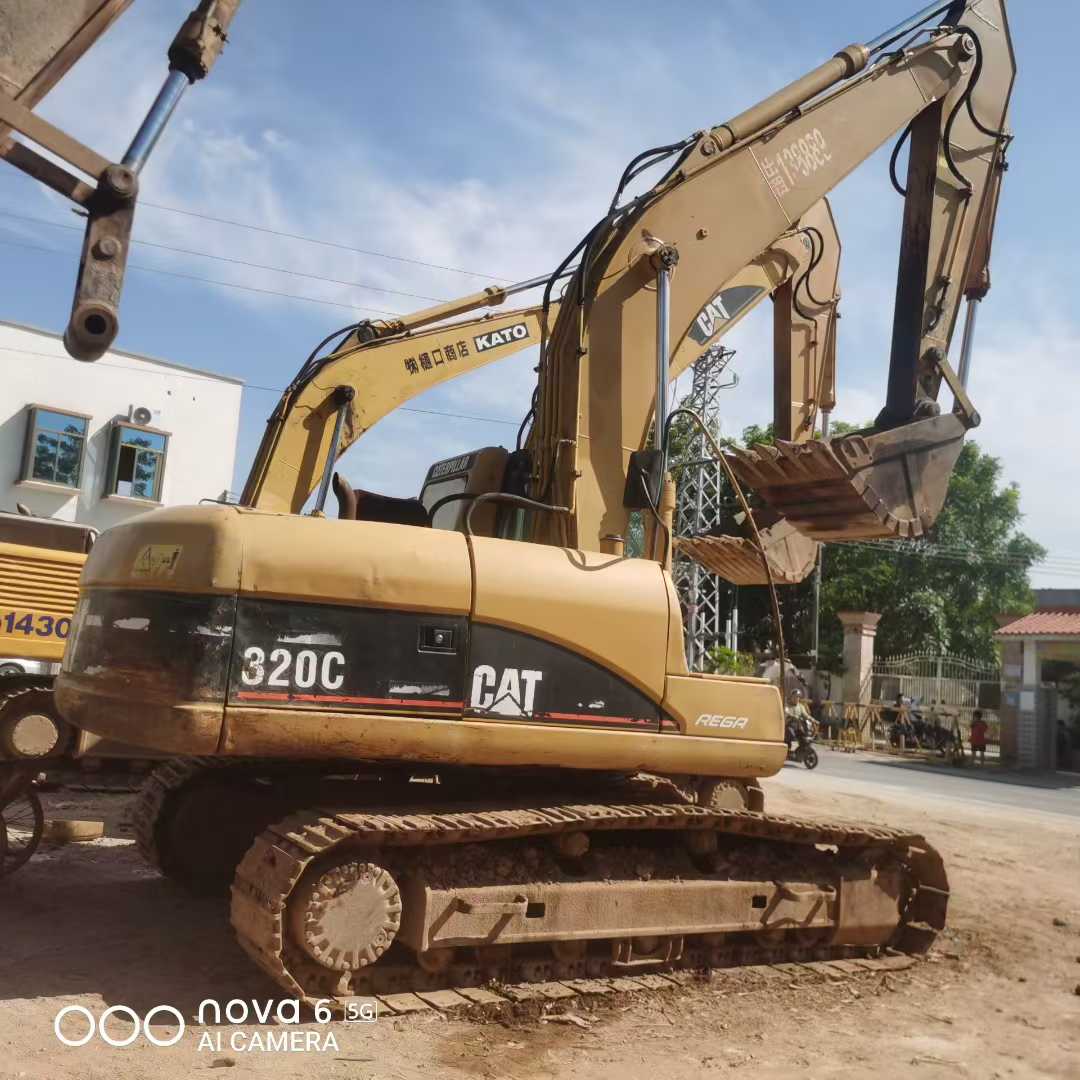

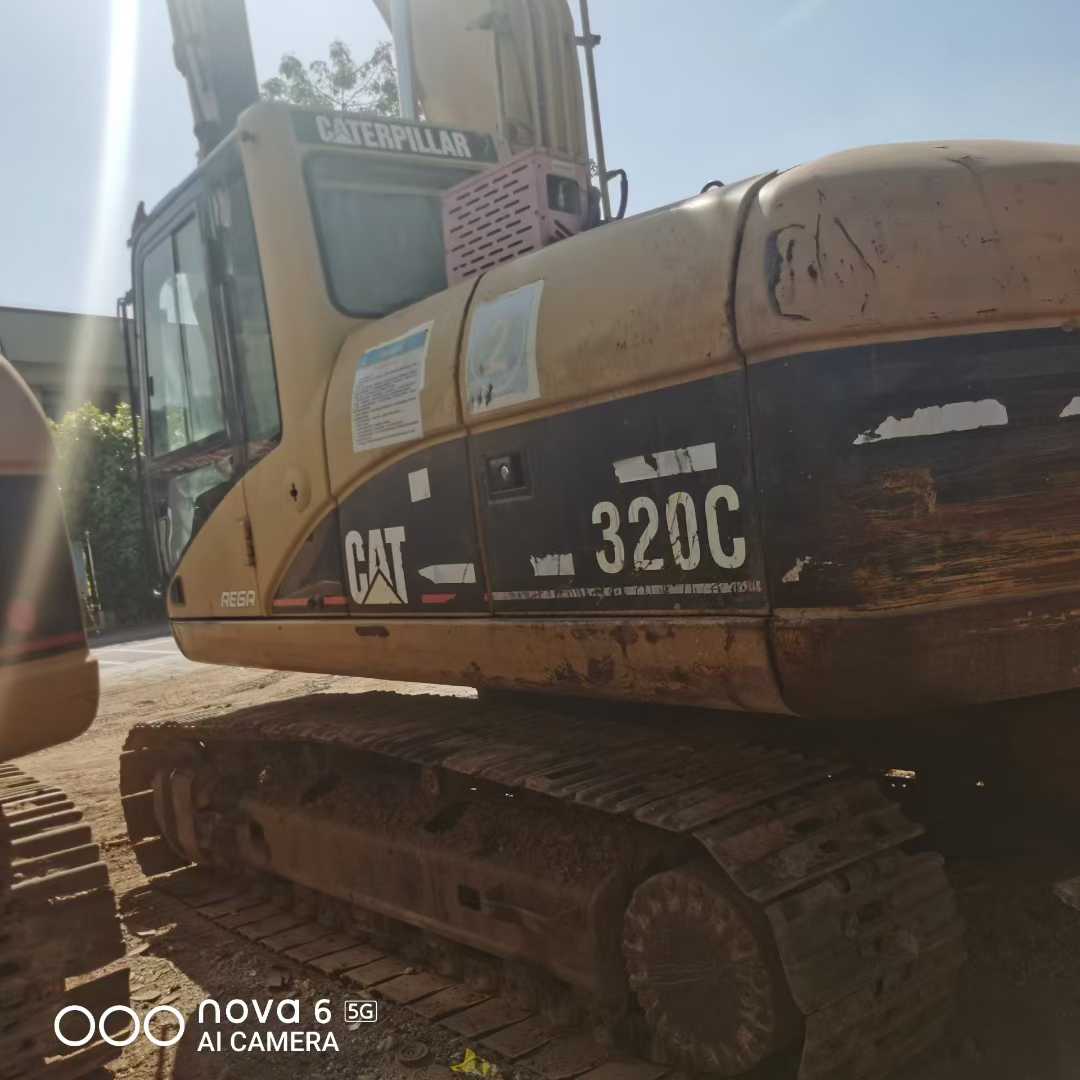

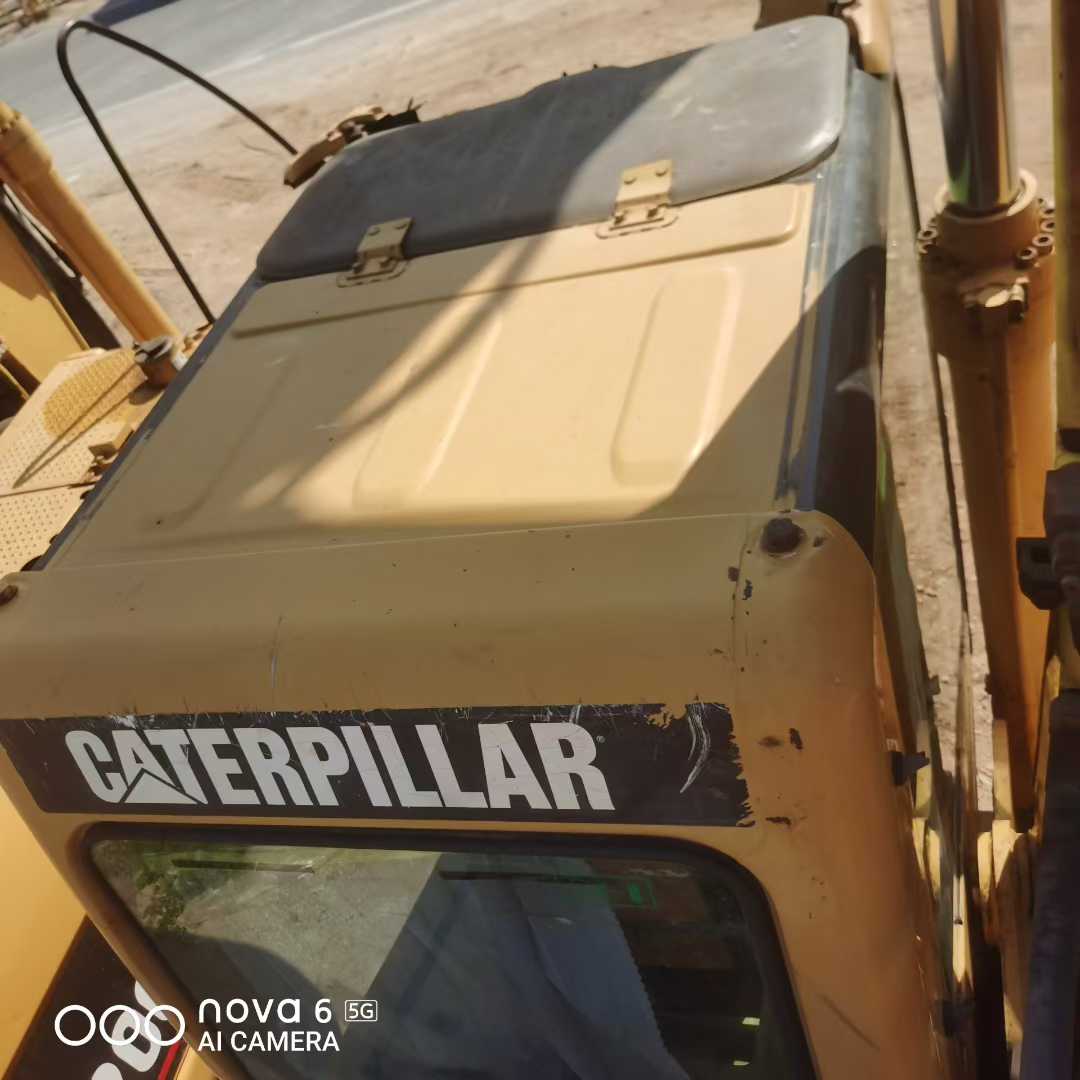

2016 Caterpillar 320C











| Specifications | Value |
|---|---|
| No. | 963957 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

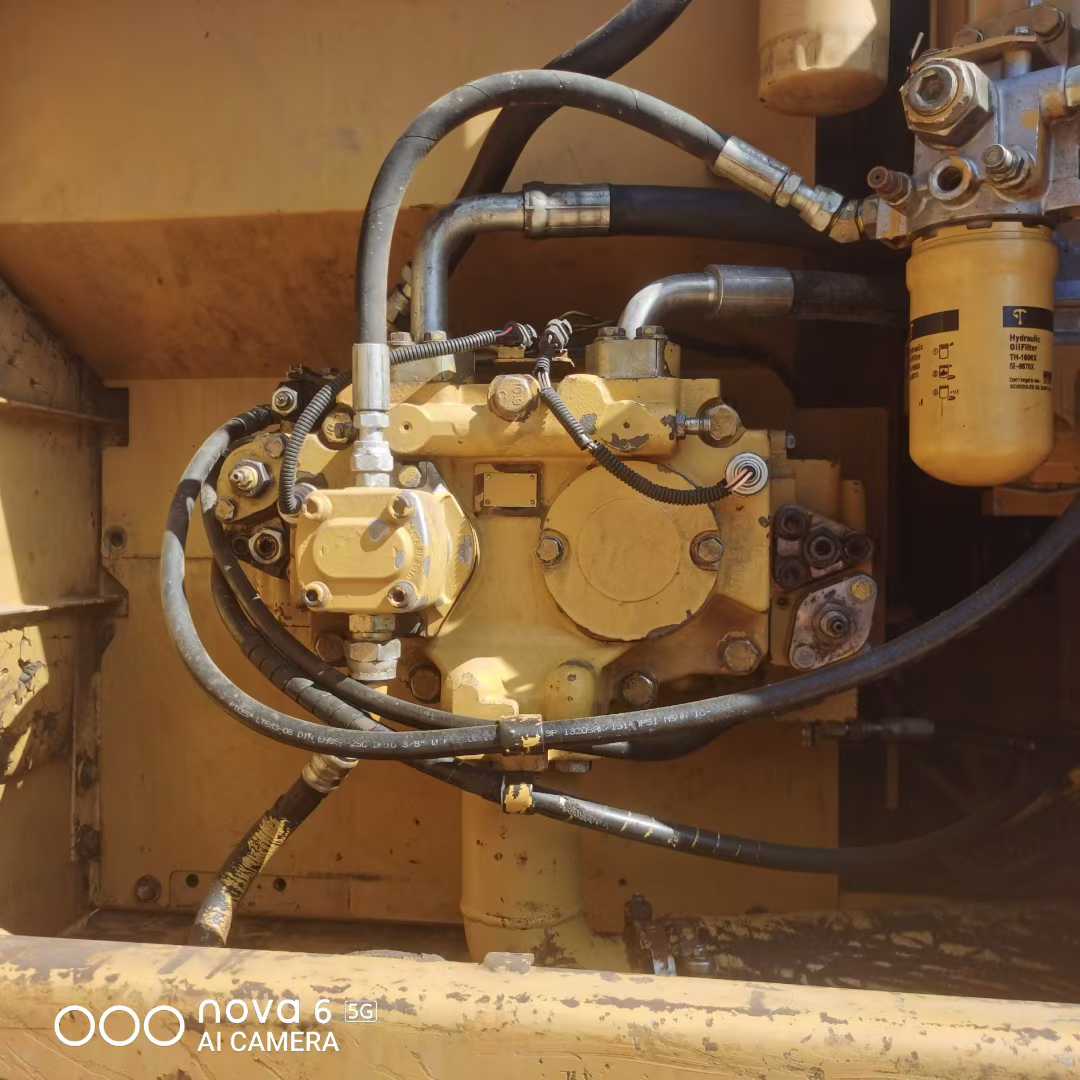

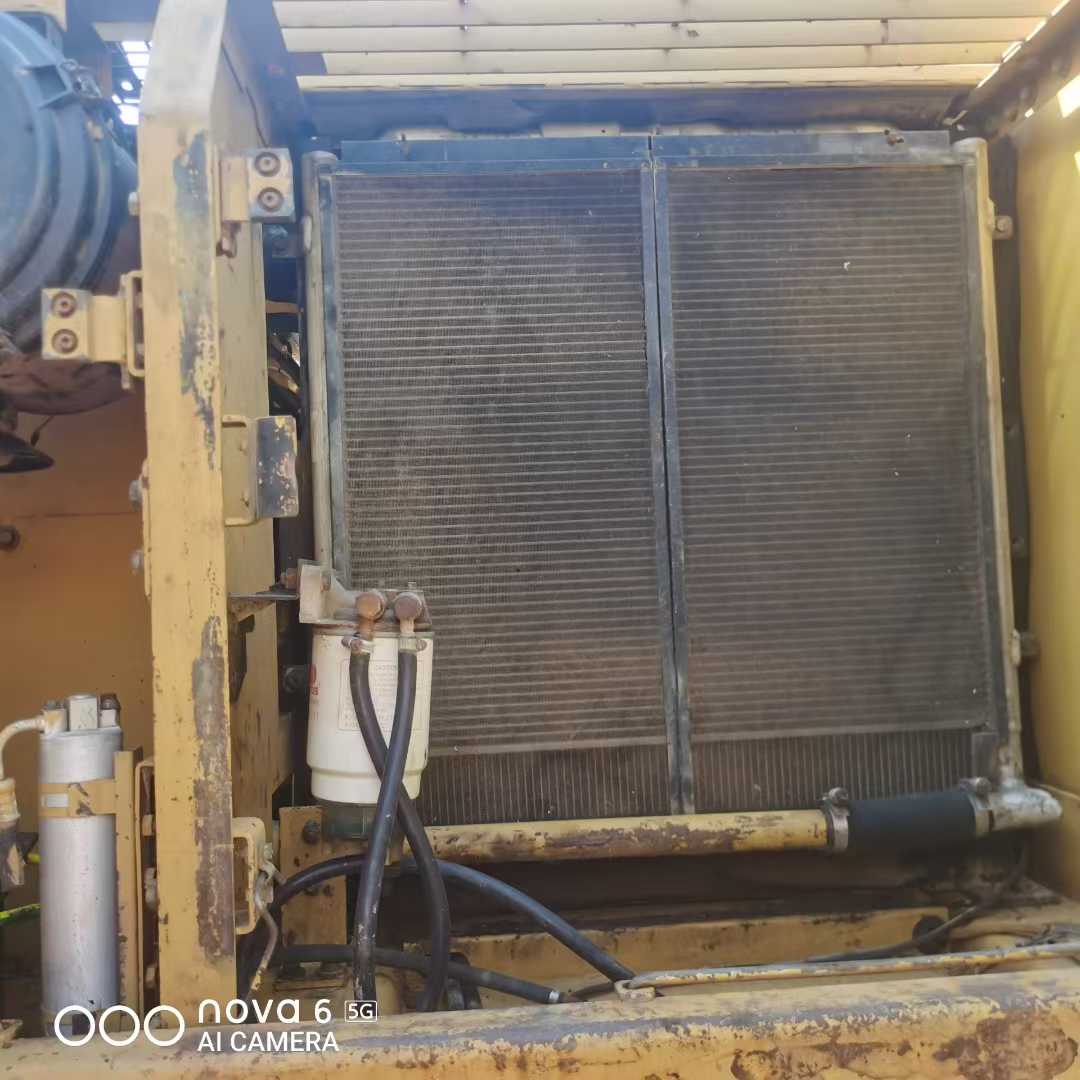

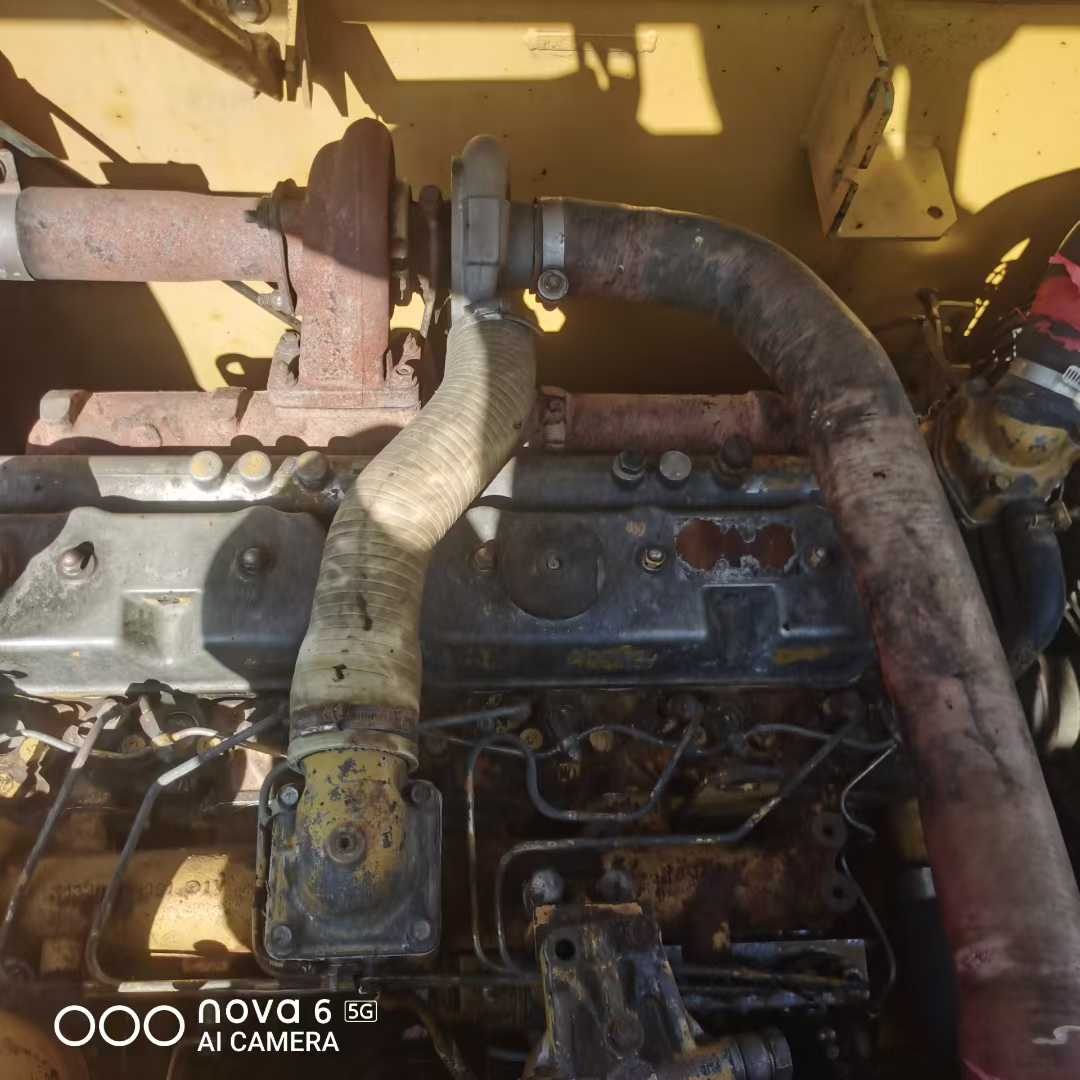

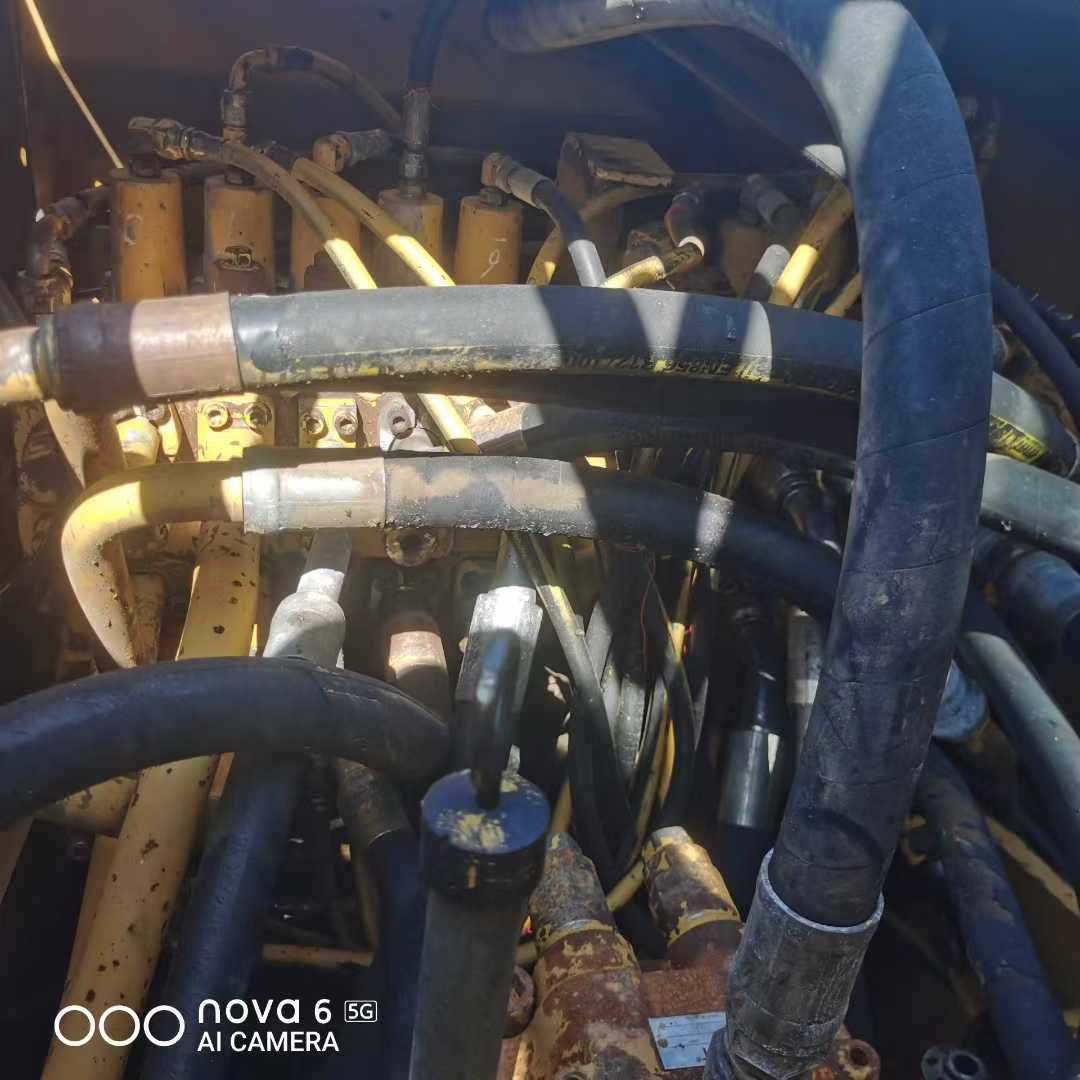

【 Premium Recommendation 】 Second-hand Caterpillar 320C excavator. This machine is a rare and high-quality choice in the market. It not only boasts outstanding working performance, but also maintains an excellent state both in appearance and internal condition. The cumulative working time of this excavator is only 5,000 hours, which is far lower than the average service life of similar equipment. This means that the wear degree of its main components is relatively low and its service life is longer. In terms of the power system, this machine is equipped with an original imported high-efficiency engine from Caterpillar. Even after long-term operation, it can still provide strong and stable power output. Whether it is excavation, loading or crushing operations, it can handle them with ease. Meanwhile, this engine also features excellent fuel economy, helping users effectively reduce operating costs. The hydraulic system adopts an advanced closed center load sensing design, ensuring smoothness and accuracy during operation, and can handle complex and changeable construction sites with ease. In addition, the large-capacity water tank design ensures better heat dissipation, extends continuous operation time, and reduces downtime caused by
Overview
No.963957
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangdong China
