2016 Caterpillar 320C











| Specifications | Value |
|---|---|
| No. | 964842 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

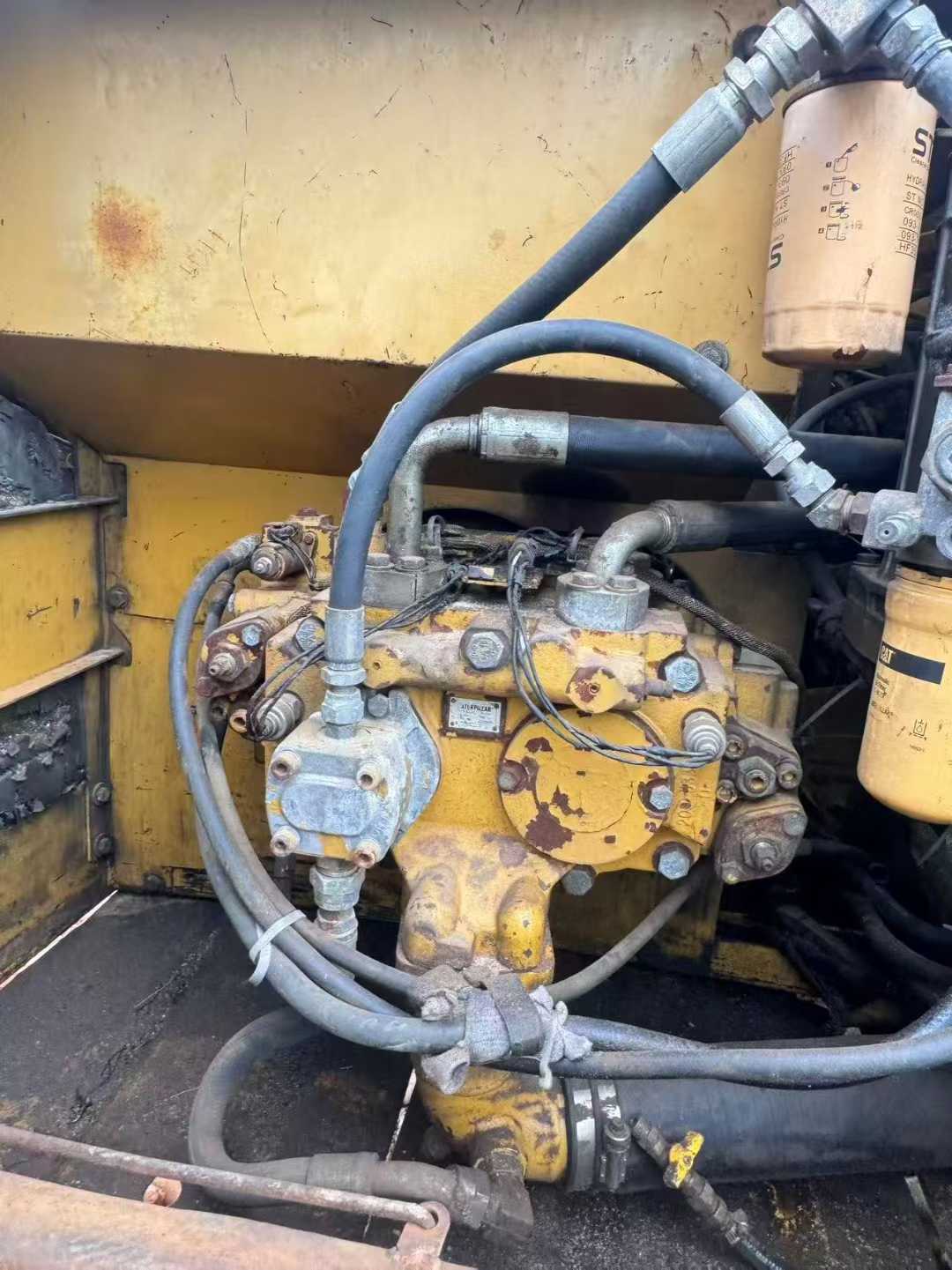

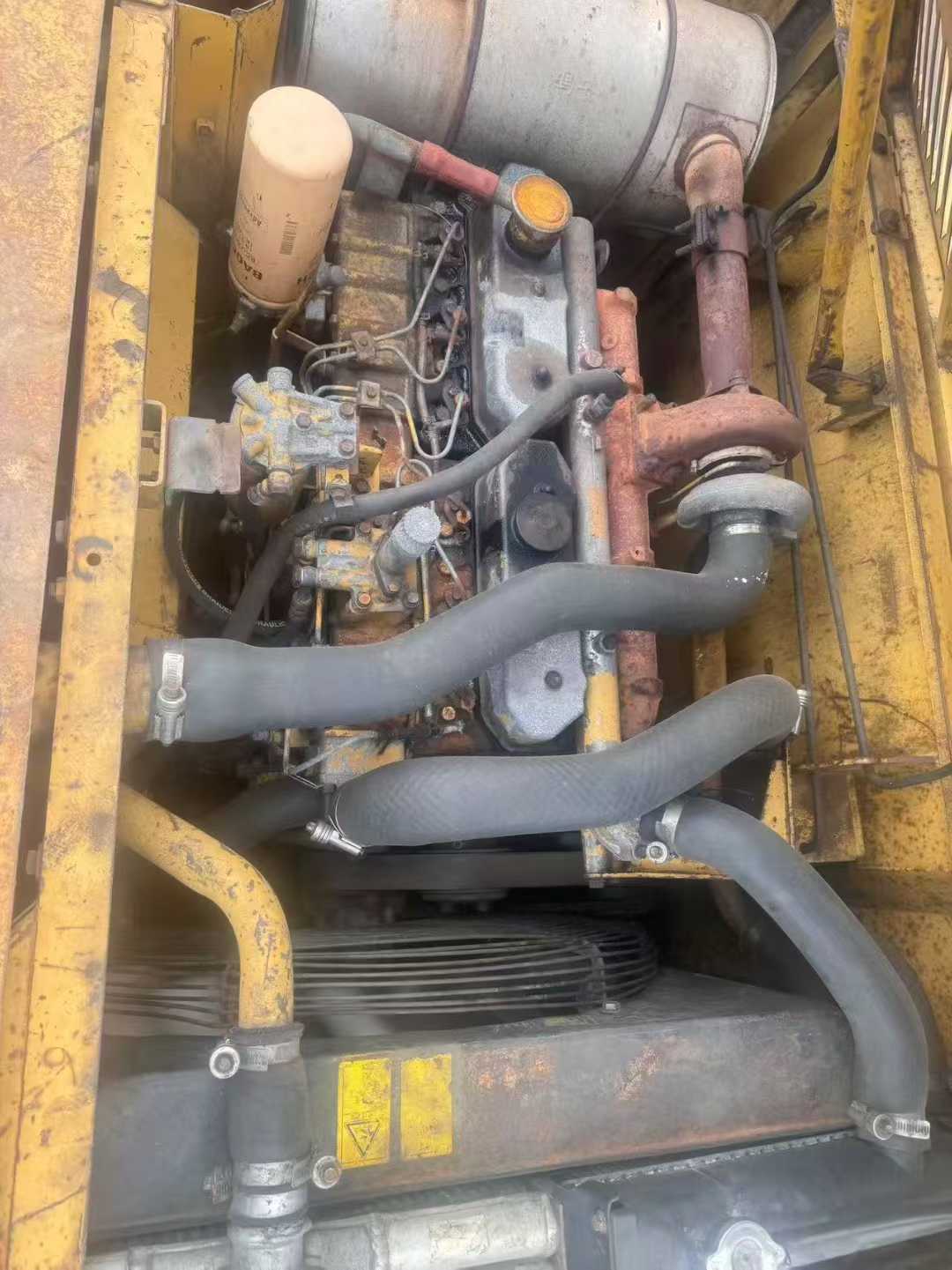

Second-hand Caterpillar 320C excavator This second-hand Caterpillar 320C excavator is an indispensable and capable assistant on your construction site. It not only boasts outstanding performance but also offers an extremely high cost-performance ratio, capable of meeting various construction requirements. The cumulative working time of this equipment is 5,000 hours, which is of medium usage intensity. The overall condition is good, with no major accident records. Maintenance and upkeep are in place, and the mechanical performance is stable and reliable. "Power System This machine is equipped with an original imported C6.4 engine from Caterpillar, with a rated power of 110kW (approximately 148 horsepower). It is powerful, fuel-efficient, starts quickly, runs smoothly, and can maintain high efficiency even in harsh environments. In addition, this engine also features excellent fuel economy and emission standards, meeting environmental protection requirements and significantly reducing operating costs. "Hydraulic System Adopting advanced negative flow control technology, it ensures precise operation, sensitive response and powerful excavation force. Whether it is earthwork excavation or rock crushing, it can handle them with ease. Meanw
Overview
No.964842
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangdong China
