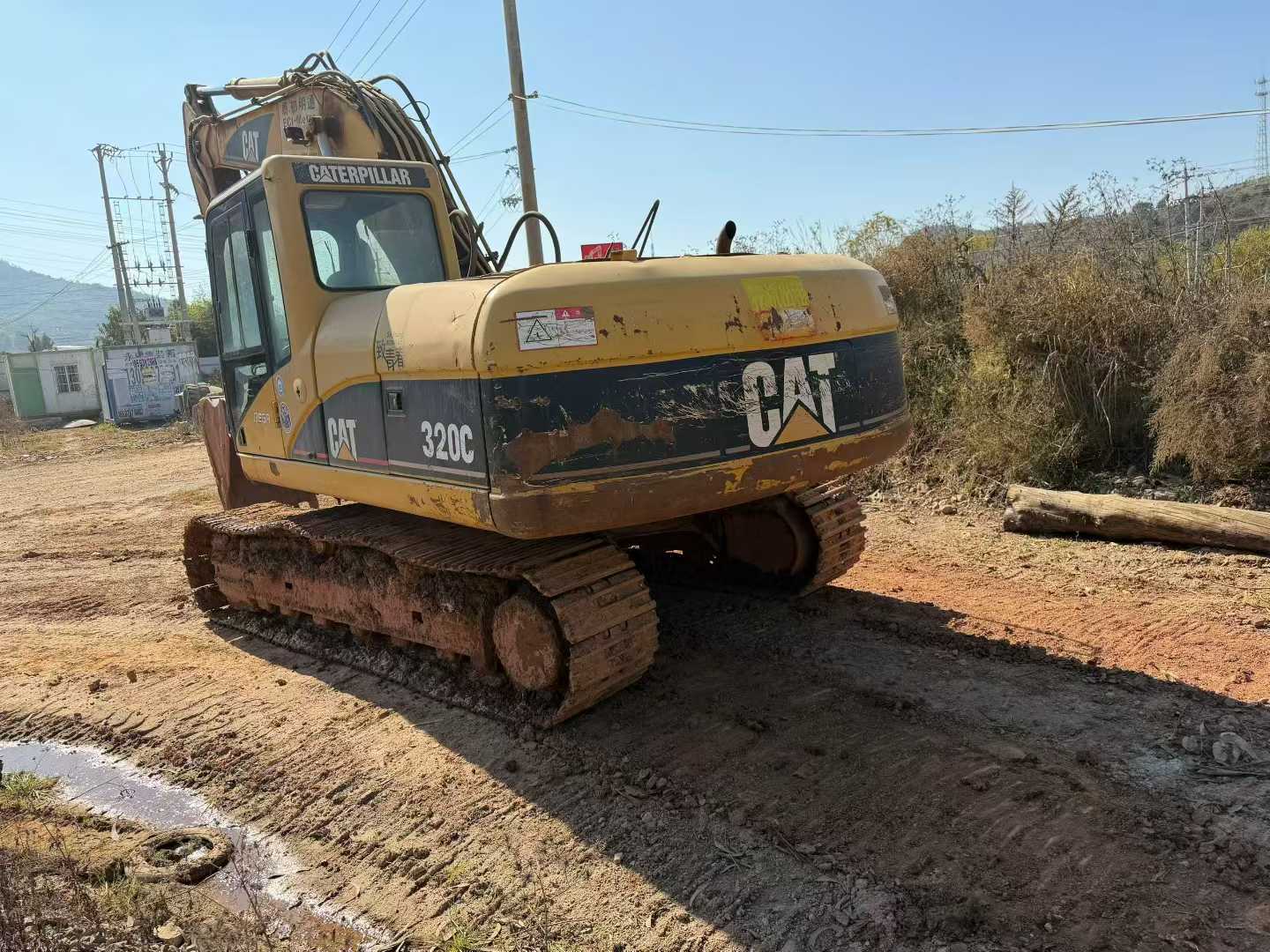

2016 Caterpillar 320C










| Specifications | Value |
|---|---|
| No. | 965400 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

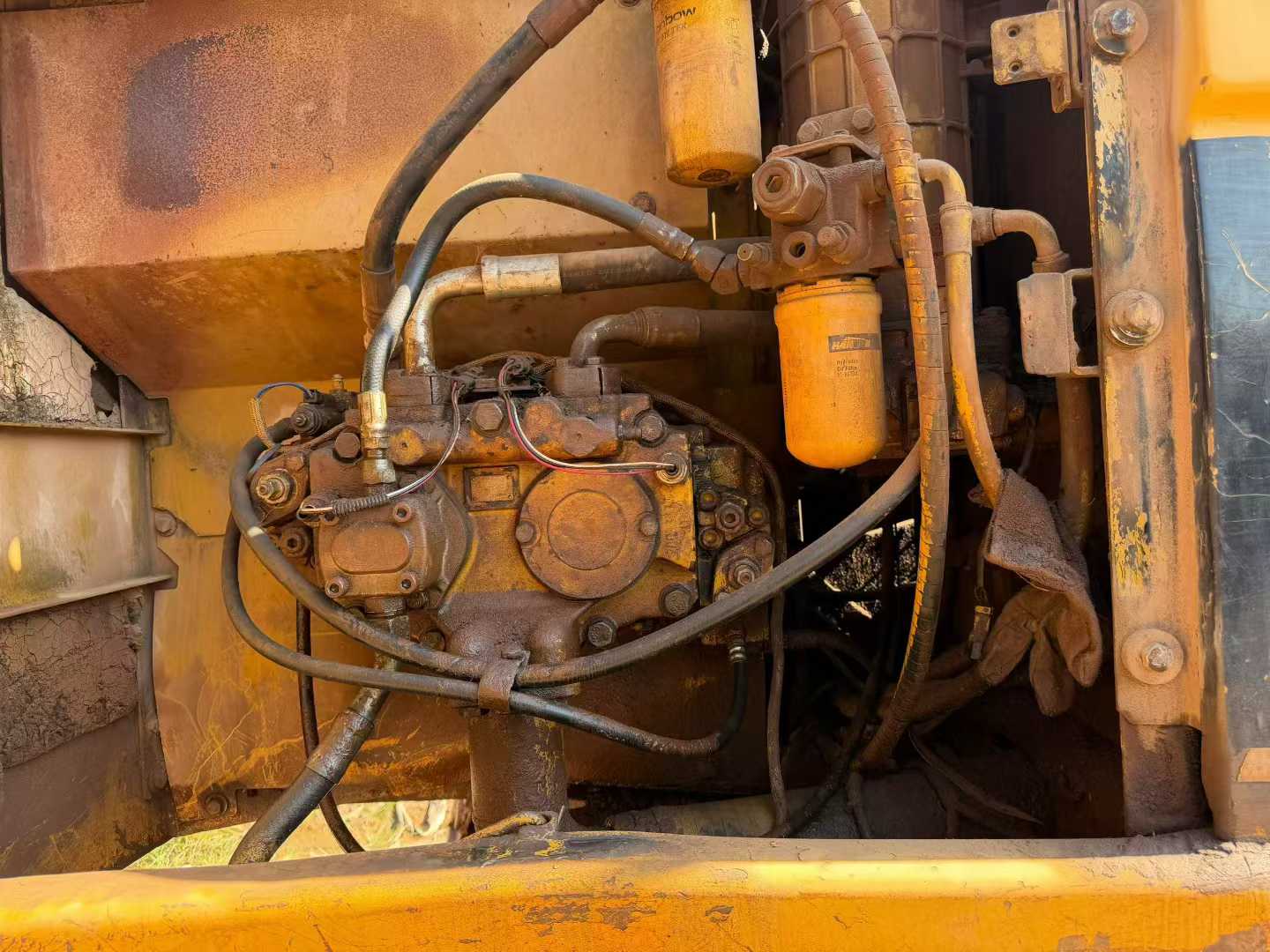

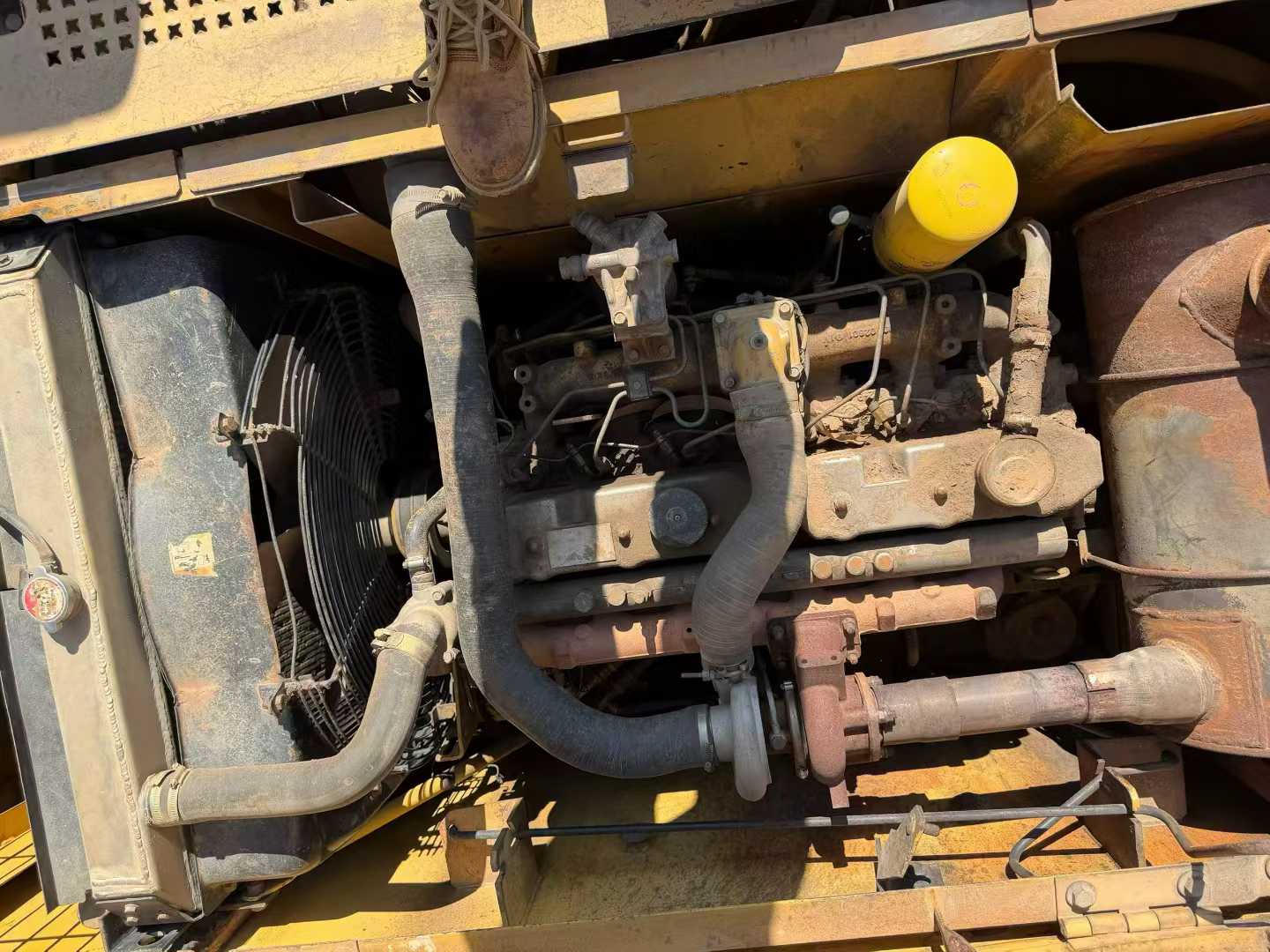

【 Premium Second-hand Excavator Recommendation 】 Large Water Tank Caterpillar 320C, welcome to purchase! We have carefully selected for you a second-hand Caterpillar 320C excavator with outstanding performance and in good condition. Since its commissioning, this equipment has accumulated a working time of only 6,500 hours, which is far shorter than the average service life of machines of the same model. Therefore, its overall mechanical condition is excellent. The engine is equipped with a Caterpillar original imported C7.1 inline six-cylinder turbocharged diesel engine, which is powerful and has good fuel economy, providing stable and reliable power output under various working conditions. In addition, this model is also equipped with an advanced hydraulic system, including an efficient main pump and precisely controlled multi-way valves, making operation more flexible and effortless. Both the digging force and lifting speed have reached the leading level in the industry. It is particularly worth mentioning that this 320C excavator is equipped with a large-capacity water tank design, effectively solving the problem of insufficient heat dissipation during long-term operation. Even in high-temperature environments, it can maintain the
Overview
No.965400
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangdong China
