2016 Caterpillar 320C











| Specifications | Value |
|---|---|
| No. | 965575 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

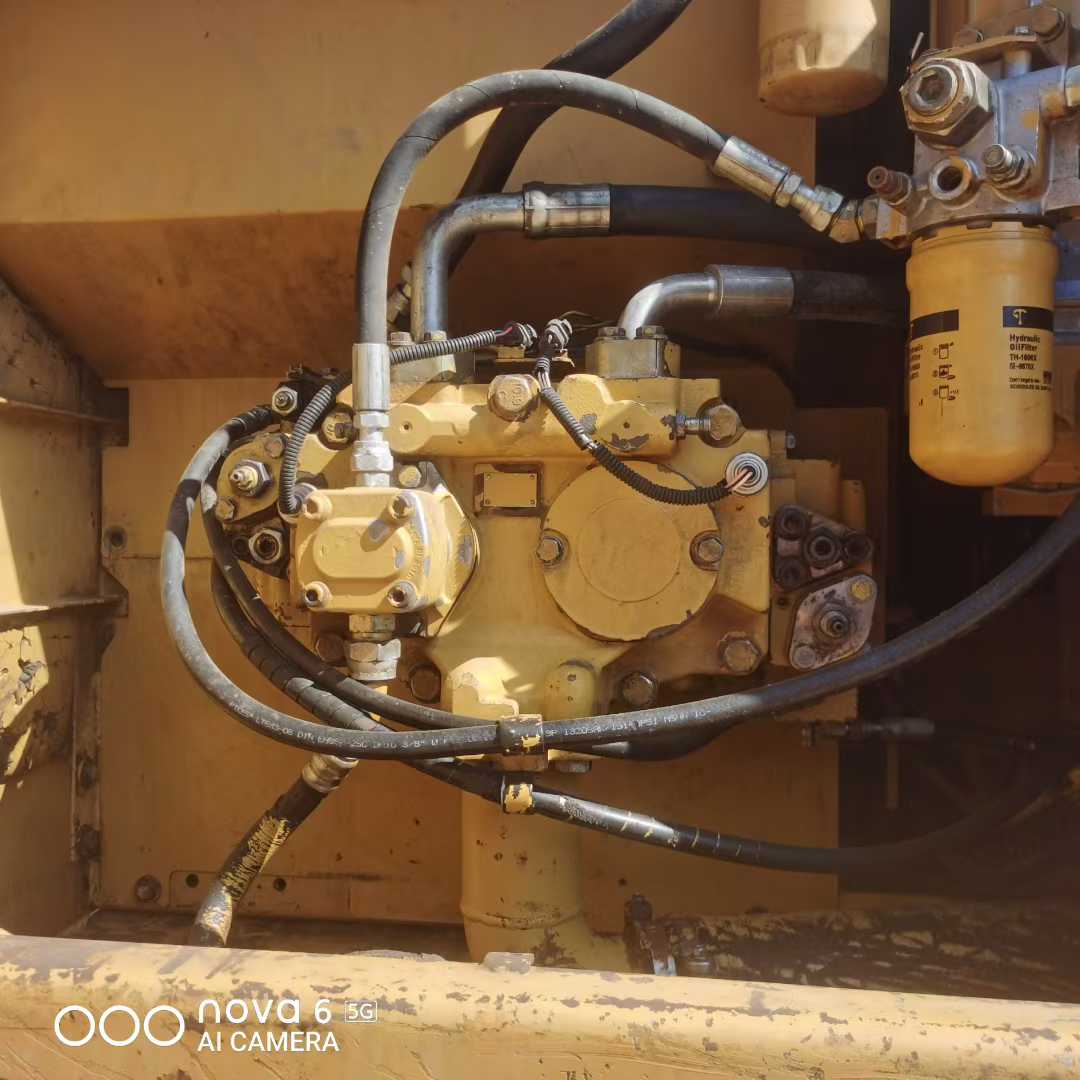

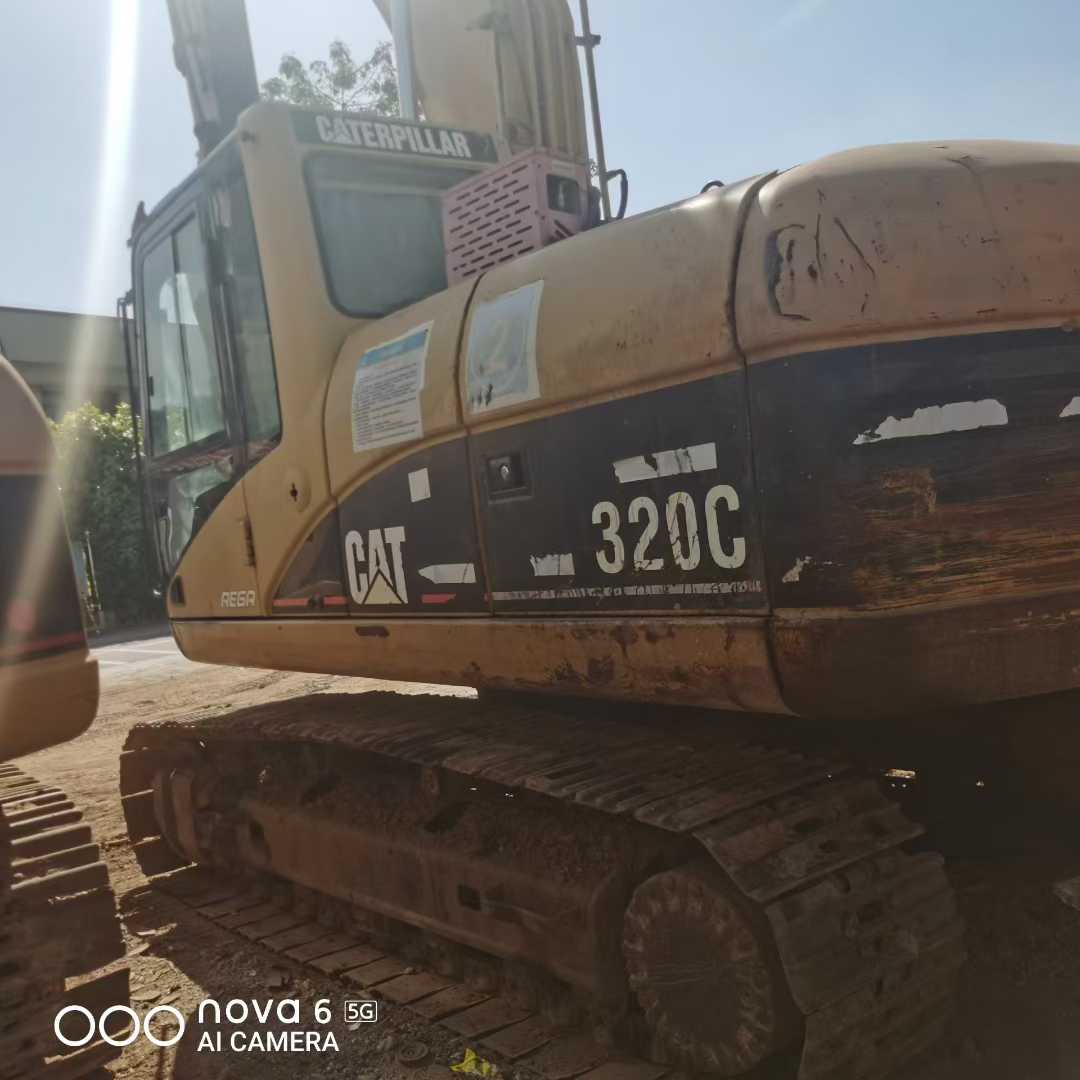

【 Premium Recommendation 】 Second-hand Caterpillar 320C excavator, this is a medium-sized excavator that has received high praise in the market. The total working time of this machine is 4,500 hours, which falls into the medium-low working time range. This means that it still has a long service life waiting for its new owner to discover. This excavator is equipped with Caterpillar's classic C7 engine. This straight-six turbocharged diesel engine is renowned for its powerful output and excellent fuel economy, providing stable and reliable performance under various working conditions. In terms of the hydraulic system, the Caterpillar 320C adopts an advanced closed center load sensing hydraulic control system, ensuring smooth operation and rapid response of the machine when performing tasks such as excavation and loading. Meanwhile, its large-capacity water tank design can effectively lower the oil temperature, ensuring the normal operation of the hydraulic system during long-term operation. The base part has been carefully maintained, with almost no damage to its appearance. The overall structure is sturdy and durable. More importantly, we promise that all the equipment we sell has undergone strict testing. This excavator has even reac
Overview
No.965575
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangdong China
