2016 Caterpillar 320C











| Specifications | Value |
|---|---|
| No. | 967227 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

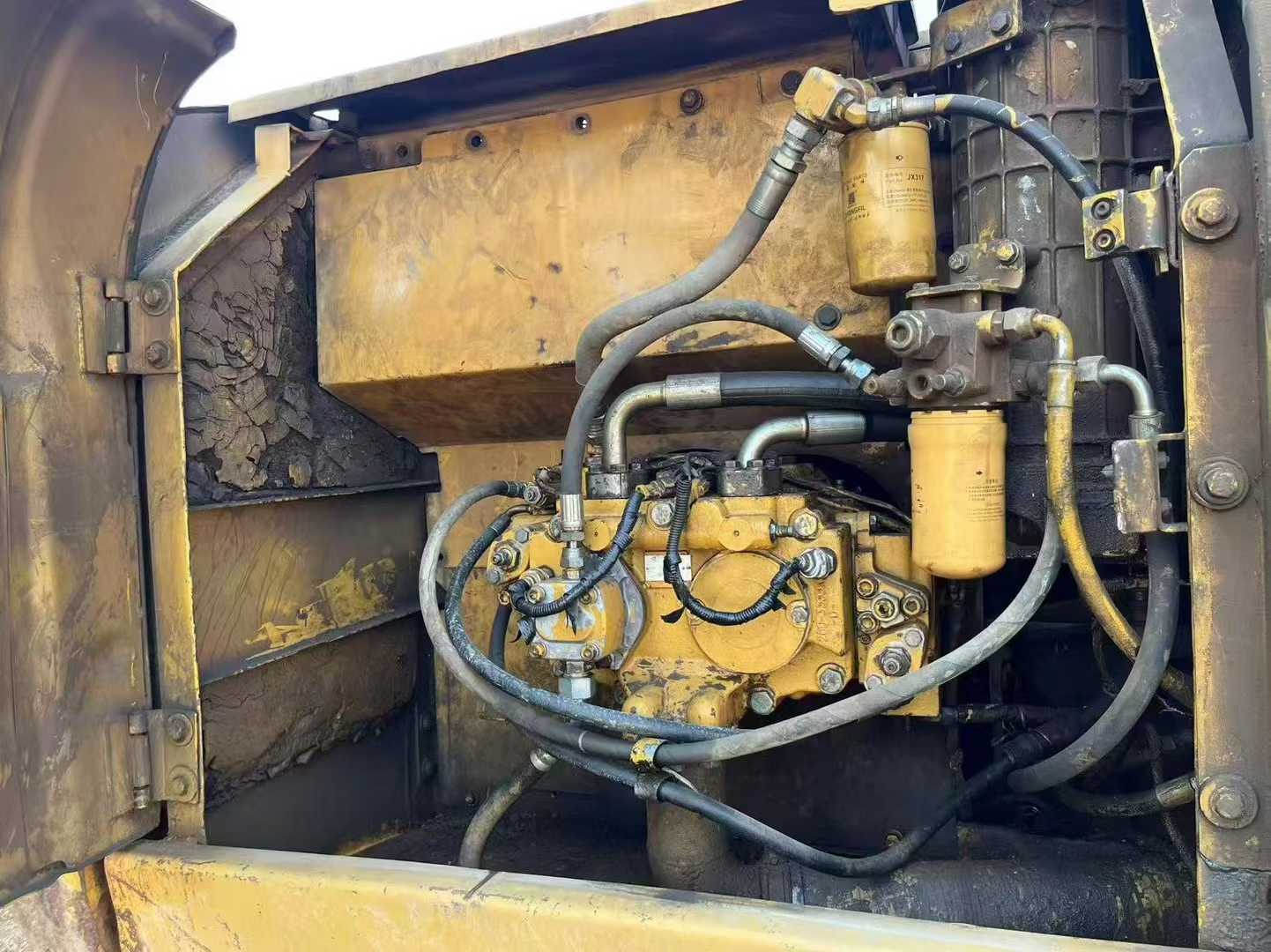

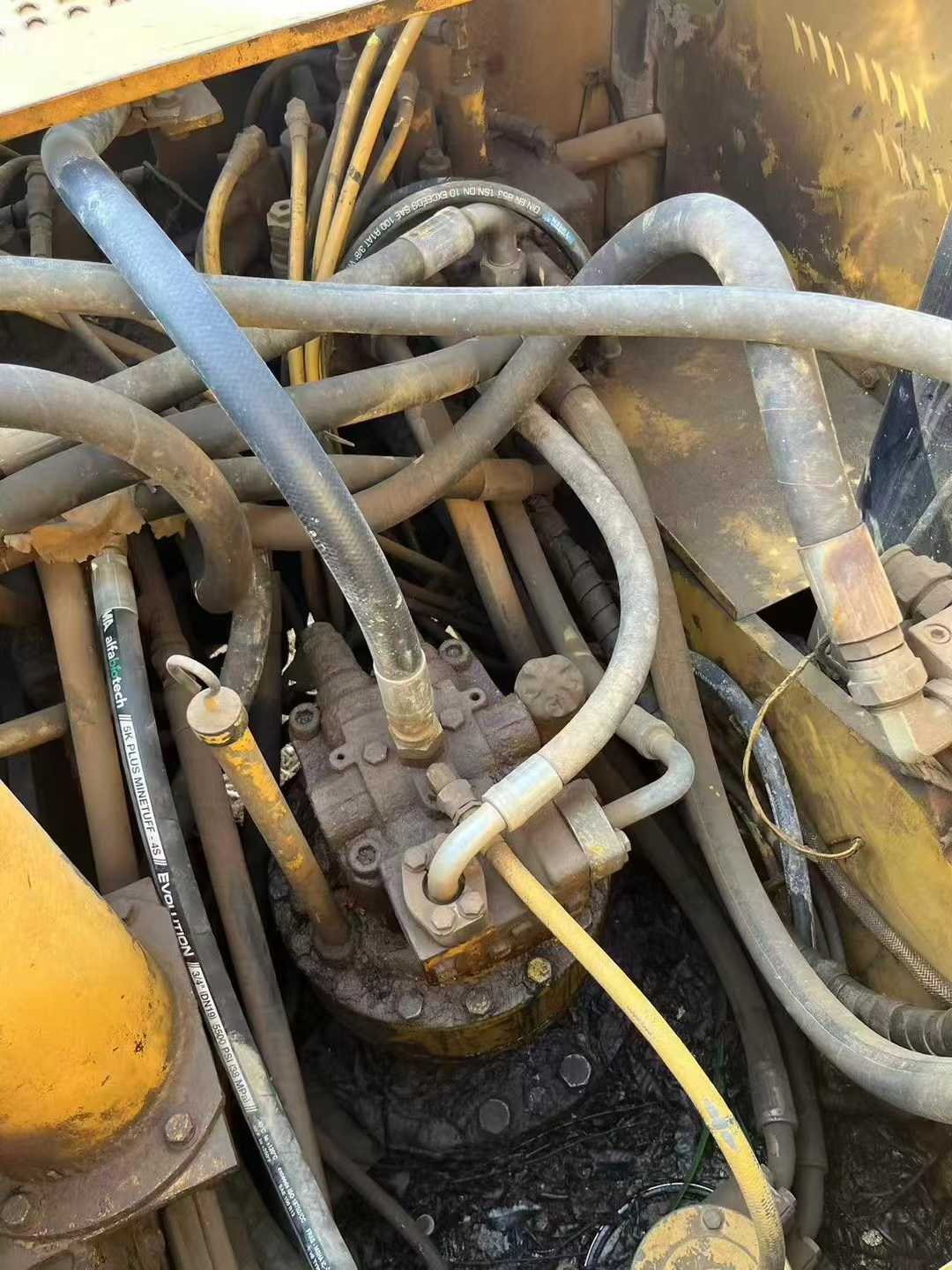

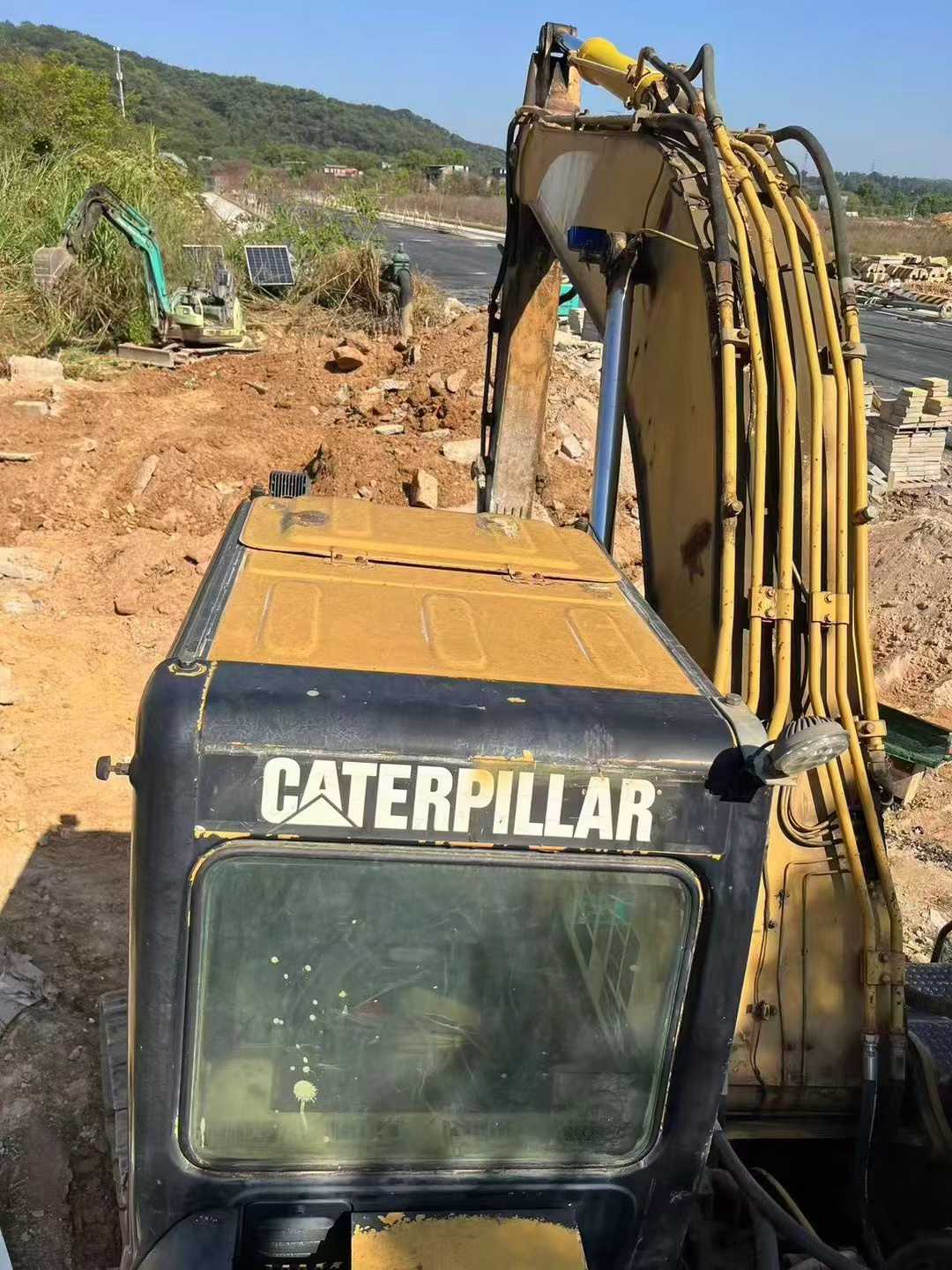

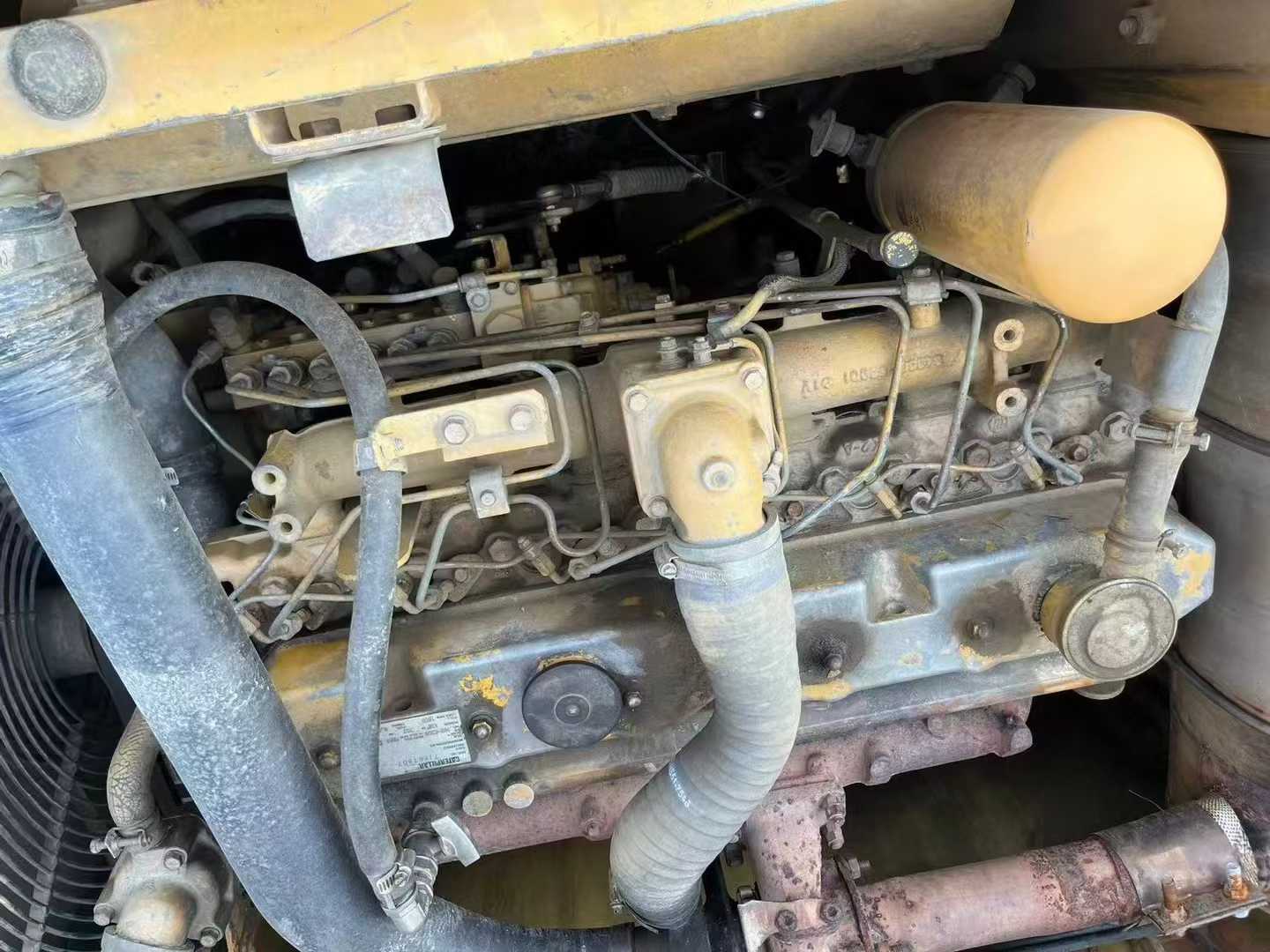

Second-hand Caterpillar 320C excavator This second-hand Caterpillar 320C excavator is priced at just over 60,000 yuan, making it an extremely cost-effective choice. It comes from our carefully selected shipping area, ensuring the quality and performance of the equipment. The working time of this excavator is approximately 4,000 hours. For a second-hand excavator, this working duration is at a moderately low level, indicating that it still has a long service life. In terms of the power system, this 320C is equipped with a powerful engine produced by Caterpillar itself, which can provide stable and abundant power output. It can maintain efficient operation even in harsh working environments, and handle both earthwork excavation and stone material transportation with ease. Meanwhile, this engine also features excellent fuel economy, reducing long-term usage costs. The hydraulic system adopts advanced load sensing technology, making the operation more precise and smooth, and improving work efficiency. In addition, the hydraulic cylinders and pipelines have all undergone strict testing and maintenance to ensure no leakage occurs, thus extending the service life of the entire machine. Overall, this second-hand Caterpillar 320C excavator
Overview
No.967227
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangdong China
