2016 Caterpillar 320C









| Specifications | Value |
|---|---|
| No. | 968469 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

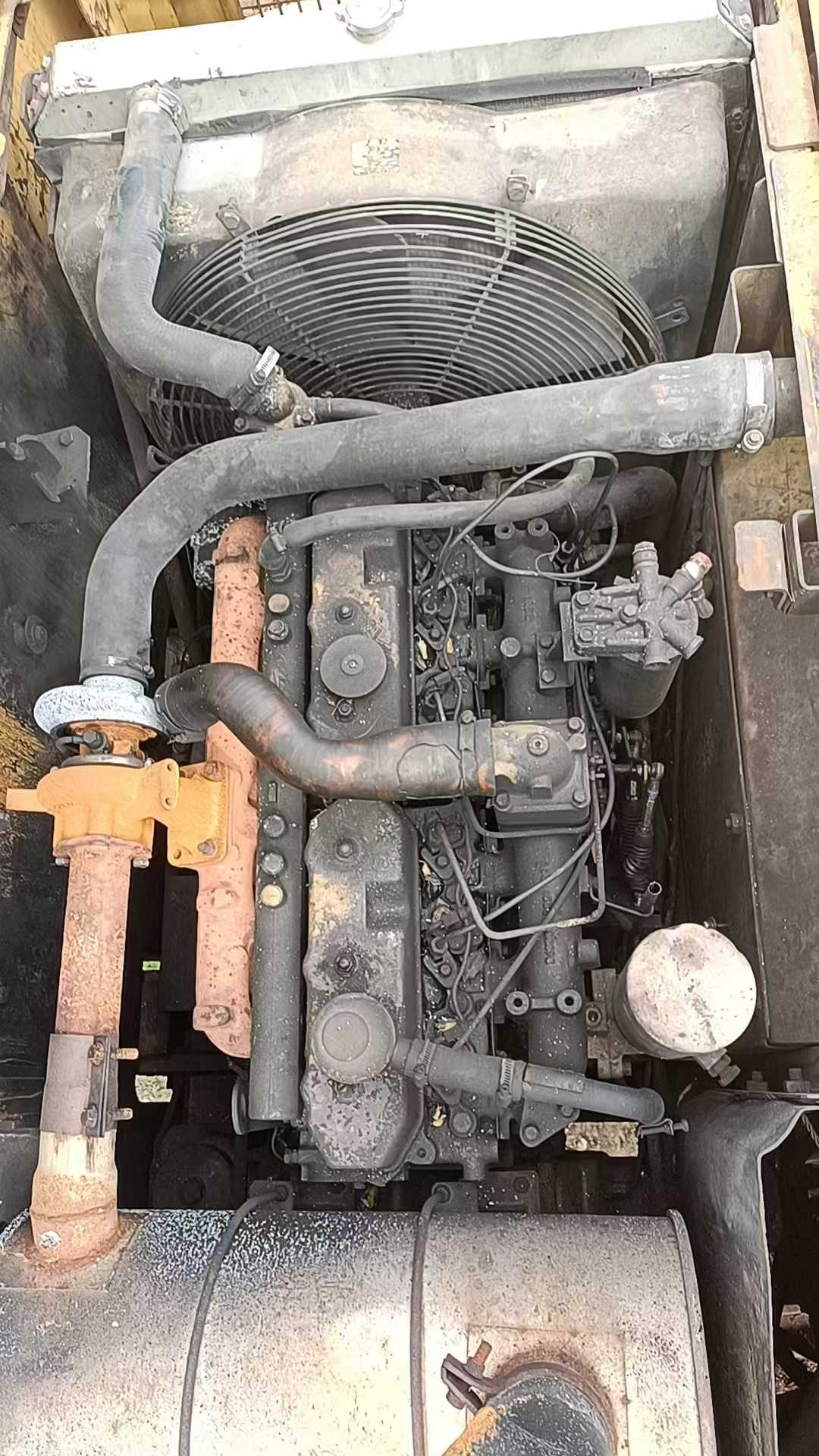

【 Premium Recommendation 】 Second-hand Caterpillar 320C excavator. This equipment is a very popular medium-sized excavator in the market. It is renowned for its outstanding performance and durability, and is particularly suitable for various earthwork projects, municipal construction, and mining operations. This excavator is equipped with a powerful power system, featuring an efficient and energy-saving Cat C6.4 inline six-cylinder turbocharged engine with a maximum output power of up to 110kW (approximately 148 horsepower). It not only ensures strong power output but also effectively reduces fuel consumption and improves work efficiency. This machine has a cumulative working time of approximately 5,000 hours, which is in a medium to upper-level usage condition. However, it is well maintained overall, with no obvious damage to its appearance and the internal structural components also in quite good condition. The hydraulic system adopts advanced electrical control technology, which is flexible and precise in operation. It performs excellently in both digging force and rotation speed, and can easily cope with complex and changeable working conditions. In addition, its spacious and comfortable cab design also provides the operator with
Overview
No.968469
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangxi China
