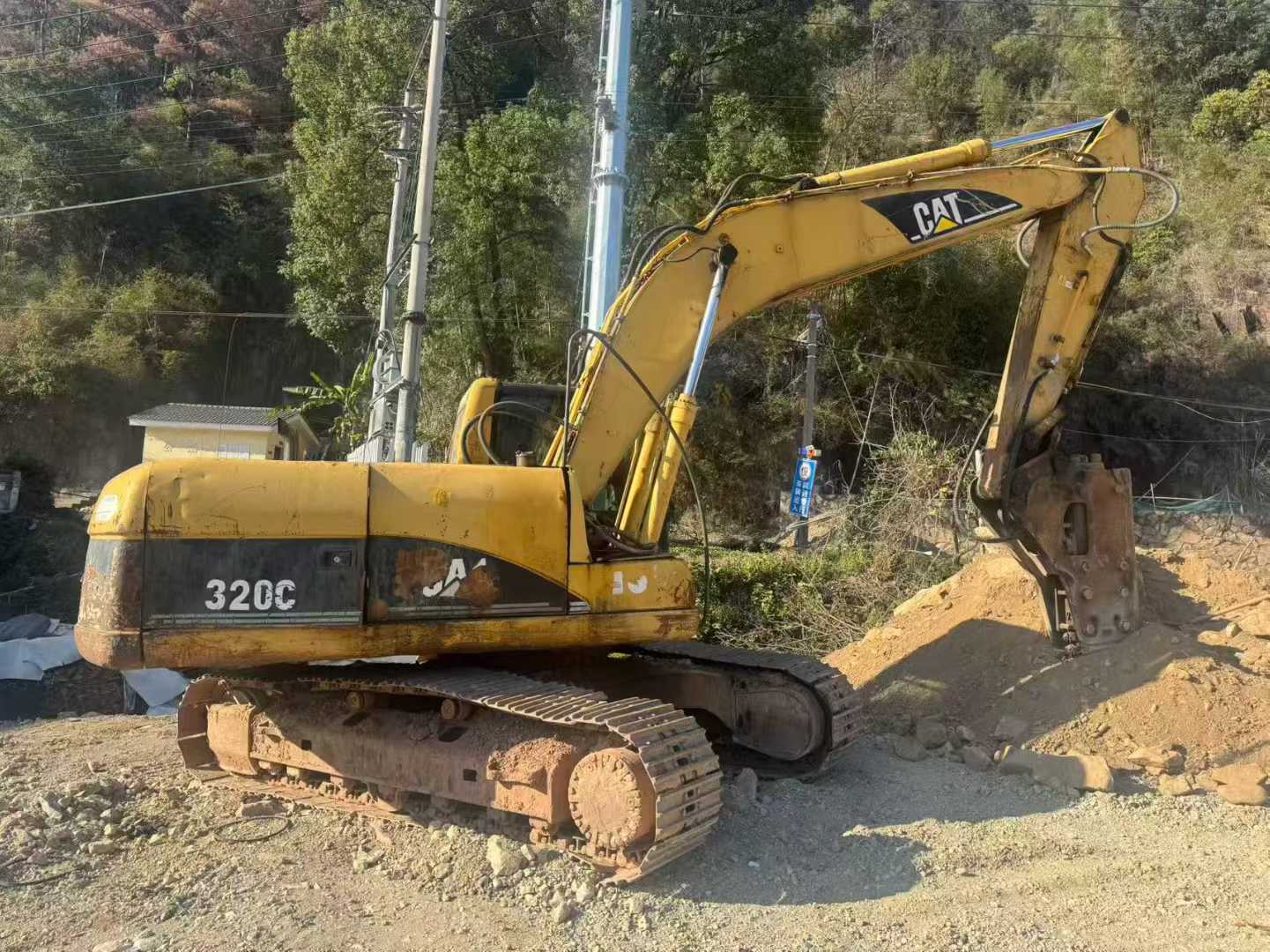

2016 Caterpillar 320C











| Specifications | Value |
|---|---|
| No. | 968745 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description
【 Premium Recommendation 】 Second-hand Caterpillar 320C excavator, currently priced at 66,000 yuan. Although this excavator has been in operation for a certain period of time, its performance remains outstanding and it is a reliable assistant on your construction site. The working time of this equipment is 5,000 hours. For a medium-sized excavator, this usage time is within a very ideal range, which means it still has a long service life. In terms of the power system, the Caterpillar 320C is equipped with a C7.1 inline six-cylinder turbocharged diesel engine produced by Caterpillar itself, with a maximum power output of 140 horsepower (approximately 104 kilowatts). It not only provides strong power output but also performs well in fuel economy, ensuring operational efficiency while reducing operating costs. In addition, this engine also features excellent reliability and durability, and is easy to maintain and service. The hydraulic system adopts advanced negative flow control technology, which makes the operation more precise and smooth, and the response speed faster. Especially when performing fine excavation or loading operations, its advantages are obvious. Meanwhile, the highly efficient hydraulic pump and motor work in perfect
Overview
No.968745
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Zhejiang China
