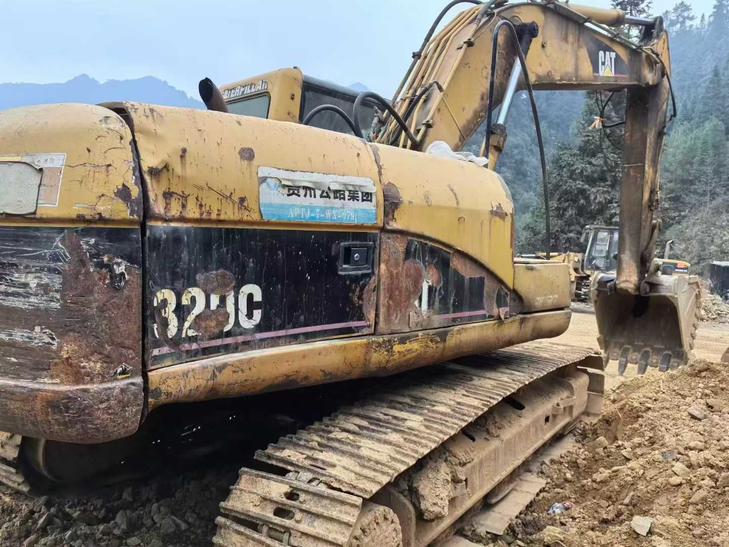

2016 Caterpillar 320C










| Specifications | Value |
|---|---|
| No. | 969065 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

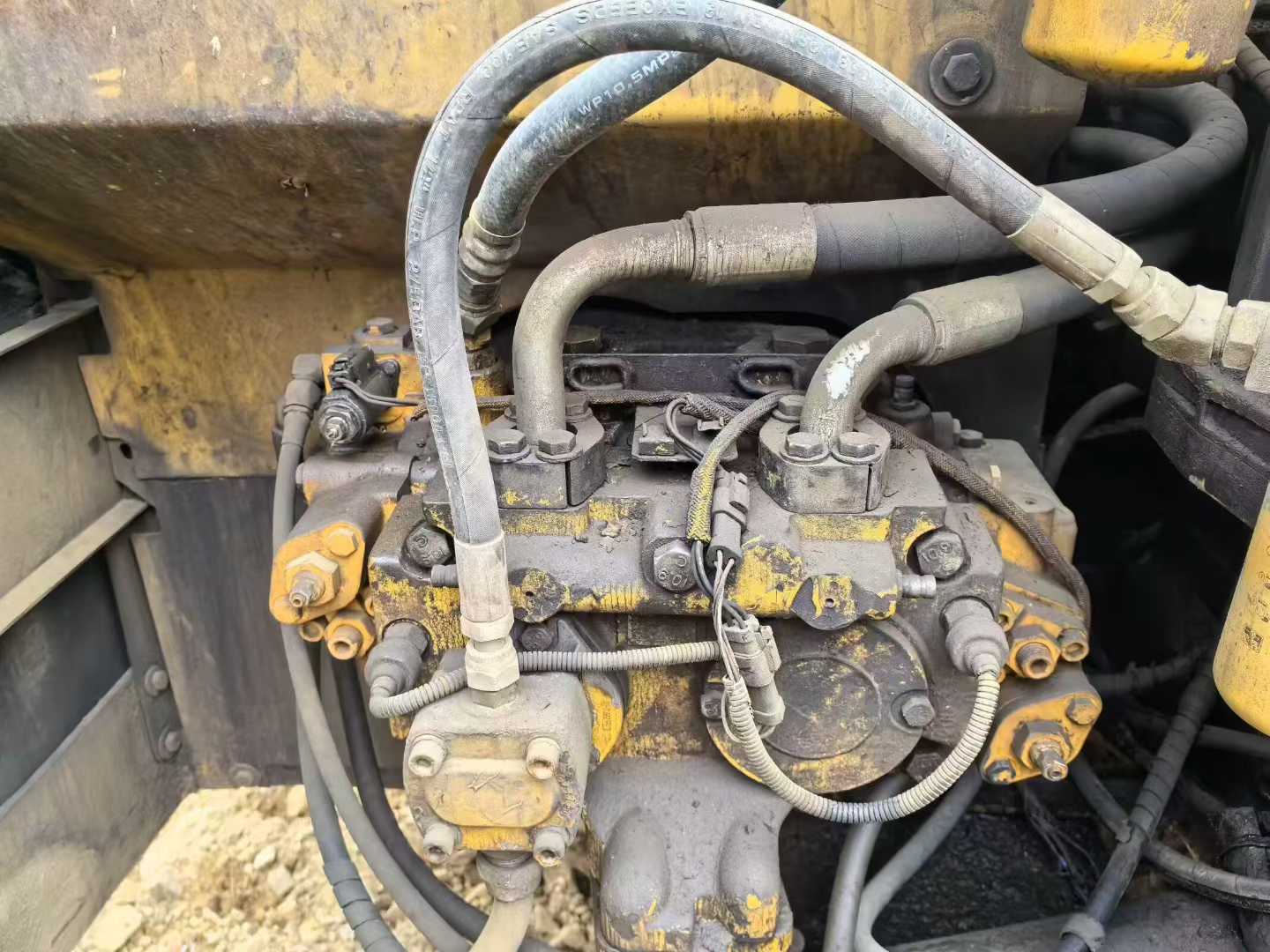

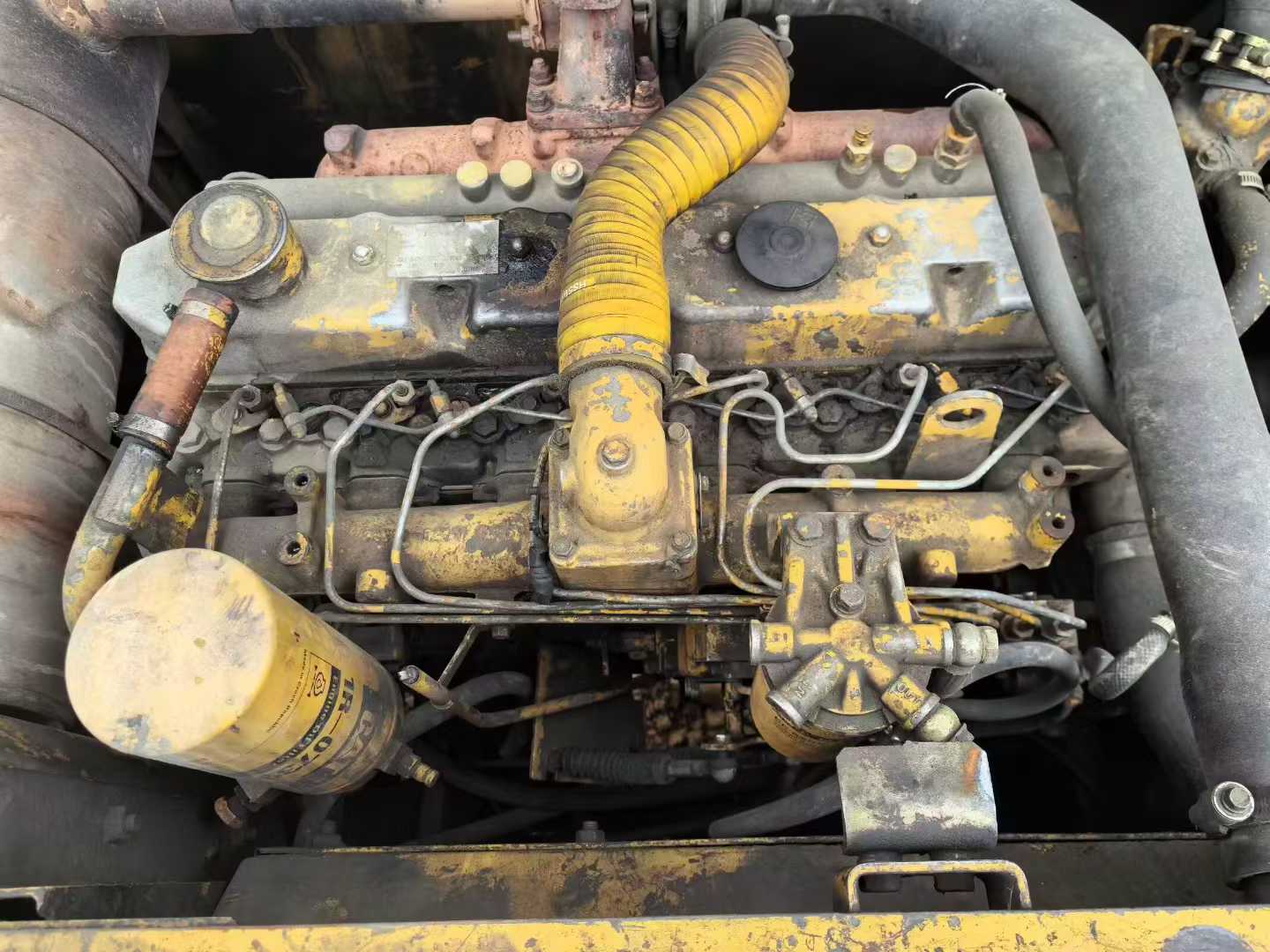

Caterpillar 320C excavator with breaker hammer, outstanding performance This second-hand Caterpillar 320C excavator, equipped with an efficient breaker, is your reliable assistant in various construction environments. The total working time of this equipment is 5,200 hours, and it is in good condition for use. Whether it is mining, road construction or urban demolition projects, it can handle them with ease. In terms of power, this 320C is equipped with Caterpillar's original imported C6.4ACERT engine, with a maximum output power of up to 110kW (approximately 148 horsepower). It not only provides strong power support but also has excellent fuel economy, effectively reducing operating costs. In addition, its advanced cooling system ensures the stability of the engine temperature during long-term operation, thereby extending the service life of the machine. The hydraulic system adopts Caterpillar's patented technology - high-pressure common rail direct injection hydraulic pump, combined with electronic control valves, achieving precise and rapid operation response, while ensuring extremely high working efficiency and stability. Even under complex and changeable working conditions, it can maintain smooth and fluid movement performance.
Overview
No.969065
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Yunnan China
