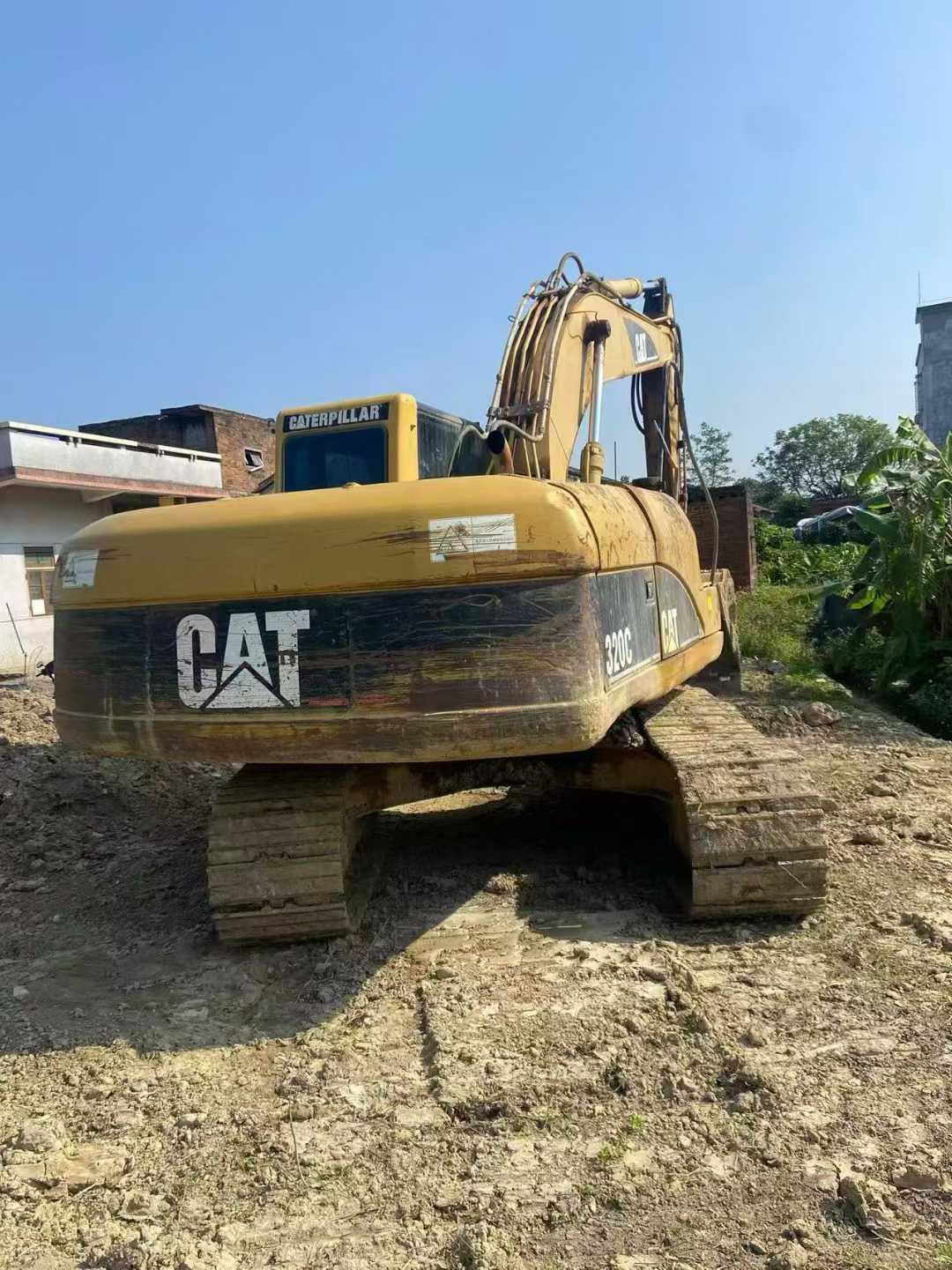

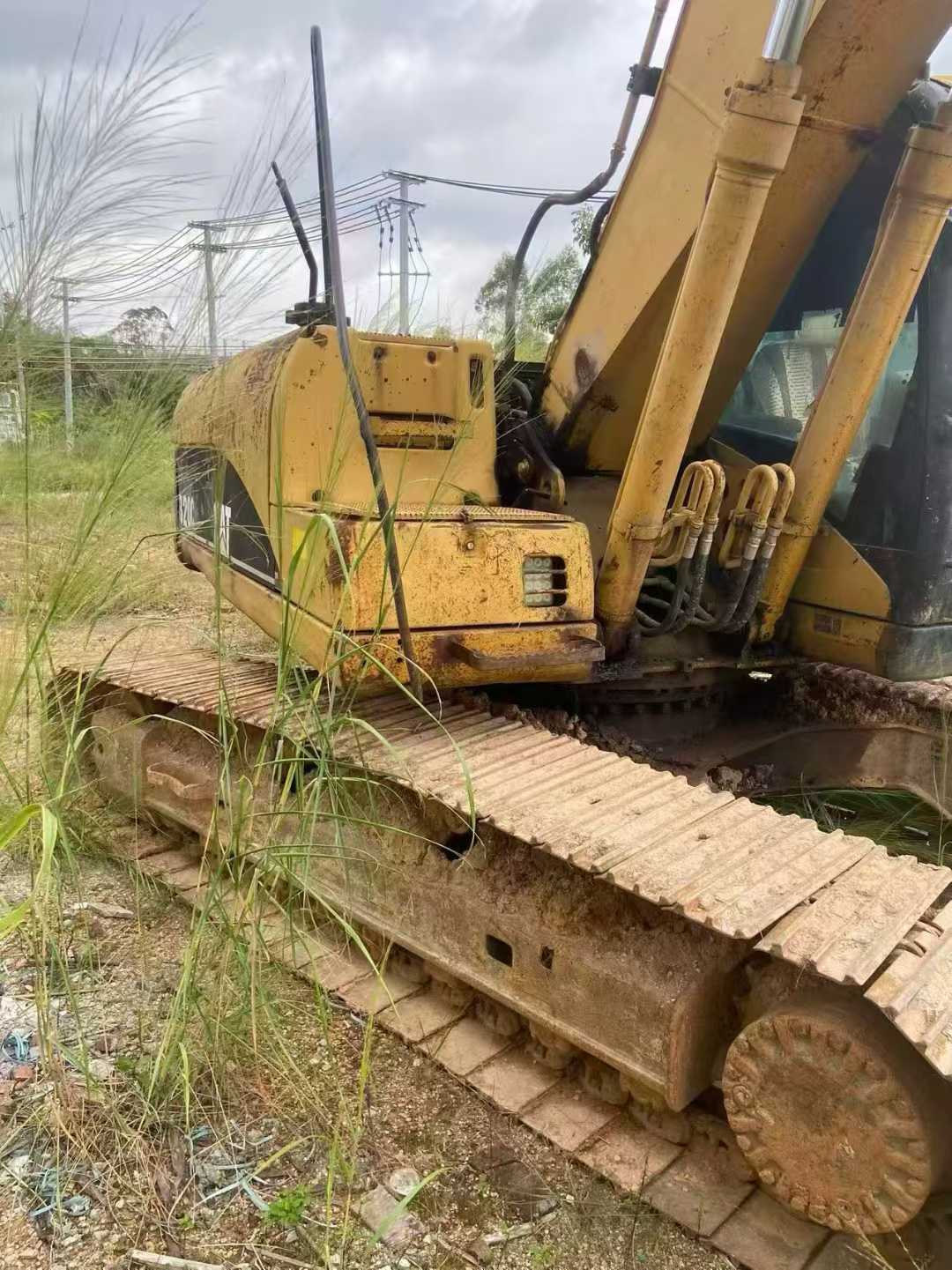

2016 Caterpillar 320C










| Specifications | Value |
|---|---|
| No. | 969681 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

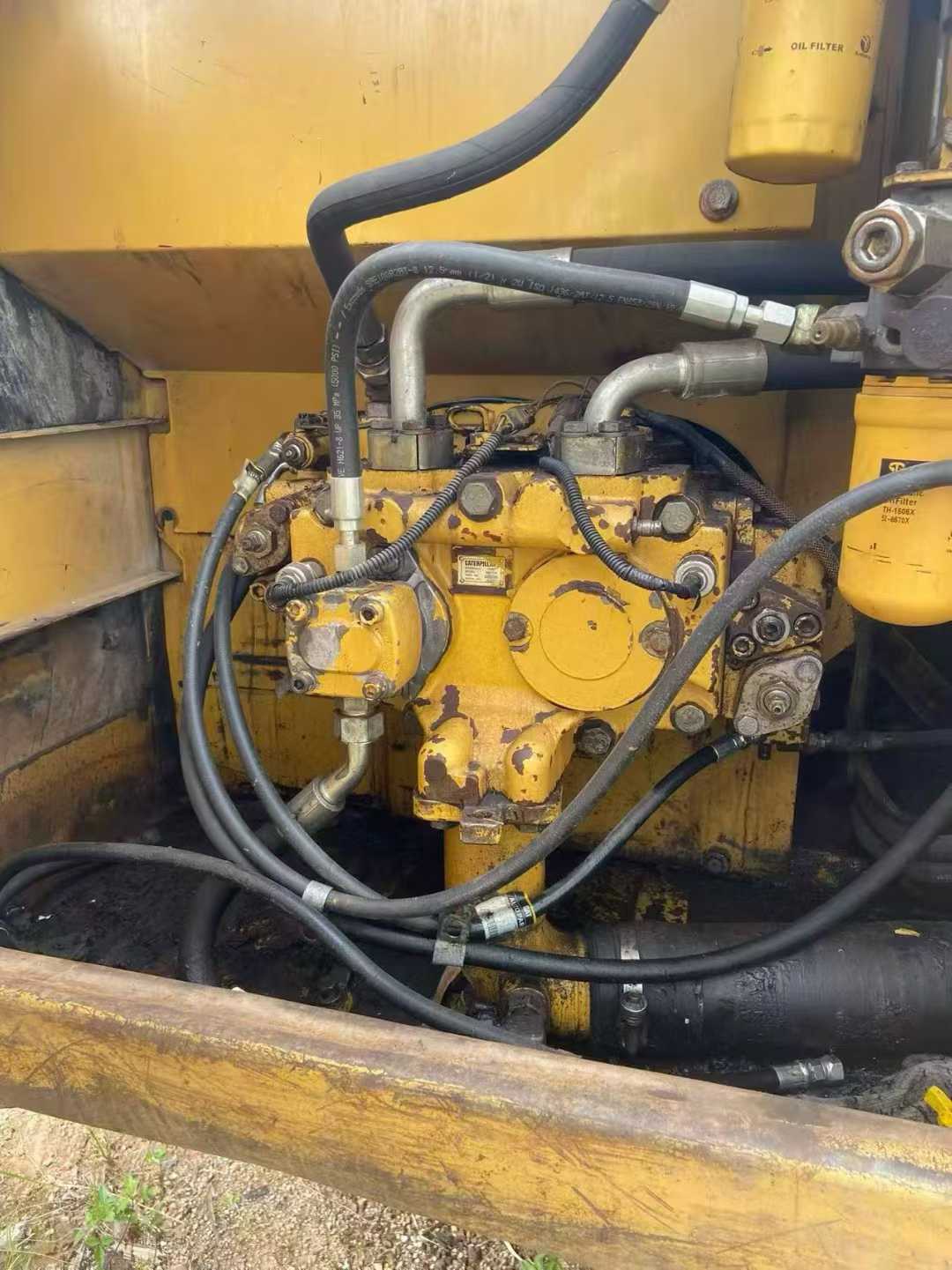

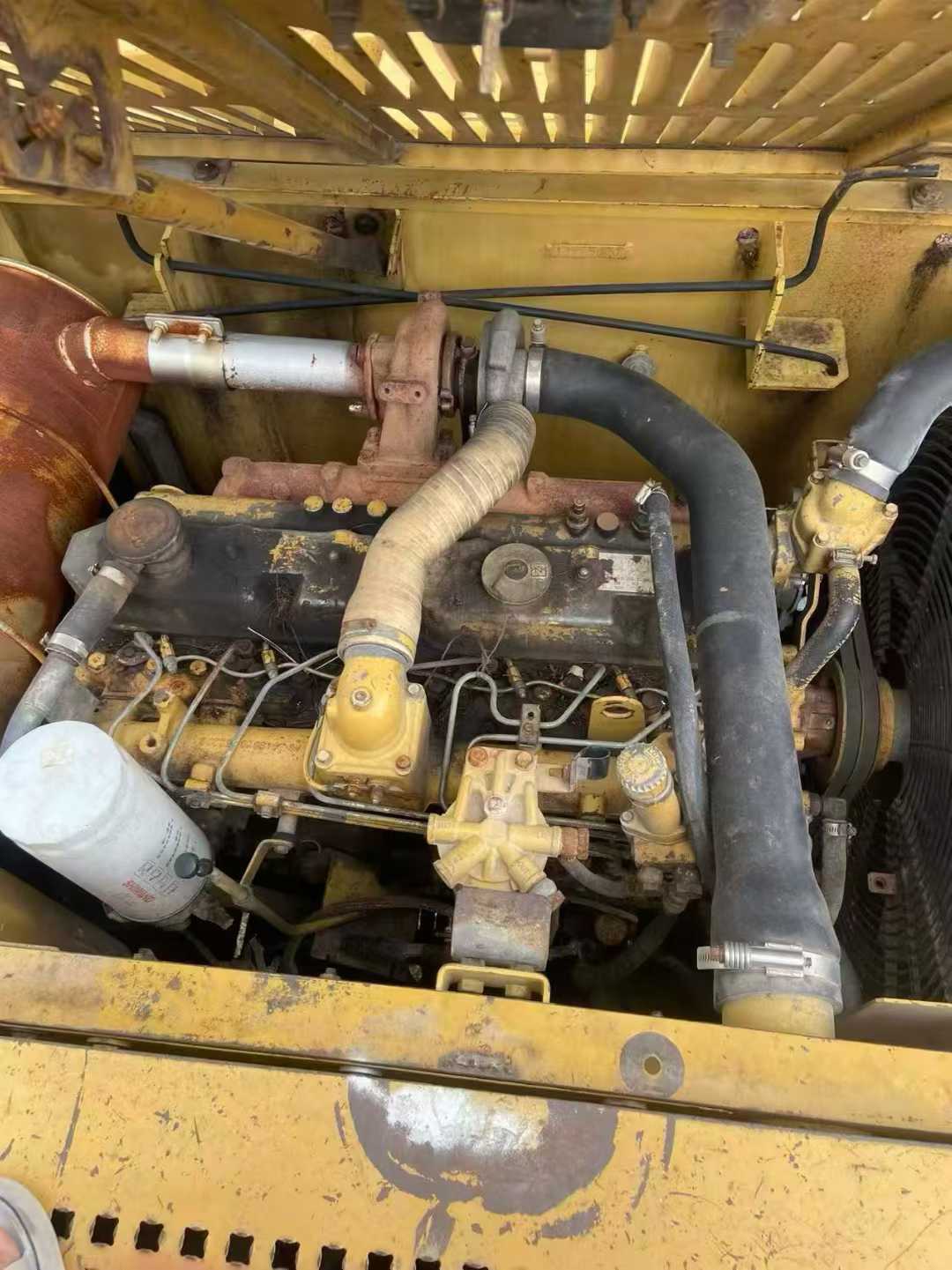

【 Premium Recommendation 】 Imported Caterpillar 320C excavator, with outstanding quality and stable performance, is your ideal choice for engineering operations. Since this device was put into use in 2005, its cumulative working hours have only been 6,800 hours, which is far lower than the average service life of similar devices. This means that it still has a long service life waiting for you to explore. This machine is equipped with an original imported C7.1 inline six-cylinder turbocharged engine from Caterpillar, with a maximum output power of up to 110KW at 2000rpm. It not only has strong power but also excellent fuel economy, effectively reducing operating costs. More importantly, this engine adopts advanced electronic control injection technology, ensuring that emissions meet international standards and are environmentally friendly and green. In terms of the hydraulic system, the Caterpillar 320C is equipped with an efficient CLSS closed center load sensing system, which can handle tasks such as excavation, loading, and ground leveling with ease. One of its highlights is its unique AMC large water tank design. Compared with the ordinary model, it increases the heat dissipation area, greatly improving the cooling efficiency. Ev
Overview
No.969681
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangdong China
