2016 Caterpillar 320C








| Specifications | Value |
|---|---|
| No. | 969714 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

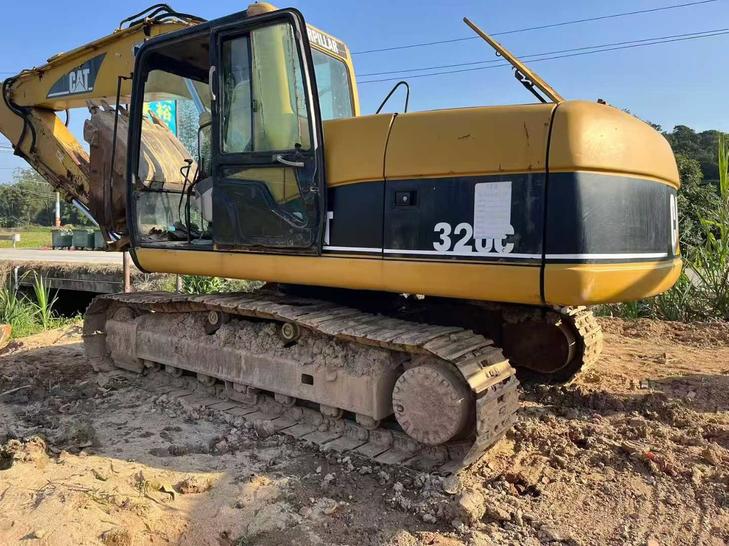

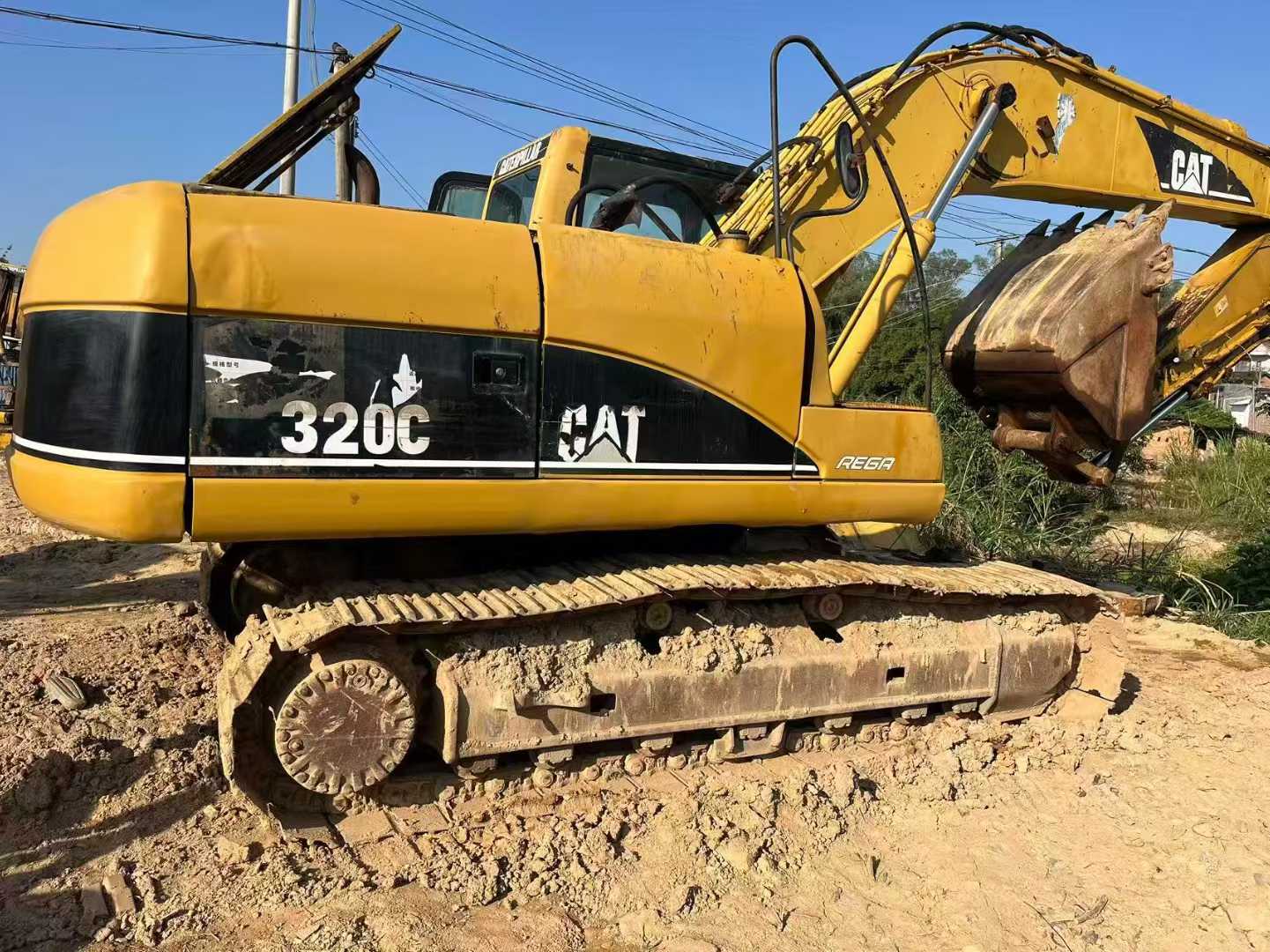

Second-hand Caterpillar 320C excavator This second-hand Caterpillar 320C excavator is priced at just over 100,000 yuan, offering an extremely high cost performance. As a classic medium-sized excavator, it boasts outstanding performance and durability, making it your ideal choice for construction, mining or earthwork projects. The working hours of this excavator are approximately 6,500 hours. The overall condition of the vehicle is good, it is well maintained, and all components are operating normally. There are no major maintenance records. For a device that has been in use for many years, such working hours indicate that it is in good working condition and there is still considerable room for its service life. Power system: It adopts the original imported C7.1 engine from Caterpillar, which is powerful and has good fuel economy. It can maintain stable output even in harsh environments. This engine has been meticulously tuned. It not only starts quickly but also features low noise and minimal vibration, effectively reducing operator fatigue and enhancing work efficiency. Hydraulic system: Equipped with an advanced load-sensing hydraulic system, it can automatically adjust the oil pressure and flow rate according to the actual opera
Overview
No.969714
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangdong China
