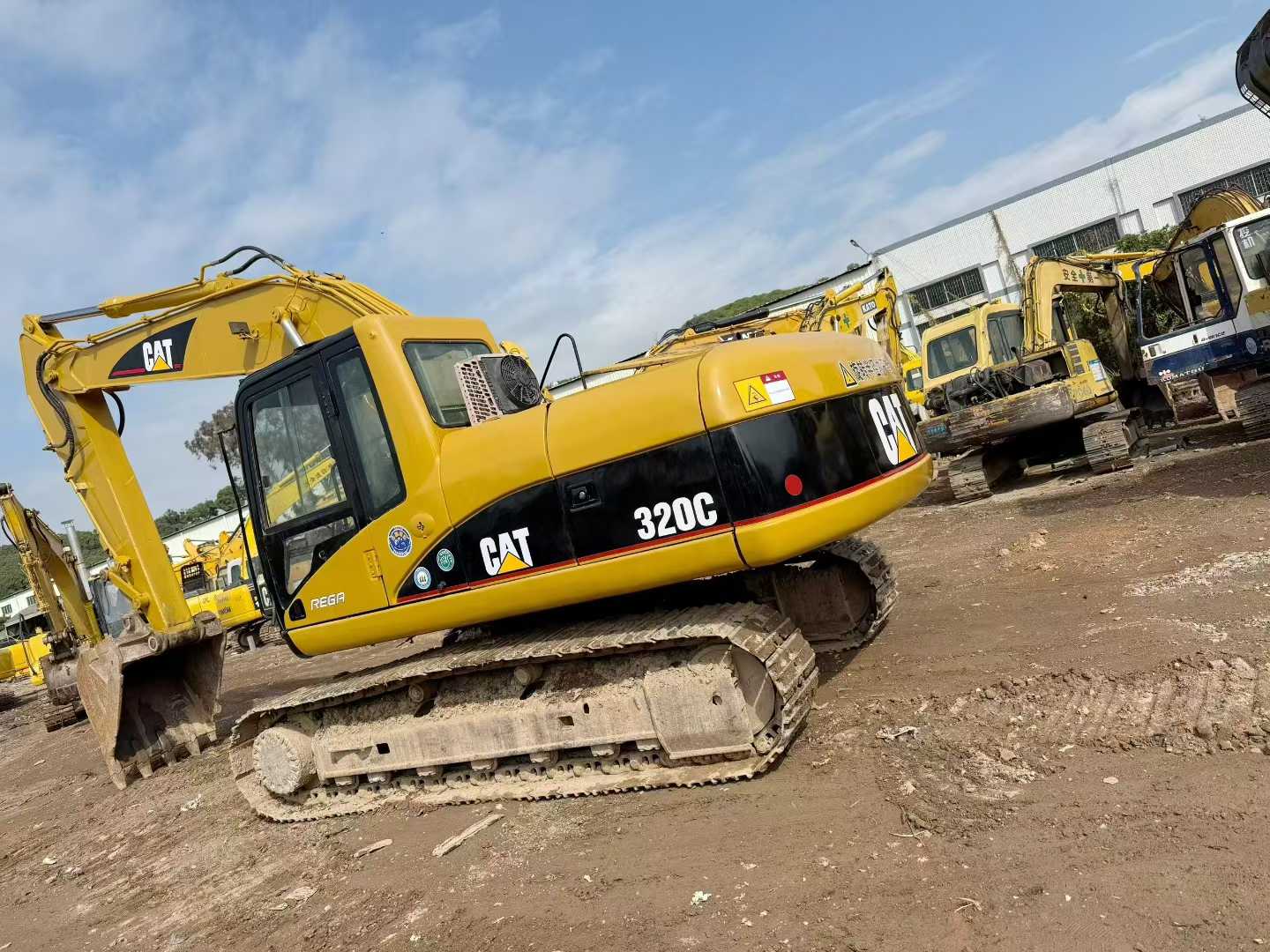

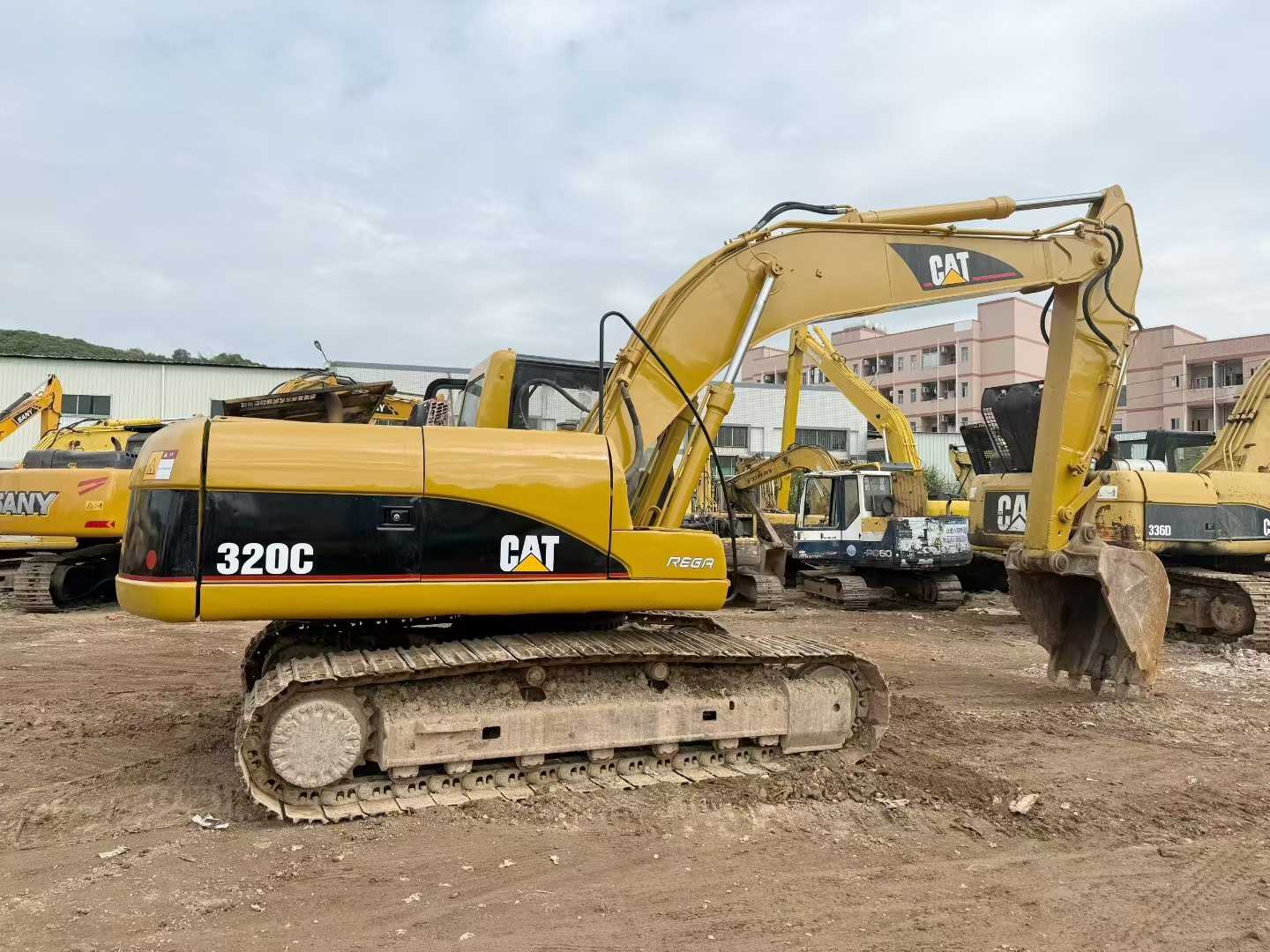

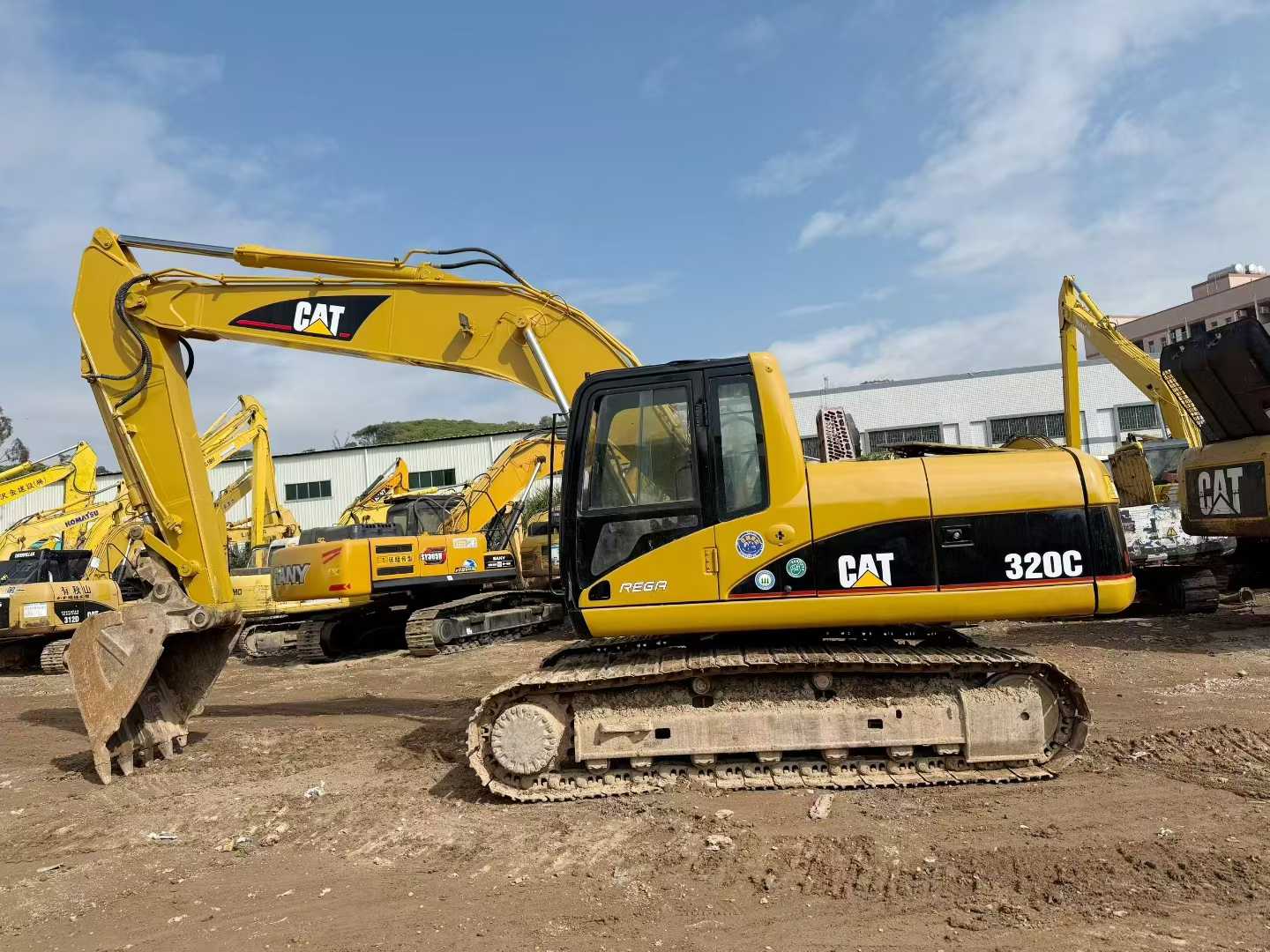

2016 Caterpillar 320C











| Specifications | Value |
|---|---|
| No. | 969867 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

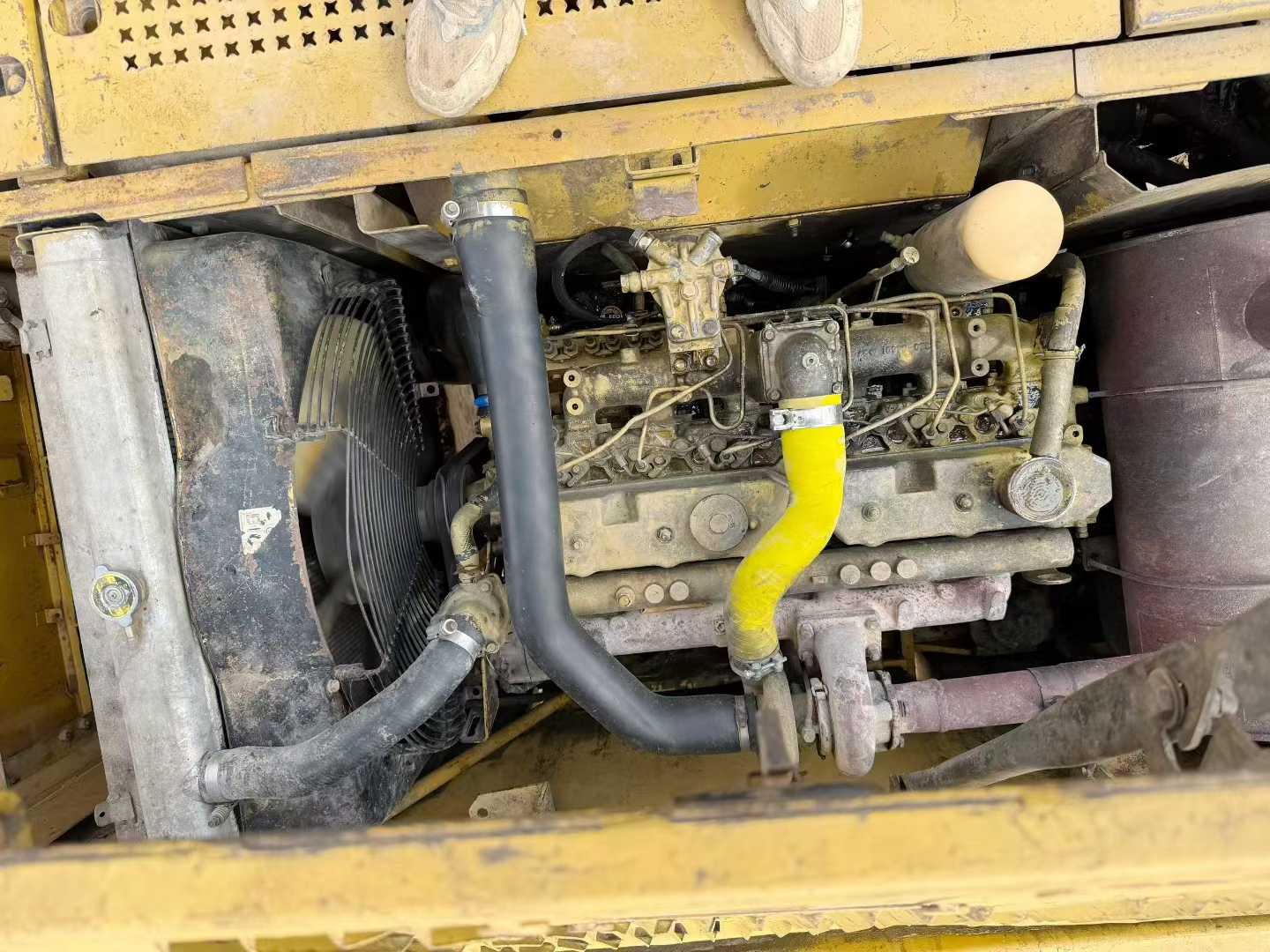

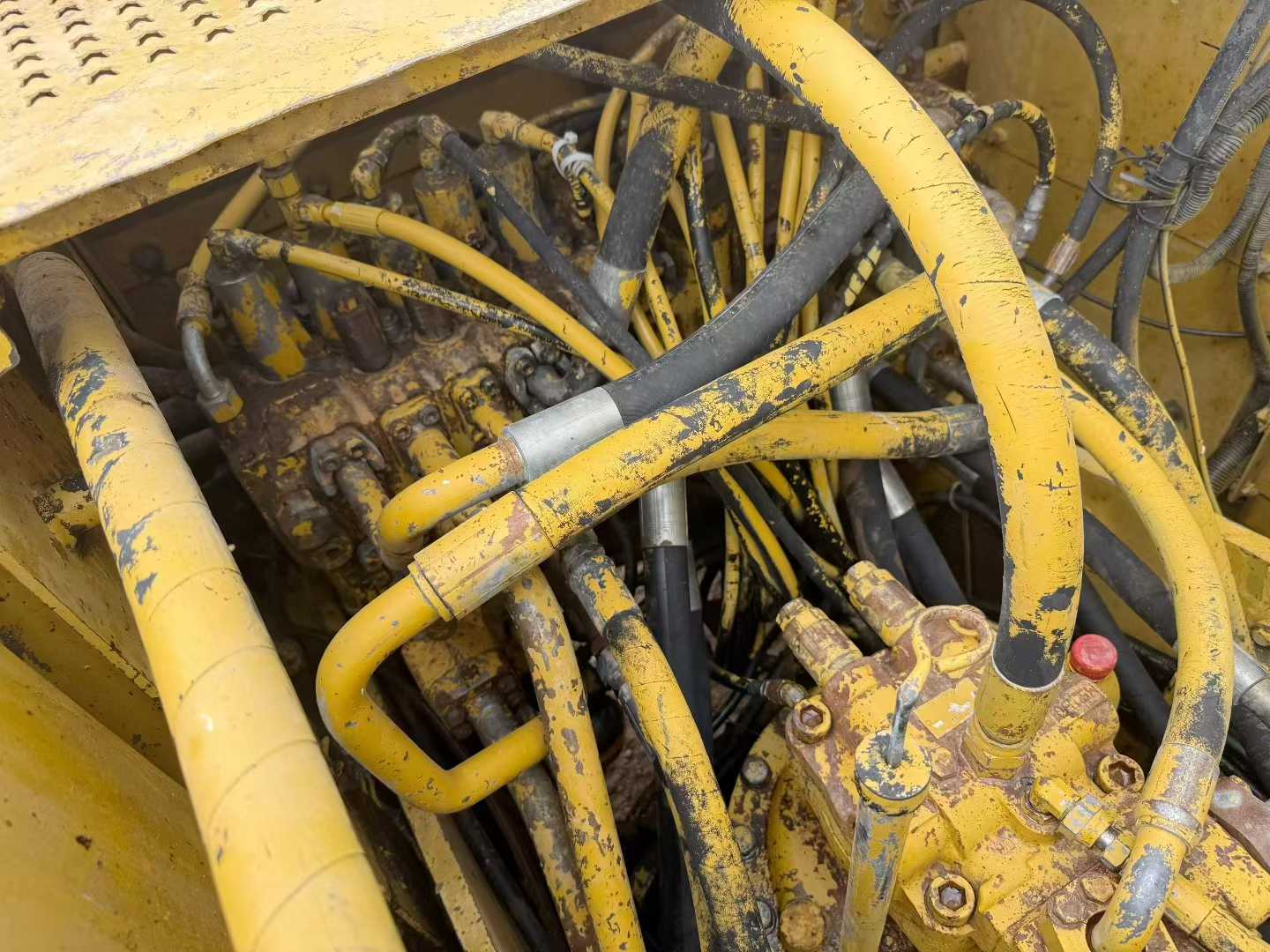

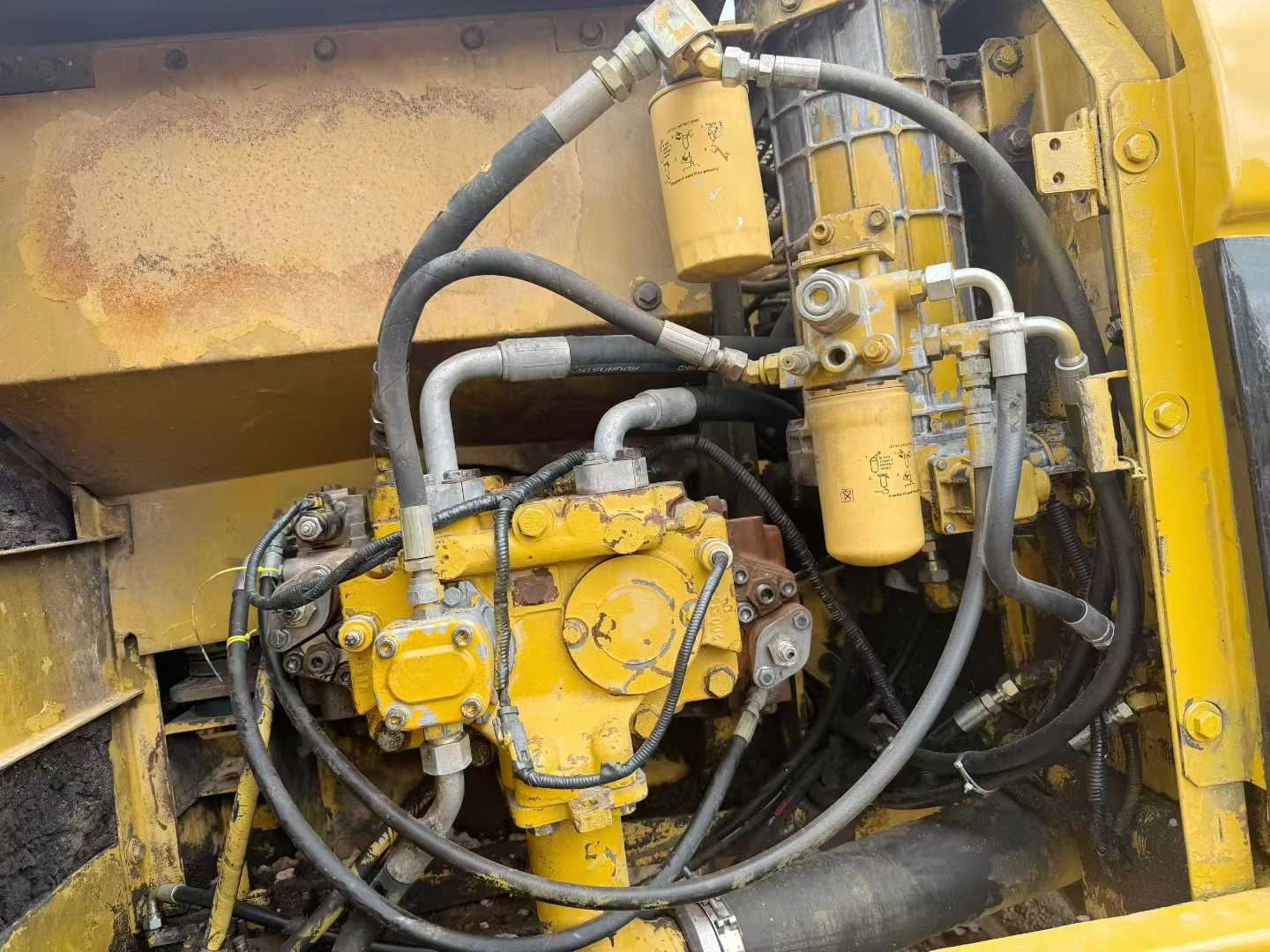

Second-hand Caterpillar 320C excavator Dear customer, hello! It is a great honor to recommend to you this second-hand Caterpillar 320C excavator with outstanding performance and extremely high cost performance. Since this machine was put into use, its total working time has only been 5,000 hours, which is far lower than the average service life of similar equipment. This means that it still maintains a good mechanical condition and a relatively long service life. In terms of the power system, the Caterpillar 320C is equipped with a powerful and reliable CAT C7 engine, with a maximum power of up to 140kW. It can handle complex and changeable construction environments with ease. This engine features outstanding fuel economy and low emissions. It not only effectively reduces operating costs but also meets modern environmental protection requirements. The hydraulic system is one of the key indicators for measuring the working efficiency of excavators. This machine is equipped with advanced negative flow control technology, ensuring rapid and smooth action response. Whether it is excavation, loading or crushing operations, it can handle them with ease. In addition, its highly efficient cooling system can ensure that it remains in the bes
Overview
No.969867
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangdong China
