2016 Caterpillar 320C








| Specifications | Value |
|---|---|
| No. | 970562 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description

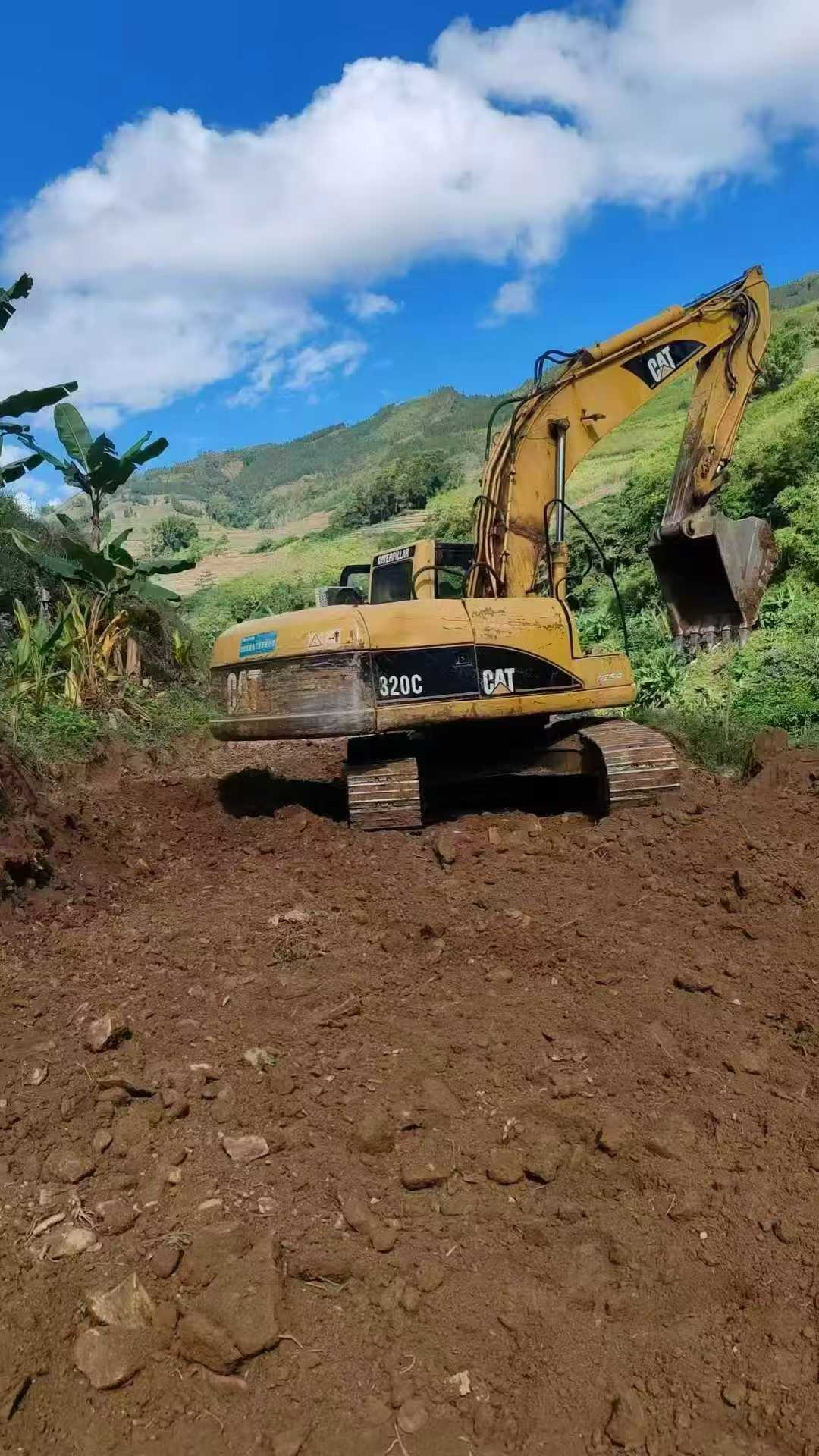

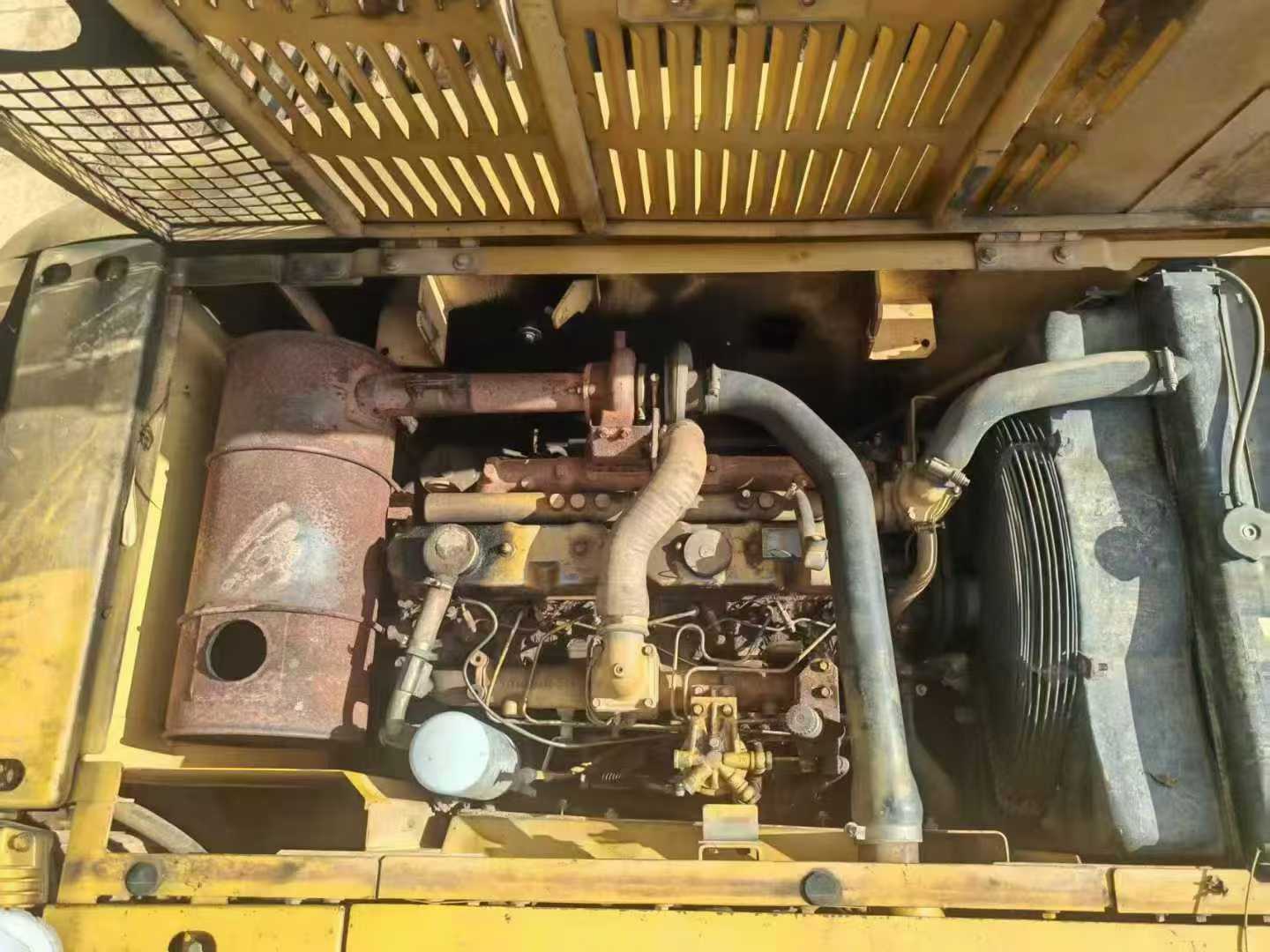

Second-hand Caterpillar 320C excavator This second-hand Caterpillar 320C excavator is an indispensable and capable assistant for you on the construction site. It not only boasts outstanding performance, but also features excellent durability and reliability. Since its commissioning, this excavator has worked for approximately 60,000 hours in total, yet its performance remains strong, which is sufficient proof of the high quality and long service life of the Caterpillar brand. In terms of the power system, this machine is equipped with a high-performance Caterpillar original engine. Even at idle speed, it can easily handle various light-load tasks, such as site cleaning or simple excavation operations. It is very suitable for working environments that require frequent start and stop operations. Meanwhile, when operating at full load, this engine can provide abundant power output, ensuring that the machine maintains stable performance even under heavy load conditions. The hydraulic system adopts an advanced closed central circuit design, making the entire machine operate more smoothly and respond quickly. Whether it's fine control or rapid movement, it can handle it with ease. In addition, after regular maintenance and upkeep, this hy
Overview
No.970562
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangdong China
