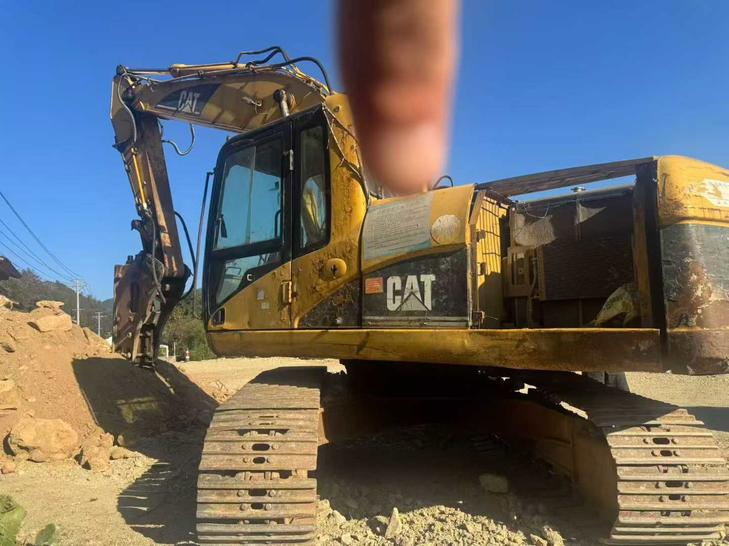

2016 Caterpillar 320C











| Specifications | Value |
|---|---|
| No. | 970857 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Description
【 Premium Recommendation 】 Local first-hand, Caterpillar 320C excavator, in excellent condition, equipped with a large water tank, 6.1-meter extended arm, stable performance, outstanding quality, no bargaining! This Caterpillar 320C excavator has only one owner from start to finish and has been used locally throughout. With proper maintenance, it has only worked for 4,500 hours. For a medium-sized excavator, this working time is very ideal. It not only has excellent working efficiency but also strong durability, making it a reliable assistant on your construction site. In terms of power, this aircraft is equipped with an original imported C7 engine from Caterpillar, with a rated power of 123 kilowatts (approximately 165 horsepower). It is powerful and has good fuel economy, capable of handling complex terrains and heavy-load tasks with ease. In addition, its advanced electronic control system can ensure that the engine is always in the best operating condition, reducing fuel consumption while extending its service life. The hydraulic system adopts the positive flow control technology independently developed by Caterpillar, which features fast response speed, high operational accuracy and low maintenance cost. Whether it is excavatio
Overview
No.970857
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Zhejiang China
