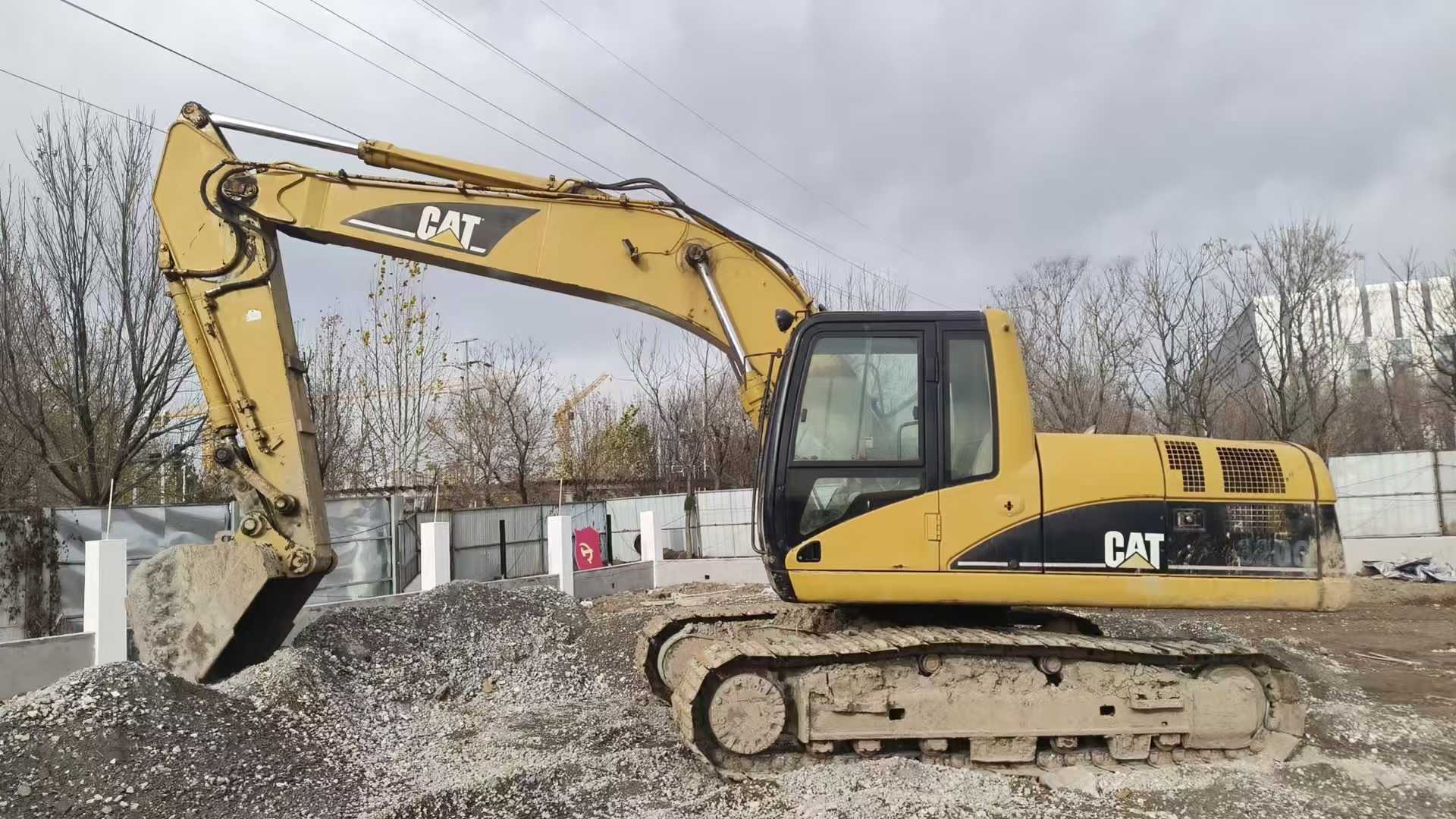

2016 Caterpillar 320C








Product Description

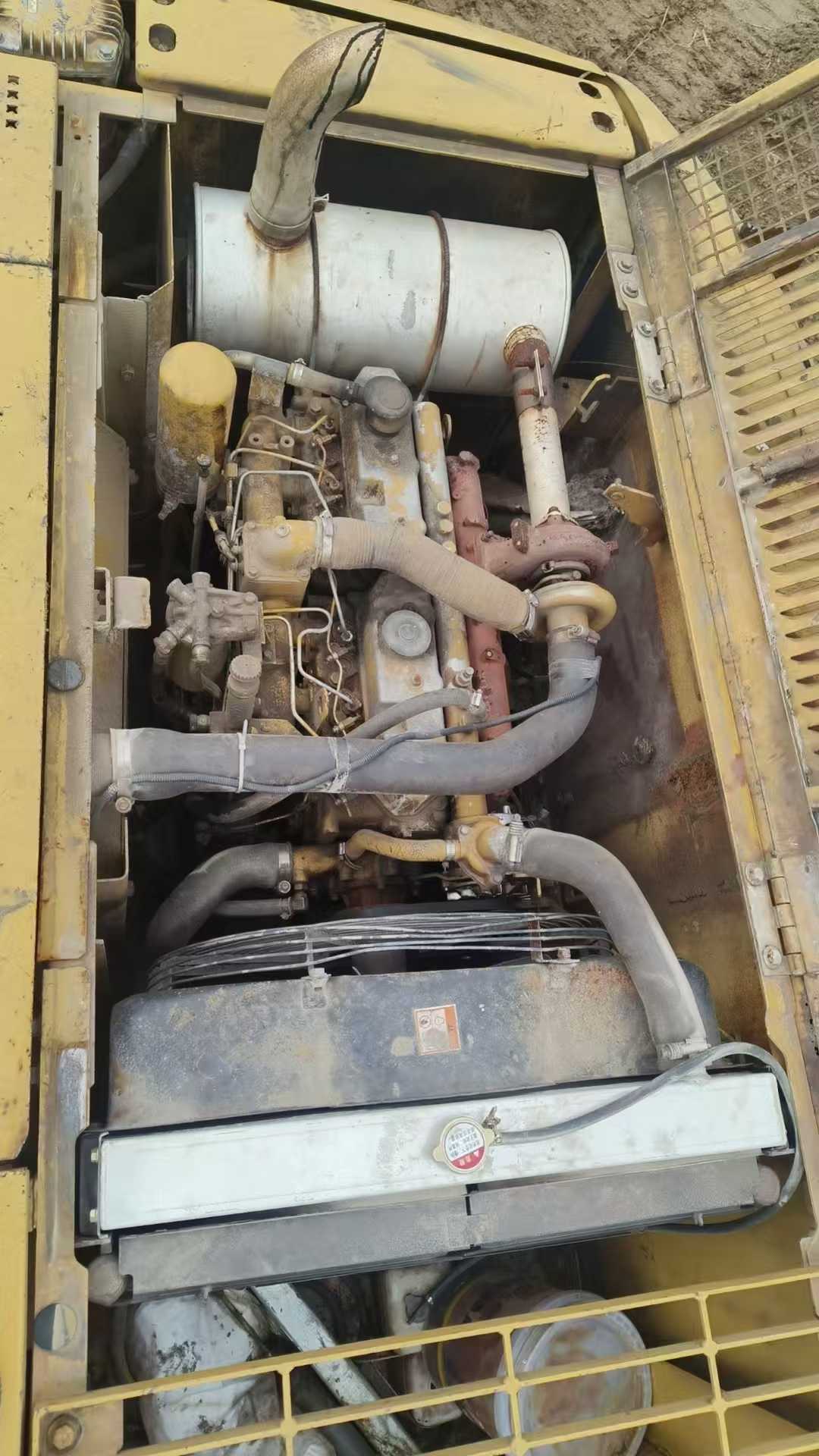

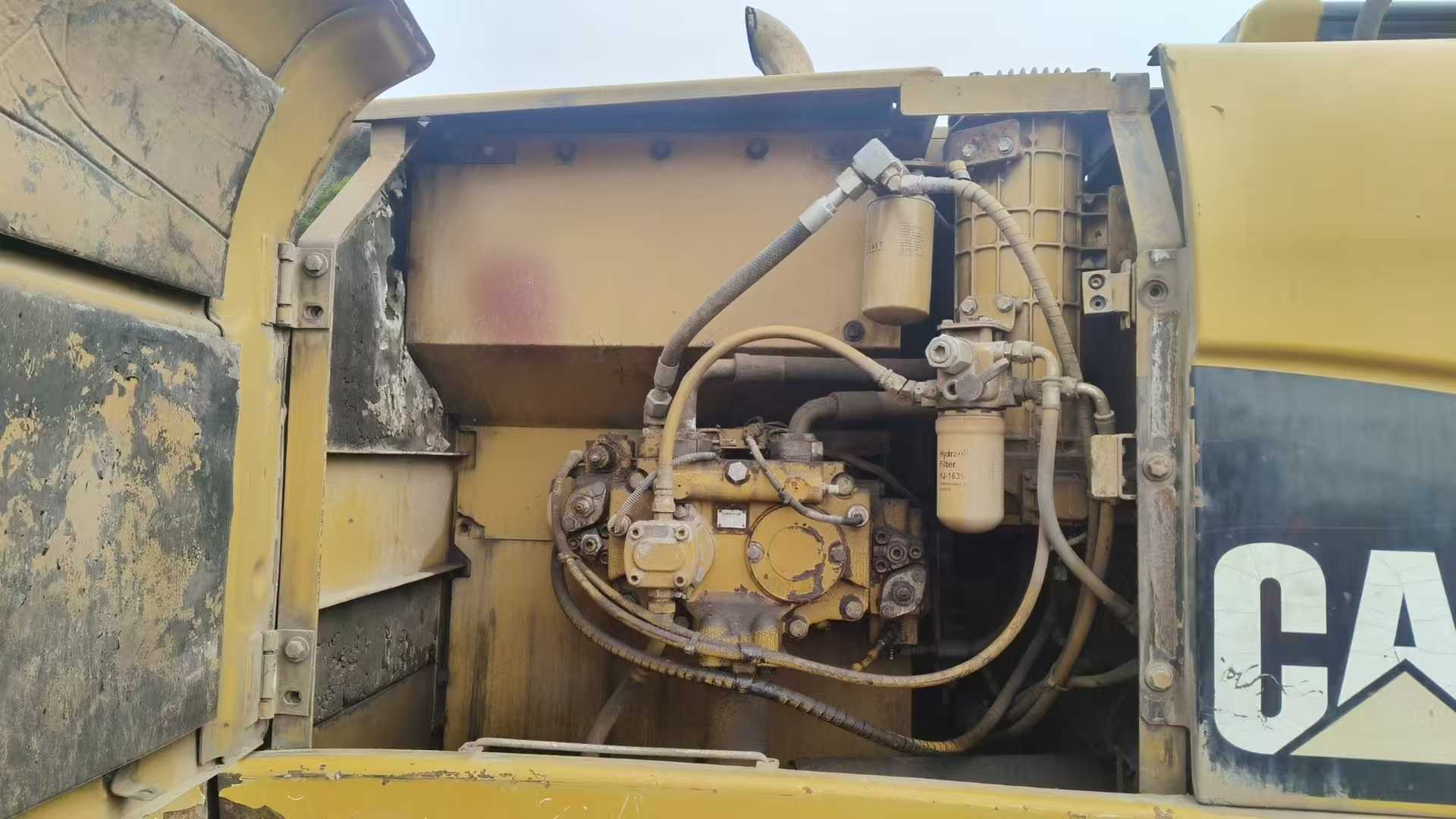

【 Premium Recommendation 】 Second-hand Caterpillar 320C excavator is now on a hot promotion! This machine is your ideal choice for seeking an efficient, reliable and cost-effective construction partner. Since its commissioning, the total working time of this equipment has only been 6,500 hours, which means it is still in the best mechanical performance condition, with a long service life and low maintenance costs. In terms of the power system, this machine is equipped with a powerful engine imported from Caterpillar, which not only has abundant power but also high fuel efficiency, capable of meeting the operational requirements under various complex working conditions. More importantly, this engine has been meticulously tuned to run smoothly and quietly, significantly enhancing the comfort of operation. In terms of the hydraulic system, the 320C adopts advanced load sensing technology, which can automatically adjust the oil supply according to the actual load to ensure more precise and smooth operation. Meanwhile, its highly efficient cooling system effectively prevents overheating and ensures the stability of long-term operation. In addition, "reasonable price" is also a major highlight of our sales this time. Given its outstanding
| Specifications | Value |
|---|---|
| No. | 971214 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.971214
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Shandong China
