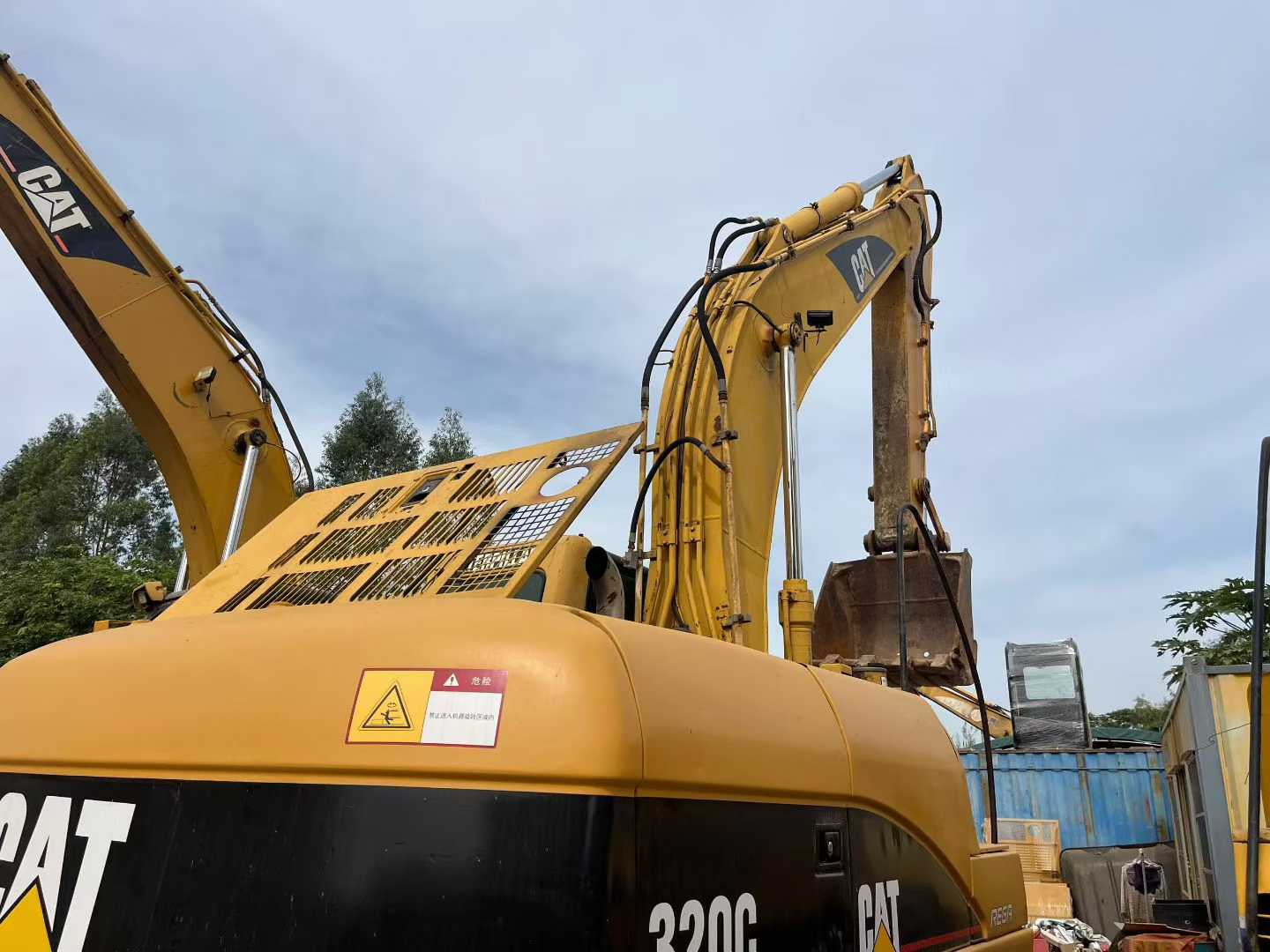

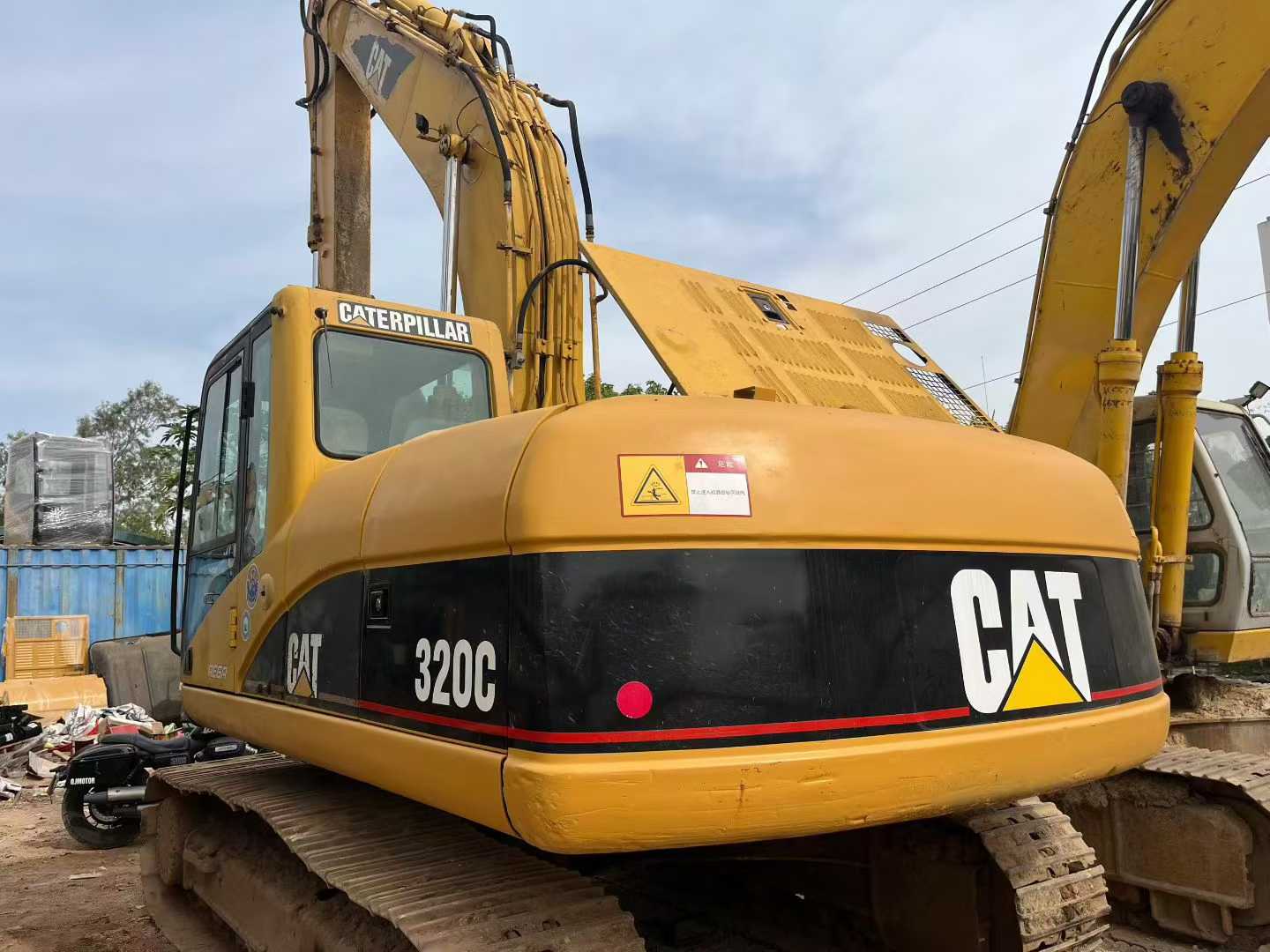

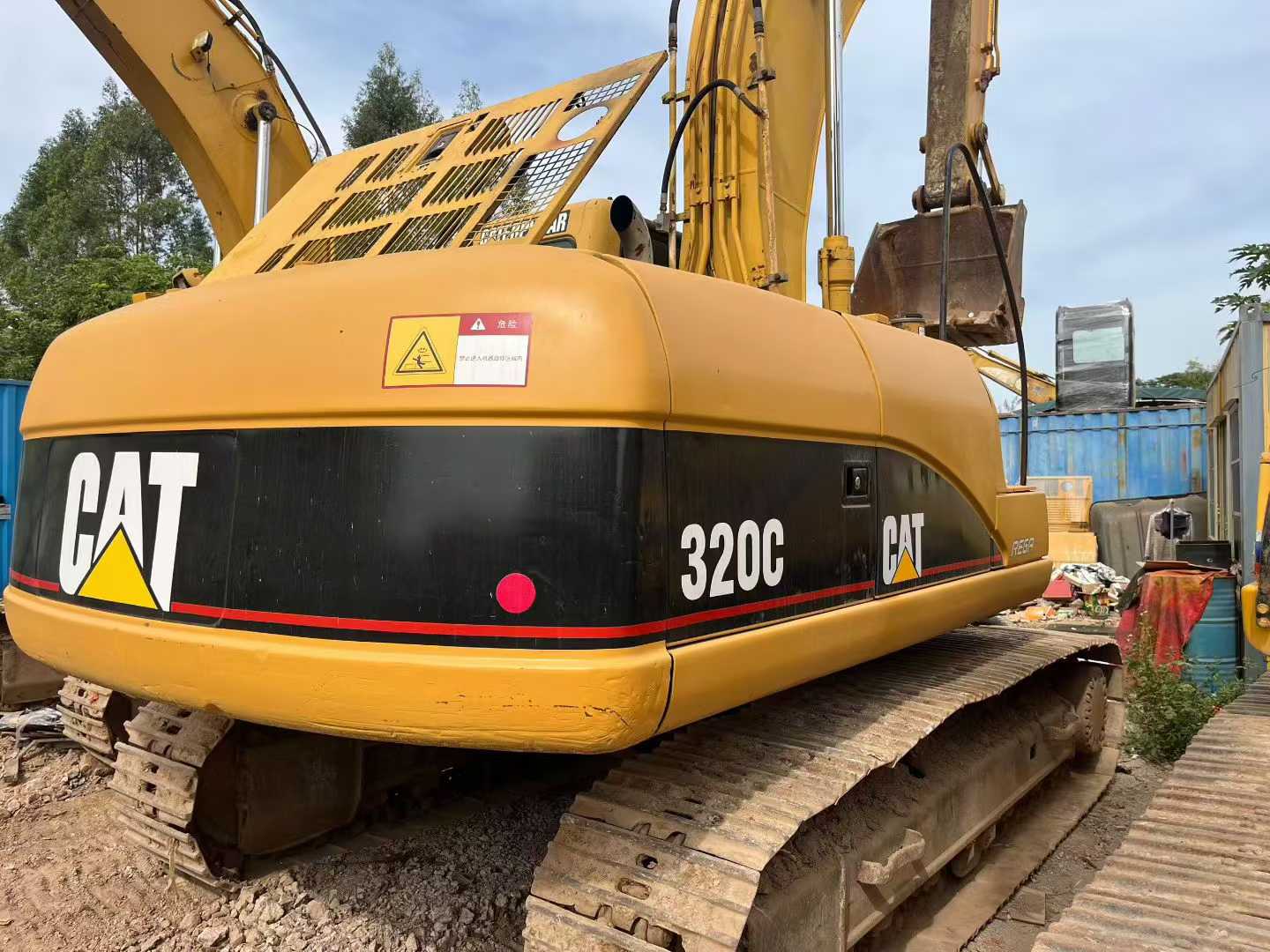

2016 Caterpillar 320C











Product Description

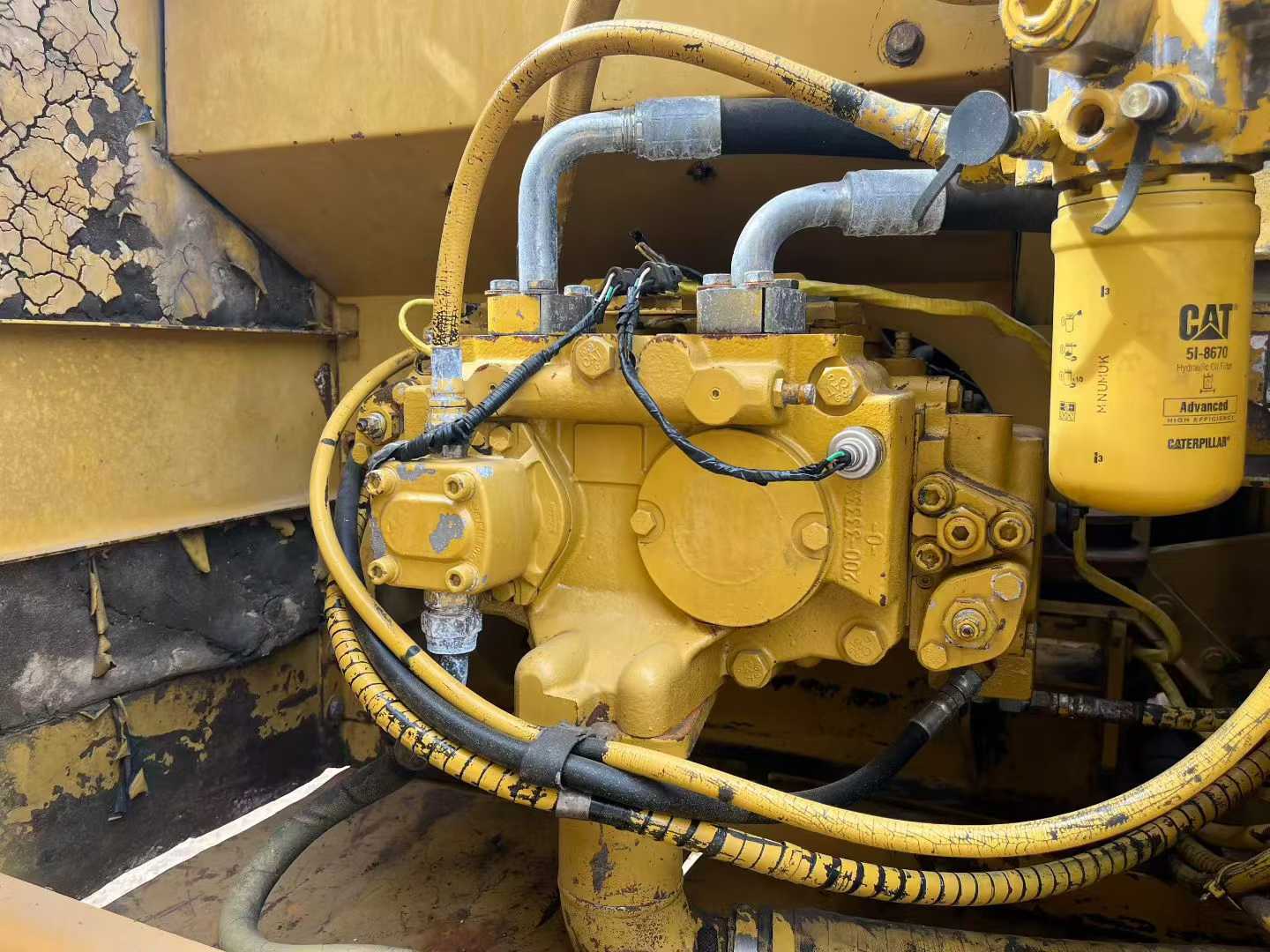

【 Caterpillar 320C Small, Medium and Cold Second-hand Excavator Dear customer, hello! We currently have a second-hand Caterpillar 320C small and medium cold excavator with excellent performance and in good condition for sale. Since its commissioning, this machine has accumulated a working time of only 5,000 hours, which is far lower than the average service life of similar equipment. Therefore, its overall mechanical condition is excellent and can meet your demand for efficient construction. In terms of the power system, this excavator is equipped with a powerful engine imported from Caterpillar, which features excellent fuel economy and stability. Even in harsh working environments, it can maintain stable output, ensuring worry-free long-term operation. In addition, the efficient cooling system design enables the engine to maintain a good operating condition even under high-temperature conditions, thereby extending its service life. The hydraulic system adopts advanced closed center load sensing technology, which not only responds quickly and sensitively but also operates more smoothly and accurately. Whether in complex working conditions such as excavation or loading, it can demonstrate outstanding performance. Meanwhile, thanks t
| Specifications | Value |
|---|---|
| No. | 971269 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

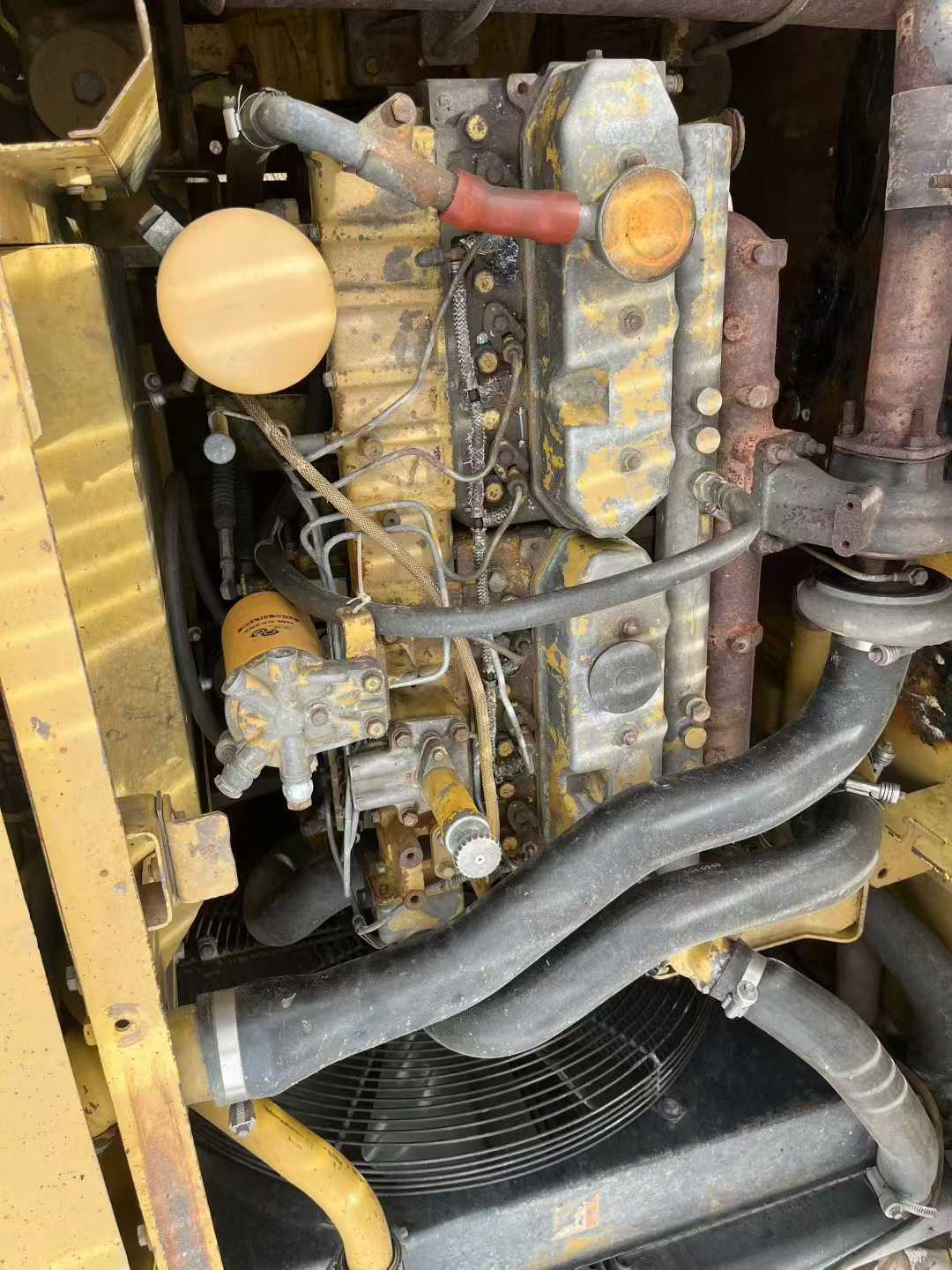

| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.971269
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangdong China
