HOME>>Find Excavators>>Caterpillar 320C

2016 Caterpillar 320C

1/9
Used Caterpillar 320C Excavator 2016 Model / 1

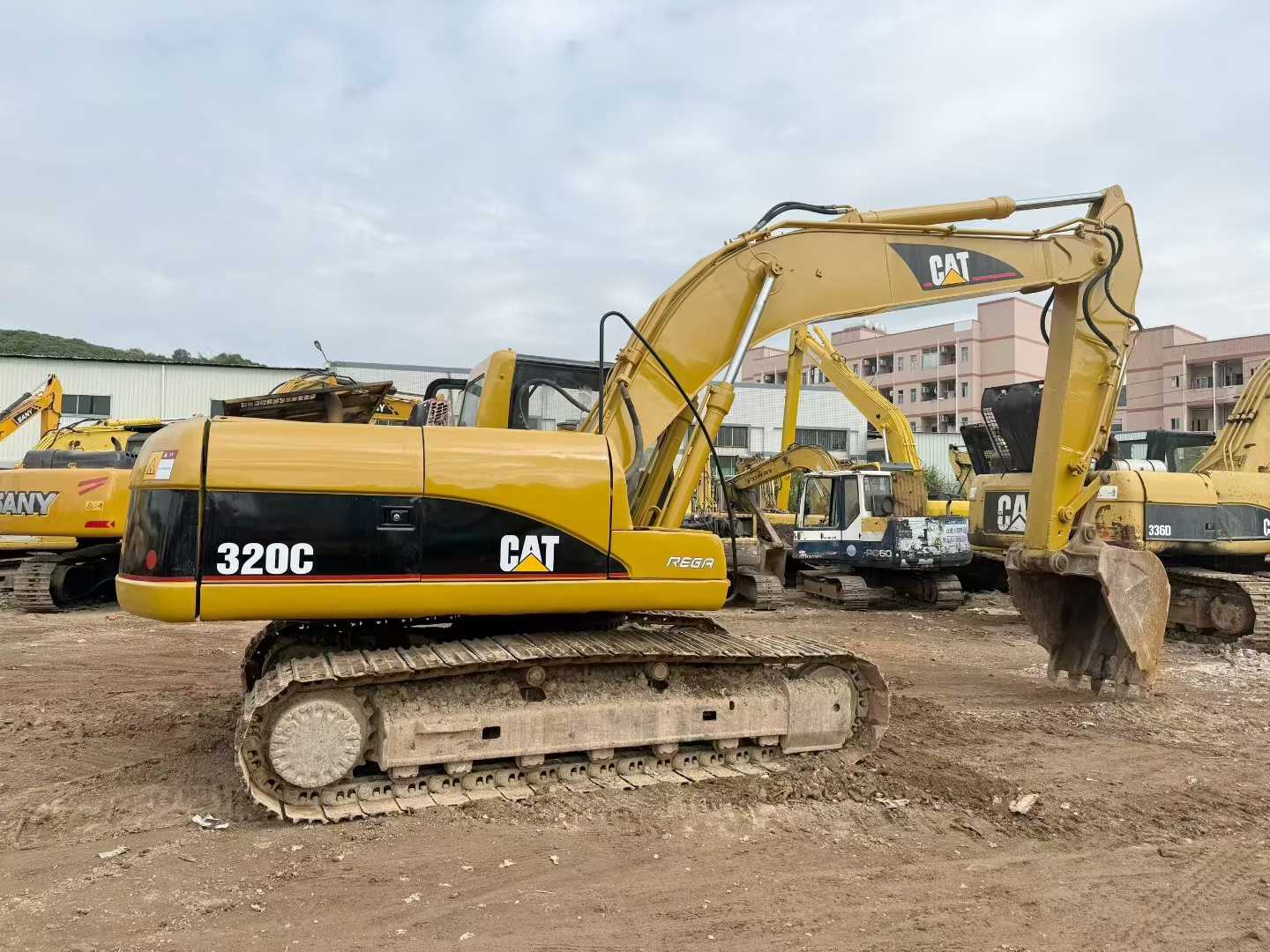

Used Caterpillar 320C Excavator 2016 Model / 2

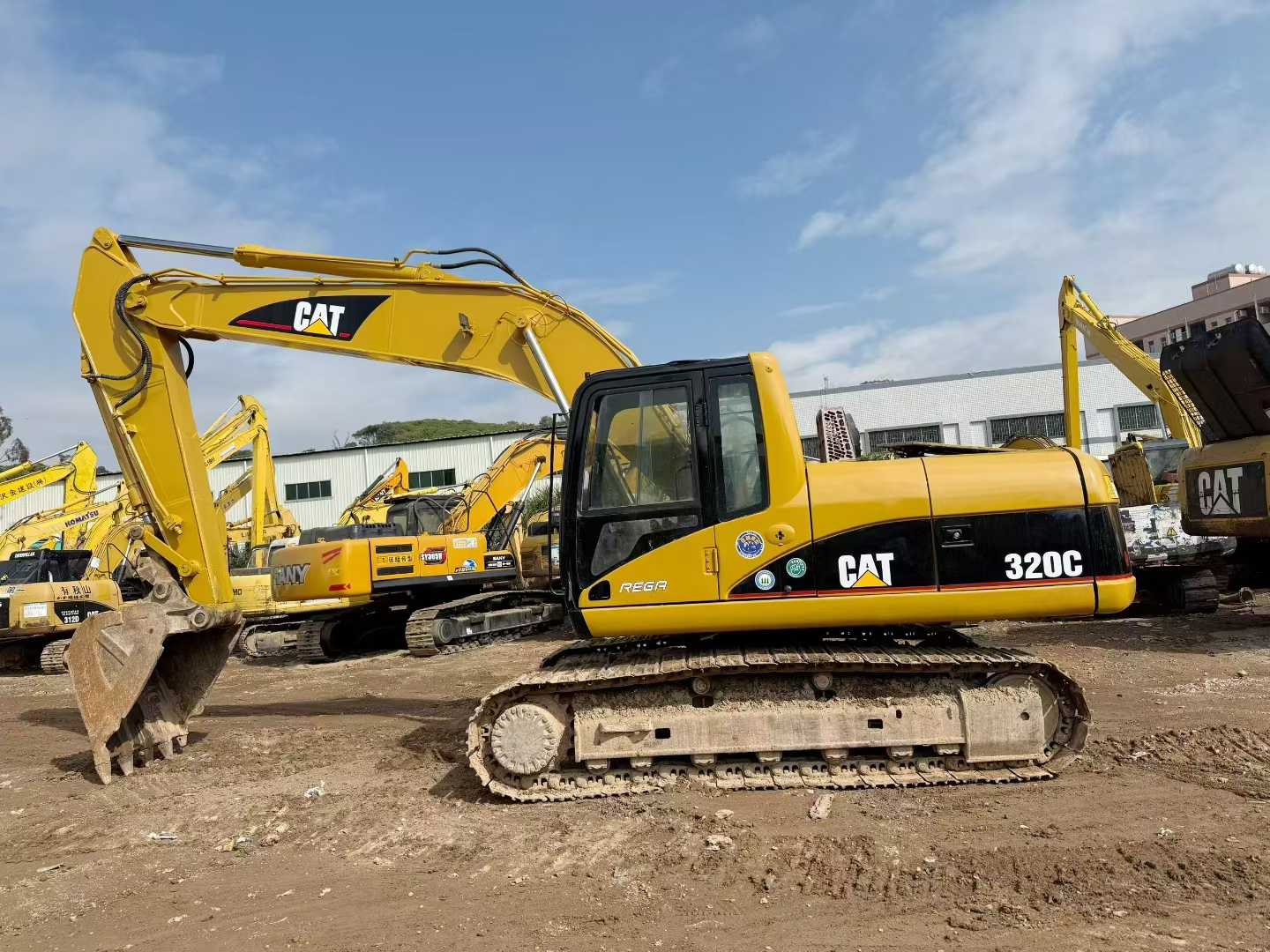

Used Caterpillar 320C Excavator 2016 Model / 3

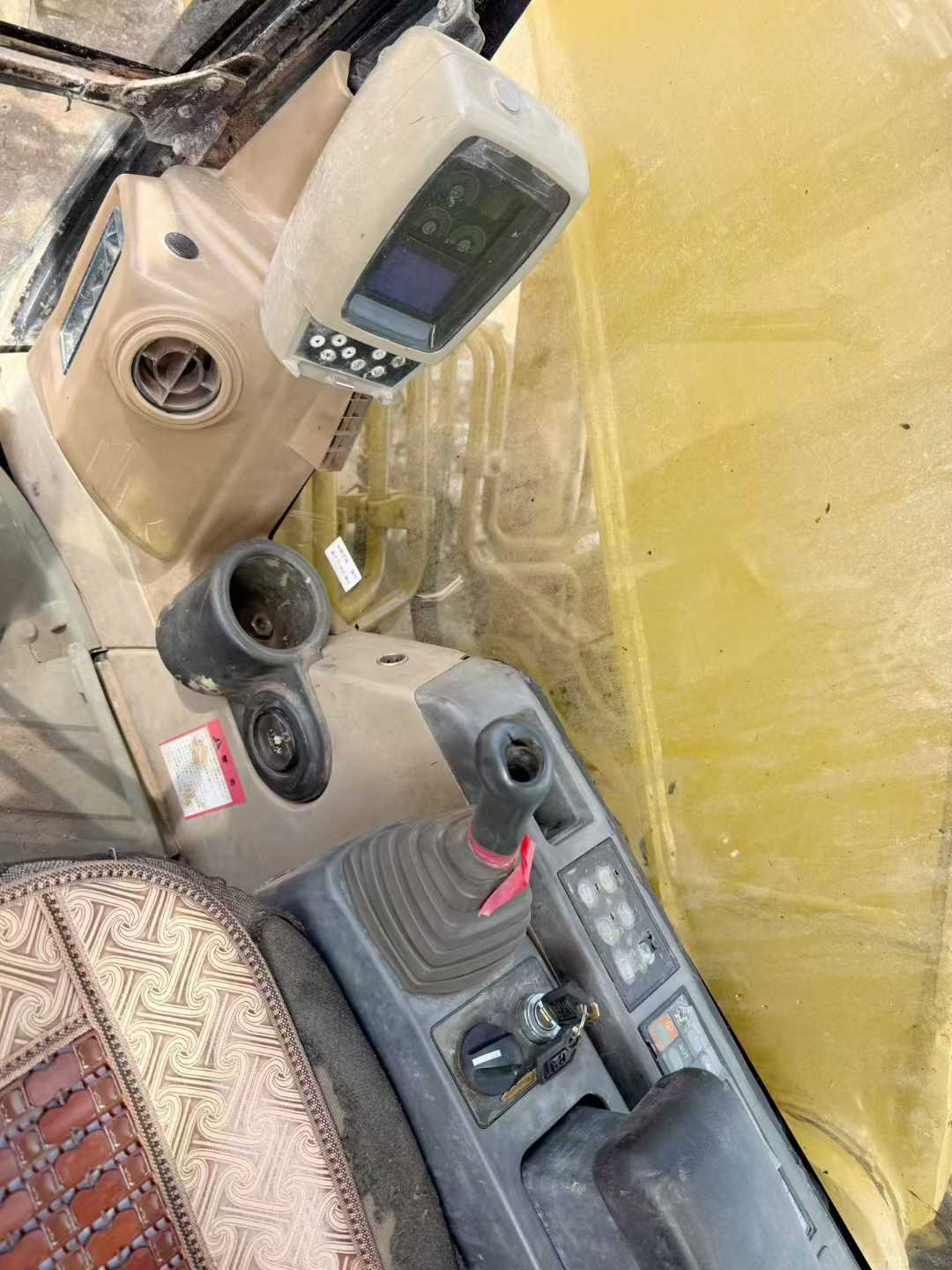

Used Caterpillar 320C Excavator 2016 Model / 4

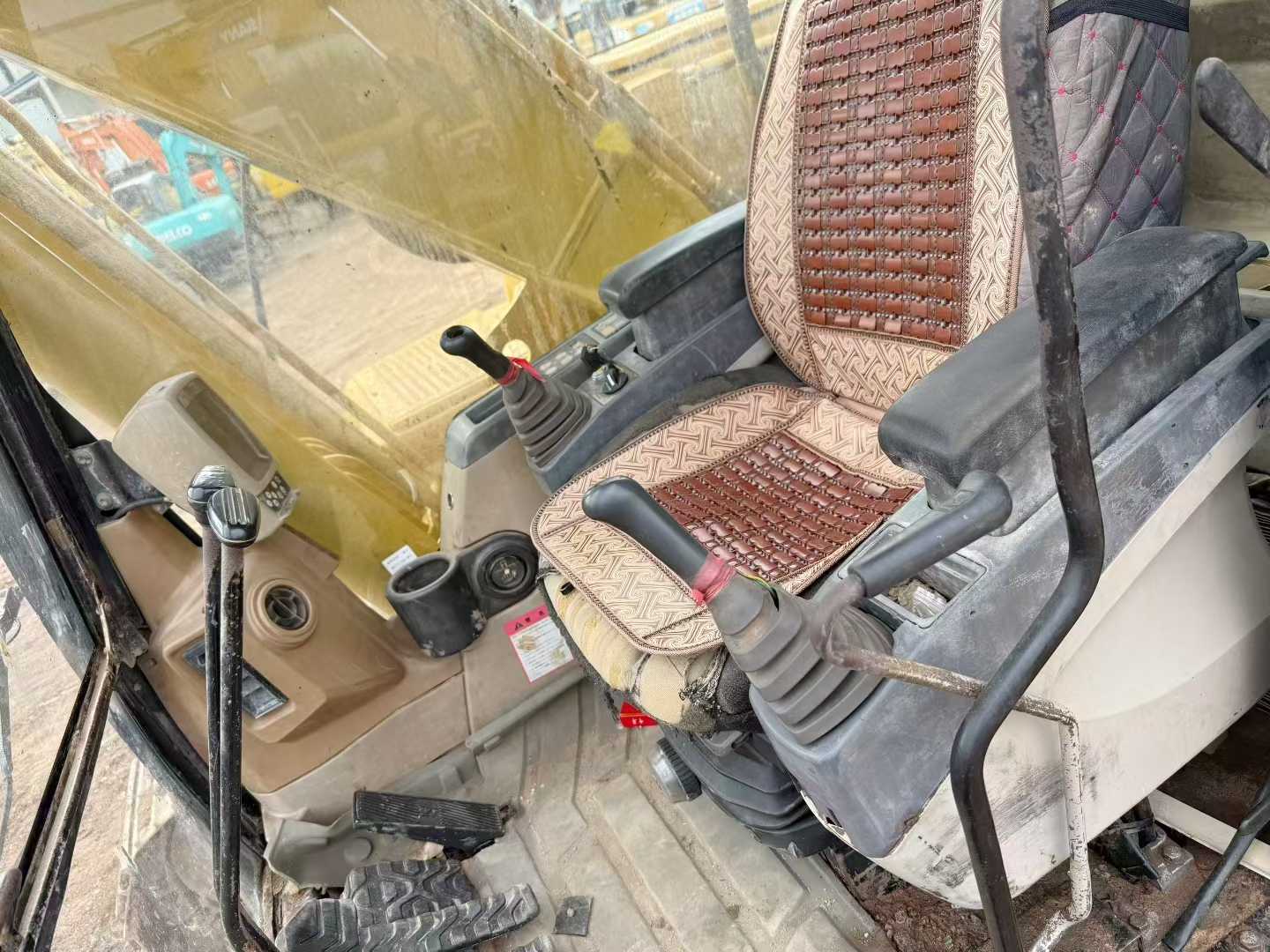

Used Caterpillar 320C Excavator 2016 Model / 5

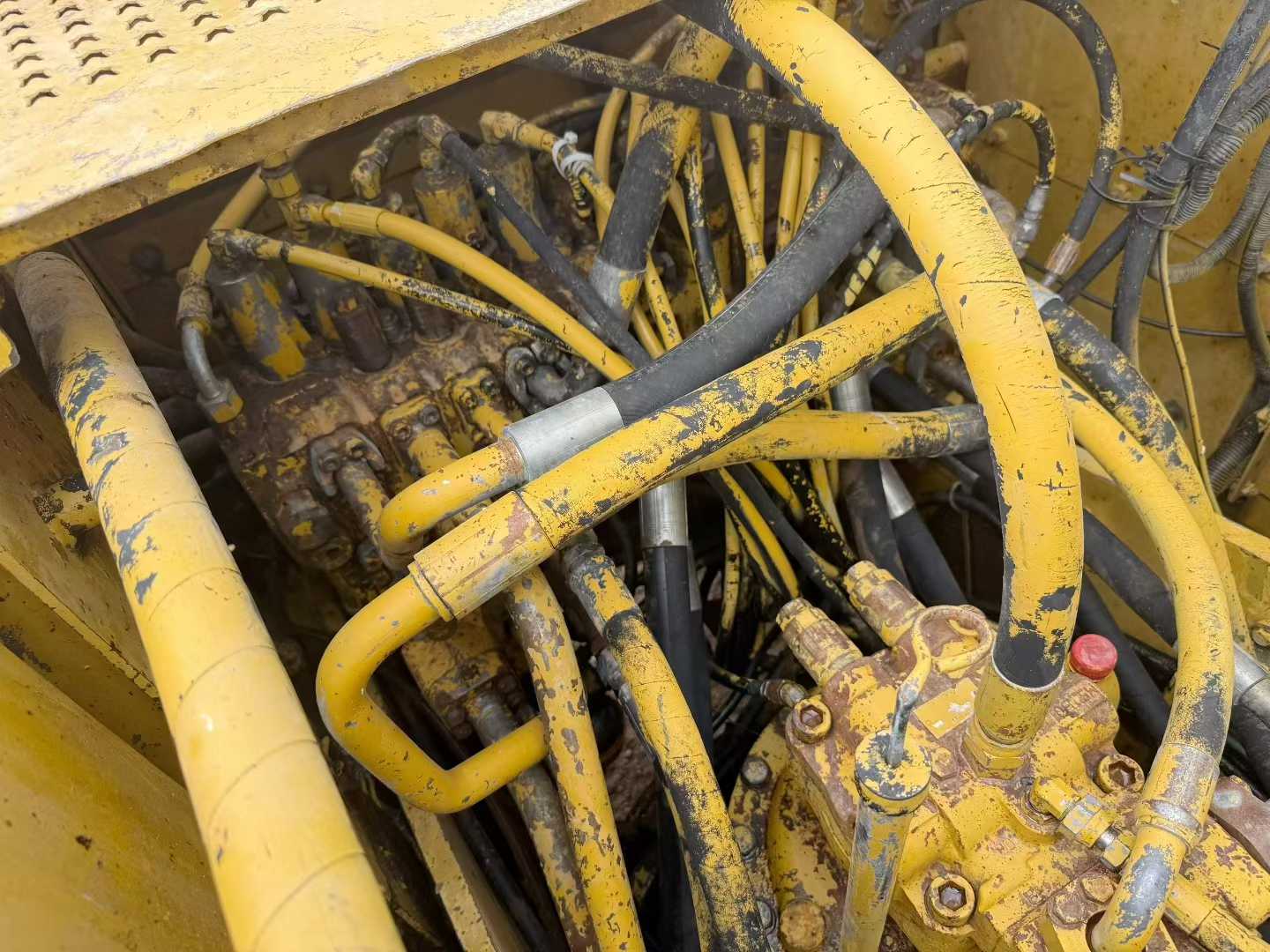

Used Caterpillar 320C Excavator 2016 Model / 6
Used Caterpillar 320C Excavator 2016 Model / 7

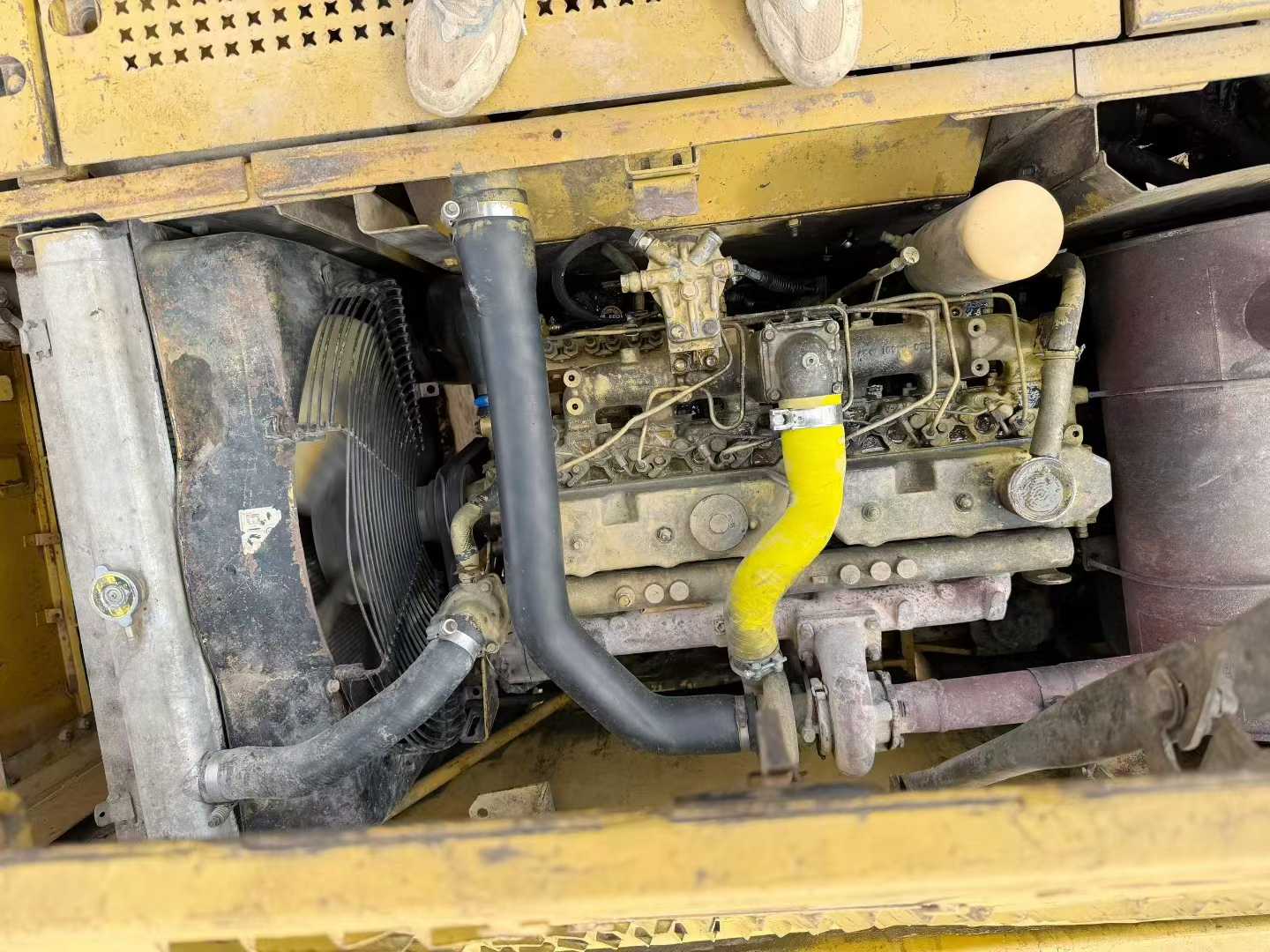

Used Caterpillar 320C Excavator 2016 Model / 8

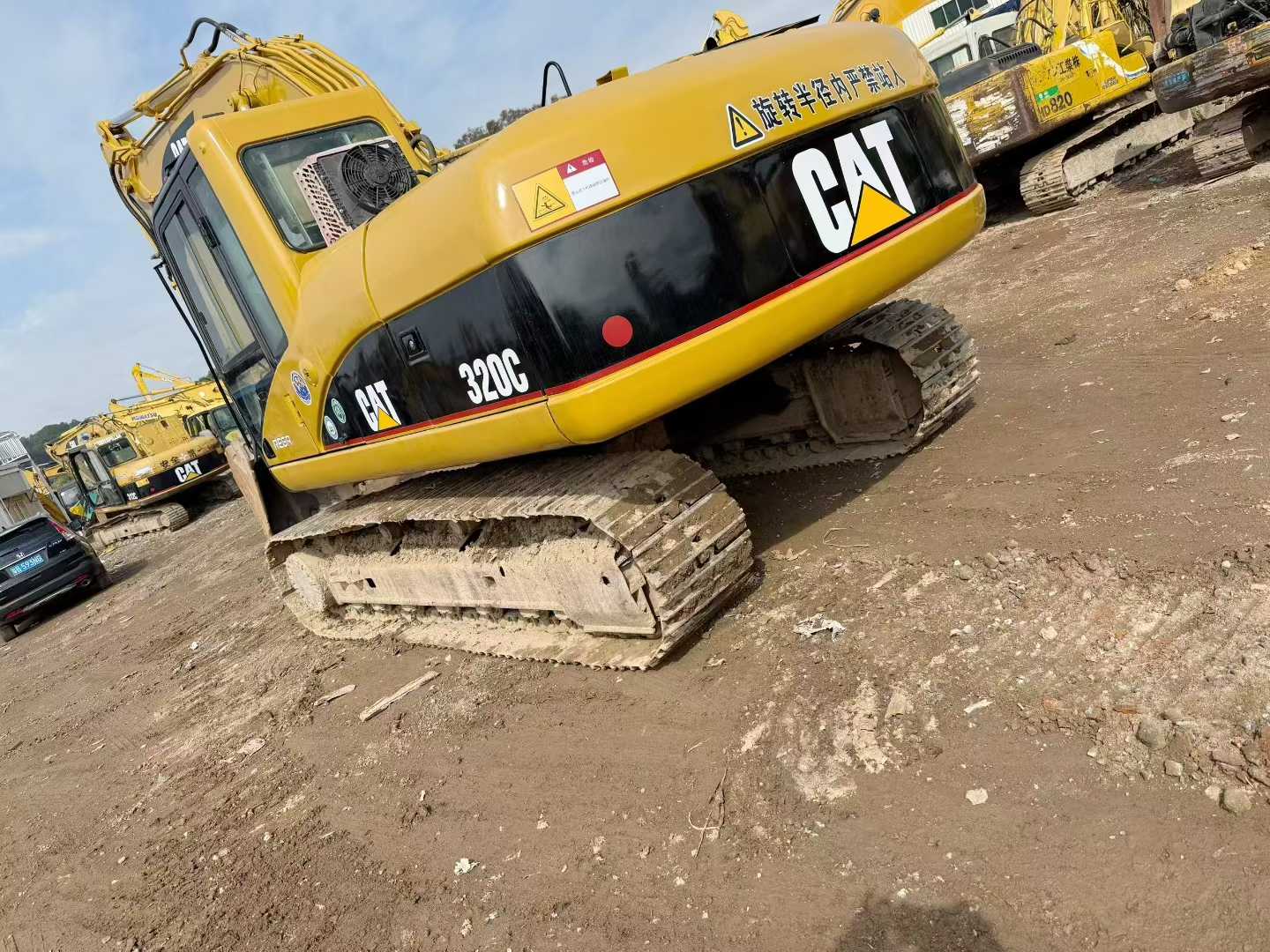

Used Caterpillar 320C Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 Second-hand Caterpillar 320C excavator This Caterpillar 320C excavator is a highly regarded star product in the market. It boasts outstanding performance and reliable quality. After comprehensive testing and maintenance by our professional team, all its functions are ensured to be in the best condition. This equipment not only has a neat appearance and is well maintained, but also is exempt from performance inspection and can be directly put into use on construction sites without worrying about any potential problems. The working time of this excavator is 4,500 hours. For a medium-sized excavator, this usage duration is just right. It not only ensures the good condition of the machine but also avoids excessive depreciation costs. In terms of the power system, it is equipped with a powerful and reliable Cat C6.6 engine, with a maximum output power of up to 110kW (approximately 148 horsepower), which can provide sufficient power support under various complex working conditions. Meanwhile, this engine also features excellent fuel economy and can effectively reduce operating costs. The hydraulic system adopts advanced negative flow control technology, making the operation more precise and smooth, and the respo

SpecificationsValue
No.971371
Tonnage (tons)20
Working weight (kg)21115
Bucket capacity (m³)0.8
Boom length (mm)5680
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar CAT 3066 ATAAC
Rated power (kw/rpm)110/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Ground specific pressure (Kpa)48.02
Rotation speed (rpm)11.5
Bucket digging force (kN)132
Rod digging force (kN)99
Travel speed (km/h)5.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)34.4
Rotary Hydraulic Circuit (Mpa)26
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)320
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)24
Hydraulic System (L)200
Total transport length (mm)9390
Total transport width (mm)2800
Total transport height (mm)3050
Full cab height (mm)3050
Minimum ground clearance (mm)460
Back end turning radius (mm)2770
Total track length (mm)4070
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging depth (mm)6550
Maximum excavation height (mm)9440
Maximum unloading height (mm)6770
Maximum vertical digging depth (mm)5440
Maximum excavation radius of stop surface (mm)9710
see more

Overview

No.971371

Brand Name:

Caterpillar

Model Number:

320C

Year:

2016

Location:

Guangdong China
