2016 Caterpillar 320C

1/9

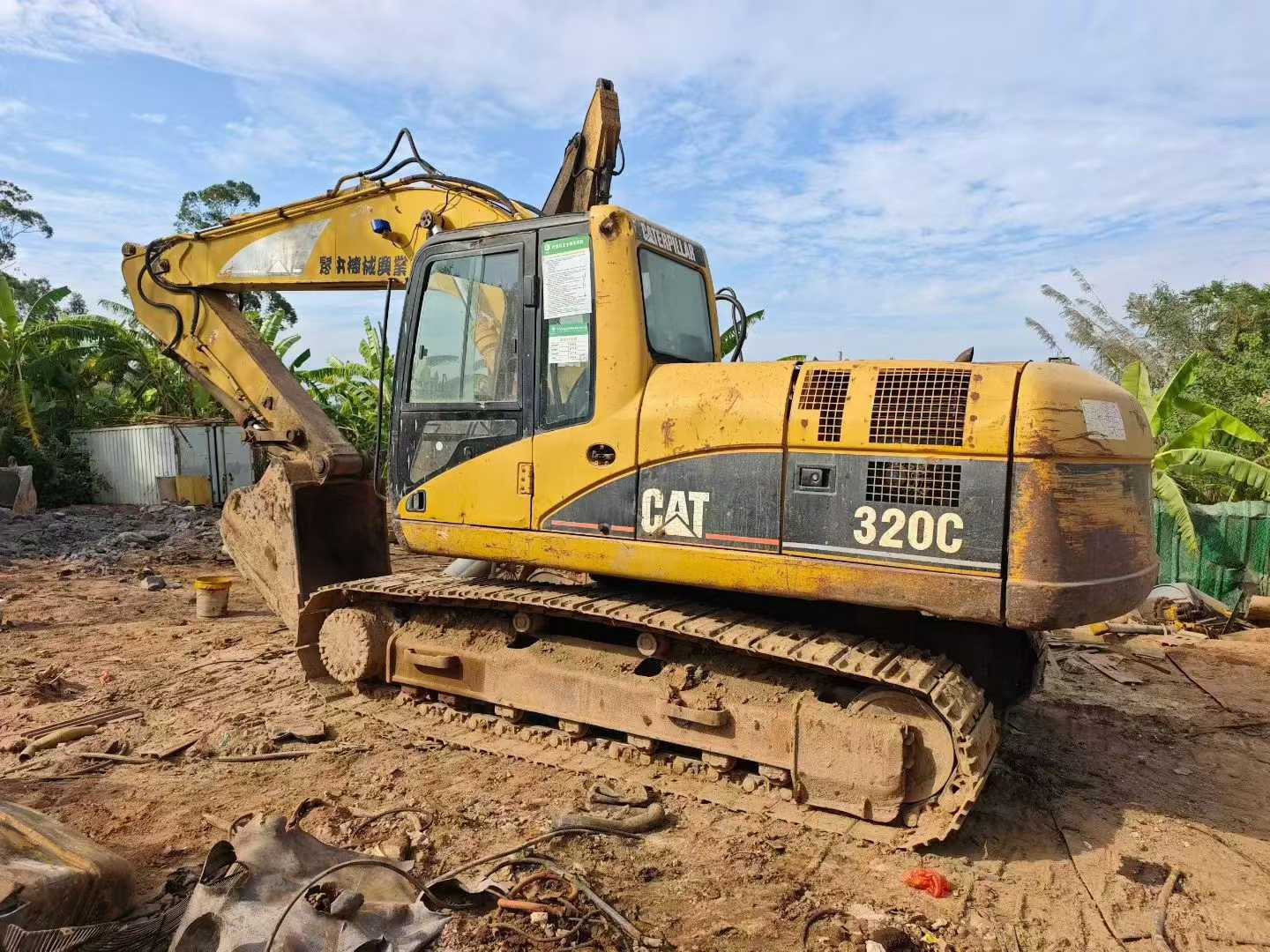

Used Caterpillar 320C Excavator 2016 Model / 1

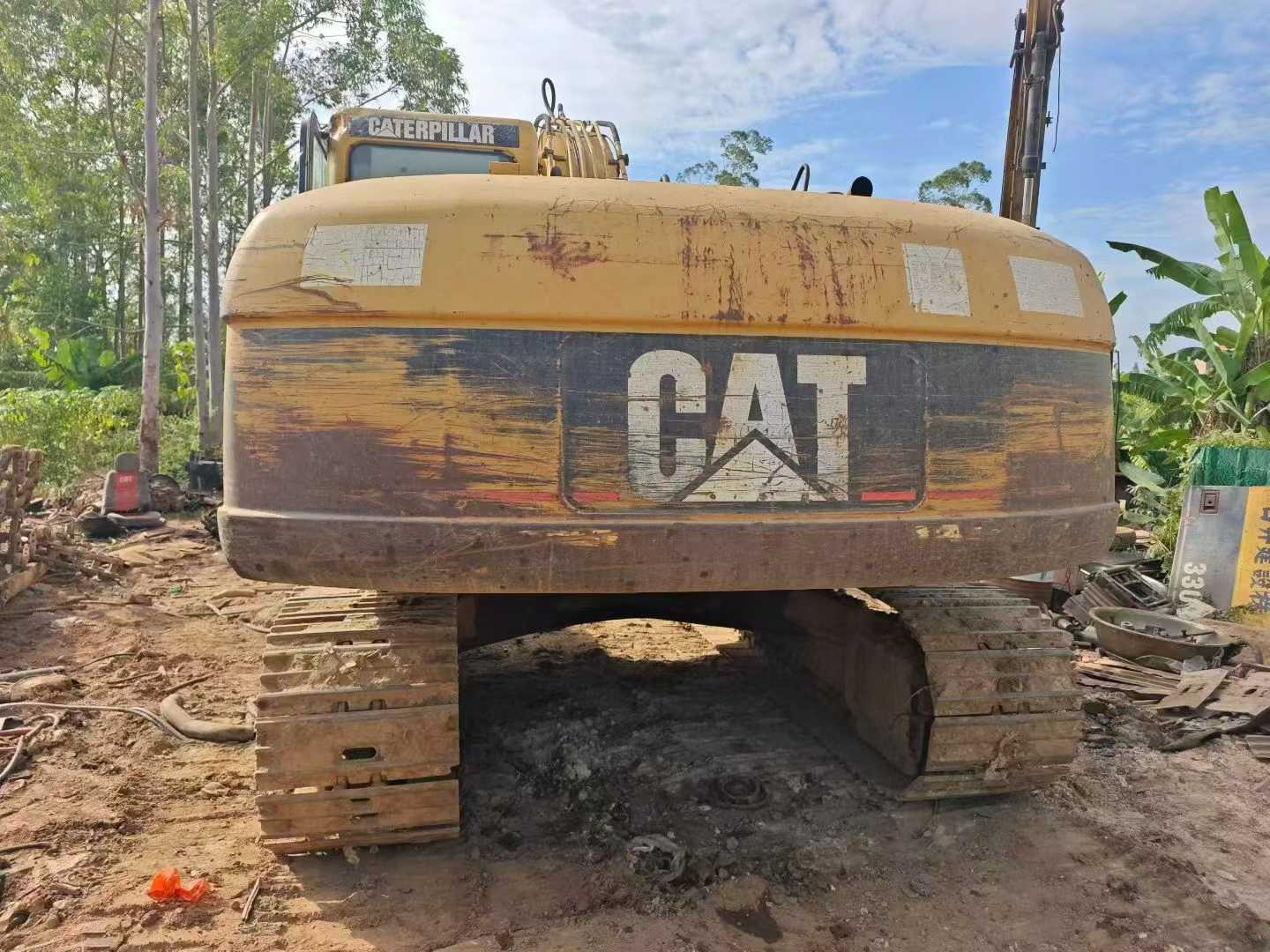

Used Caterpillar 320C Excavator 2016 Model / 2

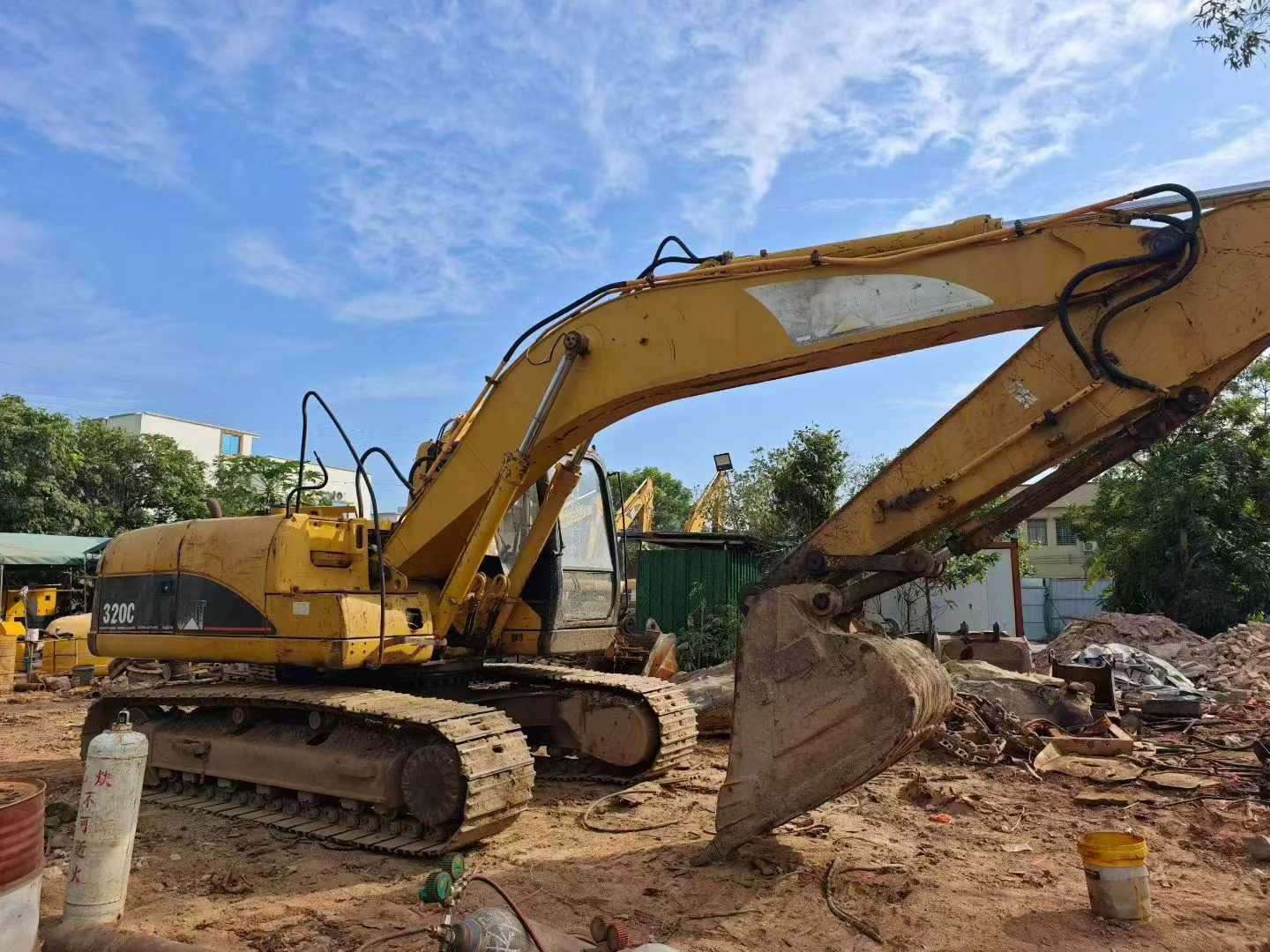

Used Caterpillar 320C Excavator 2016 Model / 3

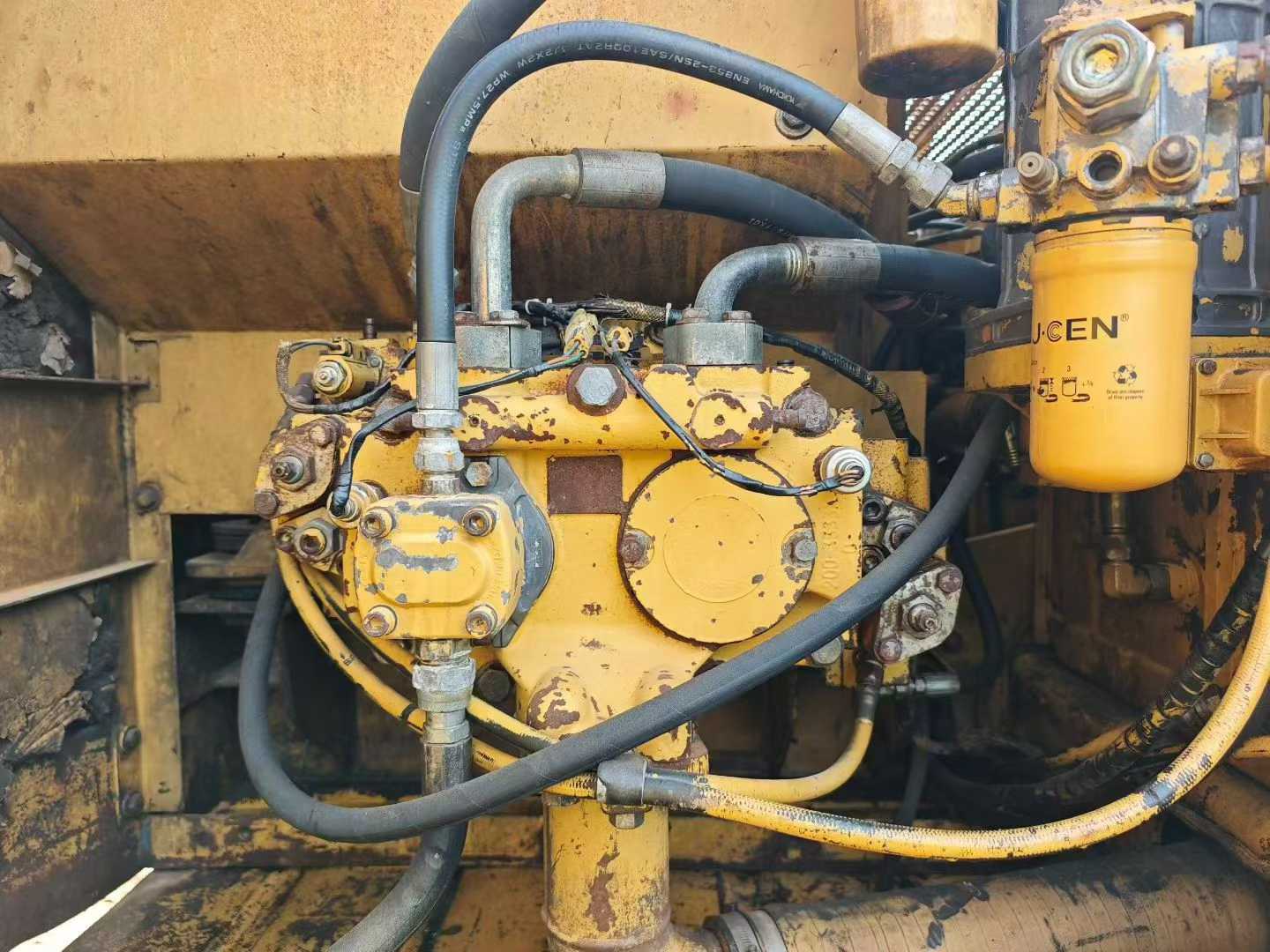

Used Caterpillar 320C Excavator 2016 Model / 4

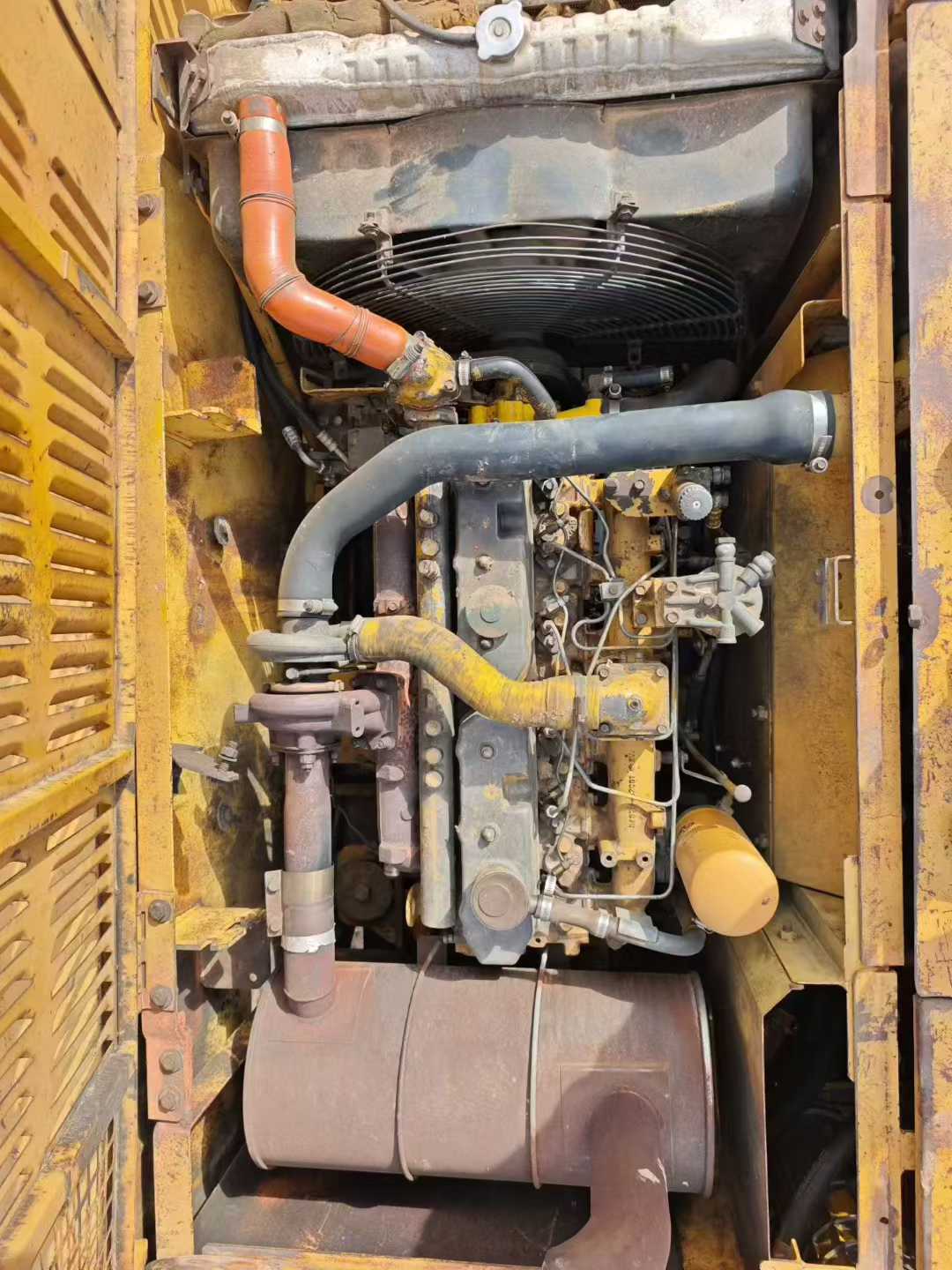

Used Caterpillar 320C Excavator 2016 Model / 5

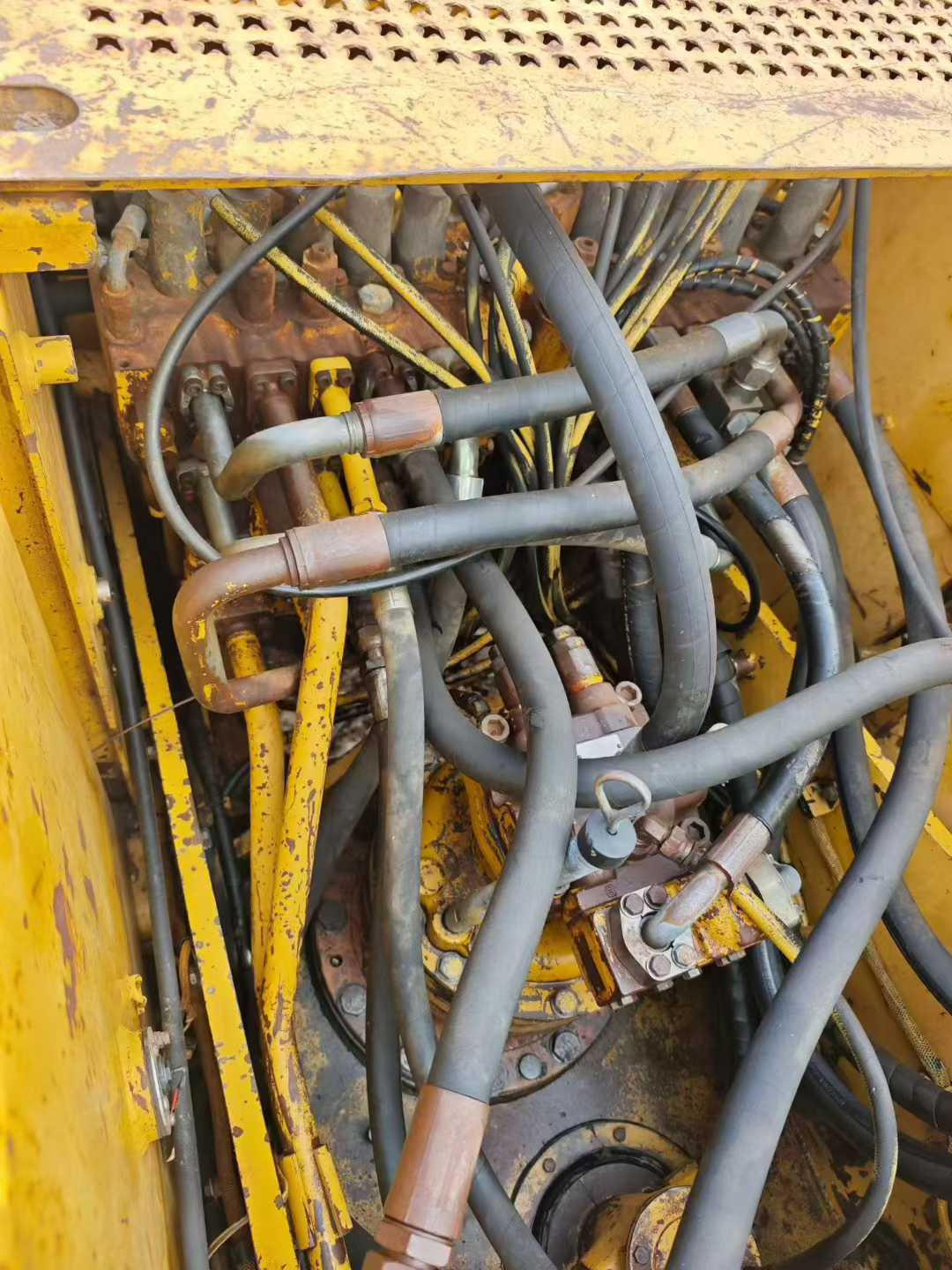

Used Caterpillar 320C Excavator 2016 Model / 6

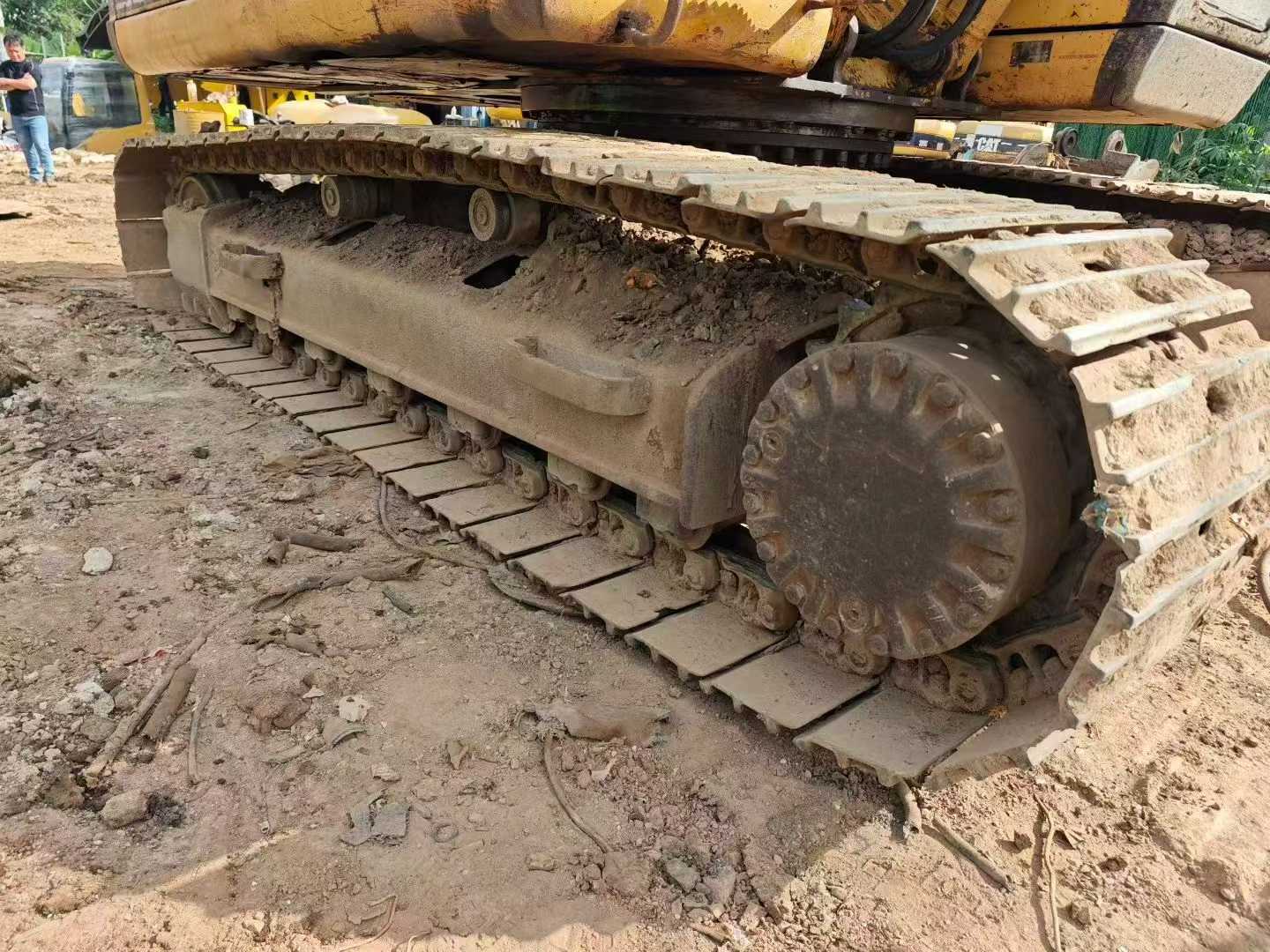

Used Caterpillar 320C Excavator 2016 Model / 7

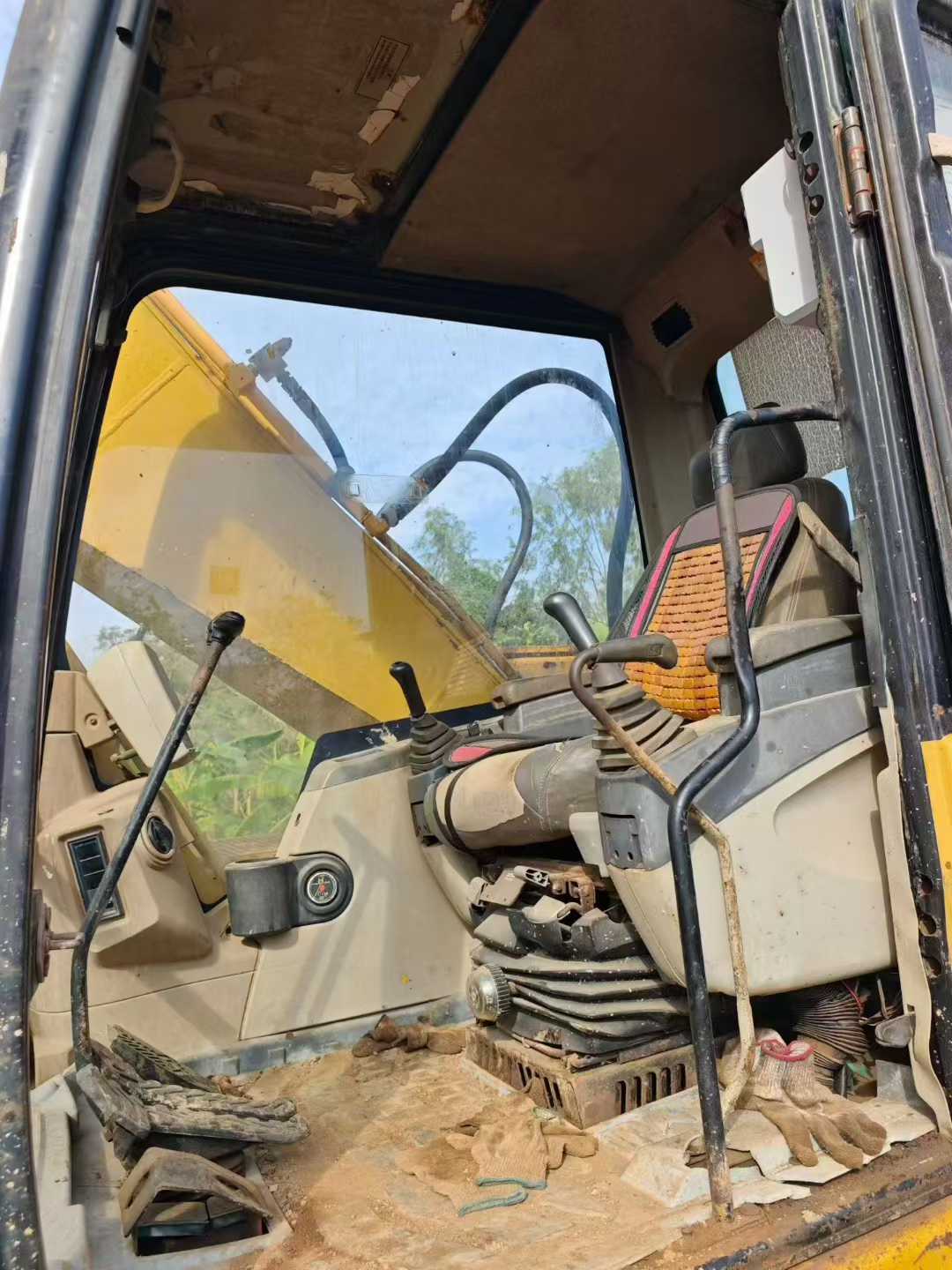

Used Caterpillar 320C Excavator 2016 Model / 8

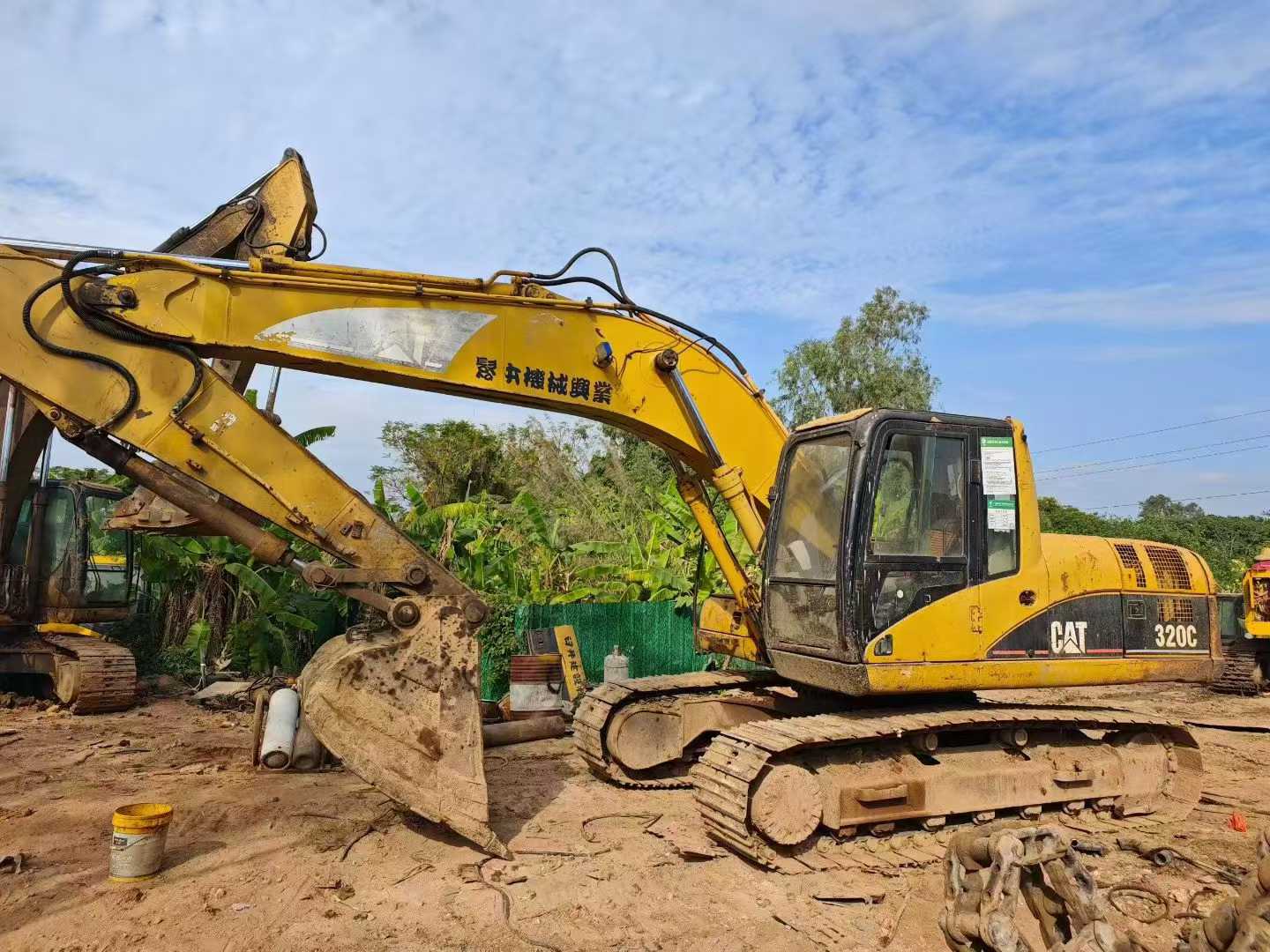

Used Caterpillar 320C Excavator 2016 Model / 9

Product Description

【 Premium Recommendation 】 Second-hand Caterpillar 320C excavator. This machine has a neat appearance and is well maintained. It is a rare high-quality second-hand excavator in the market. Its working time is only 4,500 hours, which is far shorter than the average service life of similar models. This means that it still has a long service life and good working condition. In terms of the power system, this 320C is equipped with a highly efficient engine developed by Caterpillar itself, which is powerful and has excellent fuel economy. Even under harsh working conditions, it can maintain stable output and meet various construction requirements. Meanwhile, this engine also features low noise and low emissions, meeting modern environmental protection requirements. The hydraulic system adopts an advanced closed-loop design, ensuring smooth operation and response speed. Whether it is excavation or loading operations, they can all be handled with ease, greatly improving work efficiency. In addition, the large-capacity water tank design provides a guarantee for long-term continuous operation, reduces the inconvenience caused by frequent water refilling, and enhances the overall operation experience. Finally, "Surprise during the test drive"

SpecificationsValue
No.972650
Tonnage (tons)20
Working weight (kg)21115
Bucket capacity (m³)0.8
Boom length (mm)5680
Rod length (mm)2900
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCaterpillar CAT 3066 ATAAC
Rated power (kw/rpm)110/1800
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 130
Displacement (L)6.4
Ground specific pressure (Kpa)48.02
Rotation speed (rpm)11.5
Bucket digging force (kN)132
Rod digging force (kN)99
Travel speed (km/h)5.5
Maximum flow of main pump (l/min)205
Traveling Hydraulic Circuit (Mpa)34.4
Rotary Hydraulic Circuit (Mpa)26
Working Hydraulic Circuit (Mpa)34.3
Pilot Oil Circuit (MPa)4.12
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 1030
Bucket rod cylinders - Number × diameter × stroke (mm)1-140 x 1430
Boom cylinders - Number × diameter × stroke (mm)2-120 x 1260
Fuel Tank (L)320
Hydraulic Tank (L)120
Engine Oil changes (L)30
Coolant (L)24
Hydraulic System (L)200
Total transport length (mm)9390
Total transport width (mm)2800
Total transport height (mm)3050
Full cab height (mm)3050
Minimum ground clearance (mm)460
Back end turning radius (mm)2770
Total track length (mm)4070
Track gauge (mm)2200
Track plate width (mm)600
Total track width (mm)2800
Track ground length (mm)3260
Maximum digging depth (mm)6550
Maximum excavation height (mm)9440
Maximum unloading height (mm)6770
Maximum vertical digging depth (mm)5440
Maximum excavation radius of stop surface (mm)9710
see more

Overview

No.972650

Brand Name:

Caterpillar

Model Number:

320C

Year:

2016

Location:

Guangdong China
