2016 Caterpillar 320C











Product Description

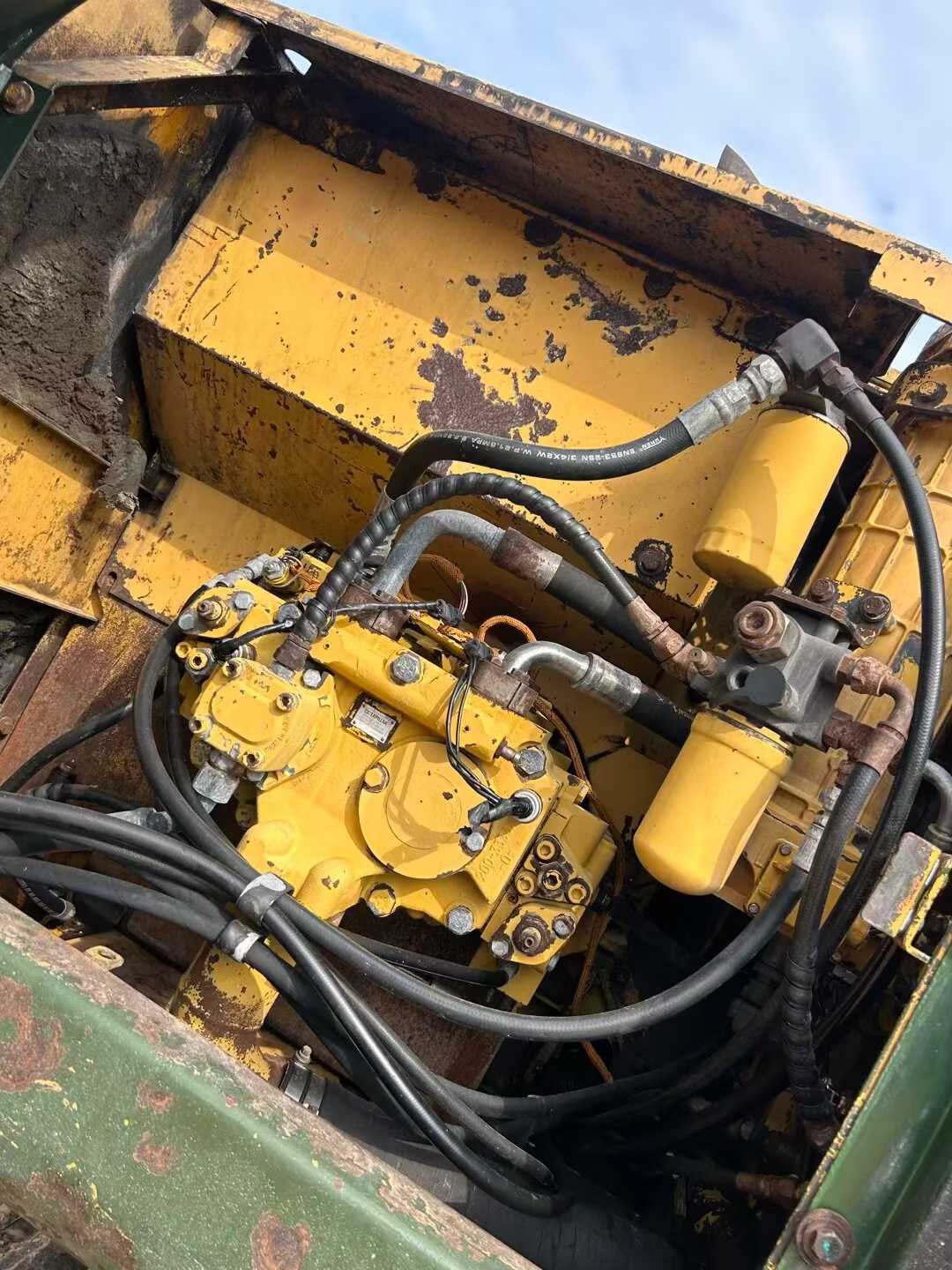

The top-quality Caterpillar 320C excavator features outstanding performance, goes directly to the construction site, and is priced affordably. This equipment has undergone strict testing and has a working time of only 6,000 hours. It is in excellent condition and suitable for various construction environments. In terms of the power system, this excavator is equipped with a powerful Cat C7 ACERT engine, with a rated power of 140 kilowatts (190 horsepower), featuring excellent fuel economy and reliability. The engine has been meticulously maintained to ensure stable and efficient power output under all operating conditions. The hydraulic system is a major highlight of the Caterpillar 320C, equipped with an efficient dual-pump system and advanced hydraulic motors, ensuring smooth and precise operation. Both the hydraulic pump and the motor have undergone professional maintenance and are in good operating condition, capable of meeting the requirements of high-intensity operations. In addition, the optimized design of the hydraulic system enables the entire machine to perform outstandingly in operations such as excavation and loading, significantly enhancing work efficiency. The main advantages include: The powerful power system ensures
| Specifications | Value |
|---|---|
| No. | 976081 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.976081
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guangdong China
