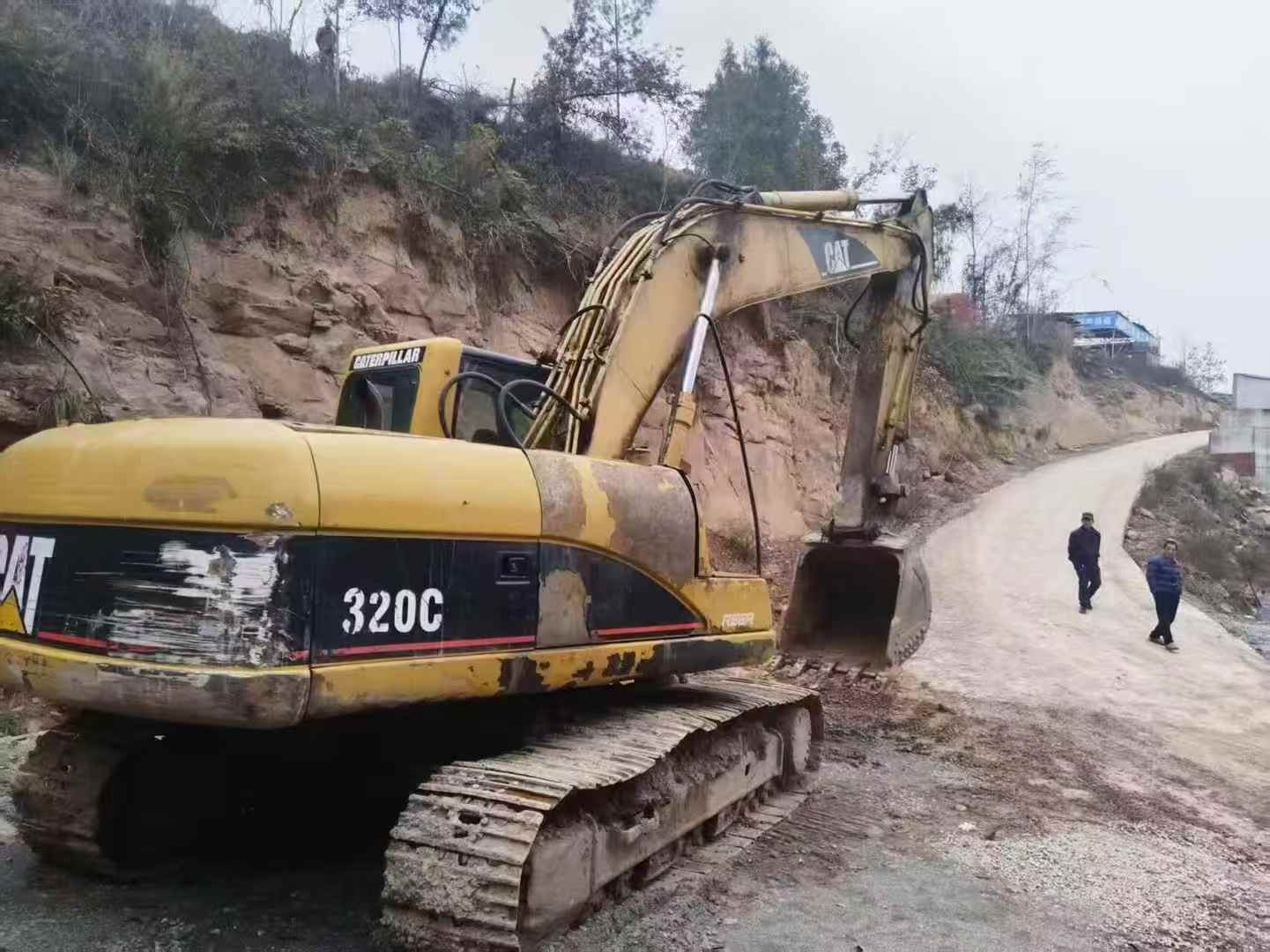

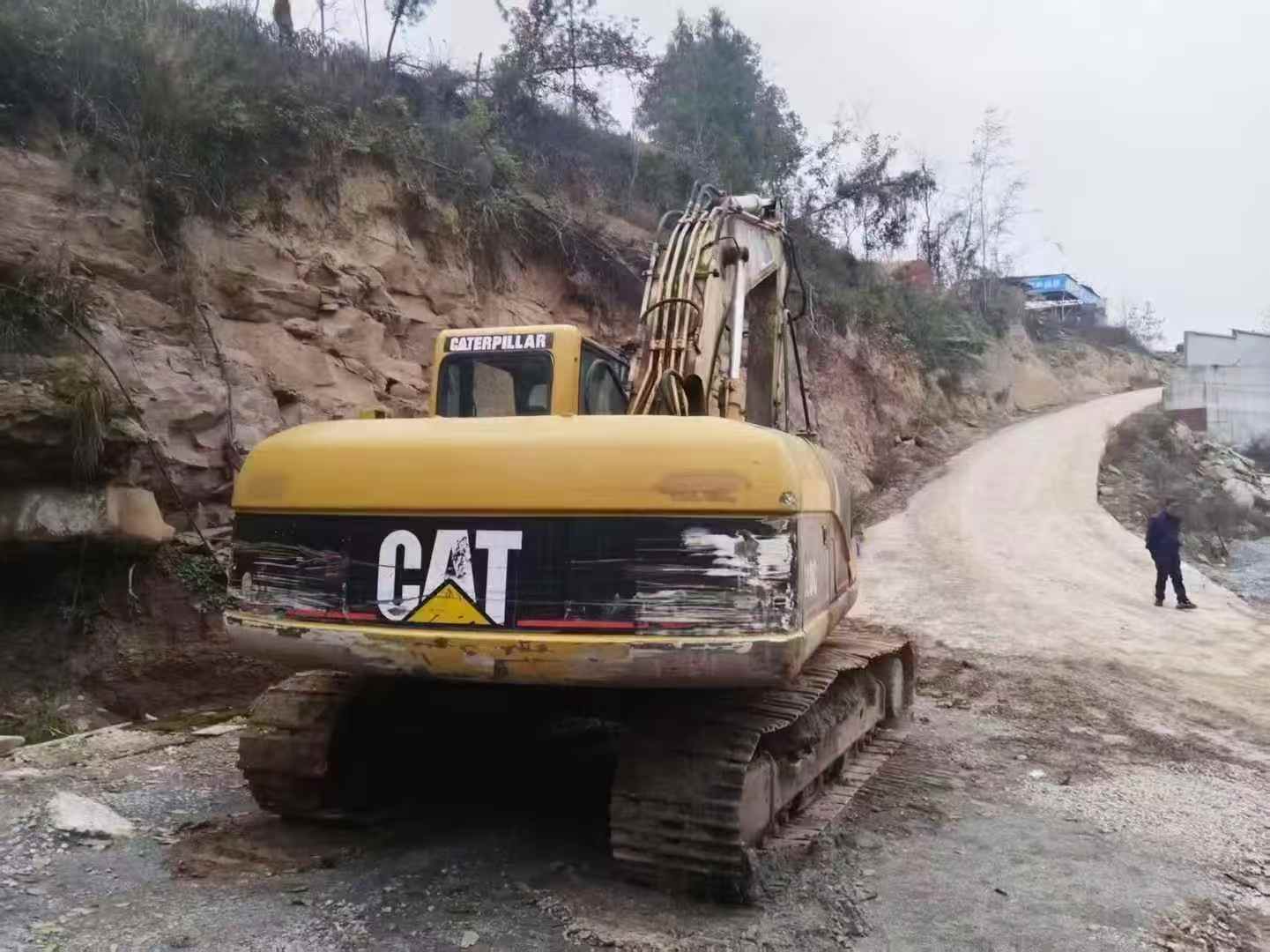

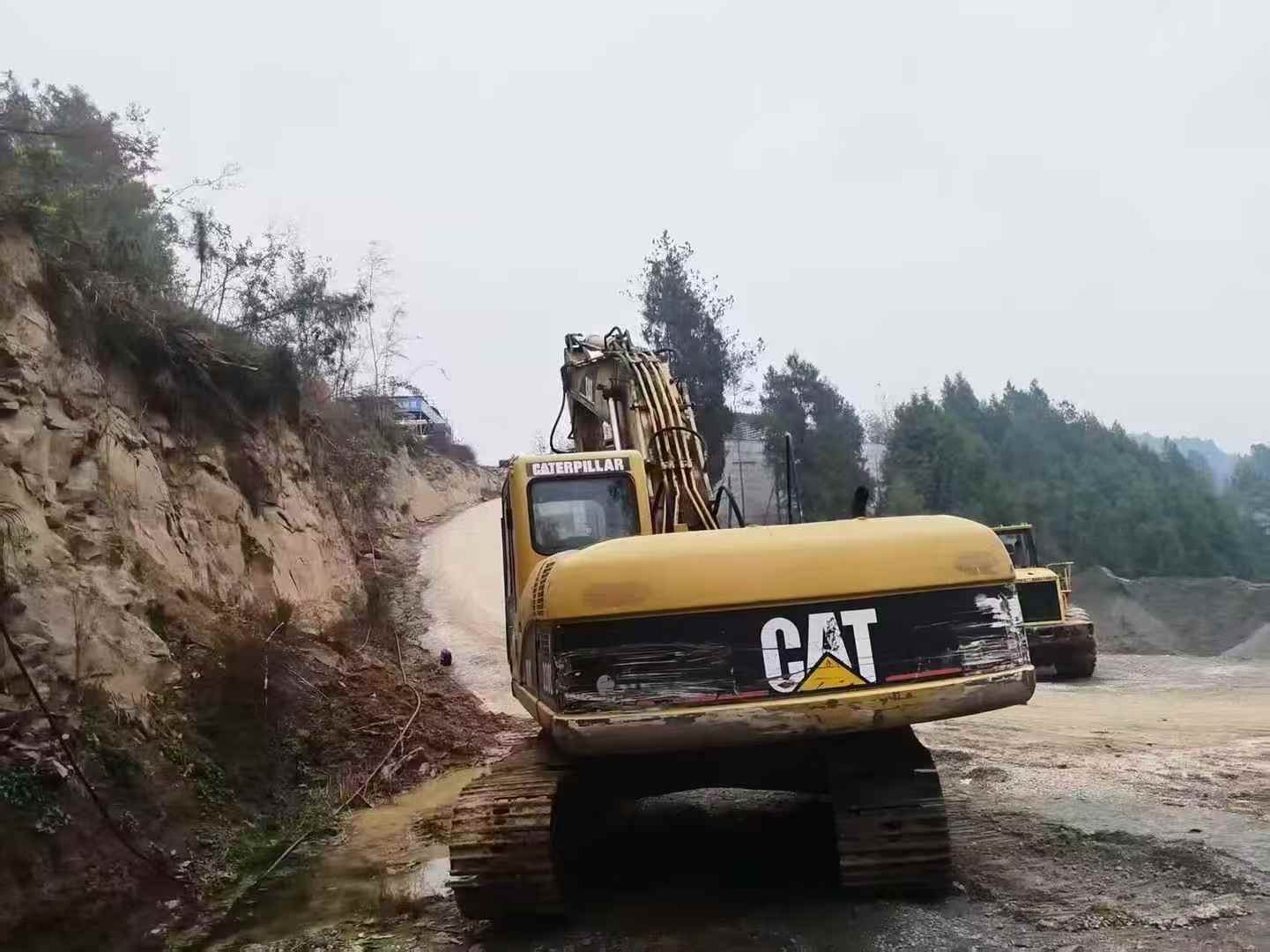

2016 Caterpillar 320C







Product Description
The second-hand Caterpillar 320C excavator has a total working time of 67,000 hours. This equipment is highly praised in the market for its outstanding performance and reliability. Equipped with the highly efficient Caterpillar C7 engine, it is expected to deliver 140 horsepower, ensuring strong power output and smooth operation under various complex working conditions. This engine not only boasts excellent fuel economy but also features low emissions, meeting modern environmental protection requirements. In terms of the hydraulic system, it is equipped with an advanced variable piston pump and a high-quality hydraulic motor combination, which can achieve precise control and efficient operation. This hydraulic configuration enables the 320C to perform outstandingly in tasks such as excavation and loading, especially demonstrating its advantages when precise operations are required. In addition, the robust and durable design combined with the feature of easy maintenance significantly reduces the long-term operating costs for users. As a time-tested classic model, the Caterpillar 320C excavator stands out among many similar products with its powerful digging force, excellent operational flexibility and reliable stability. Whether it is
| Specifications | Value |
|---|---|
| No. | 977611 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.977611
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guizhou China
