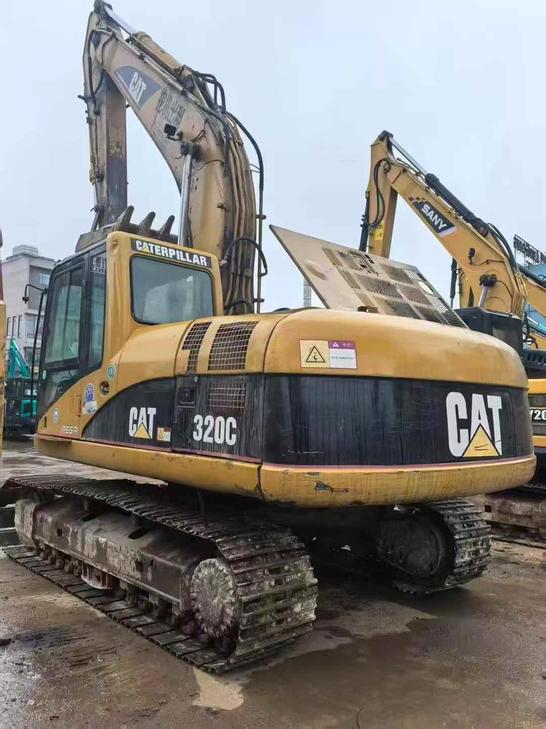

2016 Caterpillar 320C








Product Description
The Caterpillar 320C excavator, with a working time of only 63,000 hours, enjoys a high reputation in the market for its outstanding performance and reliability. This device is equipped with a powerful Cat C7 ACERT engine, providing a power output of up to 140kW (approximately 187 horsepower), ensuring an efficient and stable working state under various complex working conditions. Advanced electronic fuel injection technology not only enhances fuel efficiency but also significantly reduces emissions, meeting strict environmental protection standards. In terms of the hydraulic system, the Caterpillar 320C is equipped with high-performance variable piston pumps and high-precision control valve groups, which can achieve precise and rapid operation responses. Meanwhile, the high-torque hydraulic motor it adopts, in combination with the reinforced walking device, enables the machine to easily handle various terrain challenges even under heavy load conditions. In addition, the spacious and comfortable cab design, intuitive and user-friendly operation interface, as well as comprehensive safety protection measures all provide an excellent working environment for the operator. As a classic model that has been tested by the market for a long t
| Specifications | Value |
|---|---|
| No. | 978964 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.978964
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Guizhou China
