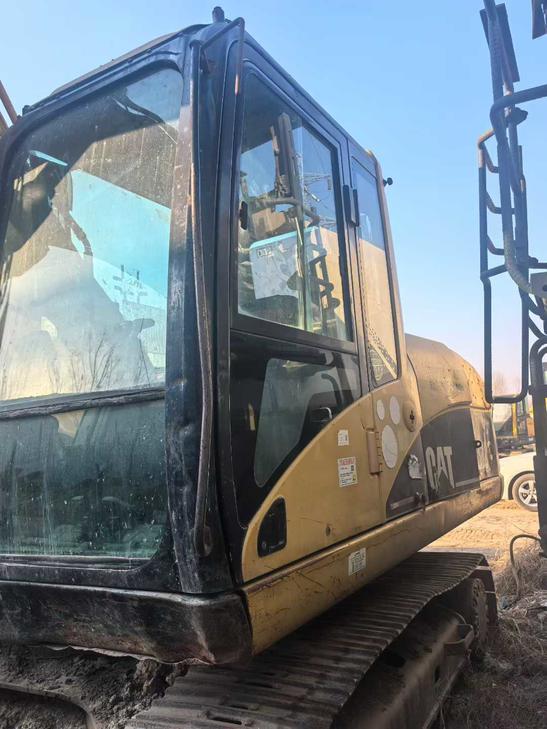

2016 Caterpillar 320C











Product Description
【 Premium Recommendation 】 Second-hand Caterpillar 320C excavator, carefully selected for you who pursue efficiency and stability. This device has an estimated working time of only 6,000 hours and is in the prime of its mechanical performance, making it a reliable assistant in your engineering projects. In terms of power, this machine is equipped with an original Caterpillar C7.1 inline six-cylinder turbocharged engine, with a rated power of up to 140 kilowatts. While ensuring strong output, it pays more attention to fuel economy, effectively controlling your operating costs. Whether working in plains or mountainous areas, it can easily handle all kinds of complex working conditions. The hydraulic system adopts an advanced closed center load sensitive design, equipped with a high-flow main pump and a high-precision control valve group, ensuring smooth operation and rapid response. Meanwhile, the optimized hydraulic motor can offer a smoother operating experience and maintain excellent working efficiency even under full load. In addition, this excavator also has the following major highlights: The cab is spacious and comfortable, with a wide field of vision. The operation interface is humanized in layout, so you won't feel tired even
| Specifications | Value |
|---|---|
| No. | 979305 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.979305
Brand Name:
CaterpillarModel Number:
320CYear:
2016
Location:
Jiangsu China
